FUZE PAR Z120 IP

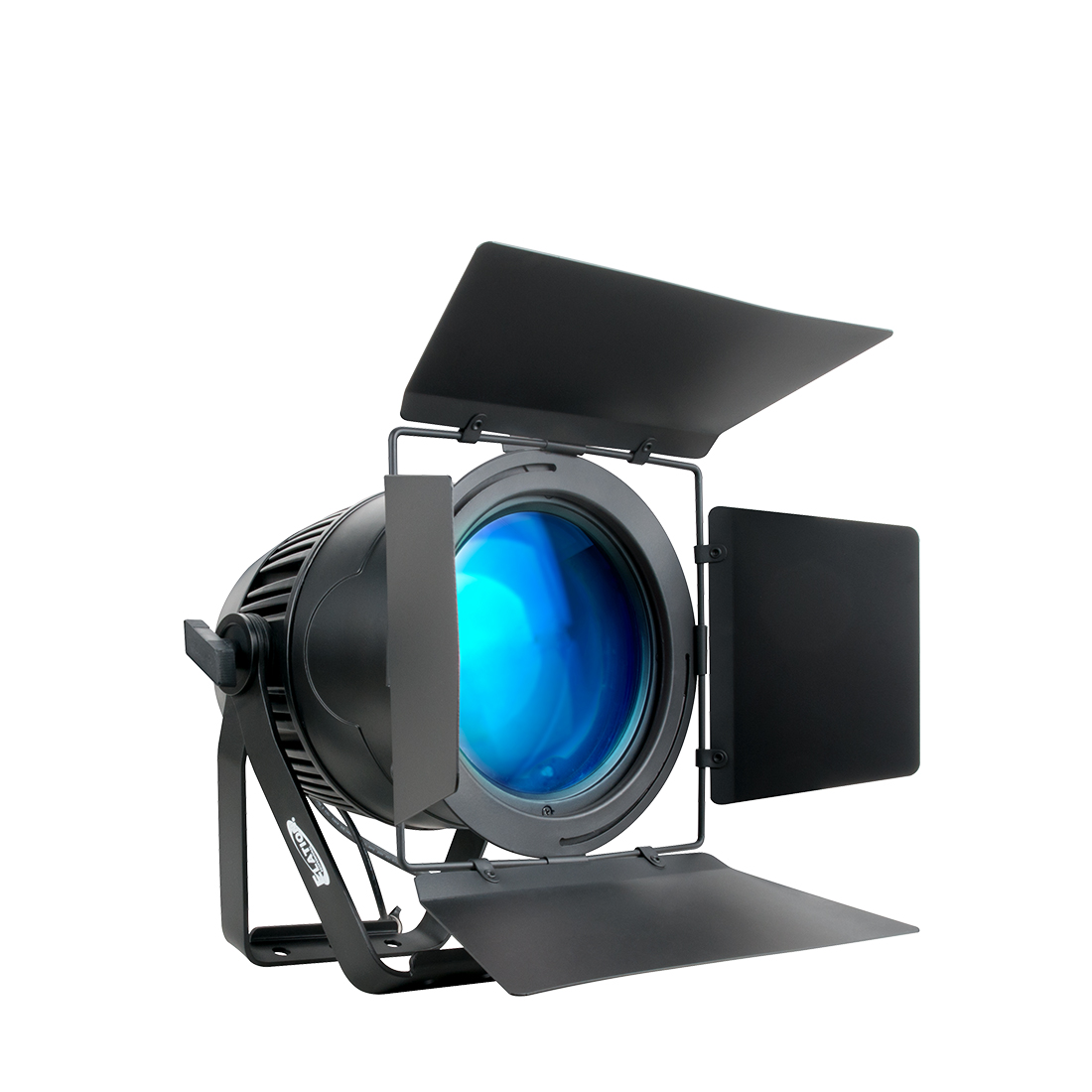

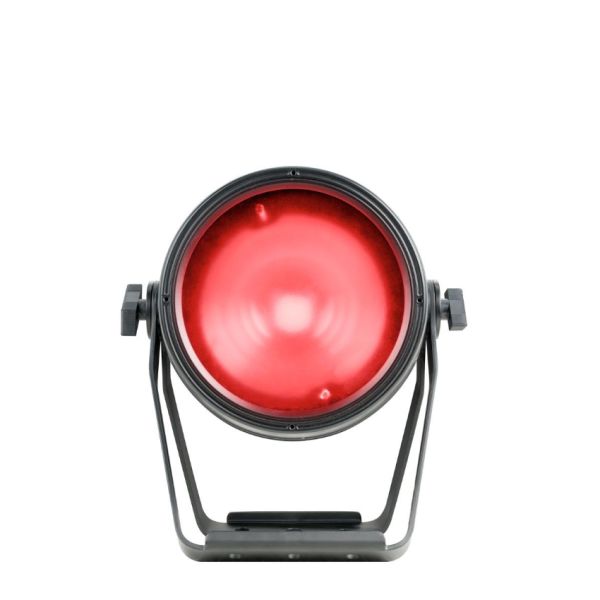

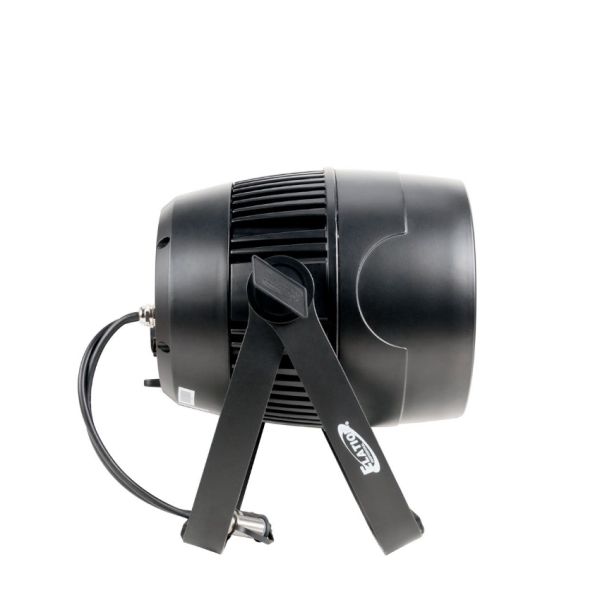

The IP65 rated FUZE PAR Z120 IP™ is a single source par luminaire with a 120W Quad Color RGBW COB LED. Features 7° to 55° motorized zoom, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, IP rated 5pin XLR and IP65 Locking Power Cable in/out connections, LCD menu display with 4 touch button control panel, dual adjustable yokes, multiple unit power linking, flicker free operation for TV and FILM, a multi-voltage universal auto switching power supply (110-240v), and removable gel frame and barn doors included.

Technical Data

FEATURES

IP65 Rated
120W RGBW COB LED Par Luminaire
7° to 55° Motorized Zoom Range
RGBW Color Mixing
Dual Adjustable Yokes
Multiple Unit Power Linking
Flicker Free Operation for Broadcast TV and Film

SOURCE

120W RGBW COB LED
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.*

PHOTOMETRIC DATA

9,112 LUX 847 FC @3m (9.8’) (7° Full ON)
428 LUX 40 FC @3m (9.8’) (55° Full ON)

COLOR

RGBW

EFFECTS

RGBW Color Mixing
7° - 55° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros

CONTROL / CONNECTIONS

12 DMX Channel Modes (13 Total Channels)
4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)

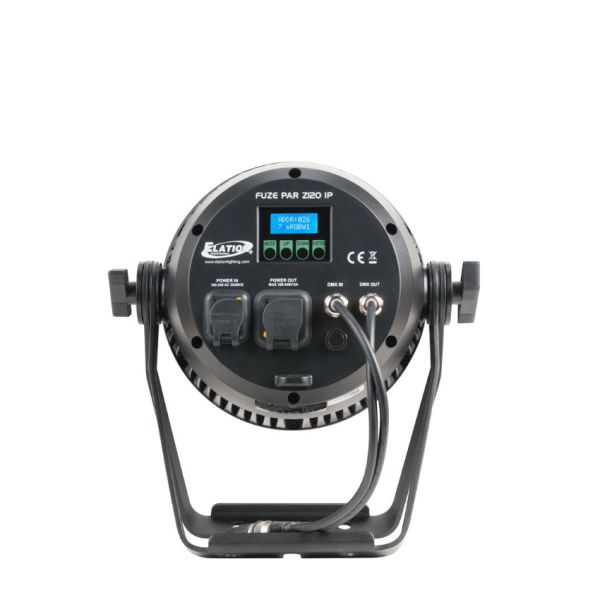

IP rated 5pin XLR and IP65 Locking Power Cable in/out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 283.7mm (11.69")
Width: 356.8mm (14.05")
Vertical Height: 359.2mm (14.14")
Weight: 8.6 kg (19.0 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
158W Max Power Consumption
Multiple Unit Power Linking
-15°C to 45°C (5°F to 113°F)

INCLUDED ITEMS

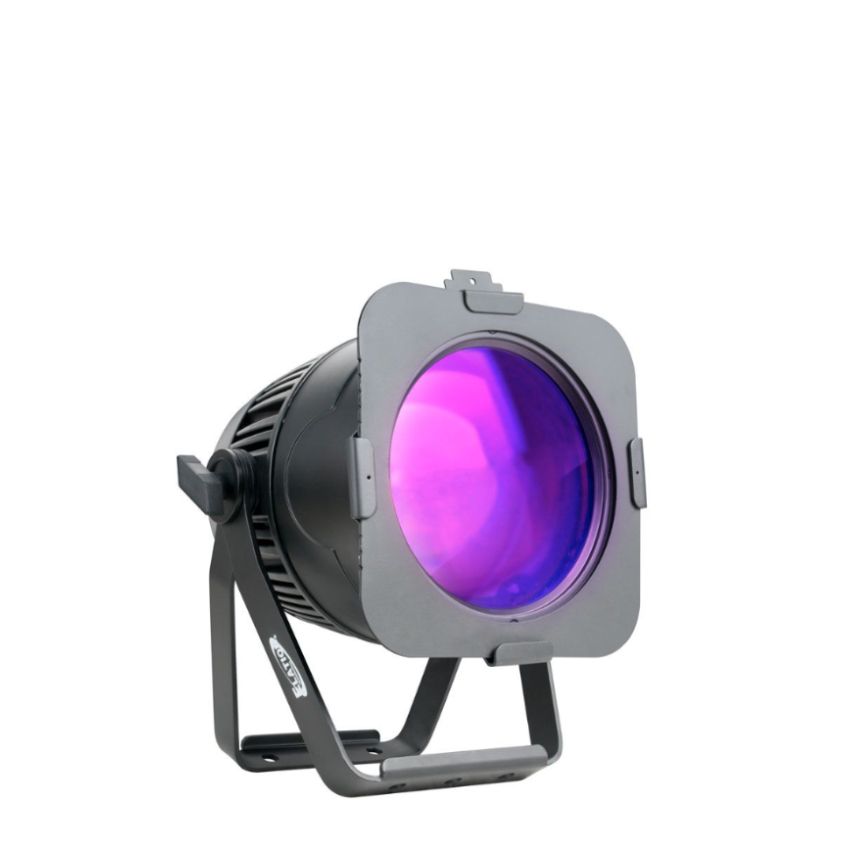

Removable Gel Frame

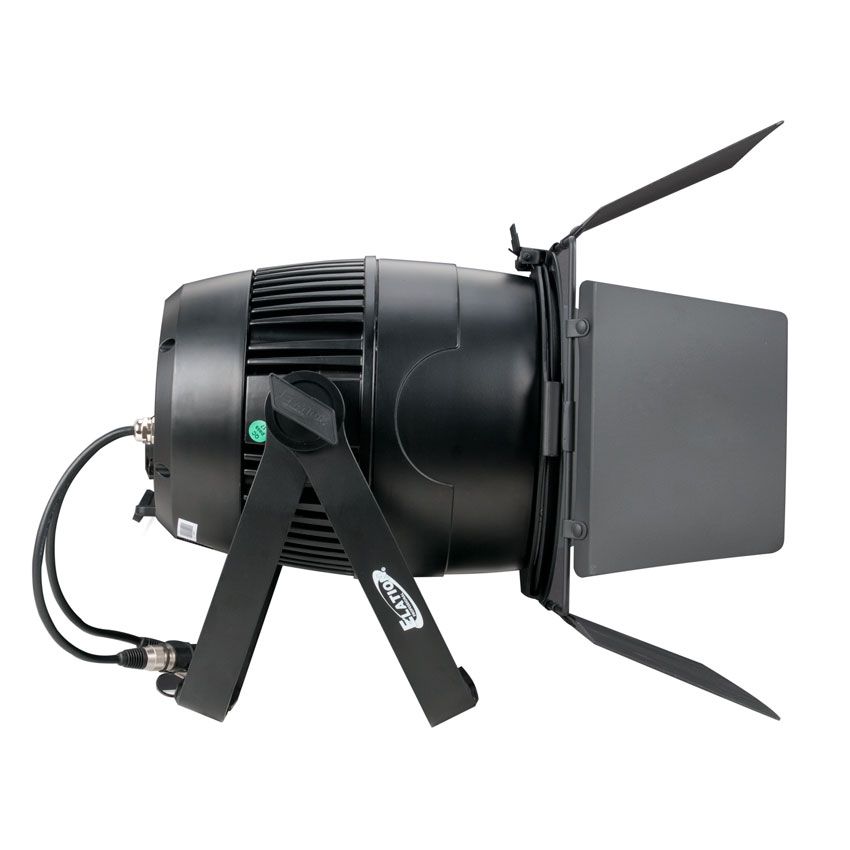

Removable Barn Doors

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice

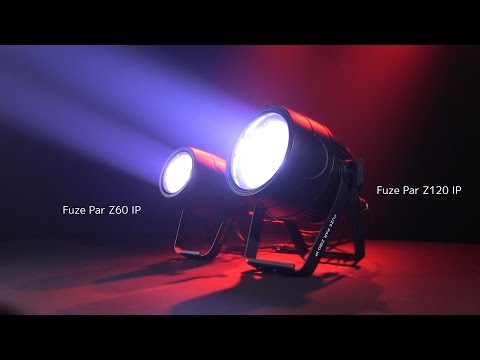

Videos
