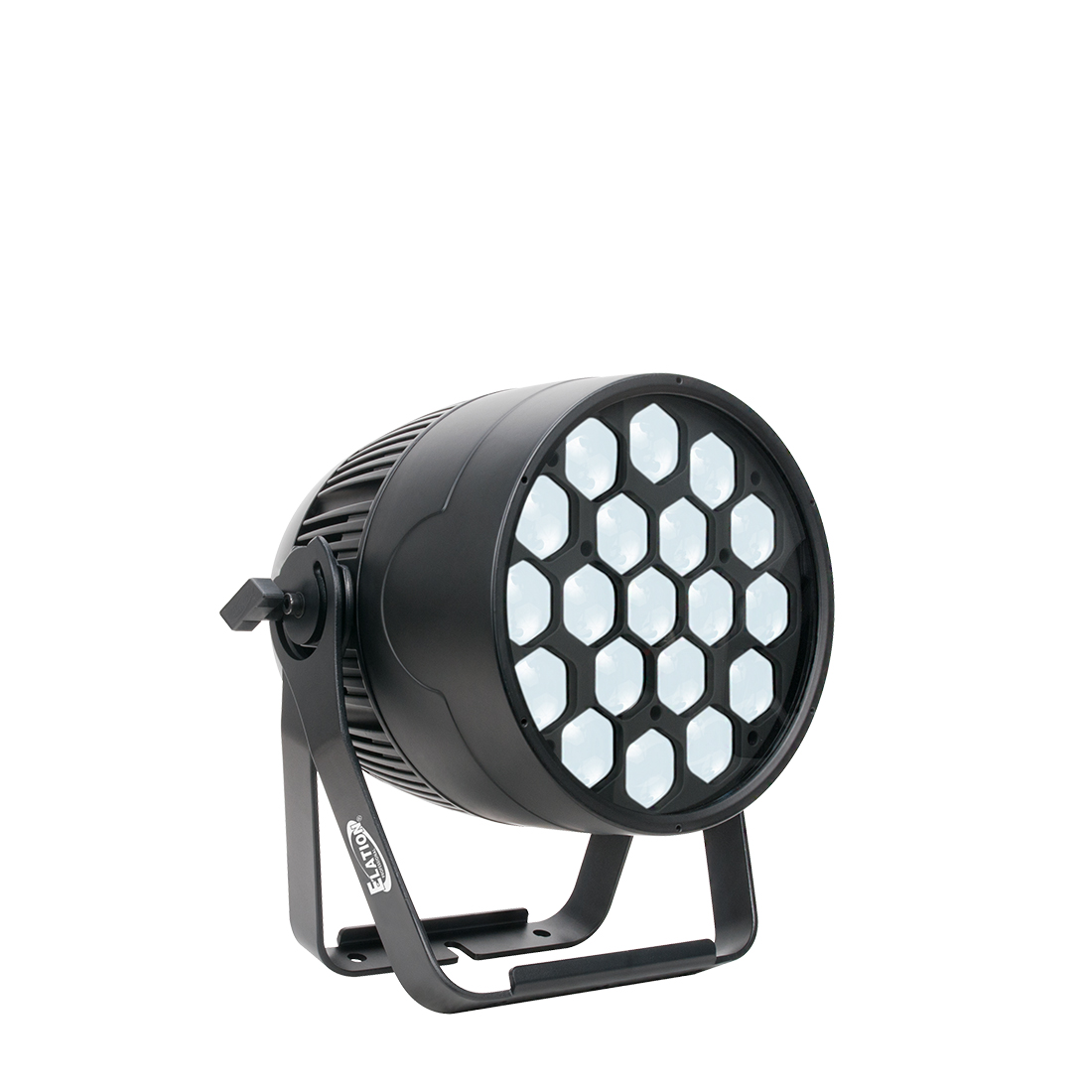

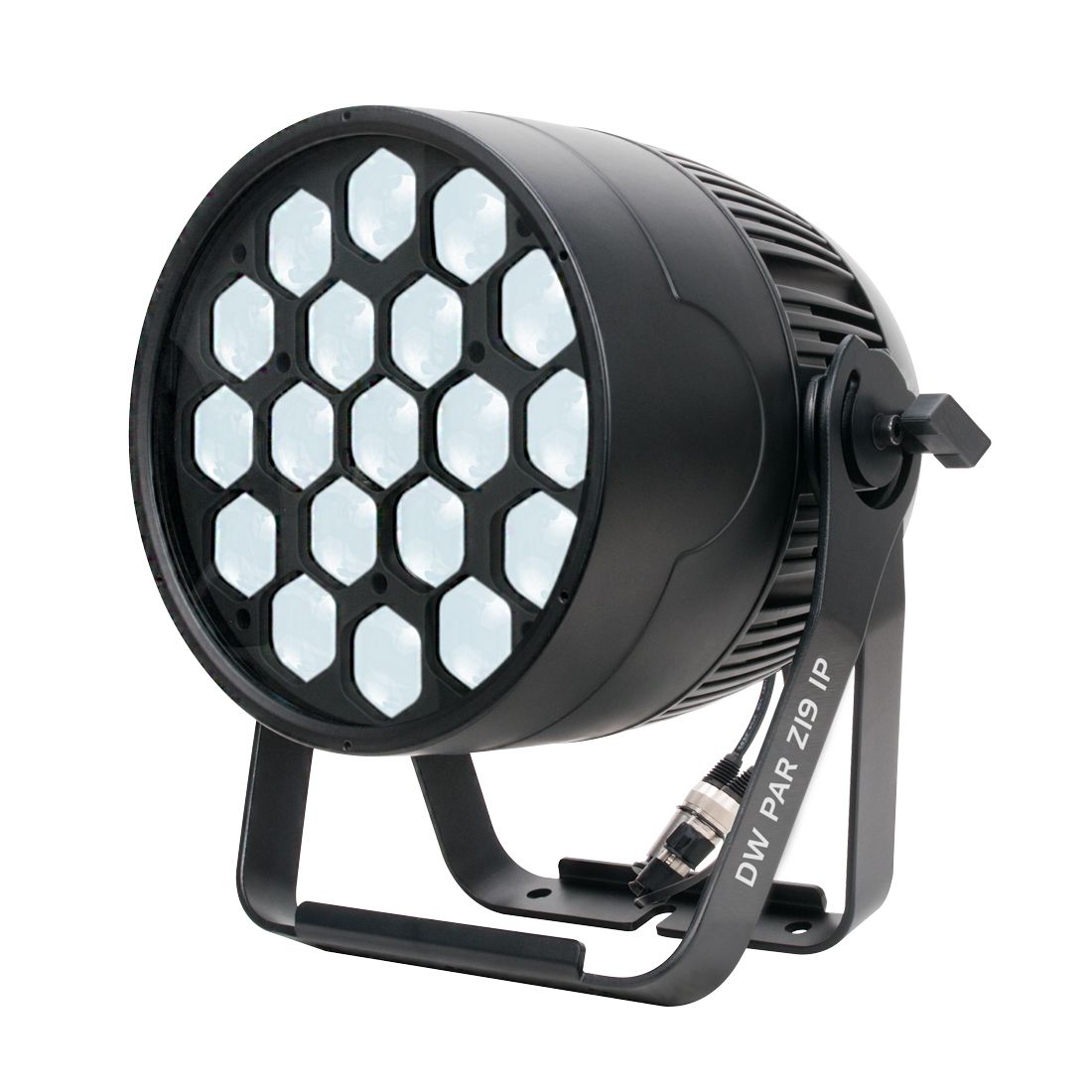

DW Par Z19 IP

The DW PAR Z19 IP™ is an easy-to-use, top-quality solution for adding high-impact white light to shows indoors or out. This bright white-light PAR luminaire houses nineteen 15W 2-in-1 cool white / warm white LEDs and features dynamic white color temperature control from 2,700K white tungsten to 6,000K cool white for variable shade projections of white light. IP65-rated and housing a motorized zoom, it has flexible use in production applications or installations as a wash light, uplight, wall wash, truss warmer and more.

Technical Data

FEATURES

IP65 Rated Dust and Water Protection
Dynamic White LED Par Luminaire
Tungsten to Daylight Control
15W Cool White and Warm White LEDs
5° - 36° Motorized Zoom
Dual Yoke / Floor Stand
No External Fans, Silent Operation
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film

SOURCE

19x 15W Cool White and Warm White Multi-Chip LEDs
5,590 Total Output Lumens
100,000 Hour Average LED Life*

PHOTOMETRIC DATA

44,070 LUX 4,094 FC @ 9.8’ (3m) (Min. Zoom)
1,754 LUX 163 FC @ 9.8’ (3m) (Max. Zoom)

EFFECTS

High Speed Electronic Shutter and Strobe
Variable Dimming Curves

COLOR

Cool White + Warm White Multi-Chip LEDs
Variable Color Temperature (2,700K – 6,000K)

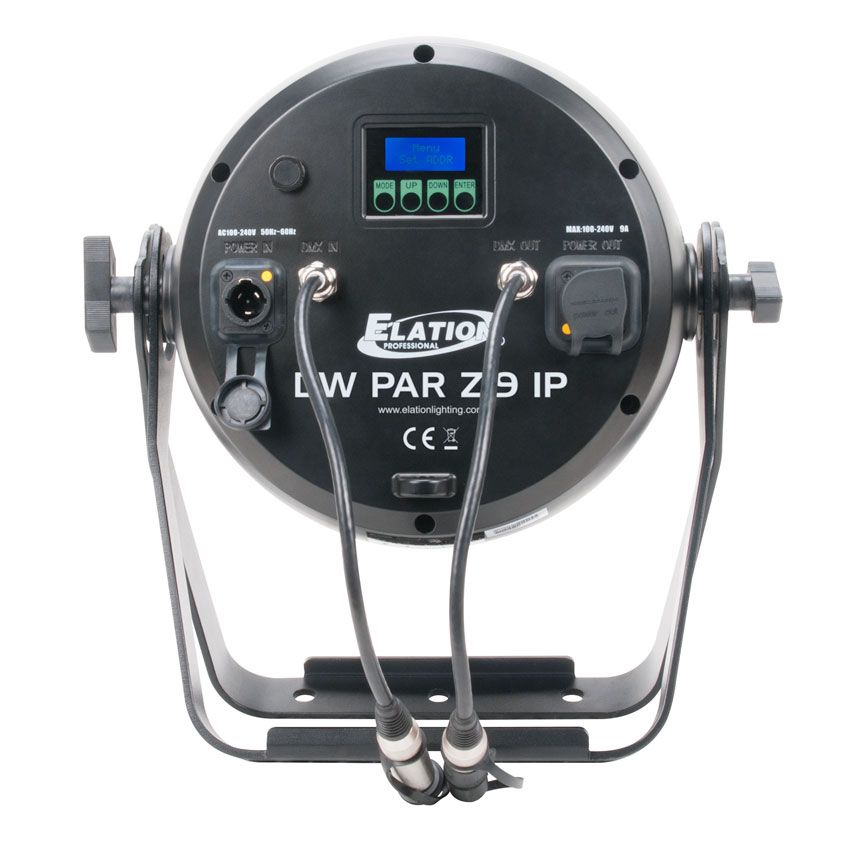

CONTROL / CONNECTIONS

3 DMX Channel Modes (4 / 5 / 7)
DMX Support
RDM (Remote Device Management)
8 / 16 Bit Dimming Control
4 Button Control Panel
LCD Menu Display
IP65 locking 5pin XLR DMX Connector In/Out
IP65 locking Power In/Out

SIZE / WEIGHT

Length: 15.9” (363mm)
Width: 12.0” (305mm)
Vertical Height: 15.6” (396mm)
Weight: 26.0 lbs. (11.8 kg)

ELECTRICAL / THERMAL

AC 110-250V - 50/60Hz
240W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

FIRMWARE UPDATES

Current firmware can be found here (login required)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.



Specifications and documentation subject to change without notice
