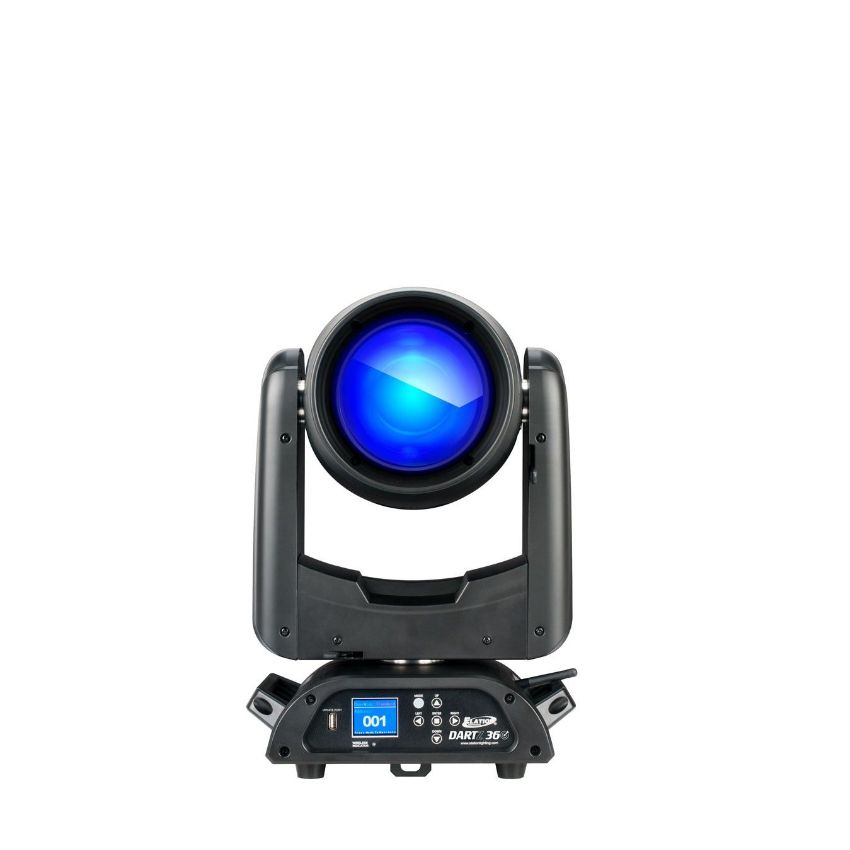

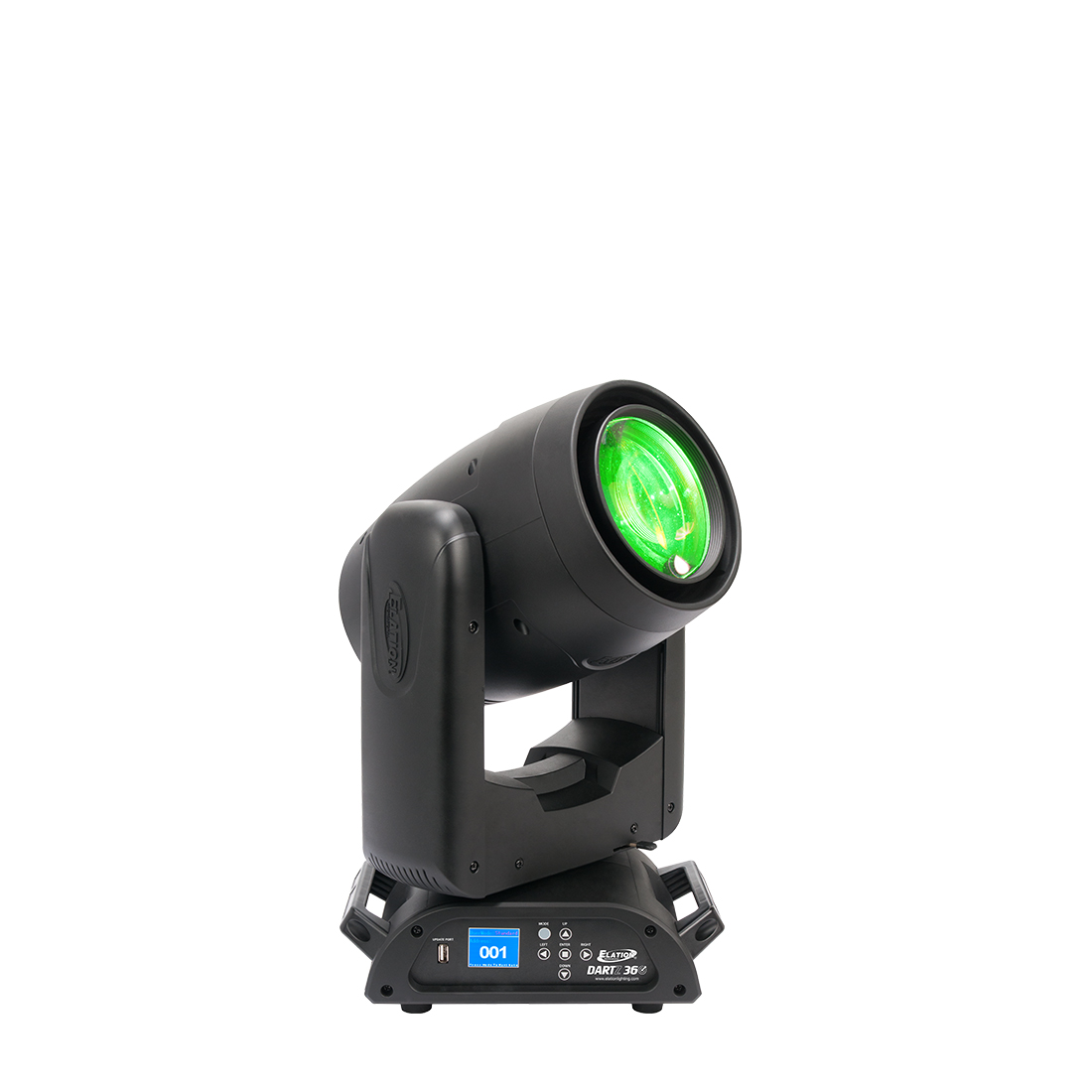

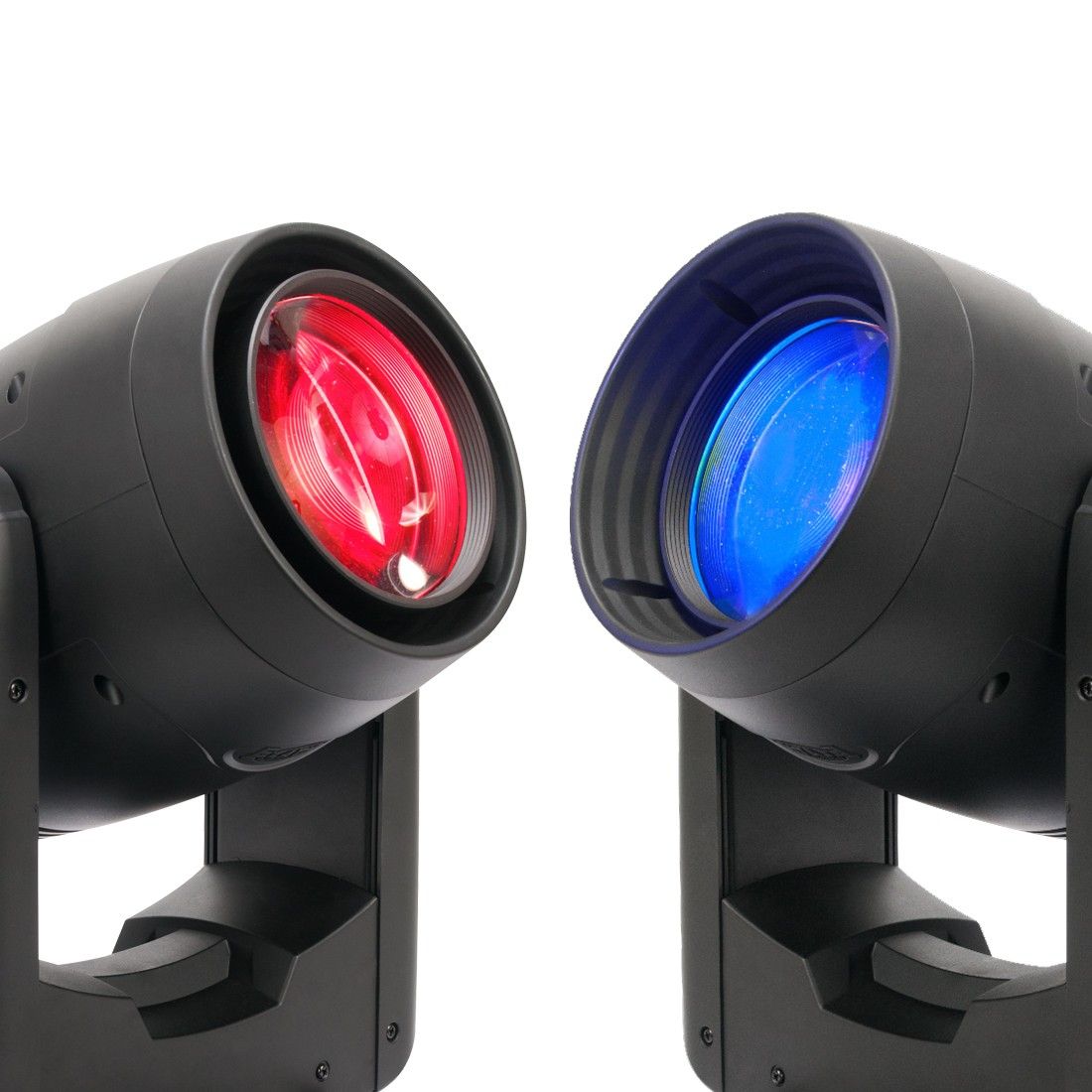

DARTZ 360

The DARTZ 360™ is a unique, compact, narrow beam luminaire featuring a new patent pending single source 50W RGB LED engine producing an impressive 3° aperture, amazing high output level, and smooth color-mixed effects that can be used in a variety of applications requiring no minimum safe project distance as with typical discharge lamp beam fixtures, fast and precise 16-bit continuous 360° pan and tilt rotation, 14 static-stamped metal gobos, 6-facet linear and 8-facet independent rotating prisms, 0-100% linear frost filter for wash effects, high speed electronic shutter and strobe, electronic dimming and variable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX, RDM (Remote Device Management), Kling-Net, Art-NET, and sACN protocol support, Elation’s E-FLY™ internal wireless DMX transceiver, 5pin XLR, RJ45 ethernet, and Locking Power Cable in/out connections, full color 180° reversible menu display with multi-button control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

Compact Precise 360° Pan/Tilt Moving Beam Luminaire
Patent Pending Single Source 50W RGB LED Engine
No Minimum Safe Project Distance Like Discharge Fixtures
3° Sharp Aperture with Motorized Focus
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
14 Static-Stamped Metal Gobos
6 Linear and 8 Facet Independent Rotating Prisms
0-100% Linear Frost Filter for Wash Effects
High Speed Electronic Shutter and Strobe
Electronic Dimming and Variable Dimming Curve Modes
DMX, RDM, Kling-Net, Art-NET, and sACN Protocol Support
Elation’s E-FLY™ Internal Wireless DMX Transceiver
Adjustable Refresh Rate Frequency and Gamma Brightness
Flicker Free Operation for TV and FILM

SOURCE

Patent Pending 50W RGB LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

29,562 LUX 2,746 FC @16.4’ (5m) (3° Full ON)

EFFECTS

Motorized Focus
6 and 8 Facet Independent Rotating Prisms
0-100% Linear Frost Filter for Wash Effects
High Speed Electronic Shutter and Strobe
16-Bit Variable Dimming Curve Modes
Adjustable LED Refresh Rate and Gamma Brightness

COLOR

RGB Smooth Color Mixing

GOBOS

14 Static-Stamped Metal Gobos

CONTROL / CONNECTIONS

(3) DMX Channel Modes (19 / 22 / 25)
360° Continuous Pan and Tilt 8 / 16 Bit Movement
Adjustable Refresh Rate (900-25,000 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
6 Button Menu Control Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Kling-net, Art-NET and sACN Protocol Support

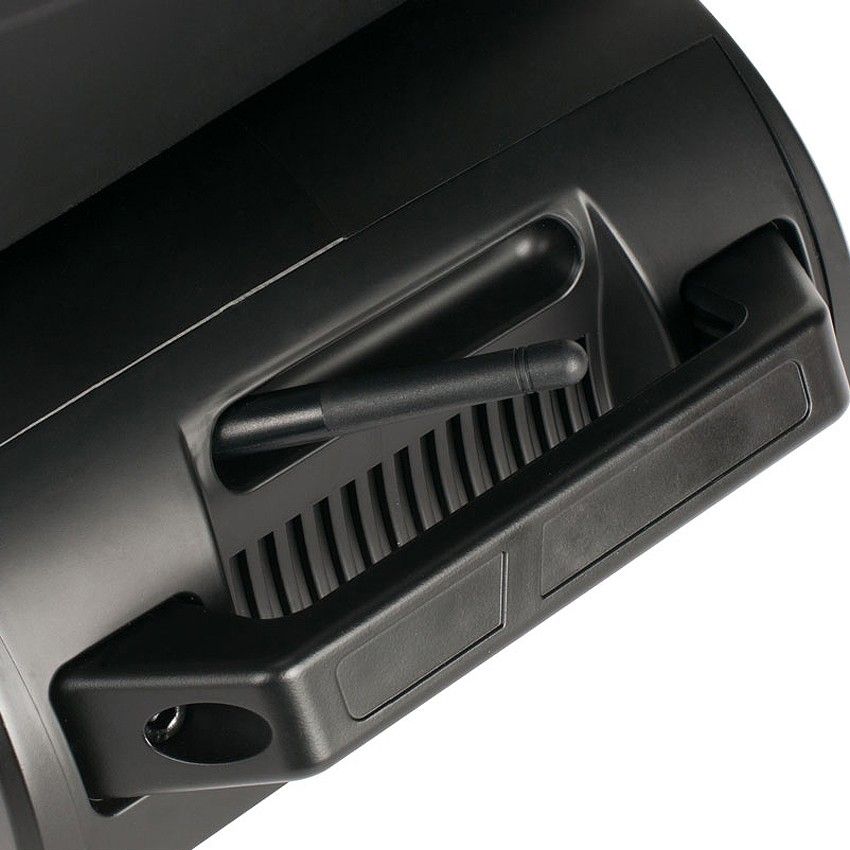

Elation E-FLY™ Internal Wireless DMX Transceiver

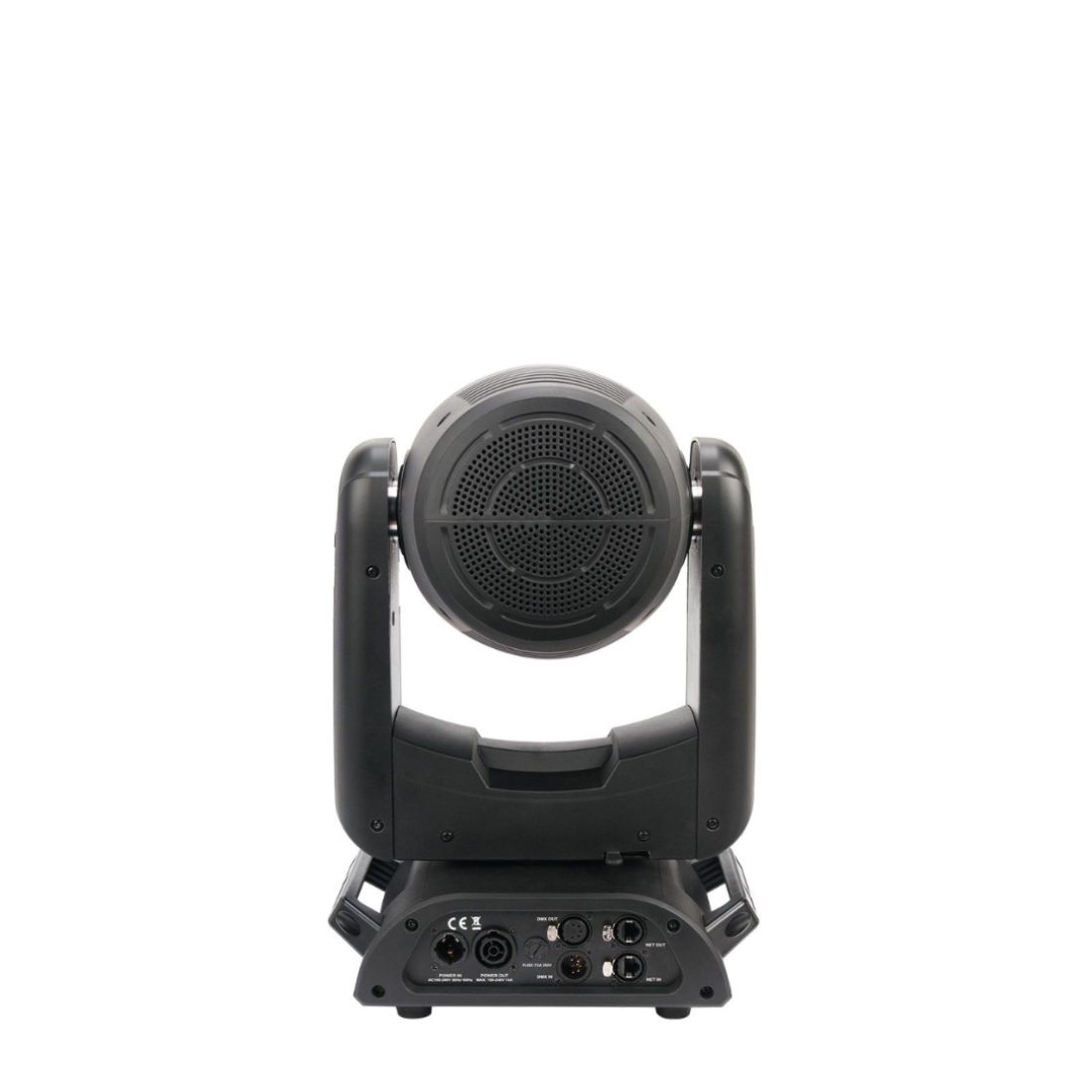

5pin DMX, RJ45 Ethernet In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 11.2” (284.15mm)
Width: 7.7” (195.97mm)
Vertical Height: 17.9” (454.7mm)
Weight: 28.0 lbs. (12.7 kg)

ELECTRICAL / THERMAL

AC 100-240V 50/60Hz
154W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice

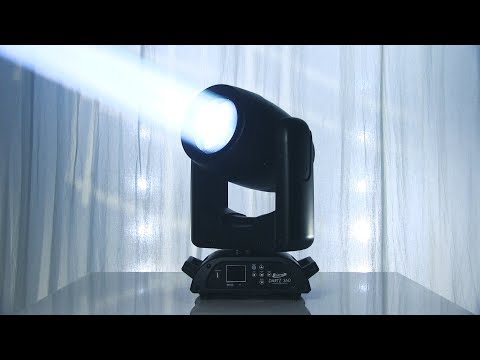

Videos
