425

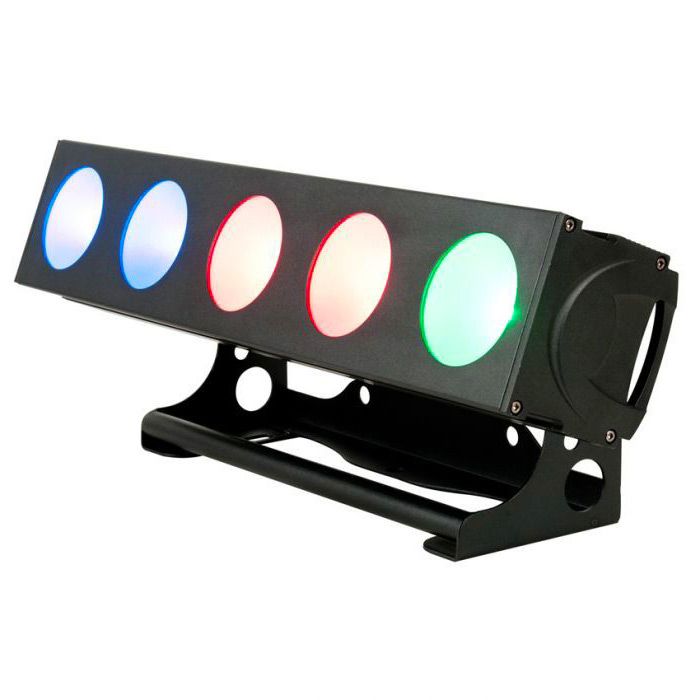

CUEPIX STRIP TRI

The new CUEPIX Strip TRI™ features long life 30W 3-in-1 RGB COB LEDs, 100,000 average hour LED life, individual control of each COB module, variable dimming curve modes, strobe and chase effects, RDM (Remote Device Management) protocol support, locking 3/5pin DMX in/out and locking power in/out connections, LCD menu display with (4) button control panel, integrated rigging bracket, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and Film, 312W max power consumption and a multi-voltage universal auto switching power supply (110-240V).

Technical Data

FEATURES

High Power Long Life 3-in-1 RGB COB Strip
60° Beam 80° Field Angles
(5) Variable Dimming Curve Modes
No Fans
Silent Operation
Individual Control of Each COB Module
Flicker Free Operation for TV and Film
RDM (Remote Device Management)


SOURCE

(5) 30W 3-in-1 RGB COB LEDs
100,000 Hour Average LED Life


PHOTOMETRIC DATA

4,170 LUX @ 1M (60°)


EFFECTS

Strobe: 1-18fps
Dimming: 0% - 100%
(5) Variable Dimming Curve Modes
Individual COB Module Control


COLOR

Full RGB Color Mixing and Color Macros

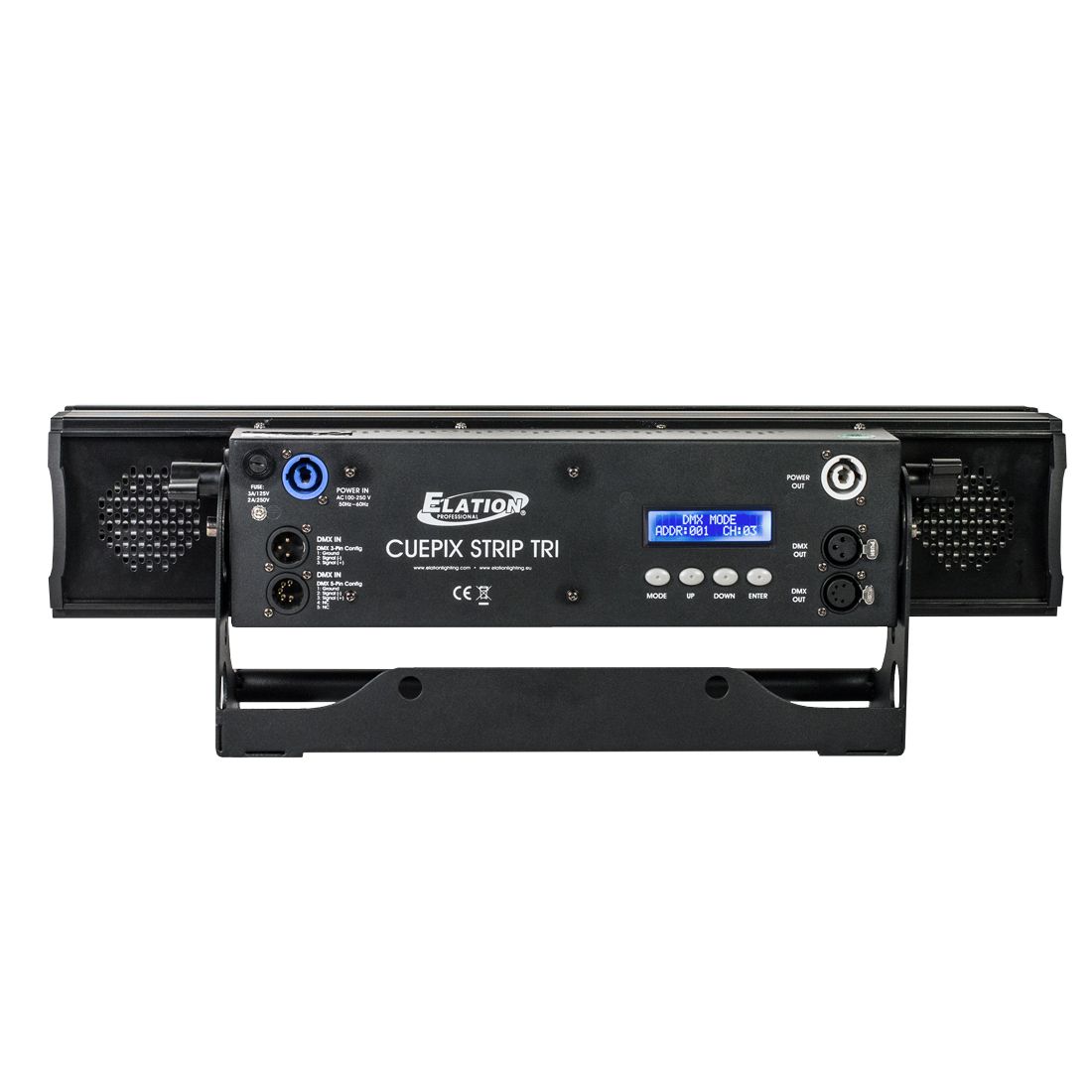

CONTROL / CONNECTIONS

(5) DMX Channel Modes (3 / 6 / 7 / 15 / 19)
RDM (Remote Device Management)
(4) Button Control Panel and LCD Menu Display
Locking 3/5pin DMX In/Out
Locking power connector In/Out


SIZE / WEIGHT

Length: 21.7” (550mm)
Width: 6.4” (161.2mm)
Horizontal Height: 6.8” (172.5mm)
Weight: 13.9 lbs. (6.3 kg)


ELECTRICAL / THERMAL

AC 110-250V - 50/60Hz
150W Max Power Consumption
5°F to 113°F (-15°C to 45°C)


FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
