Colour Pendant WH

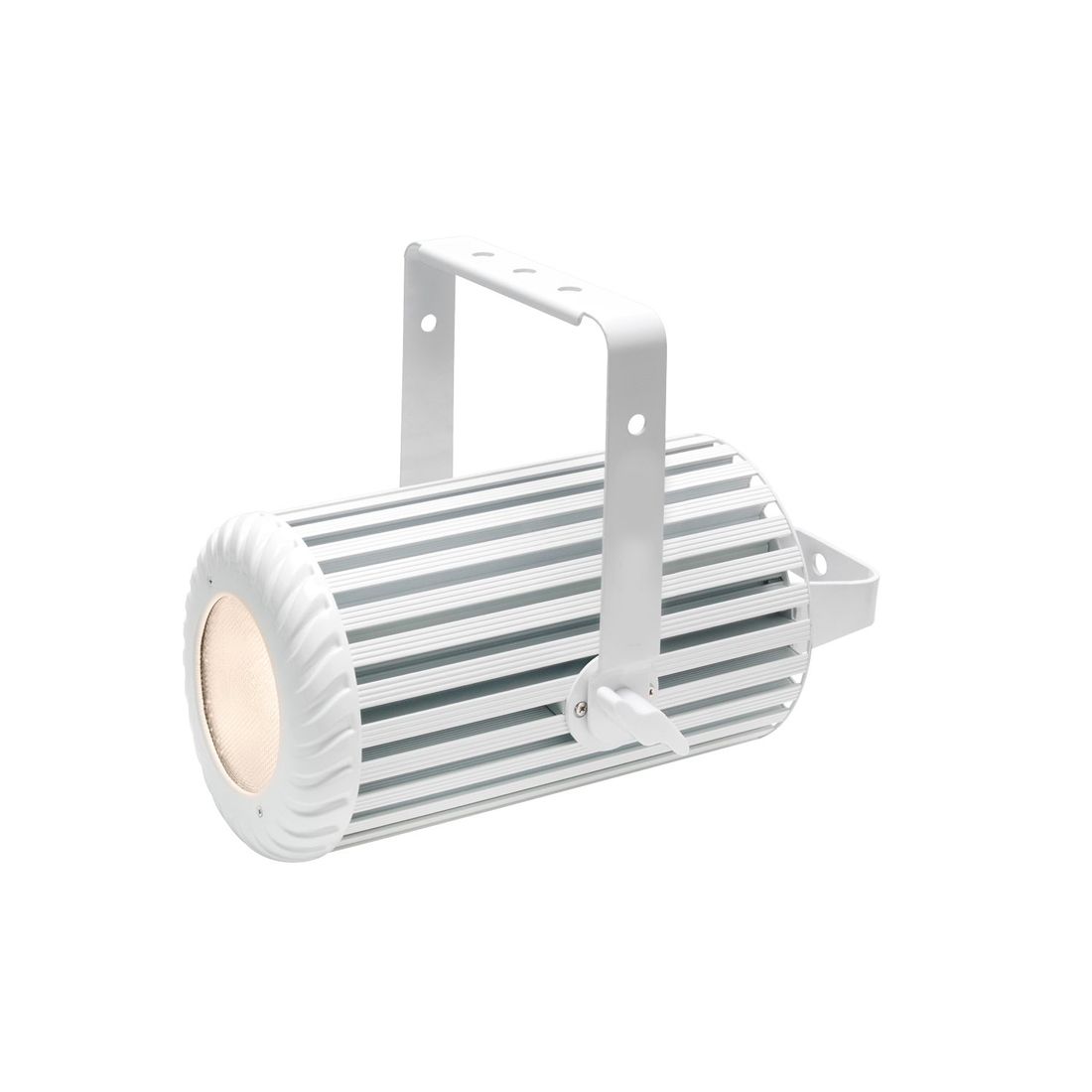

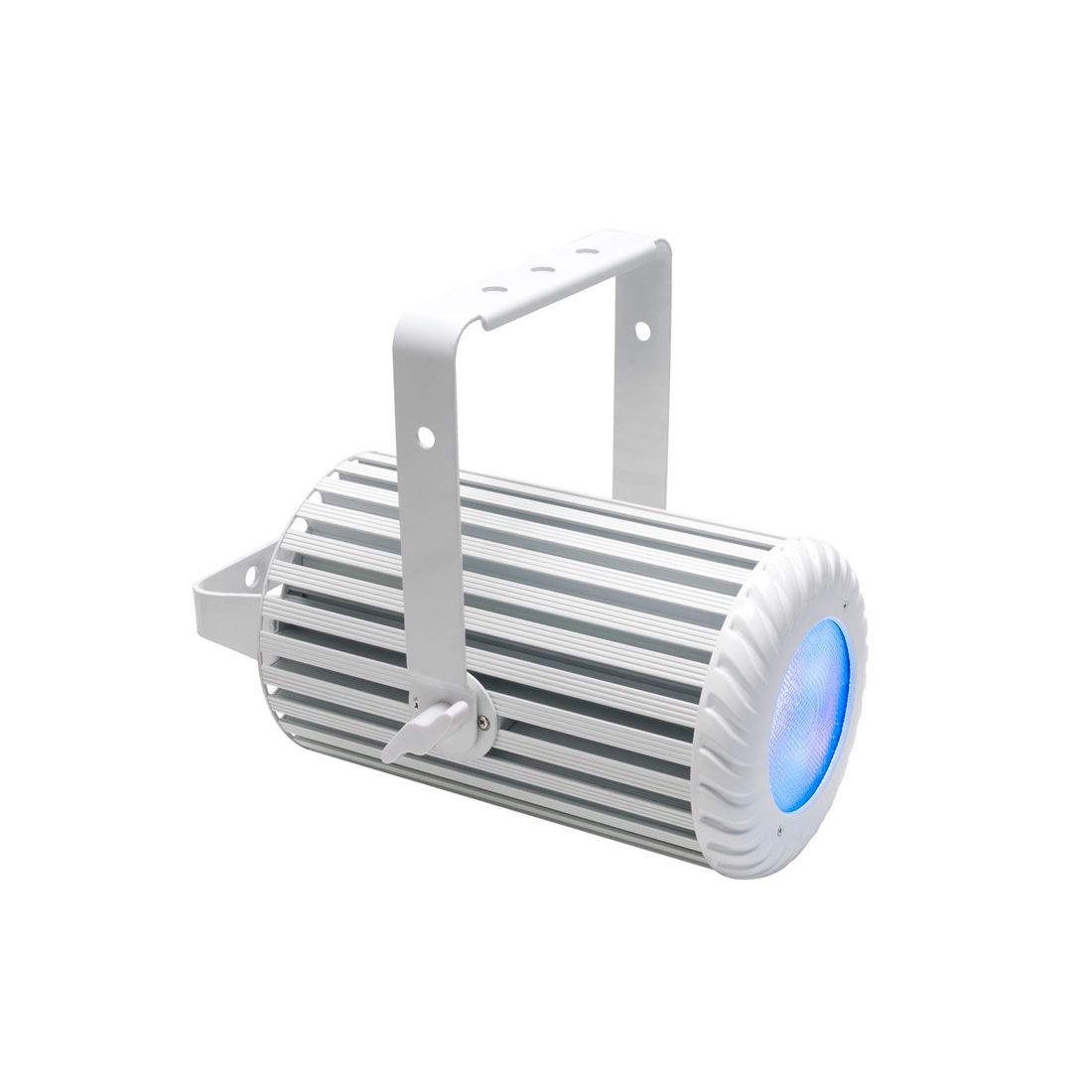

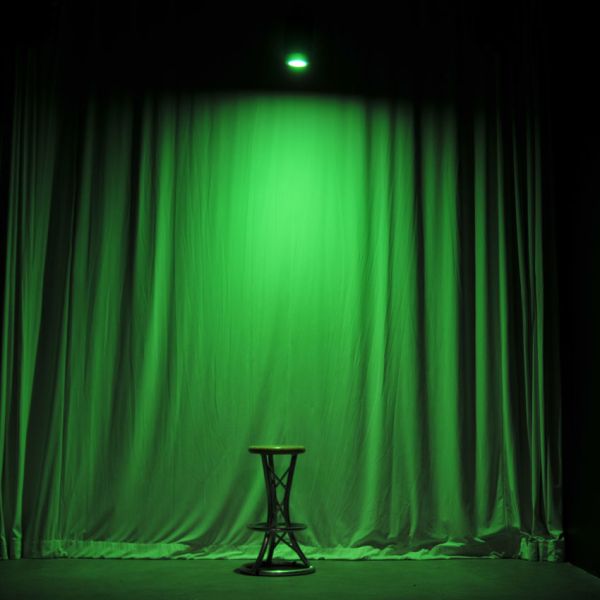

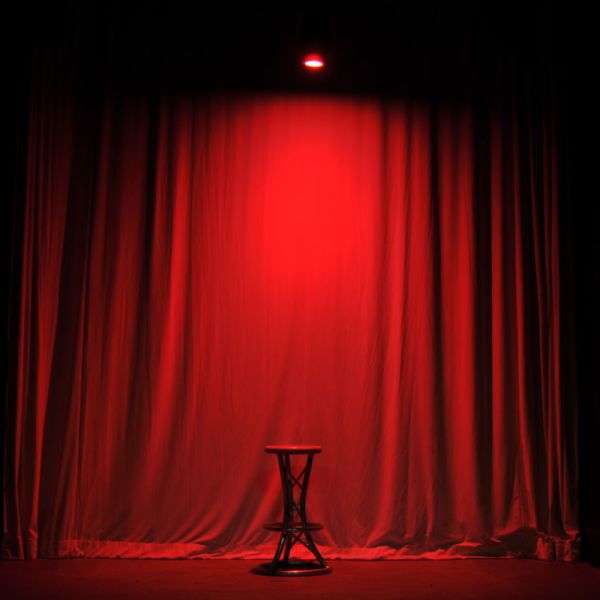

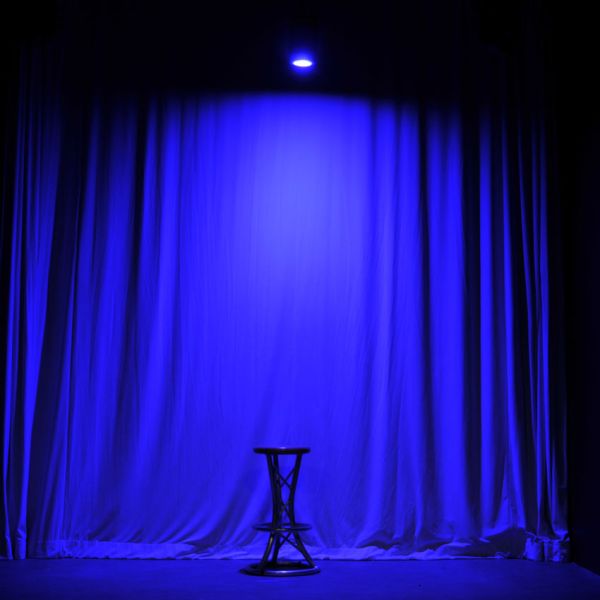

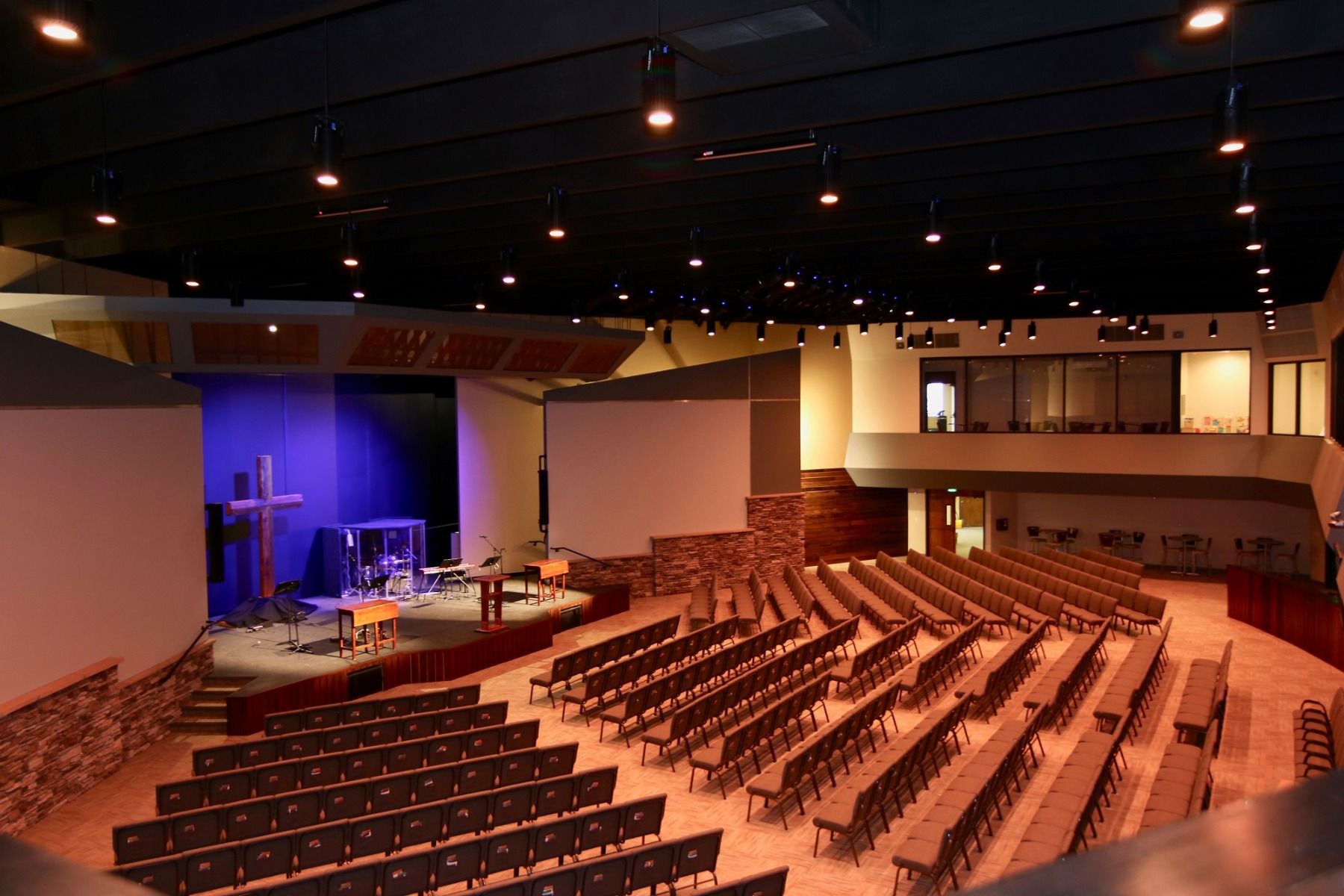

The Colour Pendant WH is a highly capable wash luminaire that allows for dynamic control of stage and house lighting levels in an energy-efficient convection-cooled intelligent downlighting fixture solution. The Colour Pendant WH houses thirty-six 3W RGBW LEDs for fully blended color-changing transformations or projections of variable white shades. Its uniform flat field output, 3,100 lumens of power and 41° beam angle make it an ideal high-quality wash luminaire. The fixture is also available in a black housing.

Technical Data

FEATURES

LED Pendant Luminaire
36x 3W RGBW LEDs
Fully Blended Color Transformations
41° Beam and 66° Field Angle
Removable Pendant and Yoke Mounting Brackets

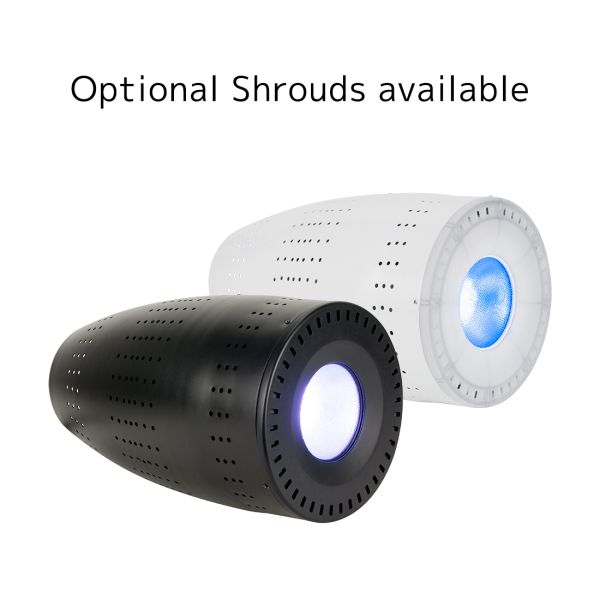

Optional Shroud Mounting
No Fans, Silent Operation
Adjustable Refresh Frequency
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
Internal E-Fly™ Wireless DMX Receiver

SOURCE

36x 3W RGBW LED
3,100 Total Output Lumen
100,000 Hour Average Life*

PHOTOMETRIC DATA

458 LUX 43 FC @ 9.8’ (3m)

EFFECTS

High Speed Electronic Shutter and Strobe
Variable Dimming Curves

COLOR

RGBW
Variable Color Temperature (2,700 – 8,000K)

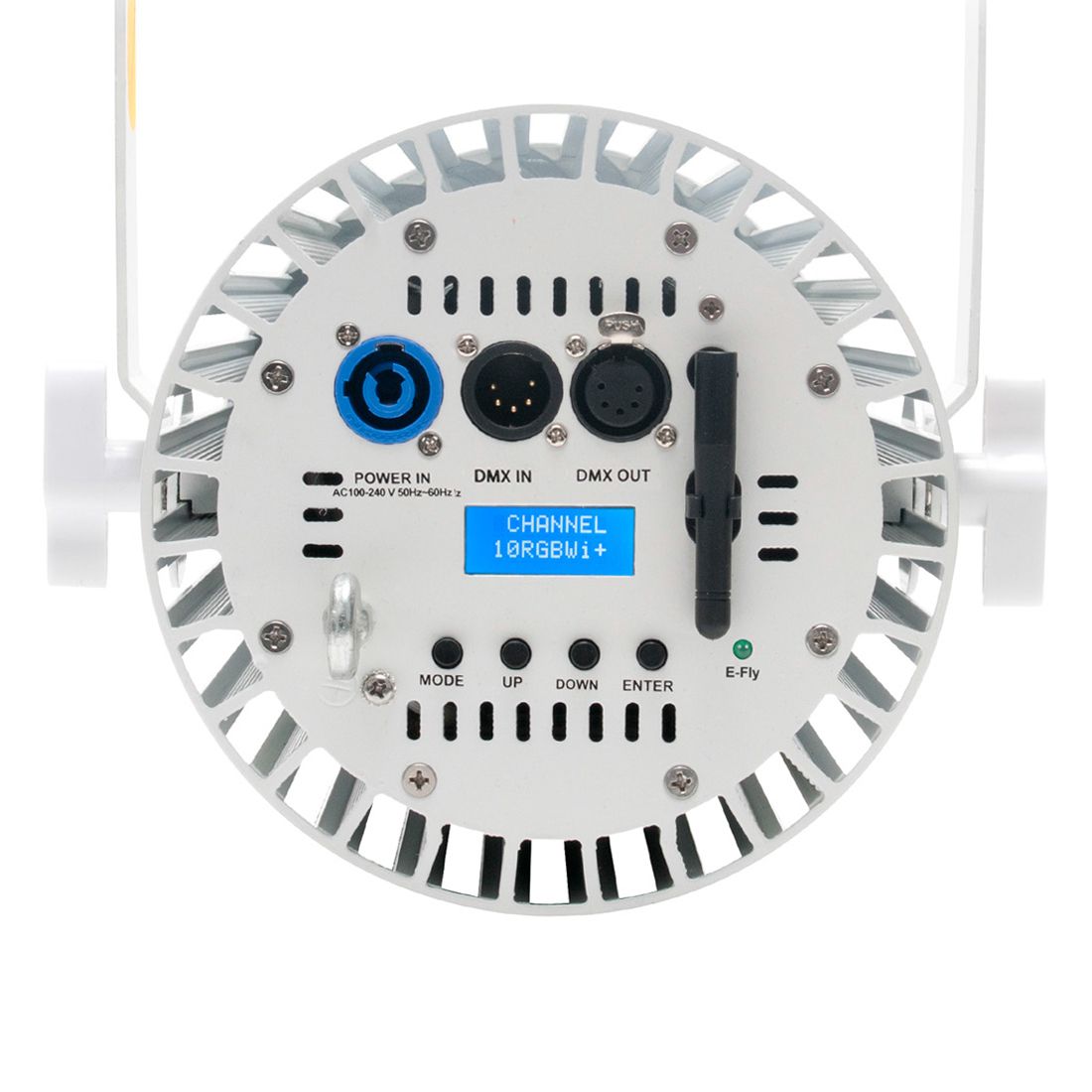

CONTROL / CONNECTIONS

11 DMX Channel Modes (1 - 10)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (1200Hz, 2400Hz, 4800Hz, 9600Hz)
8 / 16 Bit Dimming Control
4 Button Control Panel
LCD Menu Display
Internal E-Fly™ Wireless DMX Receiver
Locking 5pin XLR Connector In/Out
Locking Power Connector In

SIZE / WEIGHT

Length: 14.7” (374mm)
Width: 9.9” (252.5mm)
Diameter: 7.0” (183.7mm)
Weight: 14.0 lbs. (6.4 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
110W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

INCLUDED ITEMS

Locking Power Connector to CEE 7/7 Cable

OPTIONAL ACCESSORIES

1236100132 Exterior Shroud Kit WH
1236100133 Exterior Shroud Kit BL
1322000055 E-Fly Wireless DMX Transceiver
1322000060 C-Loader II

FIRMWARE UPDATES

Current firmware can be found here (login required)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.



Specifications and documentation subject to change without notice
