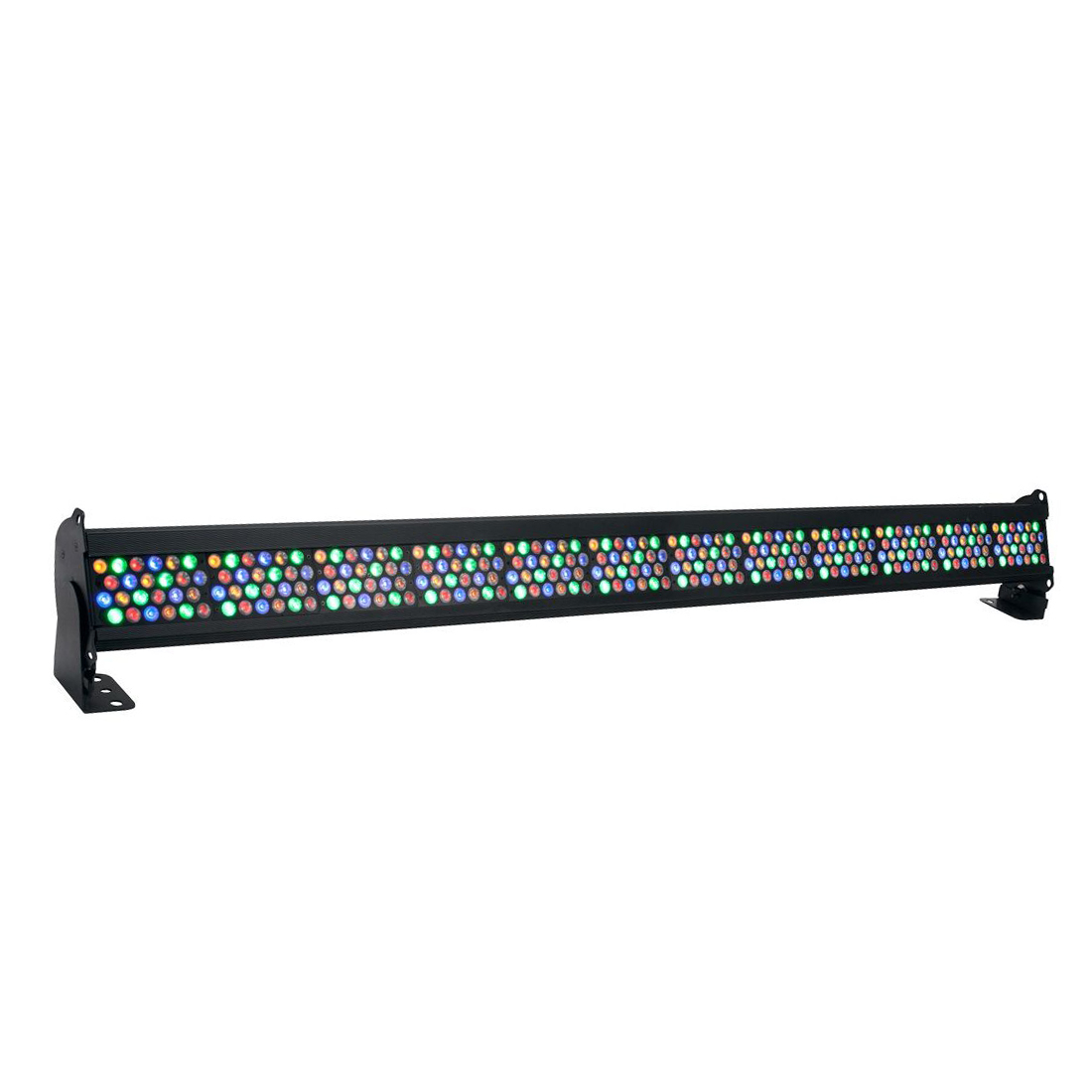

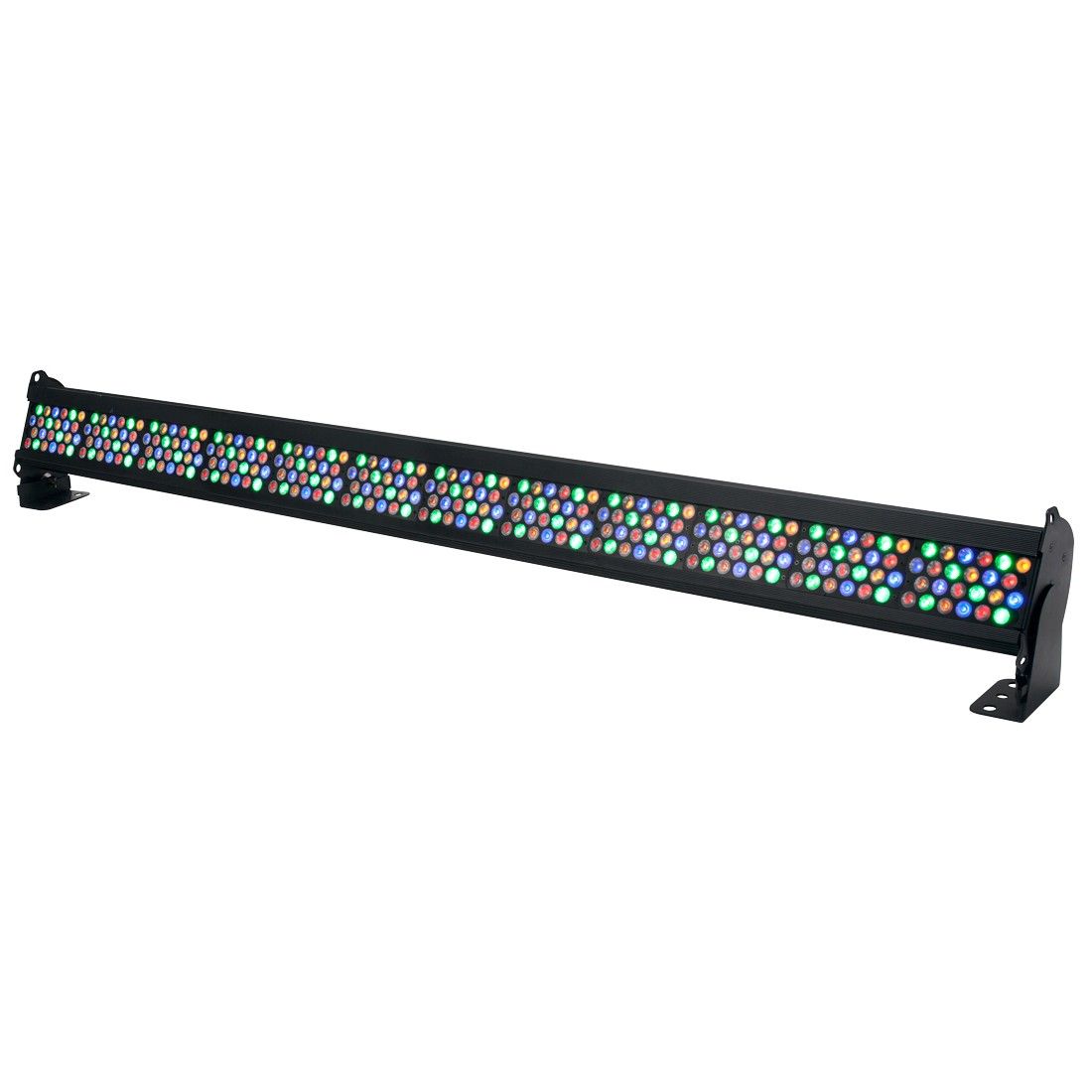

COLOUR CHORUS 72

The COLOUR CHORUS™ series is available in 1 (0.3m), 2 (0.6m), 4 (1.2m), and 6 foot (1.8m) fixture lengths, featuring long life individual 3W (Red, Green, Blue & Amber) LEDs, 100,000 hour average LED life*, individual hue, saturation, and intensity control, high power mode, LED group control, strobe effects, variable dimming curves, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET (DMX over Ethernet) support, locking 3/5pin DMX in/out, locking RJ45 ethernet in/out, and locking power in connections, flicker free operation for TV and Film, LCD menu display with 4 button control panel, integrated rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

Versatile High Power RGBA Batten
Individual Hue, Saturation, and Intensity Control
LED Group Control
Dynamic Amber (RGB/HSI control with automatically adjusting Amber)
Multiple Unit Power Linking
Variable Dimming Curves
Flicker Free Operation for TV and Film
KlingNET™ and Art-NET (DMX over Ethernet)
RDM – Remote Device Management


SOURCE

Individual 3W (Red, Green, Blue & Amber) LEDs
(288) Total LEDs (72 per each color)
100,000 Hour Average LED Life*


PHOTOMETRIC DATA

6.990 LUX 649 FC @ 9.8’ (3m)


EFFECTS

Individual Hue, Saturation, Intensity Control
LED Group Control
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves


COLOR

RGBA


CONTROL / CONNECTIONS

Multiple DMX Channel Modes
19 Modes (3 – 53 Channels)
RDM (Remote Device Management)

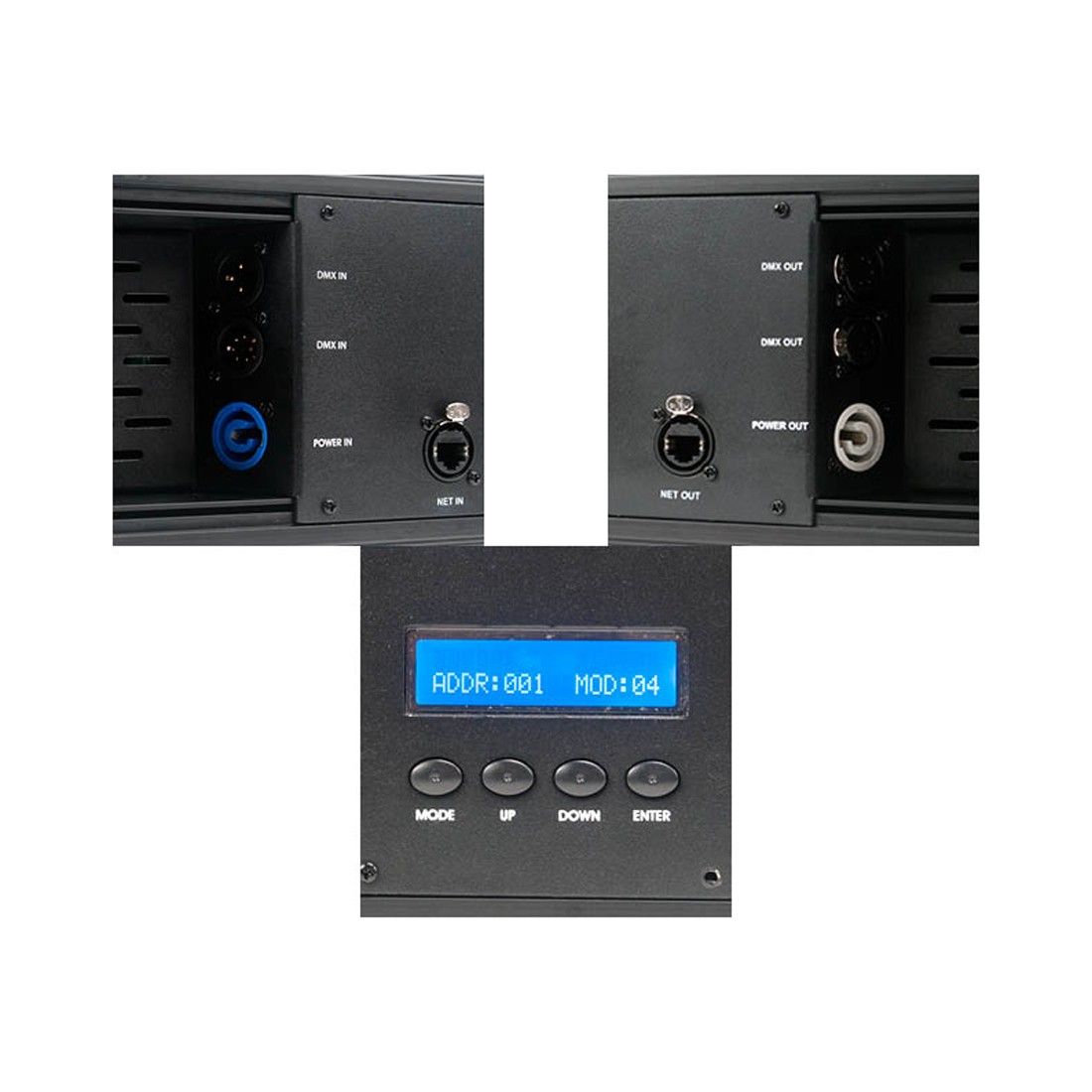

4 Button Control Panel
LCD Menu Display

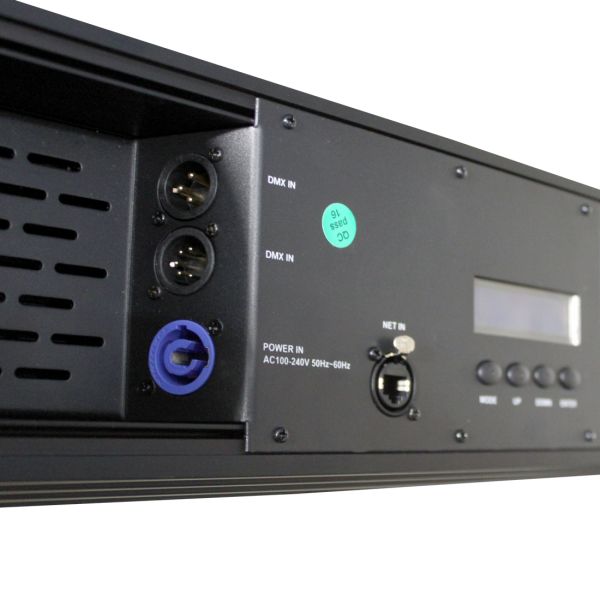

Locking 3/5pin DMX In/Out
Locking RJ45 ethernet In/Out (KlingNET™ / Art-NET)
Locking power connector In/Out


SIZE / WEIGHT

Length: 69.3” (1760mm)
Width: 7.5” (194.1mm)
Vertical Height: 7.6” (192.5mm)
Weight: 53.0 lbs. (24.0kg)


ELECTRICAL / THERMAL

AC 110-250V - 50/60Hz
630W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


OPTIONAL ACCESSORIES

1322000060 C-Loader II


FIRMWARE UPDATES

Current firmware can be found here (login required)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


Specifications and documentation subject to change without notice
