Code
1236200048
FEATURES

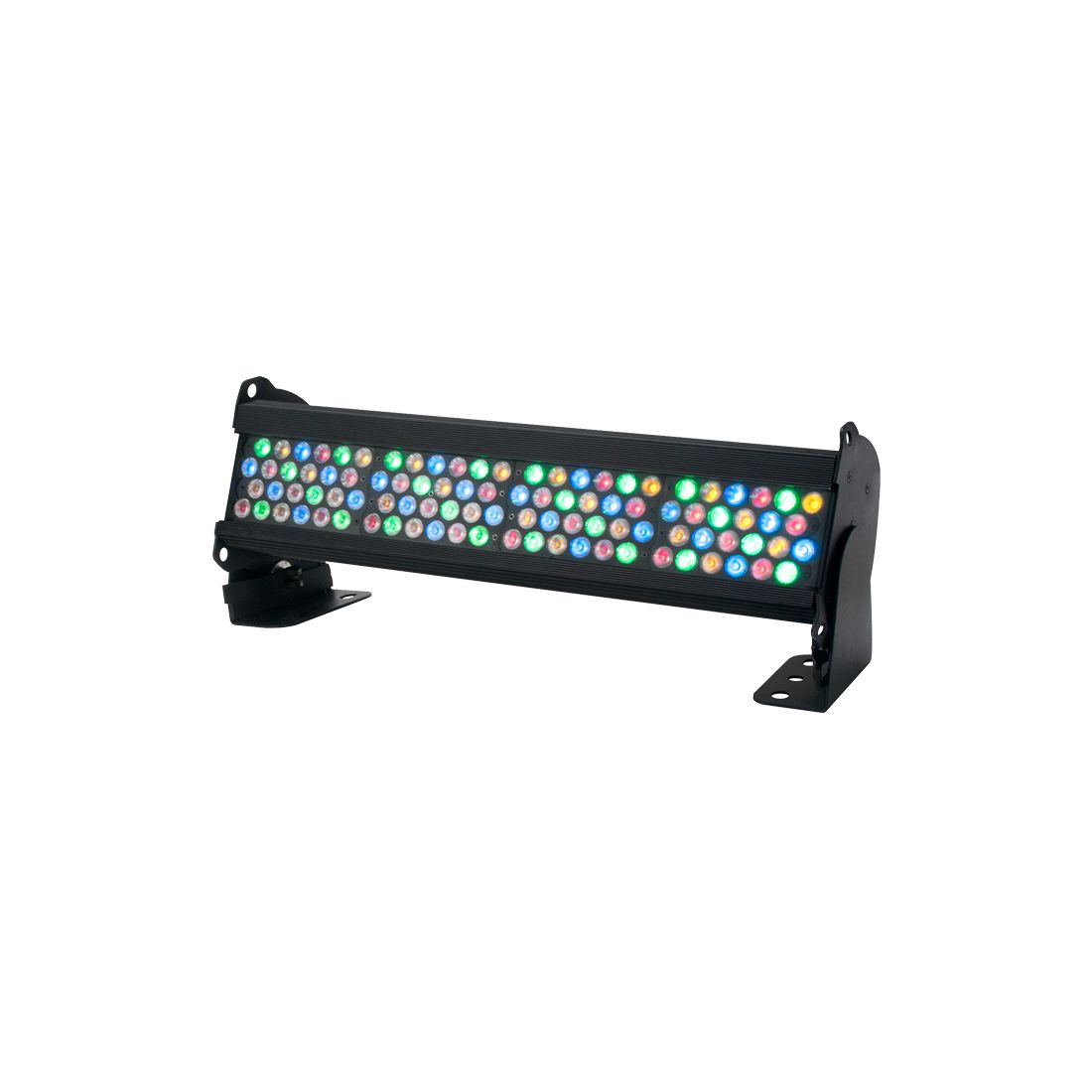

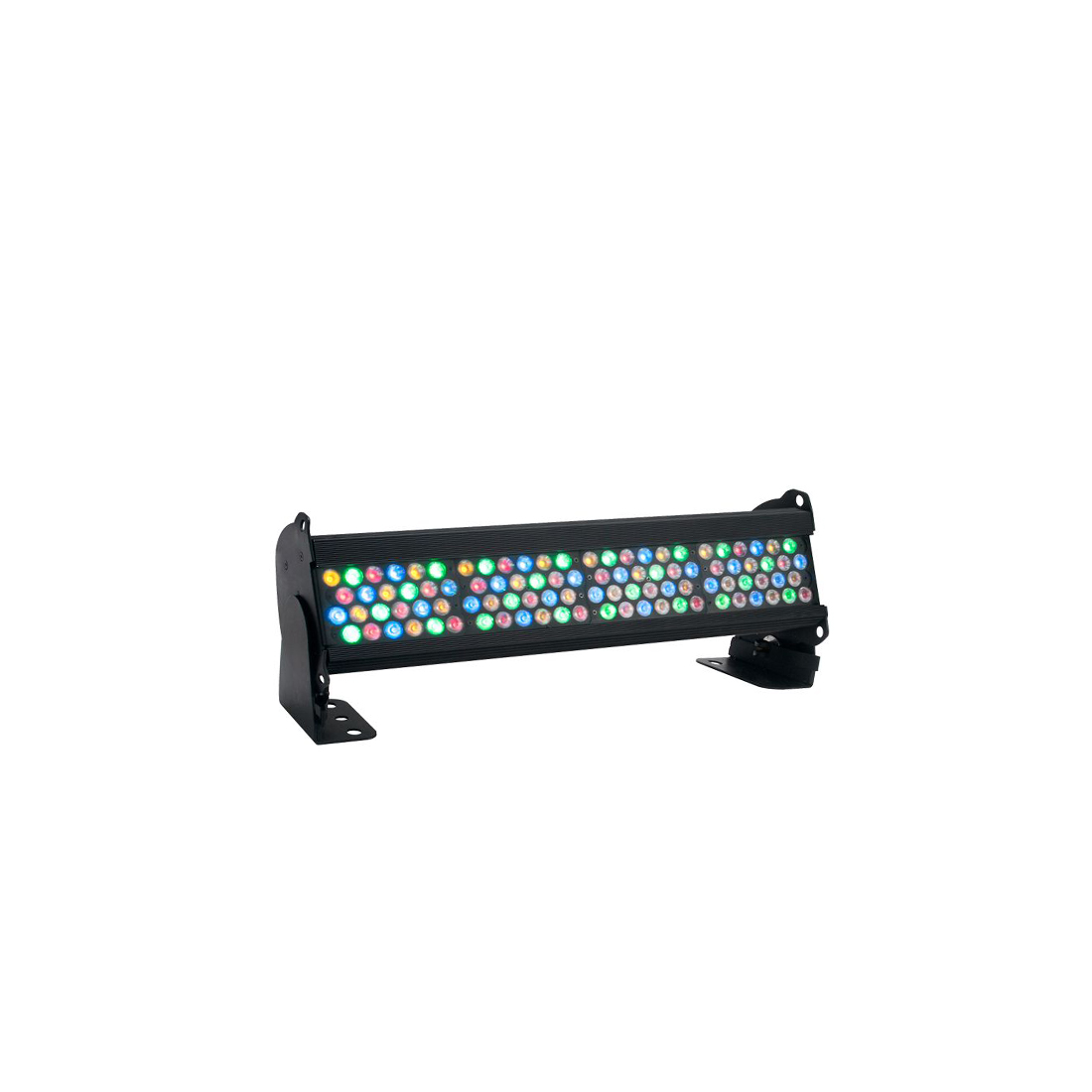

Versatile High Power RGBA Batten
Individual Hue, Saturation, and Intensity Control
LED Group Control
Dynamic Amber (RGB/HSI control with automatically adjusting Amber)
Multiple Unit Power Linking
Variable Dimming Curves
Flicker Free Operation for TV and Film
KlingNET™ and Art-NET (DMX over Ethernet)
RDM – Remote Device Management
SOURCE
Individual 3W (Red, Green, Blue & Amber) LEDs
(96) Total LEDs (24 per each color)
100,000 Hour Average LED Life*
PHOTOMETRIC DATA
3,420 LUX 318 FC @ 9.8’ (3m)
EFFECTS
Individual Hue, Saturation, Intensity Control
LED Group Control
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves
COLOR
RGBA
CONTROL / CONNECTIONS
Multiple DMX Channel Modes
19 Modes (3 – 21 Channels)
RDM (Remote Device Management)

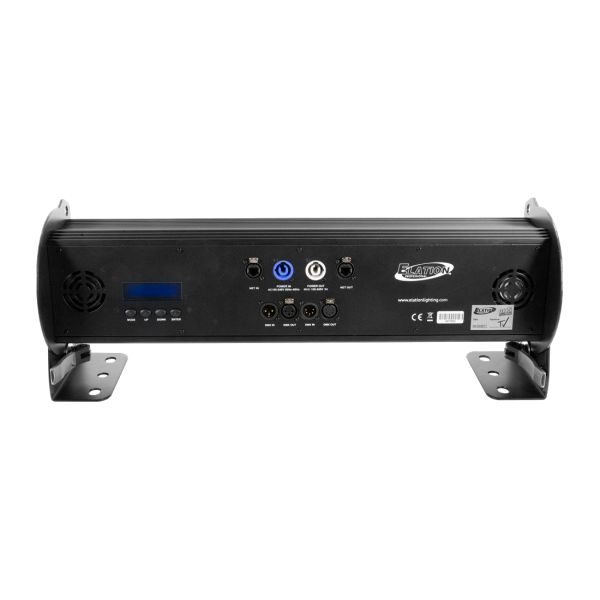

4 Button Control Panel
LCD Menu Display
Locking 3/5pin DMX In/Out
Locking RJ45 ethernet In/Out (KlingNET™ / Art-NET)
Locking power connector In/Out
SIZE / WEIGHT
Length: 23.8” (604mm)
Width: 7.5” (194.1mm)
Vertical Height: 7.6” (192.5mm)
Weight: 23.0 lbs. (10.4kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
200W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
OPTIONAL ACCESSORIES
1322000060 C-Loader II
FIRMWARE UPDATES
Current firmware can be found here (login required)*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Specifications and documentation subject to change without notice
