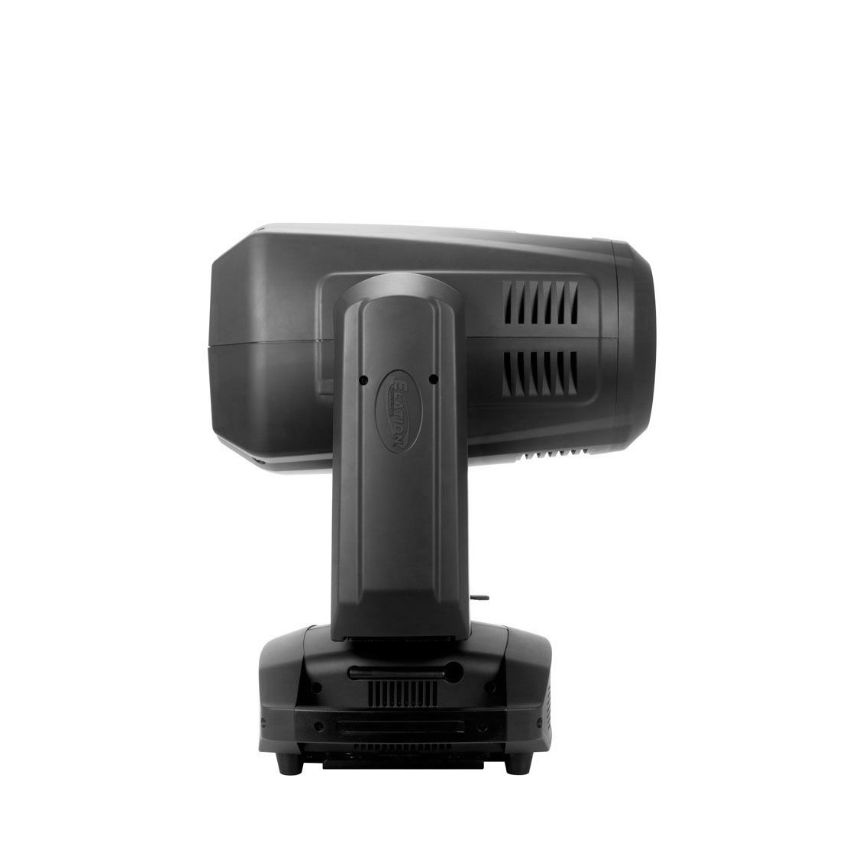

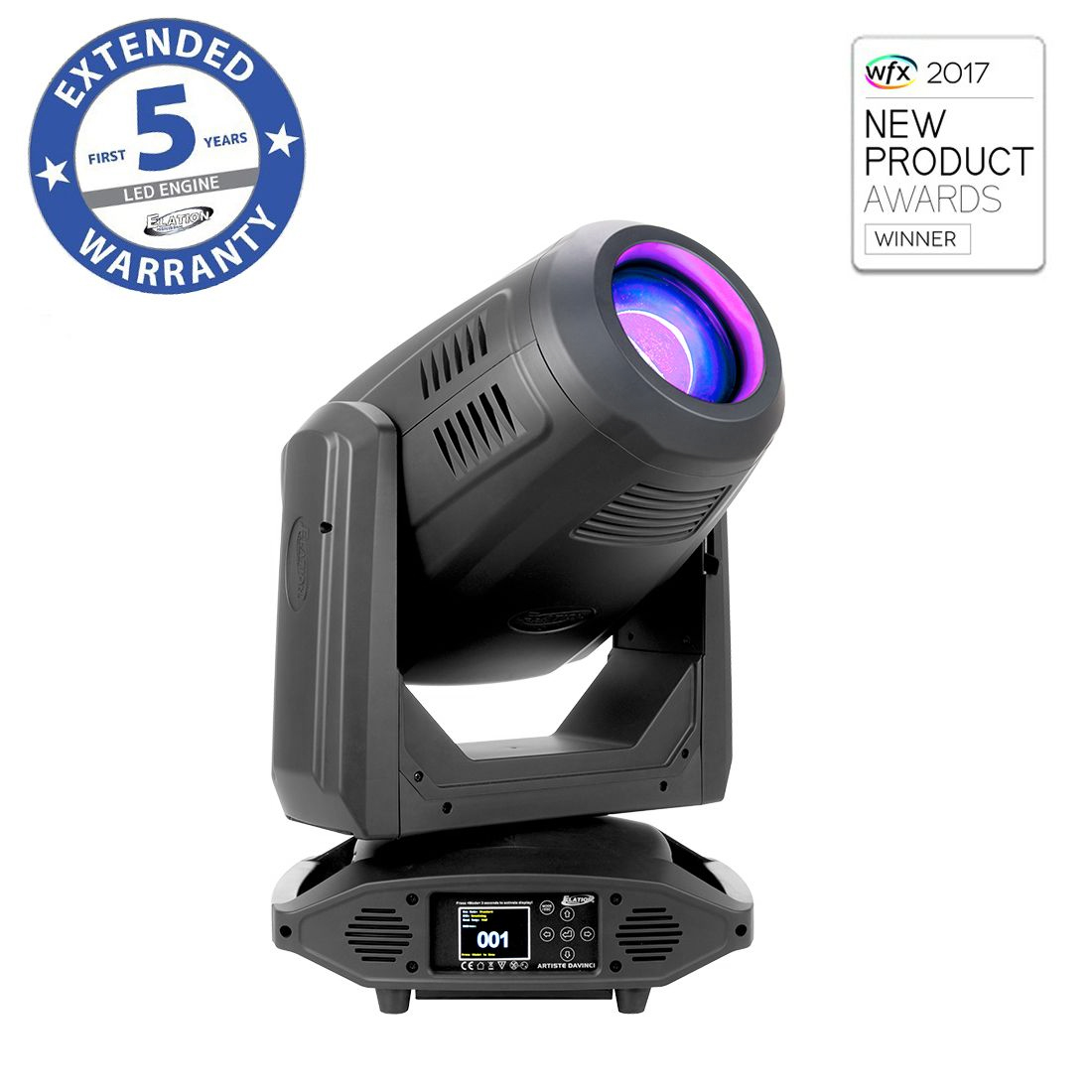

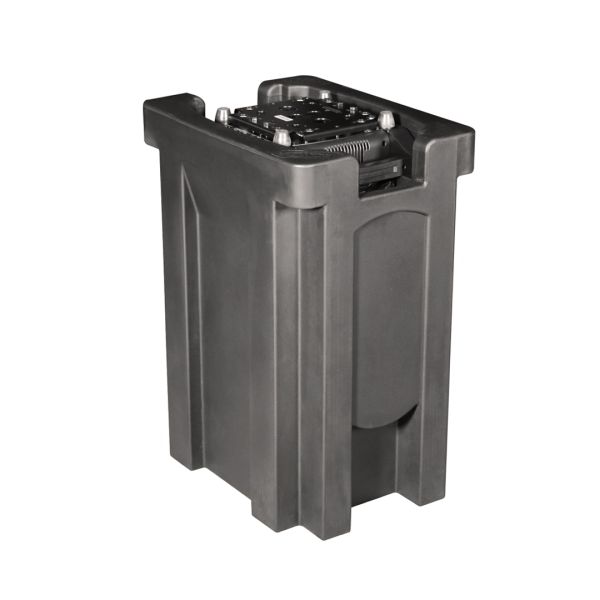

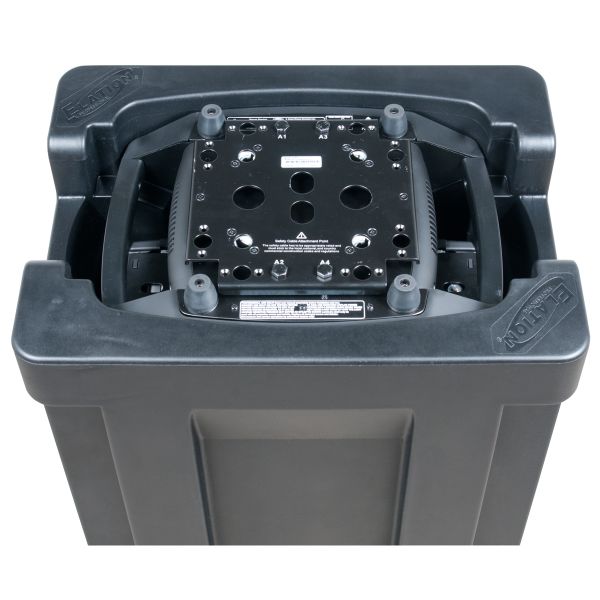

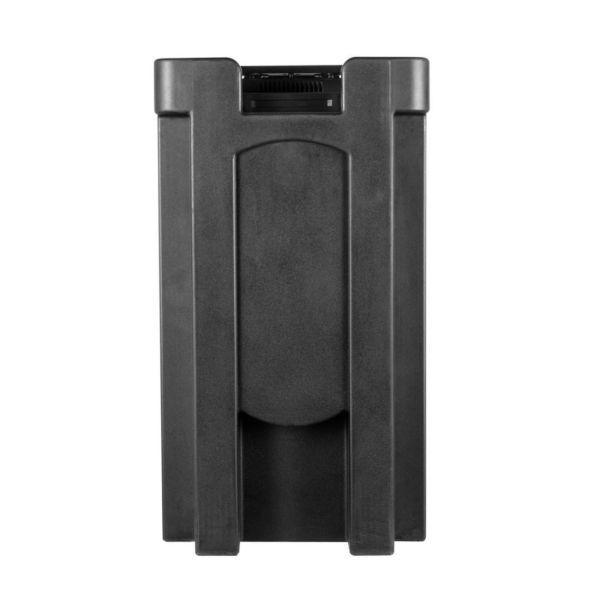

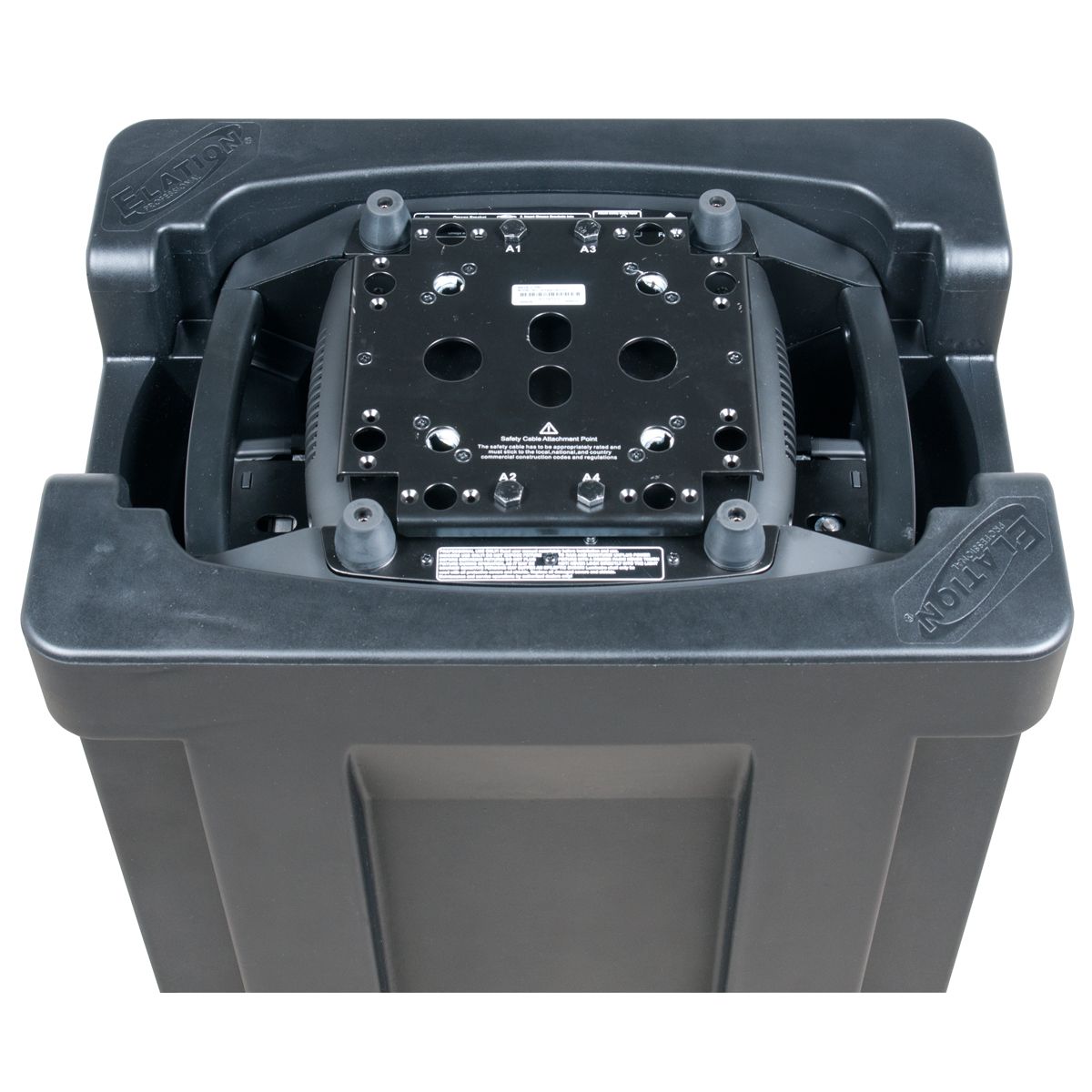

Artiste DaVinci incl. Foam Inlay

The Artiste DaVinci™ features a new 270W LED Cool White LED engine with advanced optics delivering over 12,000 total lumens, ultra wide 6° to 48° zoom, full CMY color mixing and linear CTO color correction, 7 dichroic colors including CTB and Violet, 6 rotating glass and 9 static-stamped metal interchangeable gobos, 3-facet and linear rotating prisms, frost filter, full 360° bi-directional animation wheel, motorized iris, focus, and auto-focus, variable dimming curve modes, high speed electronic shutter and strobe, hibernation mode, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, Elation's E-FLY™ internal wireless DMX transceiver, locking 5pin XLR DMX, RJ45 ethernet, power in/out connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

270W Cool White 12,000 Lumen LED Spot Luminaire
6° to 48° Motorized Zoom
Full CMY Color Mixing and Linear CTO Color Correction
7 Dichroic Colors including CTB and Violet
6 Rotating and 9 Static-Stamped Interchangeable Gobos
3-Facet and Linear Rotating Prisms and Frost Filter
Full 360° Bi-Directional Animation Wheel
High Speed Electronic Shutter and Strobe
Motorized Iris, Focus, and Auto-Focus
Variable Dimming Curve Modes
DMX, RDM, Art-NET, and sACN Protocol Support
Elation's E-FLY™ Internal Wireless DMX Transceiver
Low Heat, Quiet Operation, Hibernation Mode
Adjustable LED Refresh Rate Frequency and Gamma
Flicker Free Operation For Broadcast TV and FILM

SOURCE

270W Cool White LED Engine
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

12,000 Total Lumen Output
CRI 72+

EFFECTS

6° - 48° Motorized Zoom
3-Facet and Linear Rotating Prisms and Prism Macros
Full 360° Bi-Directional Rotating Animation Wheel
Frost Filter Hybrid Wash Effect
Motorized Zoom, Iris, Focus and Auto-Focus
High Speed Electronic Shutter and Strobe
Variable 16-Bit Dimming Curve Modes
Adjustable LED Refresh Rate Frequency and Gamma Brightness

COLOR

7 Dichroic Colors + CTB
Full CMY Color Mixing
Linear CTO Color Correction

GOBOS

2 Gobo Wheels
6 Interchangeable Rotating / Indexing Gobos
9 Interchangeable Static-Stamped Metal Gobos

CONTROL / CONNECTIONS

(3) DMX Channel Modes (40 total channels)
RDM (Remote Device Management)
6 Button Touch Control Panel

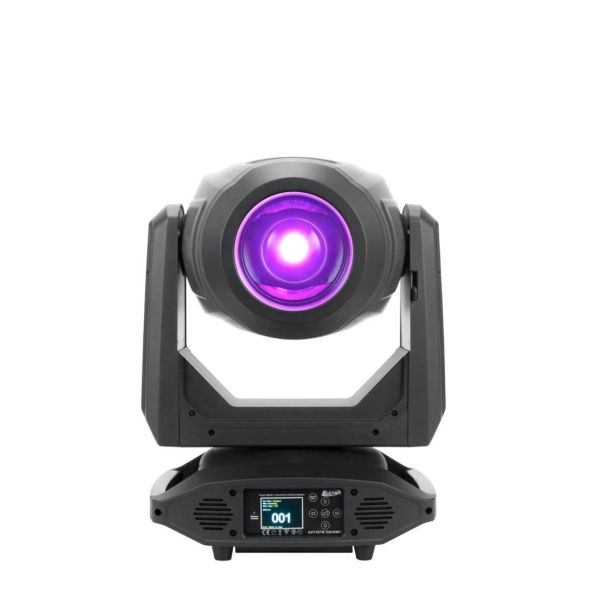

Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
DMX, RDM, Art-Net, sACN Protocol Support
Elation's E-FLY™ Internal Wireless DMX Transceiver

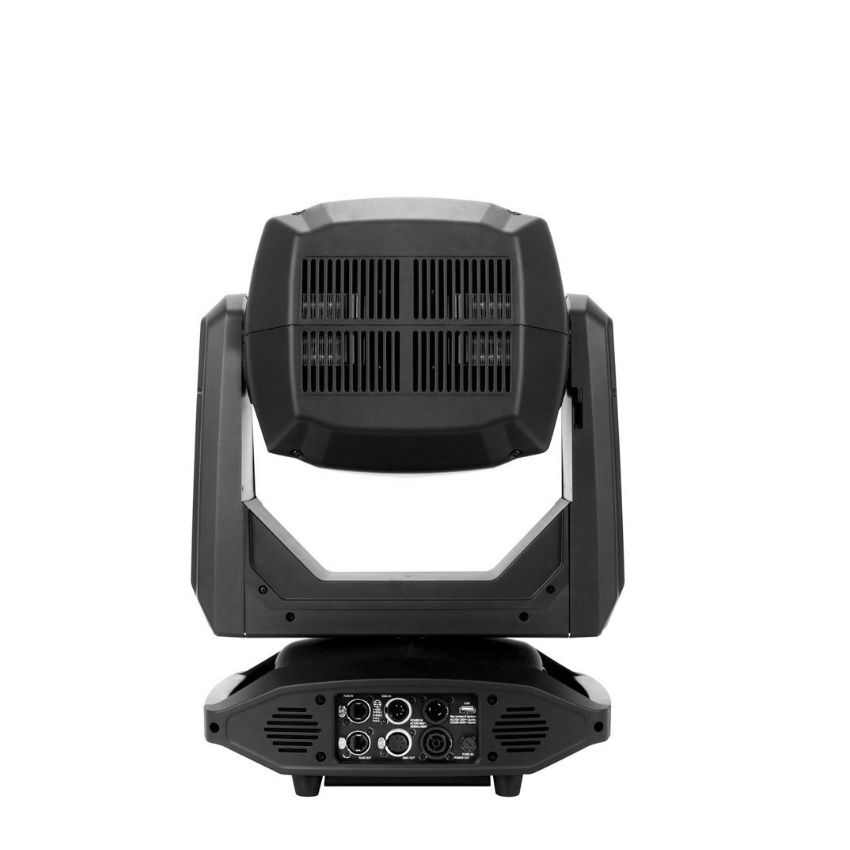

Locking 5pin XLR DMX, RJ45 Ethernet and Power
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 16.4” (416mm)
Width: 11.2” (284mm)
Vertical Height: 25.4” (645mm)
Weight: 56.0 lbs. (25.4 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
470W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Flags
Cyan Cyan
 Magenta Magenta
 Yellow Yellow
 C.T.O. C.T.O.
Color Wheel
Green Green
 Red Red
 Blue Blue
 CTB CTB
 Half Minus Green H. M. G.
 Light Yellow Light Yellow
 Violet Violet
Gobo Wheel 1
Gobo 35
 Gobo 41
 Gobo 42
 Gobo 43
 Gobo 44
 Gobo 103
Gobo Wheel 2
Gobo 28
 Gobo 46
 Gobo 48
 Gobo 50
 Gobo 51
 Gobo 78
 Gobo 100
 Gobo 101
 Gobo 102
Prisms
Prism 1
 Prism 2

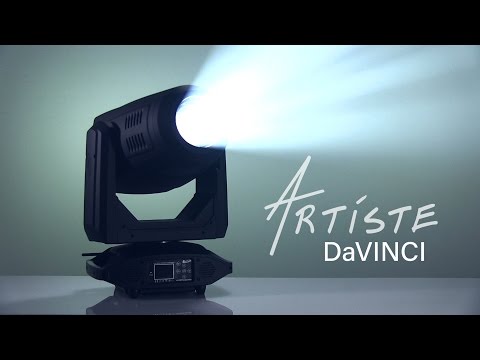

Videos
