9250

Artiste Dali

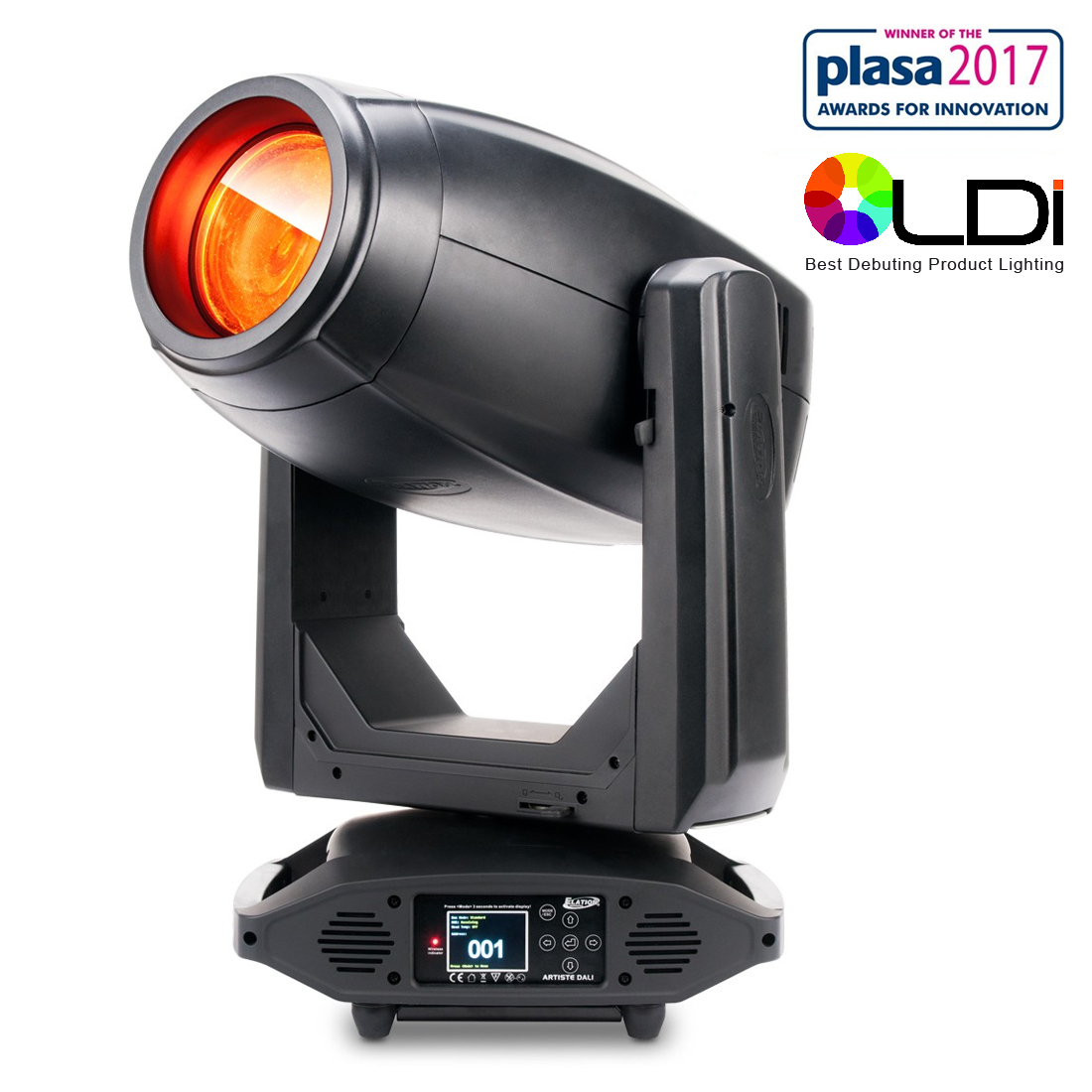

The Artiste Dali™ is a hybrid luminaire featuring a 380W, 14,000+ lumen LED-Laser phosphor engine with advanced optics, state-of-the-art motorized 4-blade framing shutter module, motorized zoom of 8° to 43° spot mode, 3° to 8° beam mode, full CMY color mixing plus linear CTO color correction, 10 dichroic colors including white (open), 6 rotating, interchangeable glass & metal gobos and 11 static-stamped gobos, 5-facet and linear rotating prisms, linear wash frost, motorized iris, bi-directional full 360° animation wheel, adjustable refresh frequency and gamma brightness, variable dimming curves, DMX, RDM (Remote Device Management), Art-NET and sACN (DMX over Ethernet) support, locking 5pin DMX in/out, locking RJ45 ethernet in/out and locking power in/out connections, USB firmware service port, an internal E-FLY™ wireless DMX receiver, flicker free operation for TV and Film, 6 button control full color 180° reversible menu display and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

High Powered 380W LED-Laser Phosphor Hybrid Luminaire

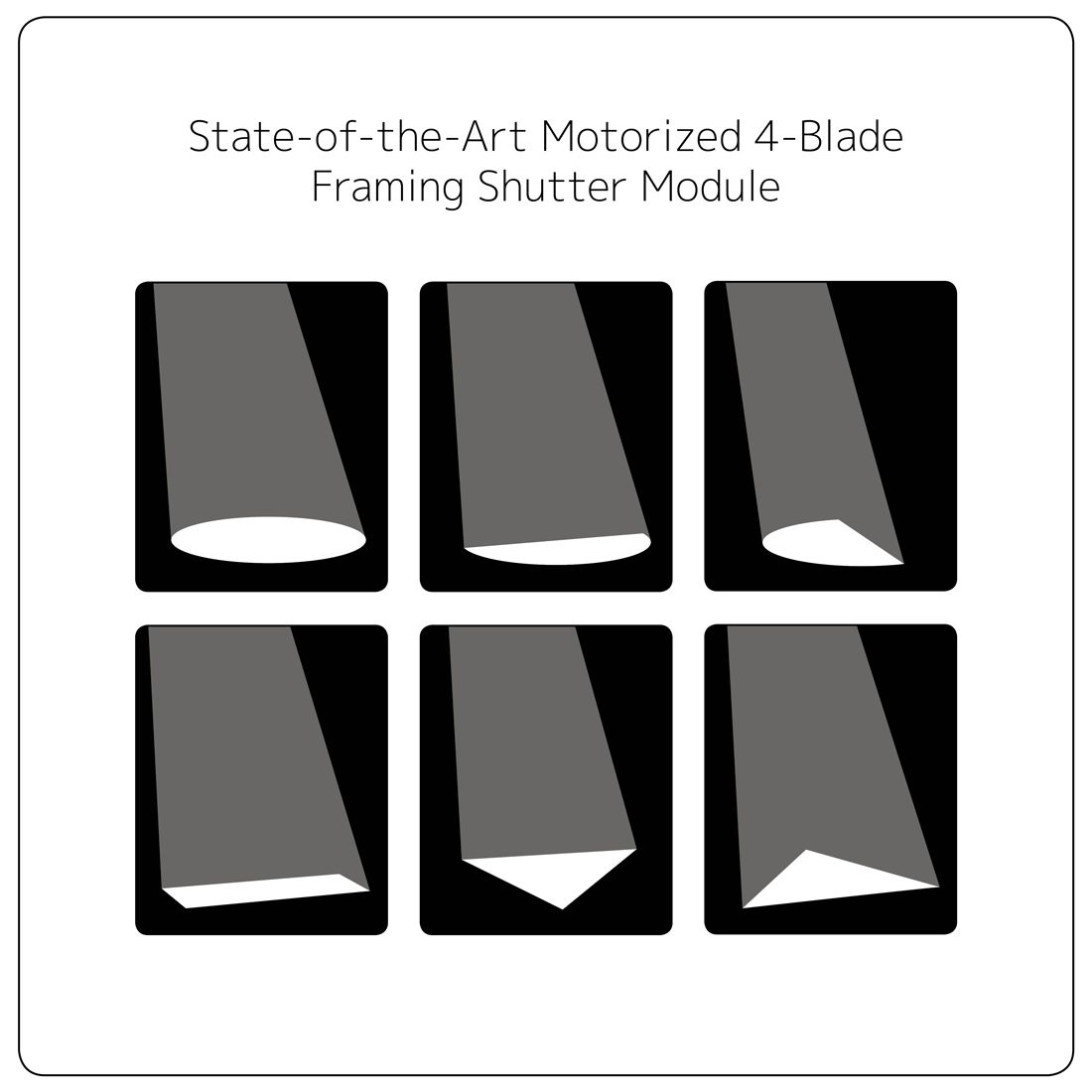

State-of-the-Art Motorized 4-Blade Framing Shutter Module

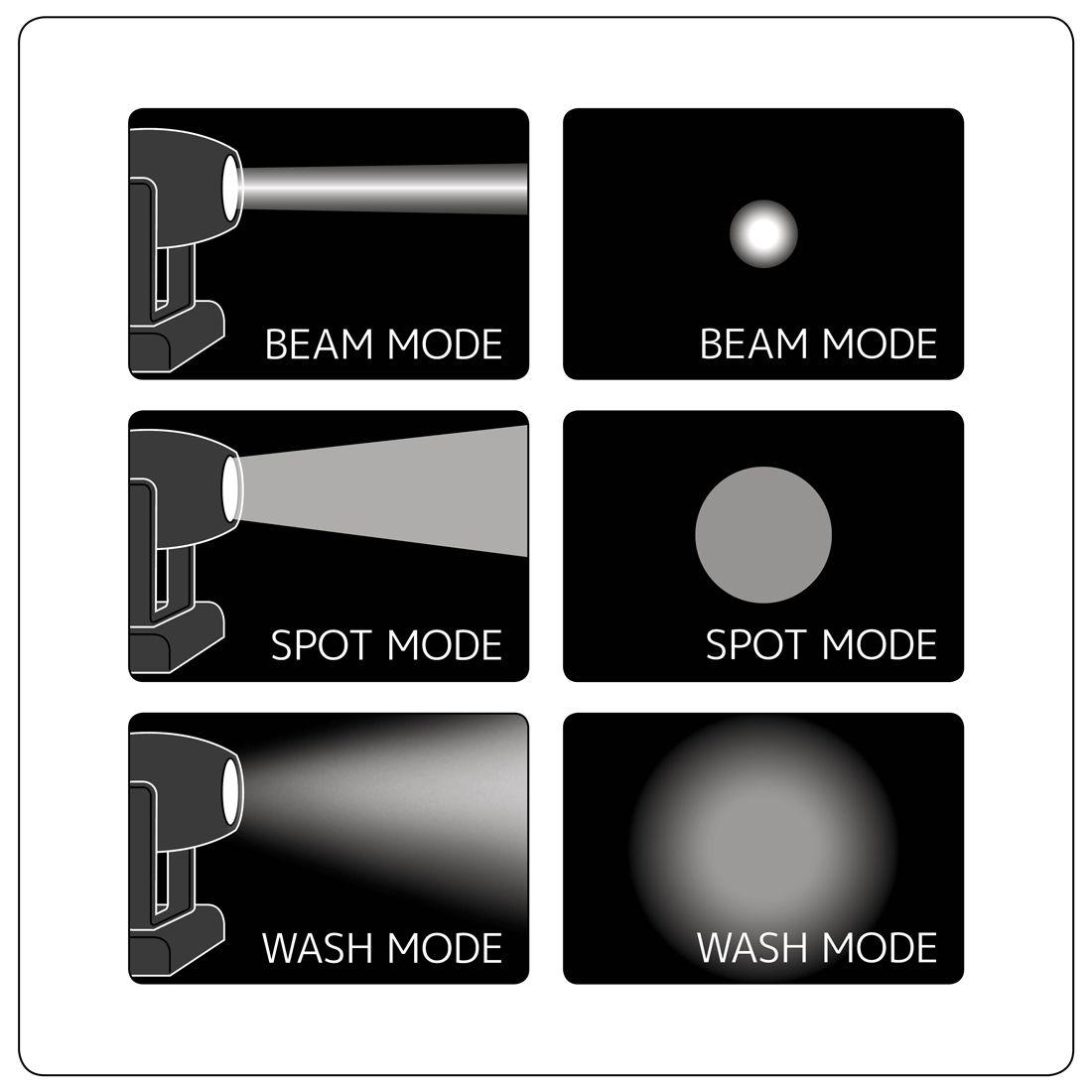

8° - 43° Spot and 3° - 8° Beam Motorized Zoom Range
360° Full Bi-Directional Animation Wheel
Innovative Auto Focus
Full CMY Color Mixing and Linear CTO Color Correction
Pan/Tilt Lock
Low Heat, Quiet Operation, Hibernation Mode
Adjustable Refresh Frequency and Gamma Brightness
Variable Dimming Curves
Flicker Free Operation for TV and Film
Internal E-FLY™ Wireless DMX Receiver
Art-NET and sACN (DMX over Ethernet) Support
RDM – Remote Device Management


SOURCE

380W Cool White LED Engine
14,000+ Lumen, 7,500K
50,000 Hour Average LED Life*


PHOTOMETRIC DATA

23,450 LUX 2179 FC @ 16.4’ (5m) (Spot Mode)
26,000 LUX 2416 FC @ 16.4’ (5m) (Beam Mode)
4,992 LUX 464 FC @ 16.4’ (5m) (Wash Mode)


EFFECTS

5-Facet and Linear Rotating Prisms
360° Full Bi-Directional Animation Wheel
Linear Wash Frost
Iris: 5% - 100%
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves


COLOR

CMY Color Mixing and Linear CTO Color Correction
10 Dichroic Colors + White (Open)


GOBOS

2 Gobo Wheels
6 Interchangeable / Rotating / Indexing Glass & Metal Gobos
11 Static-Stamped / Indexing Metal Gobos


CONTROL / CONNECTIONS

(3) DMX Channel Modes (27 / 29 / 41)
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement
USB Firmware Service Port
Internal E-FLY™ Wireless DMX Receiver

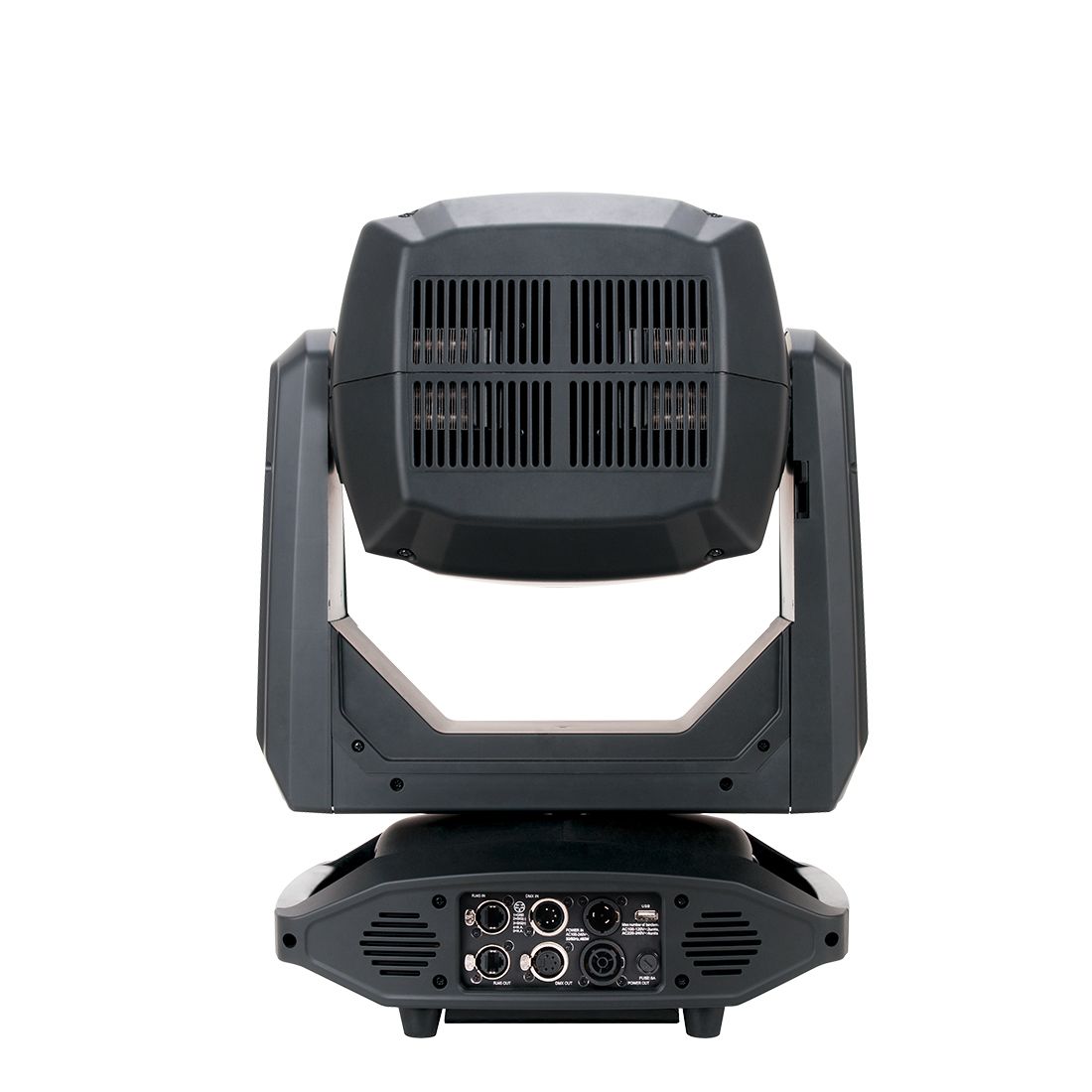

Locking 5pin DMX In/Out
Locking RJ45 ethernet In/Out (Art-NET and sACN)
Locking power connector In/Out


SIZE / WEIGHT

Length: 15.0” (382mm)
Width: 12.2” (311mm)
Vertical Height: 28.4” (722mm)
Weight: 59.5 lbs. (27 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
420W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


OPTIONAL ACCESSORIES

1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome
1322000054 E Loader III
1322000055 E-FLY Wireless DMX Transceiver

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.


Specifications and documentation subject to change without notice
