Code 1237000391

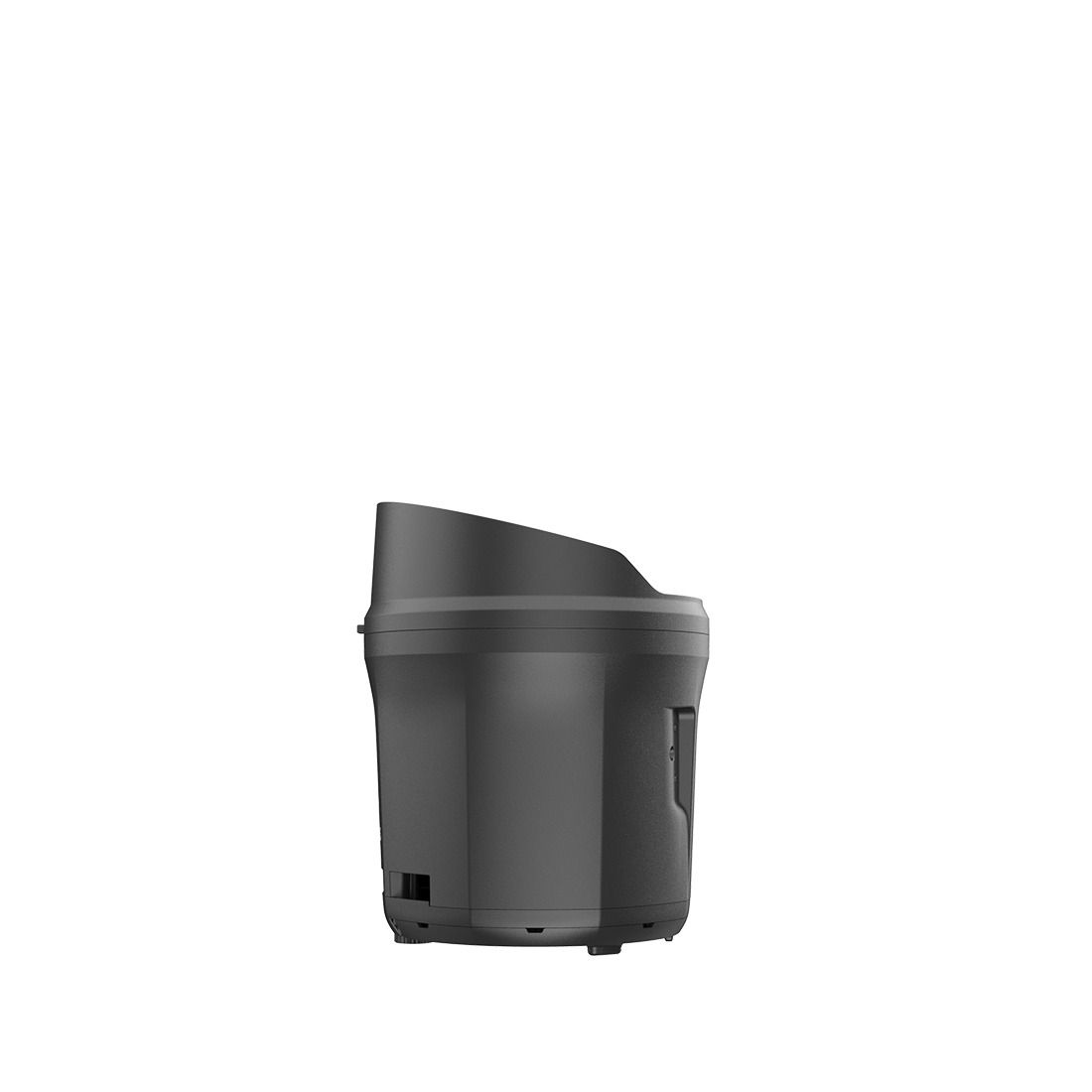

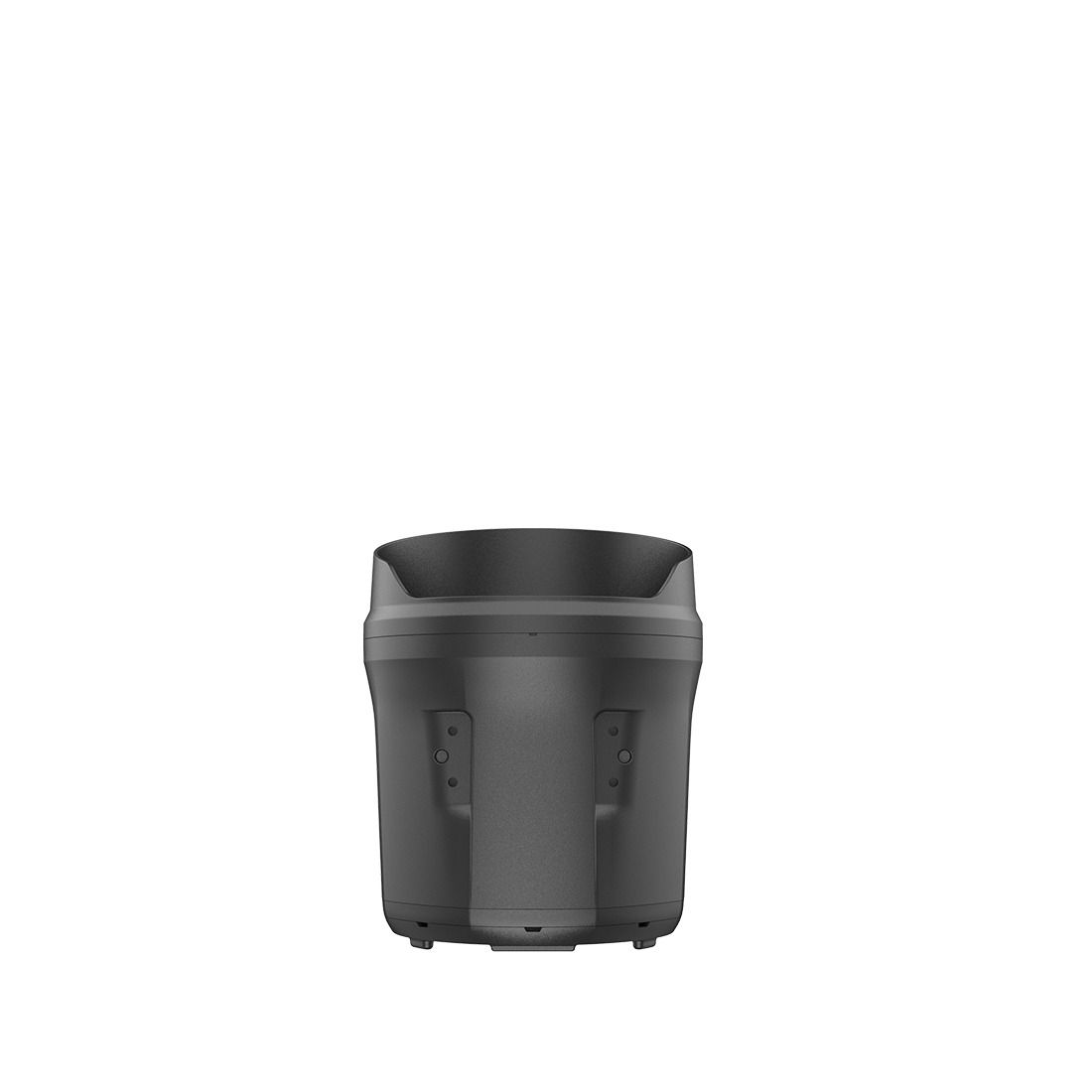

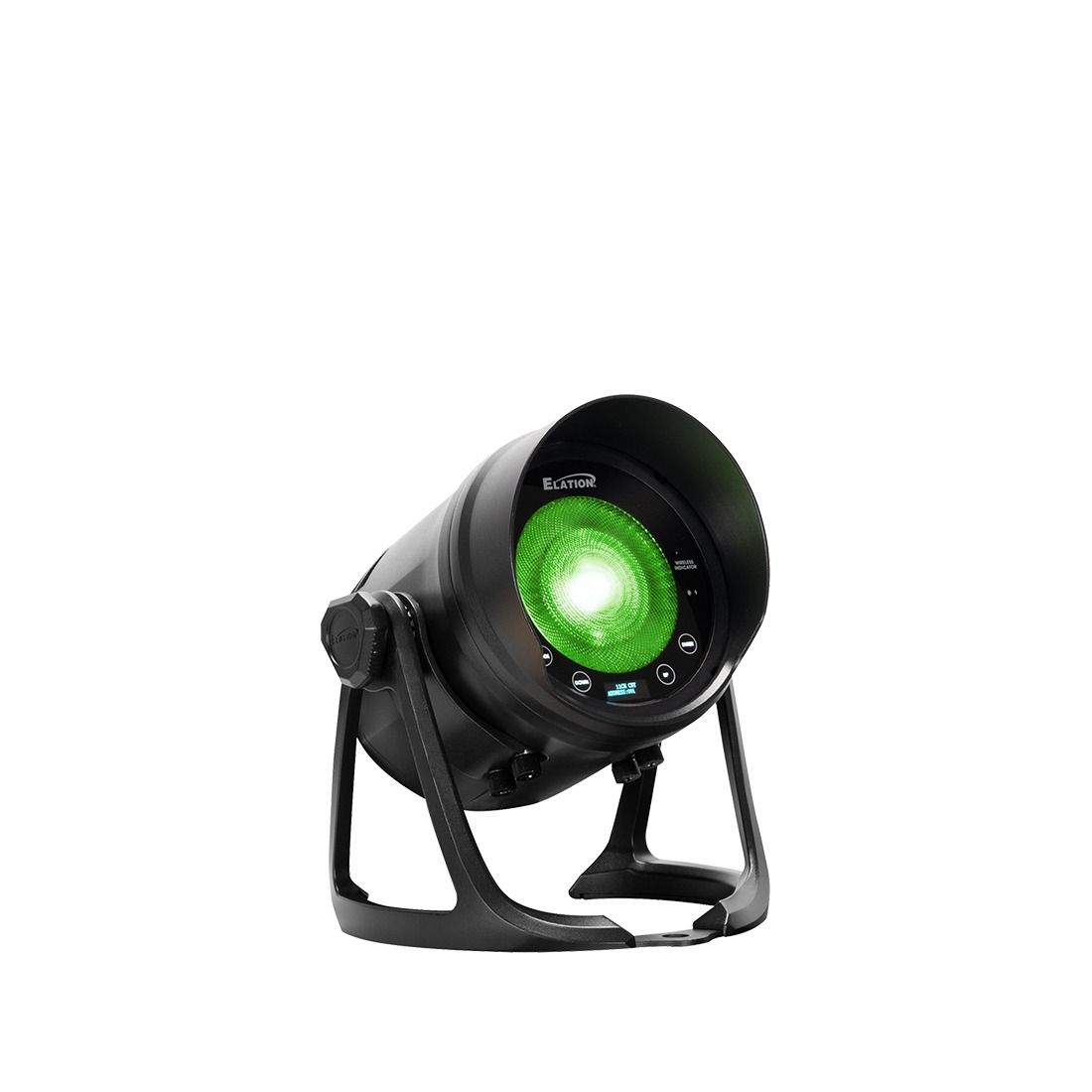

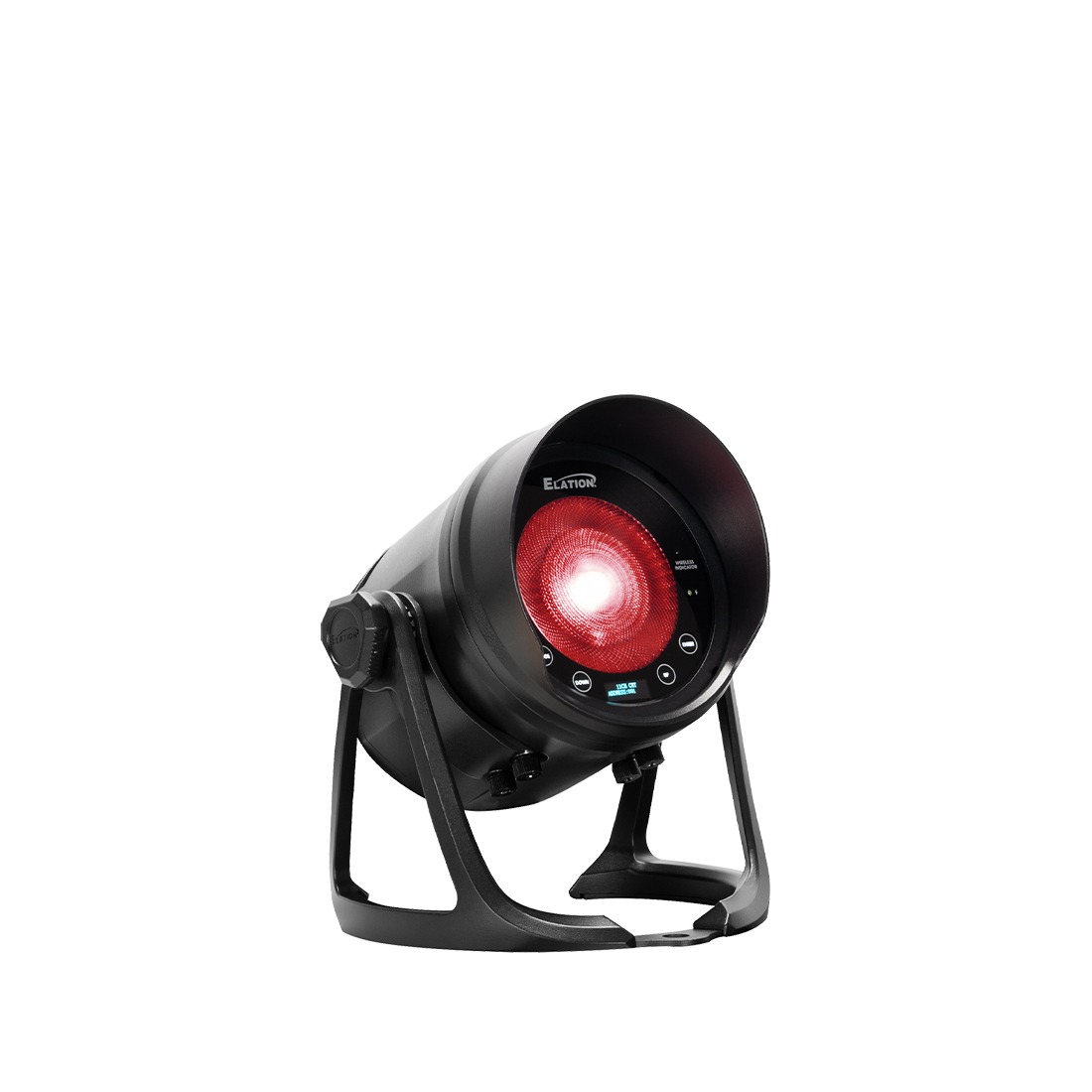

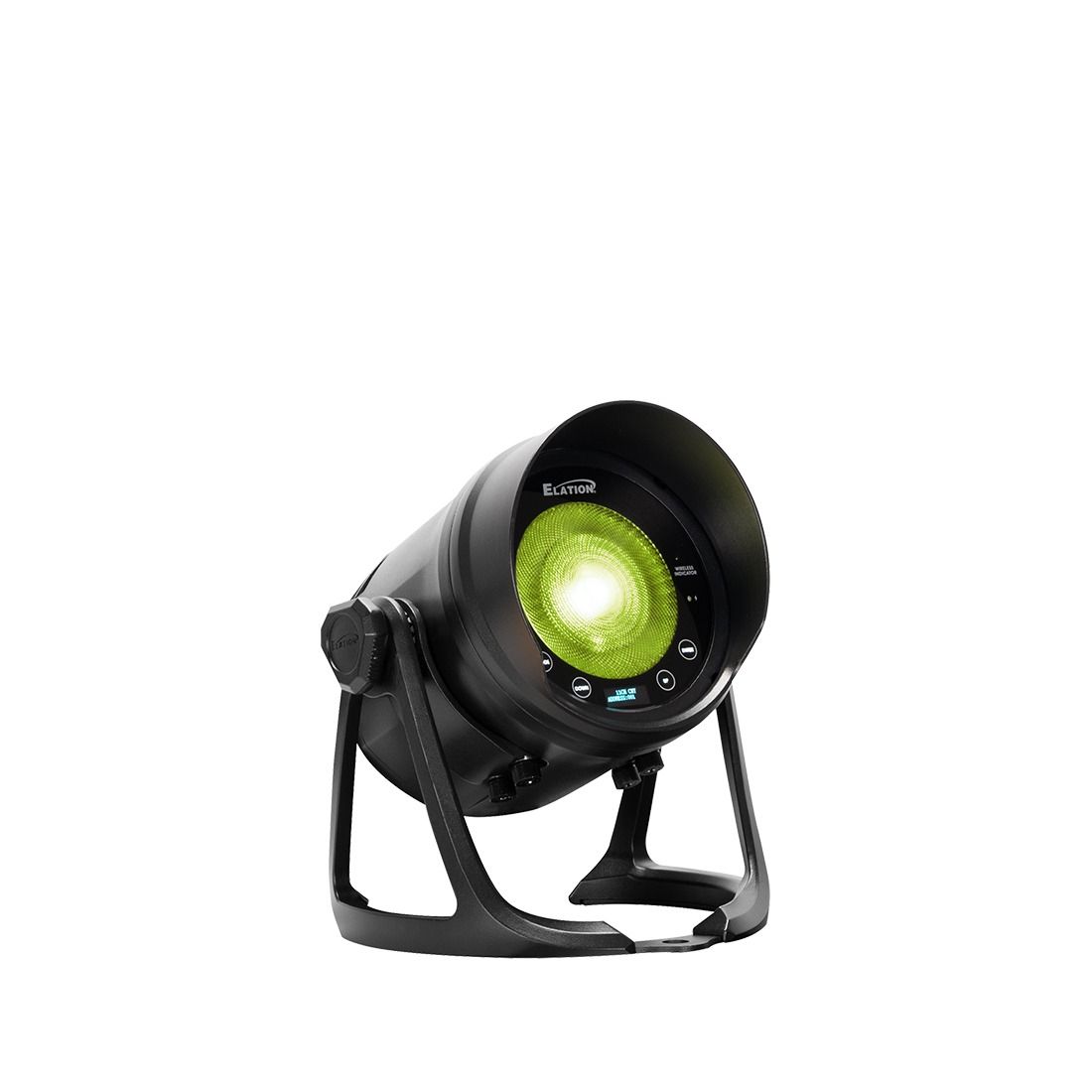

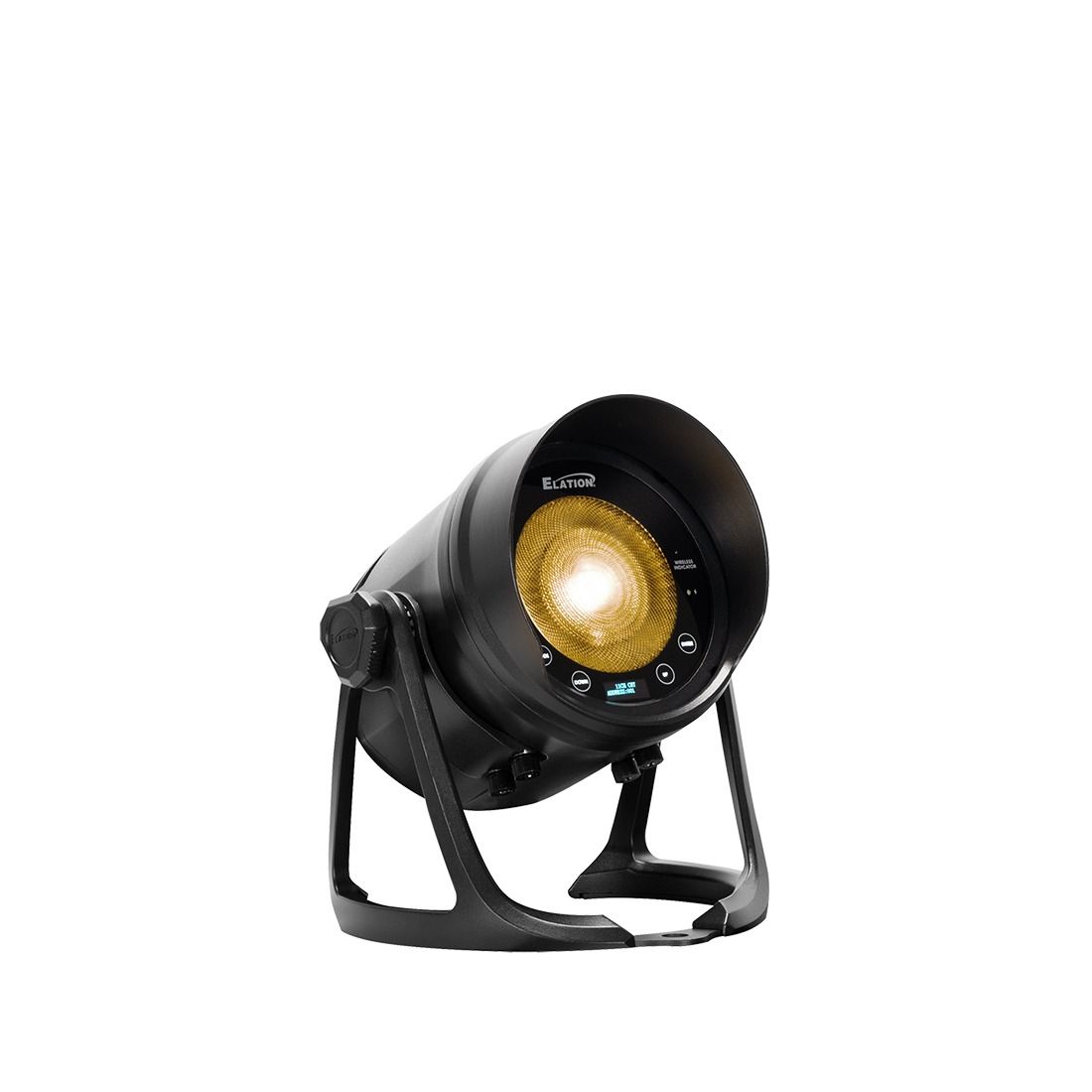

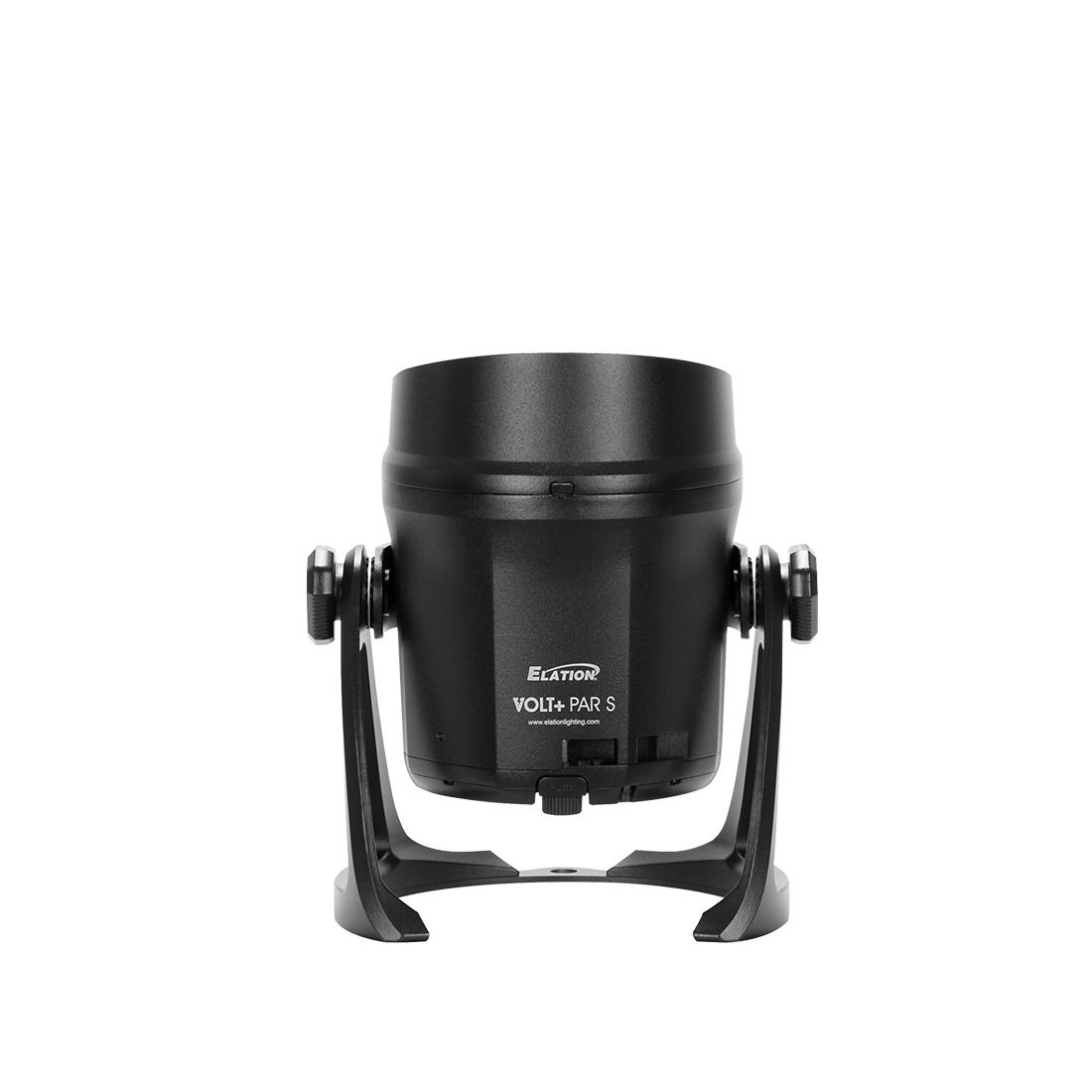

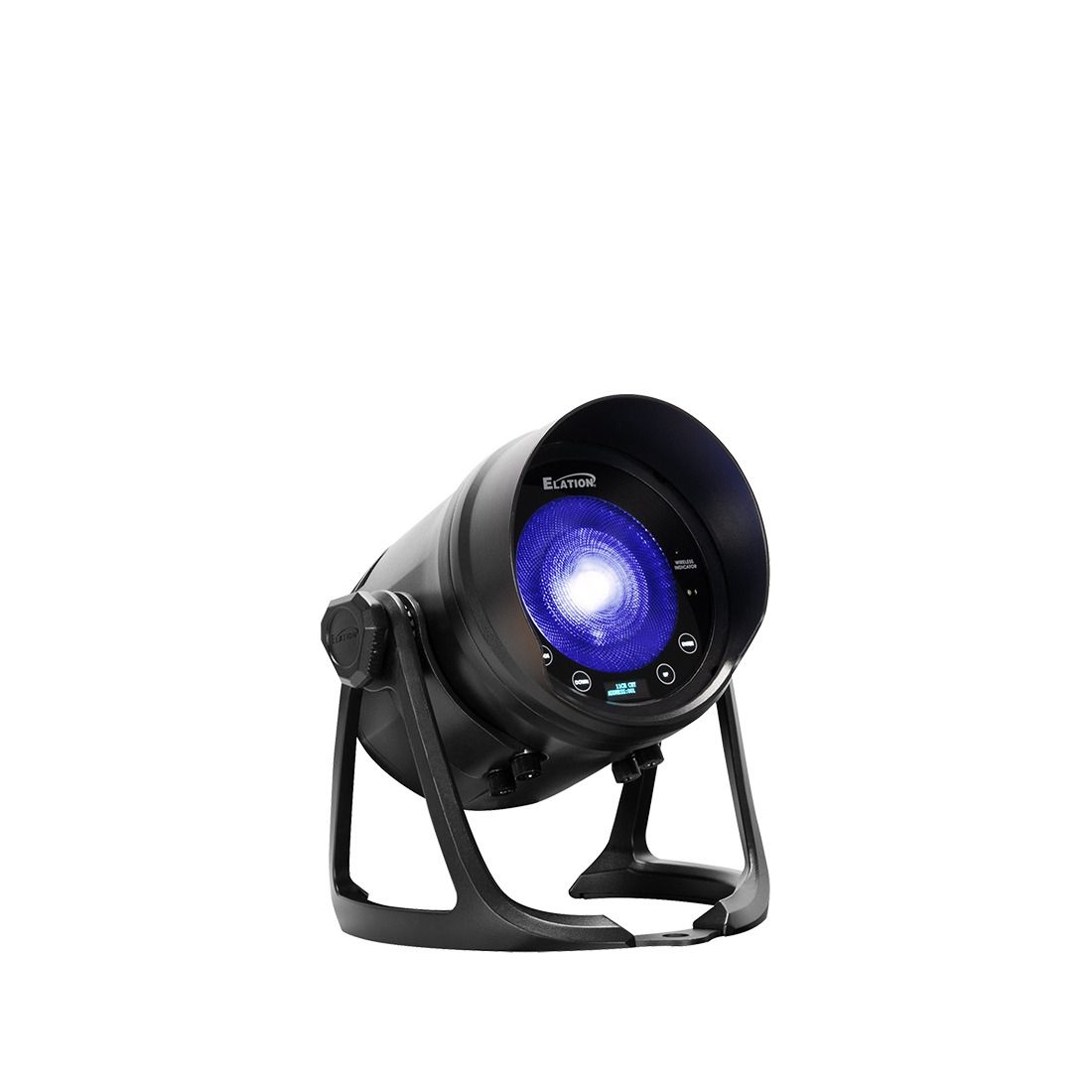

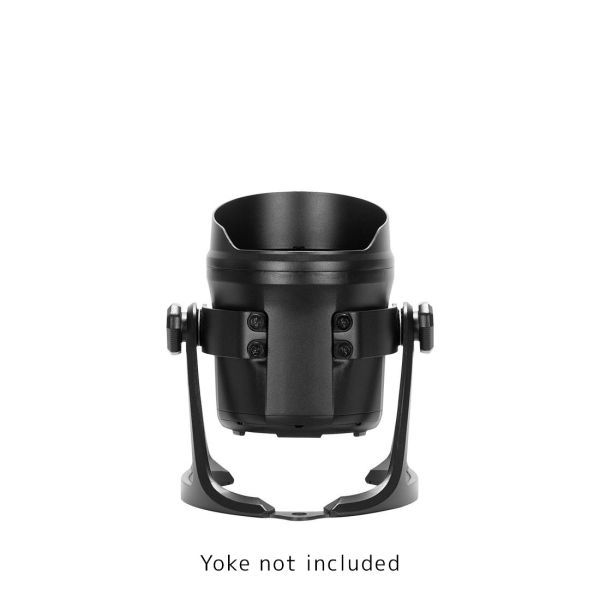

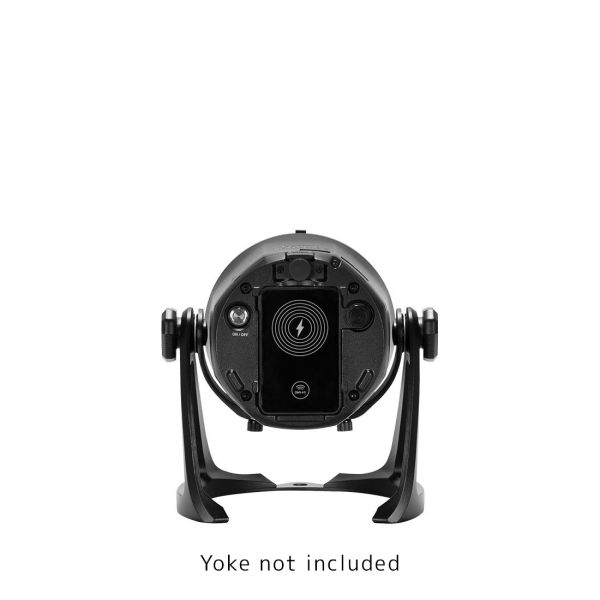

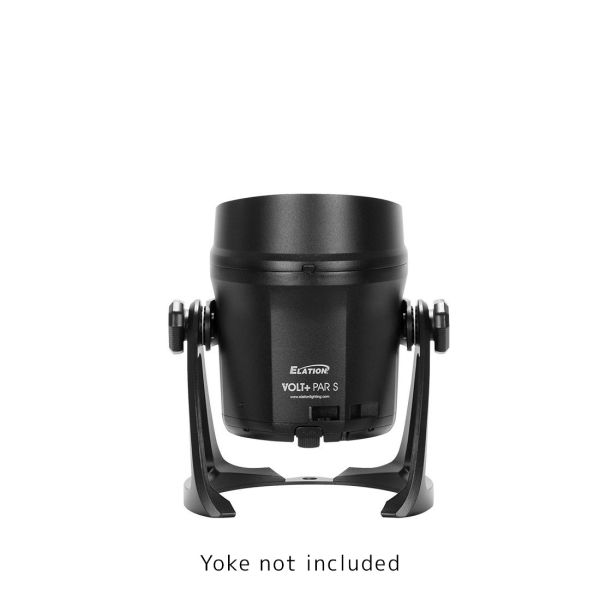

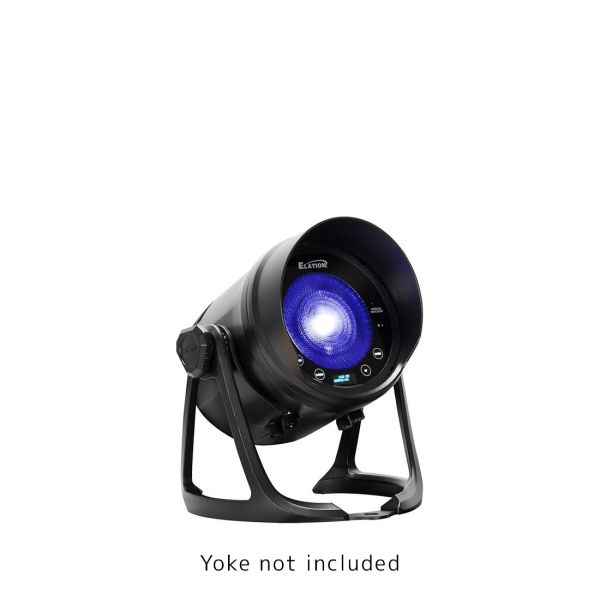

VOLT+ PAR S

Introducing the VOLT+ PAR S, a next-generation replacement fixture in Elation’s popular VOLT Series that delivers the ultimate in battery-powered lighting performance with enhanced efficiency, versatility, and durability in a compact, sleek form factor.

Designed as a direct upgrade for previous VOLT models, the VOLT+ PAR S features cutting-edge RGB+Lime+Amber+UV LED technology, providing superior color mixing, increased output, and exceptional color rendering with a high CRI. Its fully homogenized beam ensures smooth, even coverage with no color separation, making it ideal for both wash and direct-view applications. The fixture’s sleek, connection-free design eliminates external cabling, ensuring a clean, professional look that seamlessly integrates into any setup.

Built with an IP65-rated housing and a rugged construction, the VOLT+ PAR S is ready for any environment, indoors or outdoors, making it the perfect solution for productions, installations, and events where mobility and reliability are key.

For added convenience and extended runtime, the VOLT+ PAR S offers an optional wired charging and DMX base, allowing users to operate the fixture while simultaneously charging, ensuring uninterrupted use for longer events or run DMX when wireless operation would prove difficult. Additionally, an optional external battery is available for extended wireless operation, giving users the flexibility to keep their designs untethered for even longer durations.

The optional Bowens mount adapter expands creative possibilities by allowing compatibility with a wide range of light-shaping modifiers, enabling precise beam control and customized visual effects.

Whether used as a wash light, uplight, accent fixture, or direct-view pixel effect, the VOLT+ PAR S delivers exceptional flexibility with numerous wireless control options, including an IR Remote, Prebuilt & Custom Standalone Effect Sequences, proprietary Aria x2 wireless device management and NFC Configuration.

With its advanced technology, effortless portability, and expanded accessory options, the VOLT+ PAR S is the ultimate choice for lighting professionals who demand uncompromising performance and adaptability.

Technical Data

FEATURES

30W RGBLA+UV LED
1975 Total Fixture Lumen Output (Sphere)
90.9 CRI
20° Beam Angle, Diffusion Lens Included

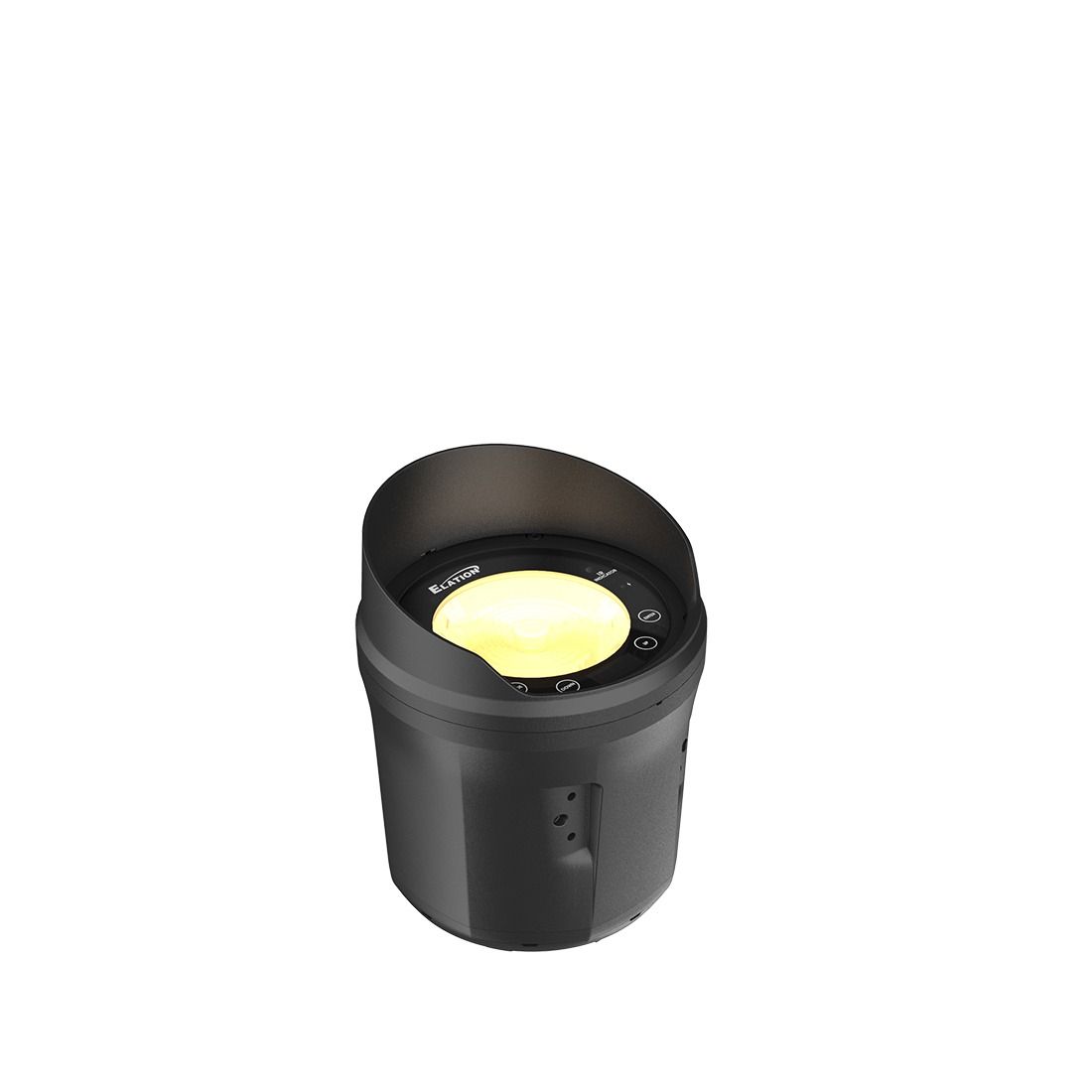

Removable Snoot Included
Optional Wired DMX & Power Charging Base
Optional Bowen Mount Adapter
>12hr Maximum Battery Run Time
IP65 Rated

SOURCE

30W RGBLA+ UV LED
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:
1,975 (Integrating Sphere)
CRI- 90.9
TLCI- 80
Beam Angle: 20°
Field Angle: 32°

EFFECTS

Prebuilt & Custom Standalone Effect Sequences
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR

RGBLA+ UV Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

8 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)

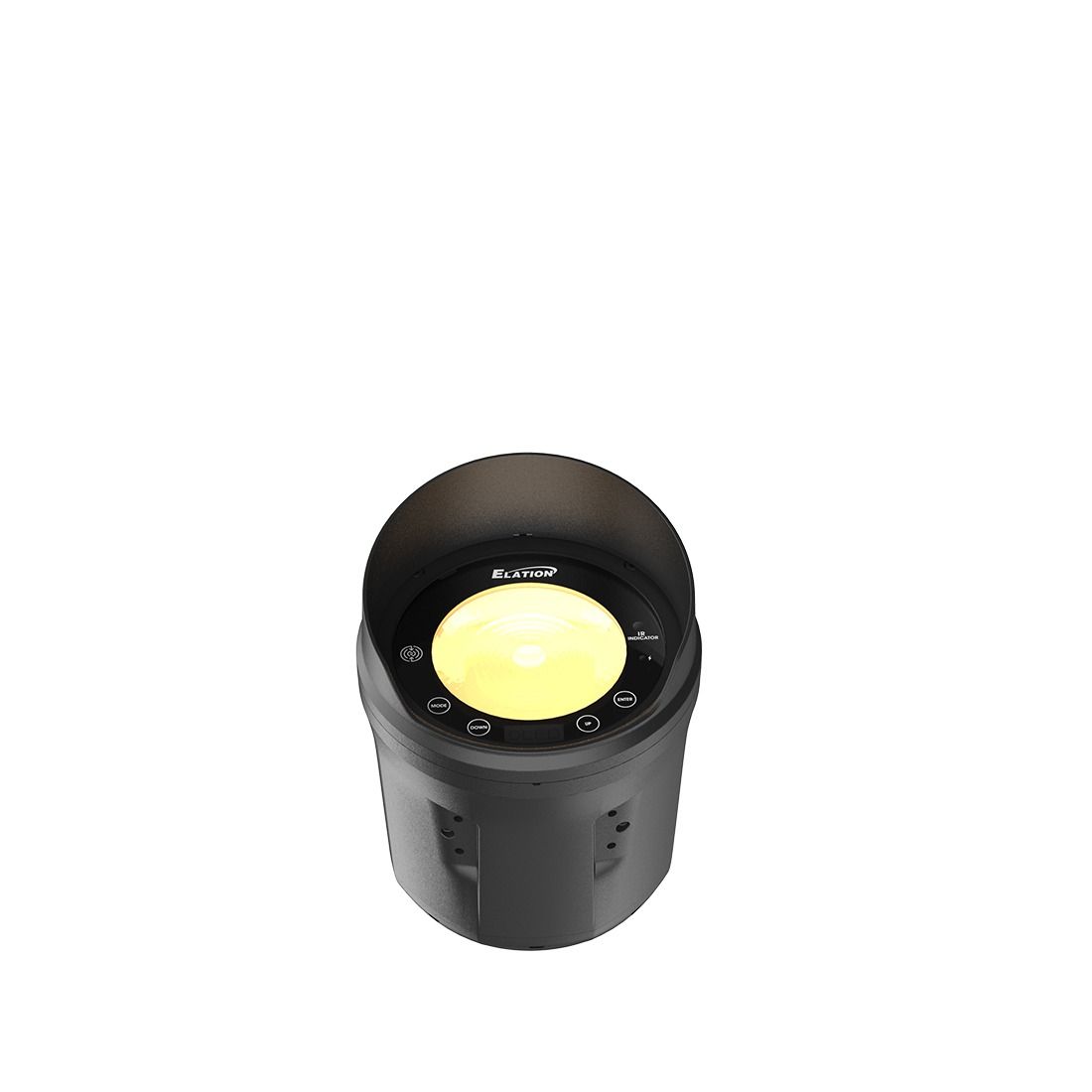

4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
IR Remote
NFC Configuration

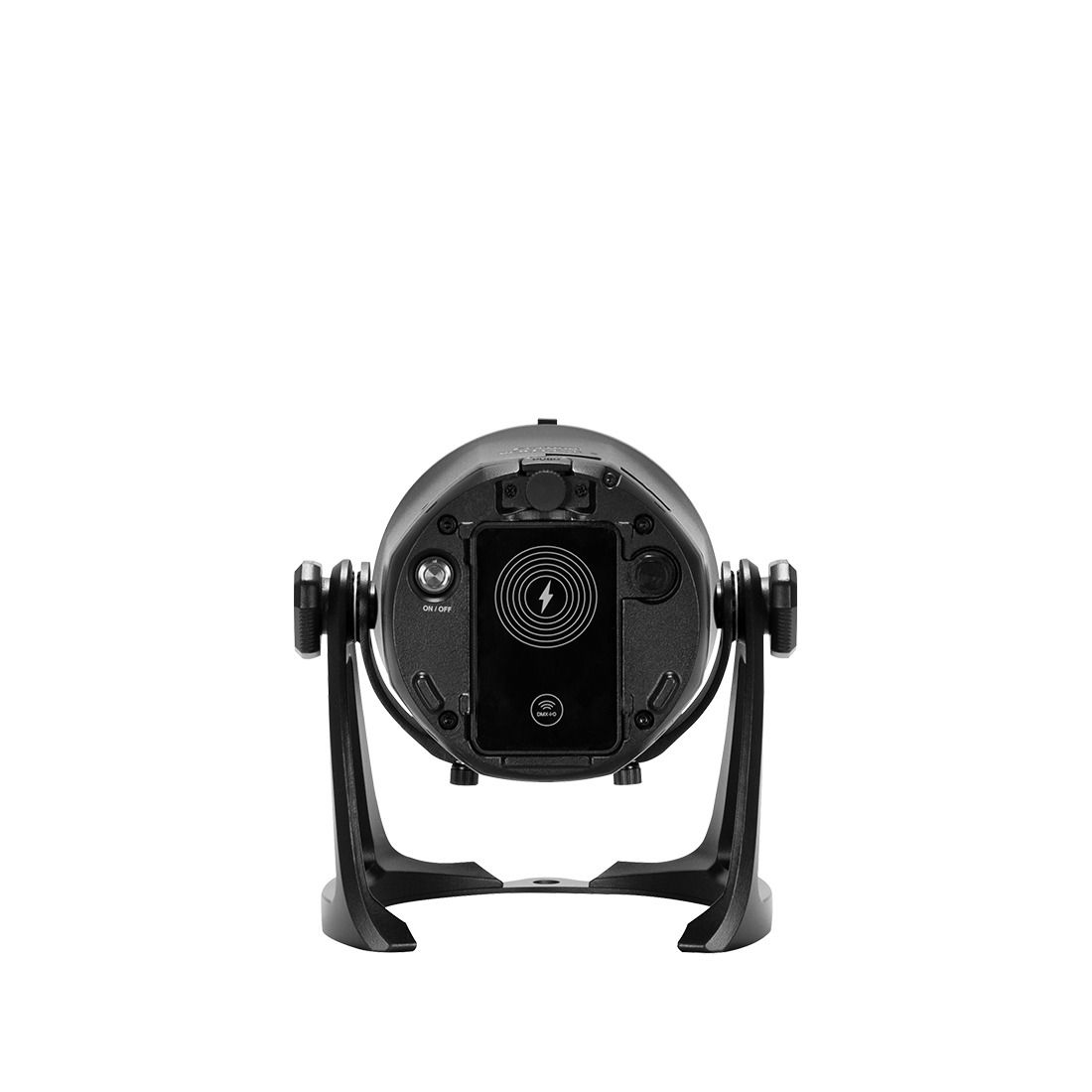

Wireless Power Charging
Optional Charging Base with:
5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT

Length: 156mm (6.14")
Width: 156mm (6.14")
Vertical Height (with Snoot): 197.5mm (7.77”)
Vertical Height (without Snoot): 150mm (5.9")
Weight: 4.85kg (10.7 lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
40W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 136.4

BATTERY

Type: Lithium
Weight: 1.7 lbs. (0.75 Kg)
Battery Capacity: 9.6 Ah
Battery Voltage: 18V (nominal); 21V (full)
Battery Run Time: > 12hrs
Lifetime: > 300 Cycles

INCLUDED ITEMS

Diffusion Filter
Concentric Ring
Removable Half Snoot

ORDERING INFORMATION


VOLT+ PAR S 6-PACK (VOL201)
(Kit Includes: 6x VOLT+ PAR S, 2x IR Remote, 1x Charging Roadcase)
VOLT+ PAR S Base Pack (VOL242)
(Kit Includes: 1x VOLT+ PAR S & 1x VOLT+ PAR S Connector Base)

OPTIONAL ITEMS

VOLT+ IR REMOTE

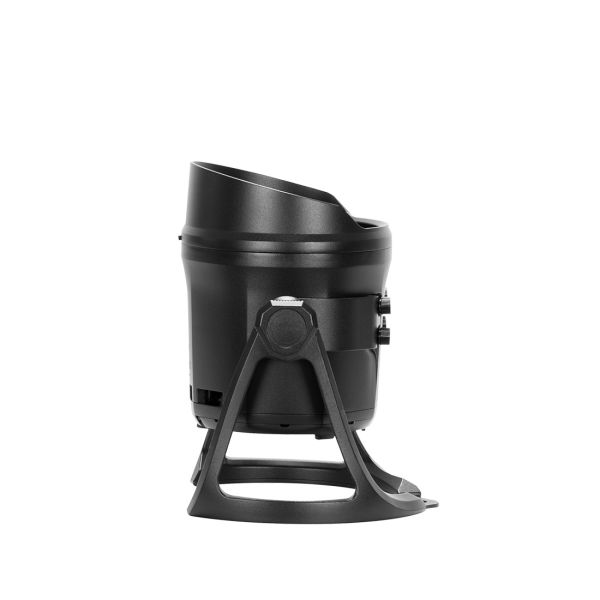

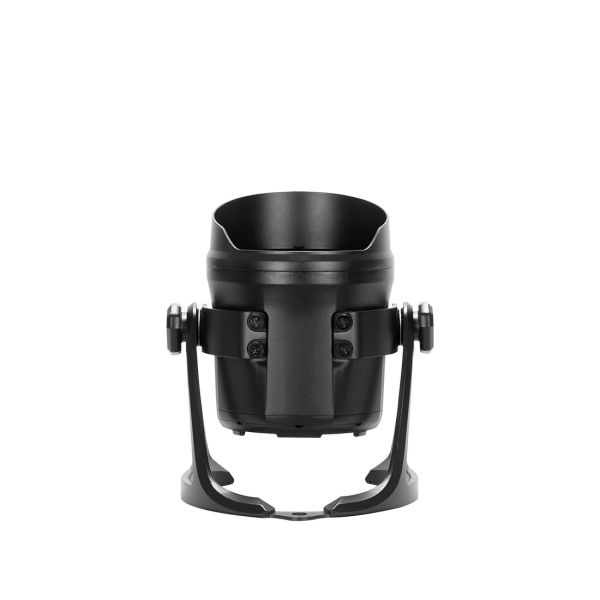

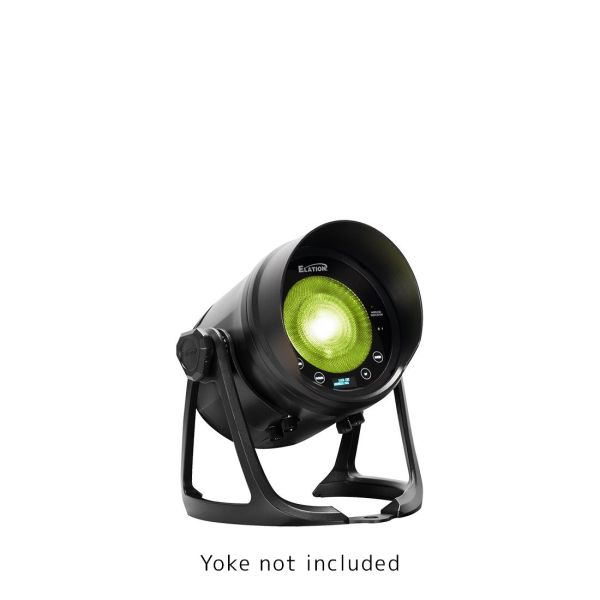

VOLT+ PAR S YOKE

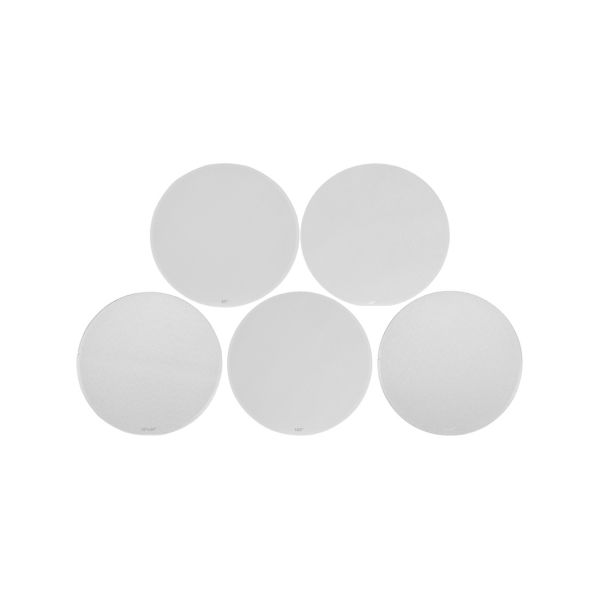

VOLT+ PAR S LENS KIT
VOLT+ PAR S BOWENS ADAPTER
VOLT+ PAR S CONNECTOR BASE
VOLT+ PAR STAND ADAPTER
VOLT+ PAR BATTERY BASE

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice
