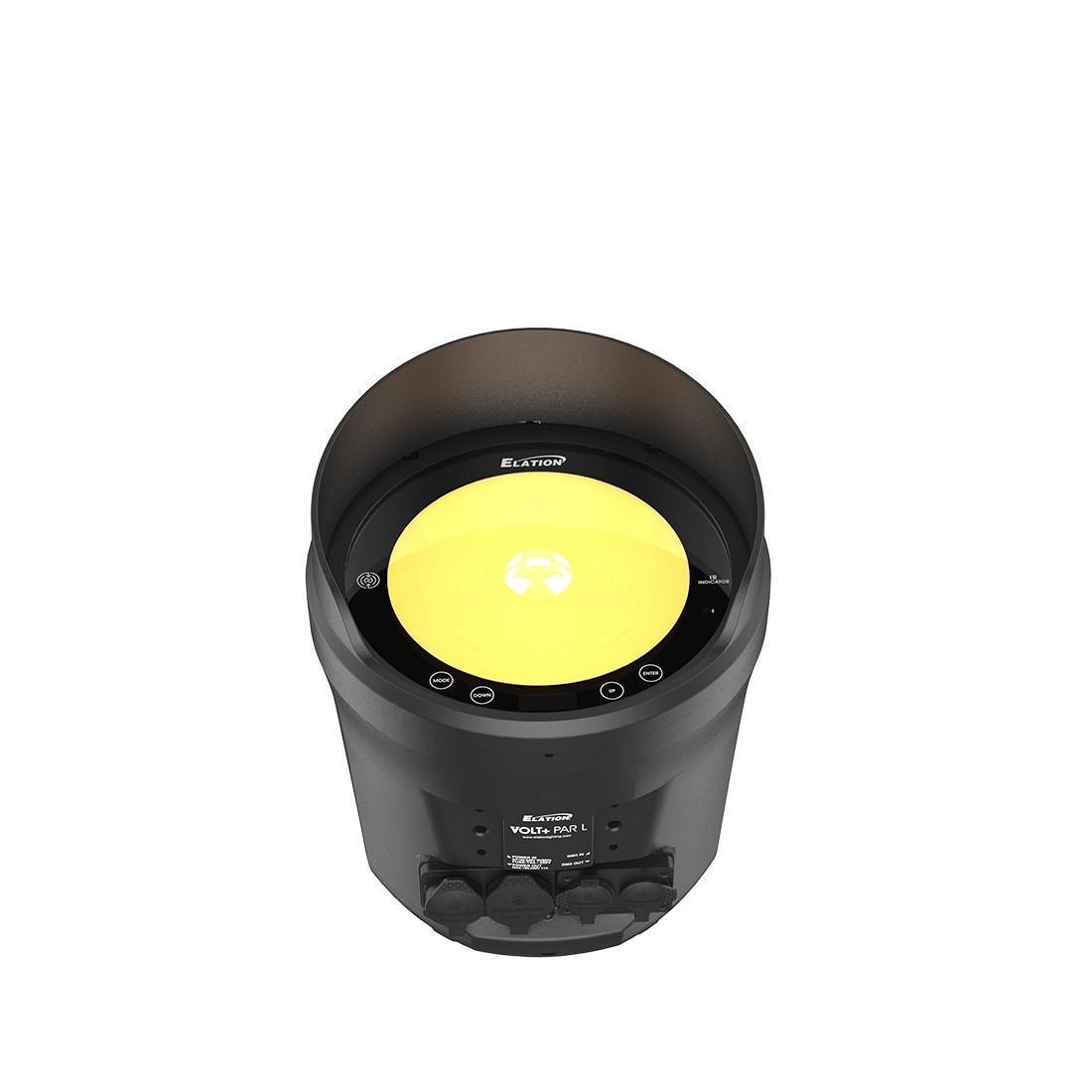

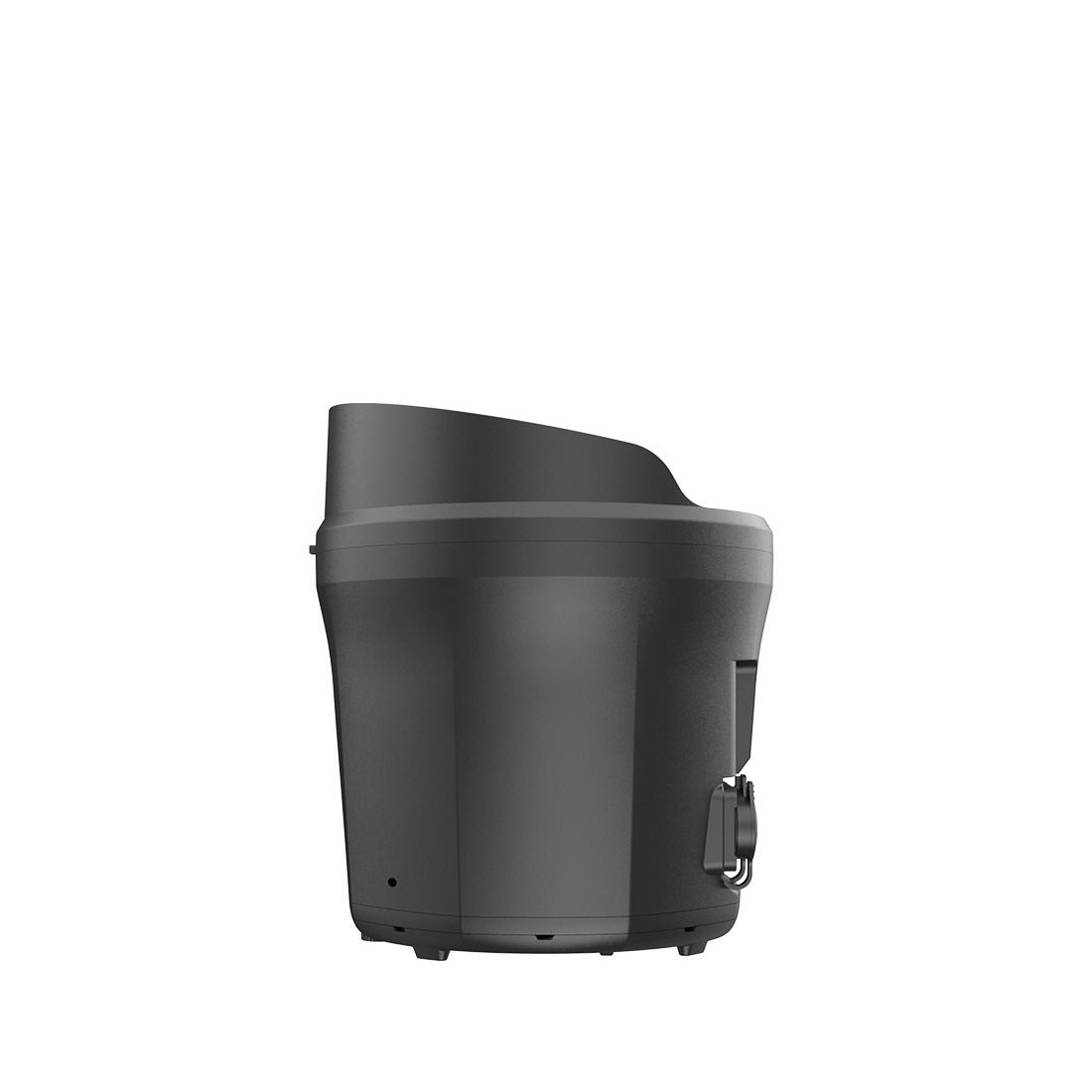

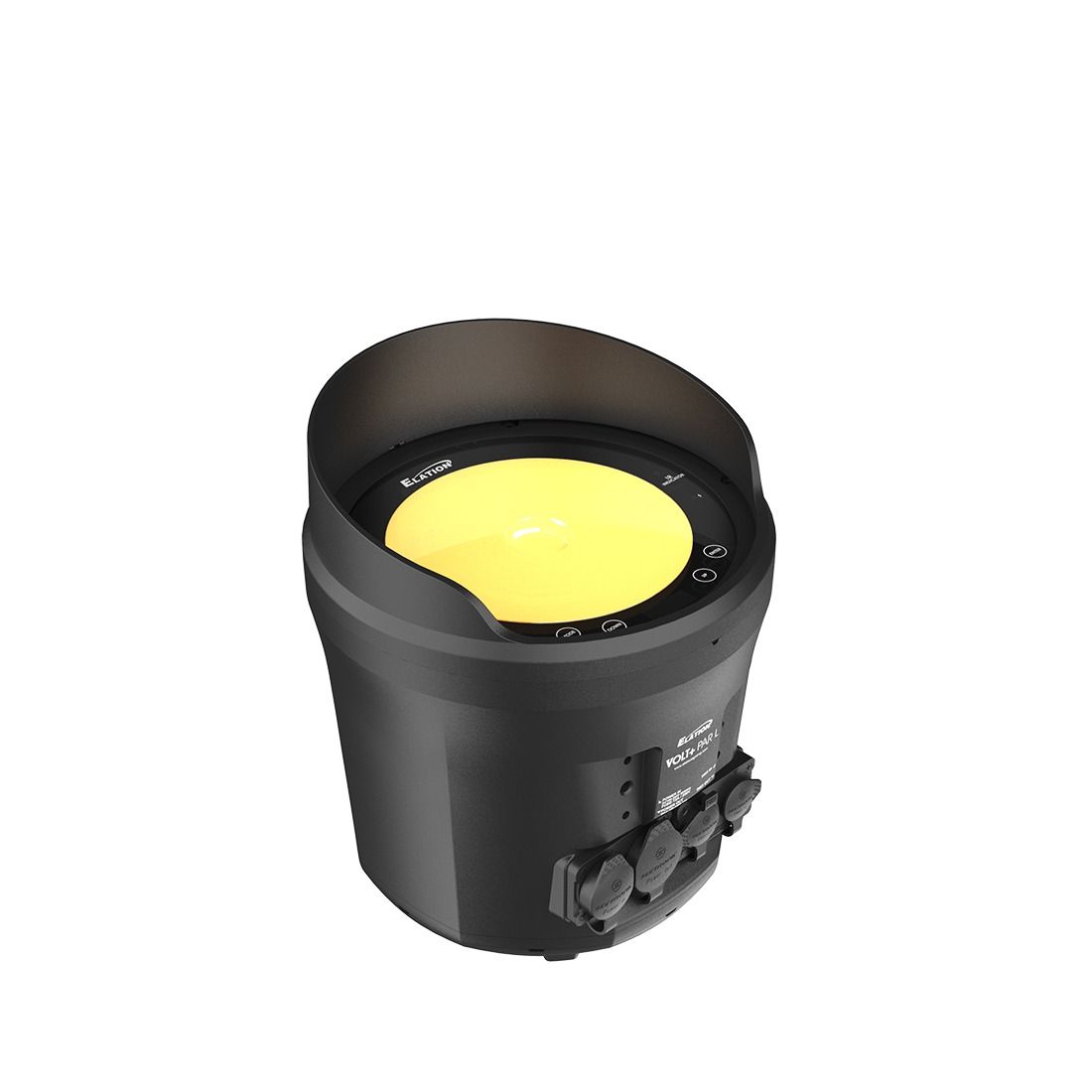

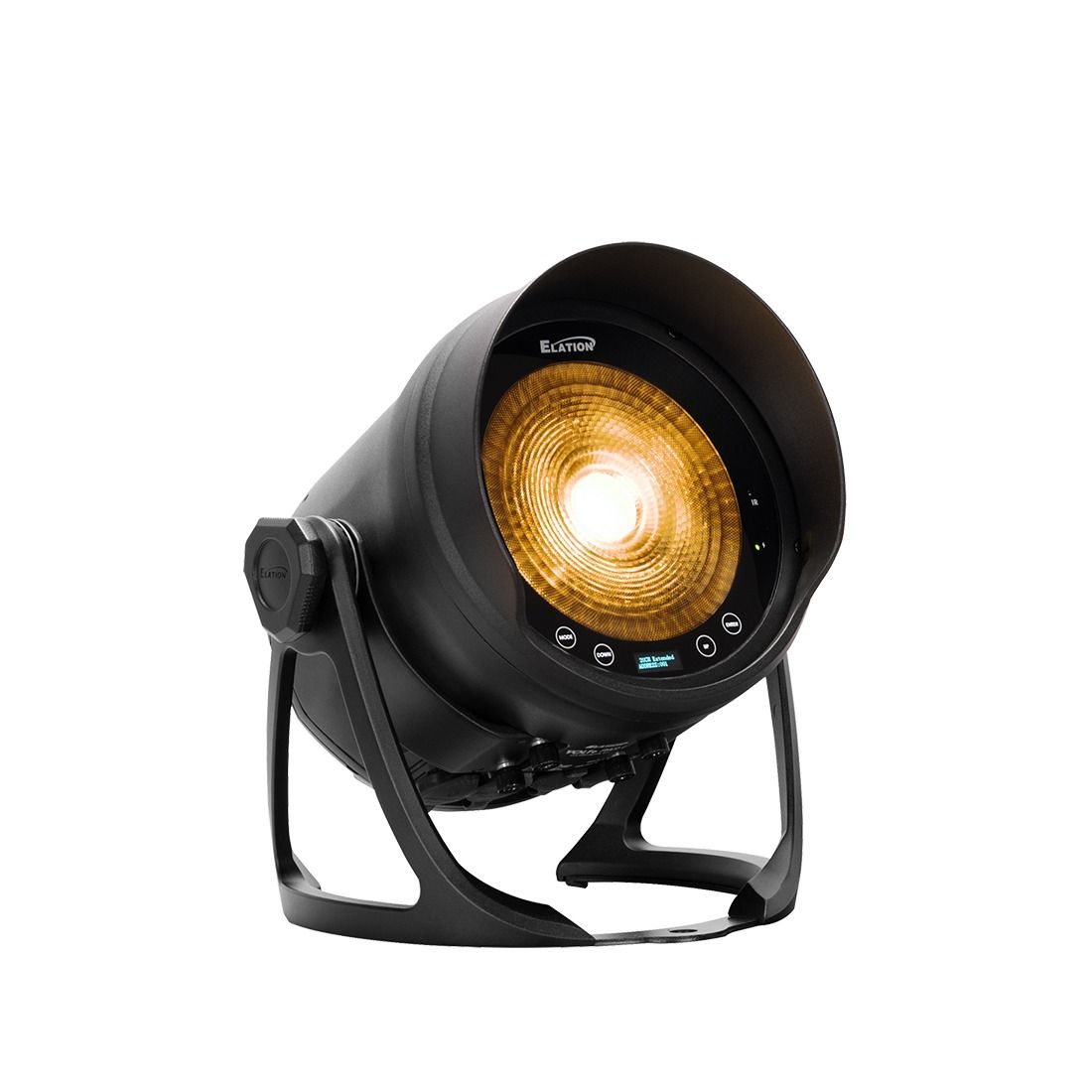

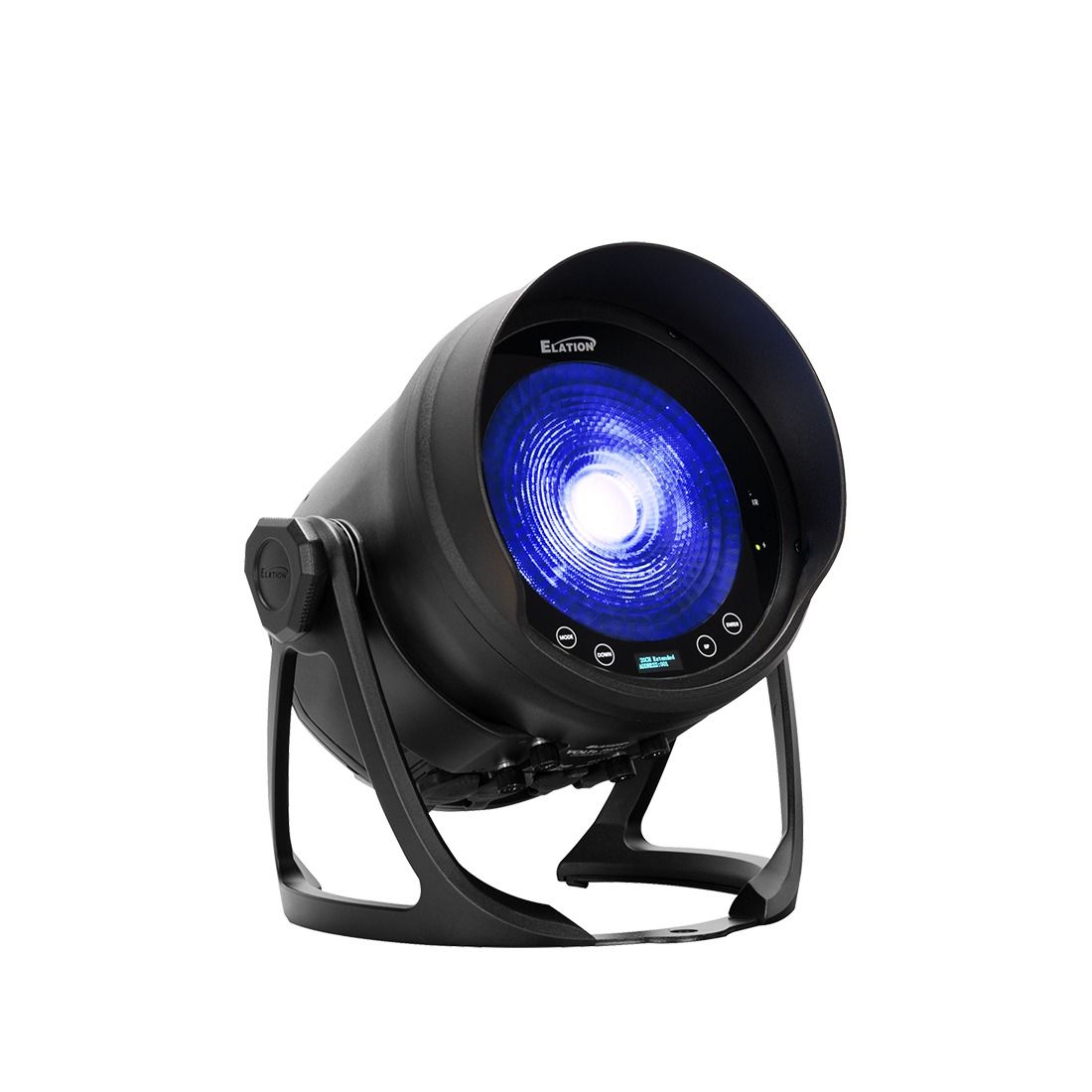

VOLT+ PAR L

Introducing the VOLT+ PAR L, a next-generation replacement fixture in Elation’s popular VOLT Series that delivers the ultimate in battery-powered lighting performance with enhanced efficiency, versatility, and durability in a sleek form factor.

Designed as a direct upgrade for previous VOLT models, the VOLT+ PAR L features cutting-edge RGB+Lime+Amber+UV LED technology, providing superior color mixing, increased output, and exceptional color rendering with a high CRI. Its fully homogenized beam ensures smooth, even coverage with no color separation, making it ideal for both wash and direct-view applications. The fixture’s sleek design with integrated power and DMX connectors make wire free, or wired setups a breeze.

Built with an IP65-rated housing and a rugged construction, the VOLT+ PAR L is ready for any environment, indoors or outdoors, making it the perfect solution for productions, installations, and events where mobility and reliability are key.

For added convenience and extended wireless runtime, the VOLT+ PAR L offers an optional external battery, giving users the flexibility to keep their designs untethered for even longer durations.

Whether used as a wash light, uplight, accent fixture, or direct-view pixel effect, the VOLT+ PAR L delivers exceptional flexibility with numerous wireless control options, including an IR Remote, Prebuilt & Custom Standalone Effect Sequences, proprietary Aria x2 wireless device management and NFC Configuration.

With its advanced technology, effortless portability, and expanded accessory options, the VOLT+ PAR L is the ultimate choice for lighting professionals who demand uncompromising performance and adaptability.

Technical Data

Features

60W RGBLA+UV LED
3600 Total Fixture Lumen Output (Sphere)
90.9 CRI
15° Beam Angle, Diffusion Lens Included
Removable Snoot Included
>12hr Maximum Battery Run Time
IP65 Rated

SOURCE

60W RGBLA+ UV LED
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:
3,600 (Integrating Sphere)
CRI- 90.9
TLCI- 80
Beam Angle: 15°
Field Angle: 28°

EFFECTS

Prebuilt & Custom Standalone Effect Sequences
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR

RGBLA+ UV Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

8 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management

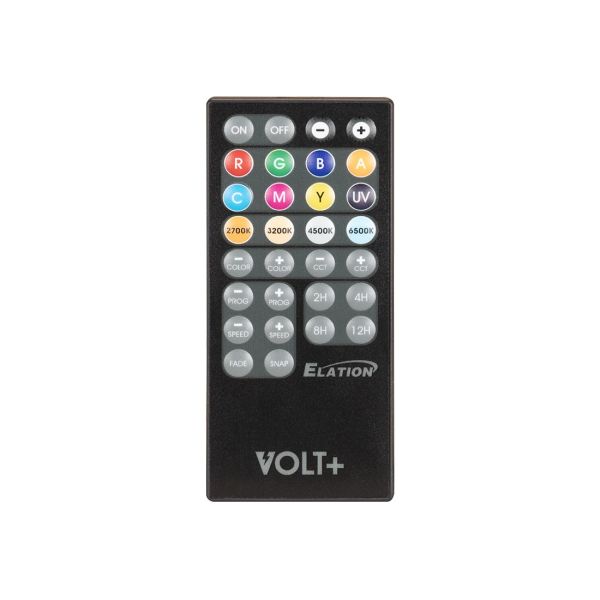

IR Remote
NFC Configuration

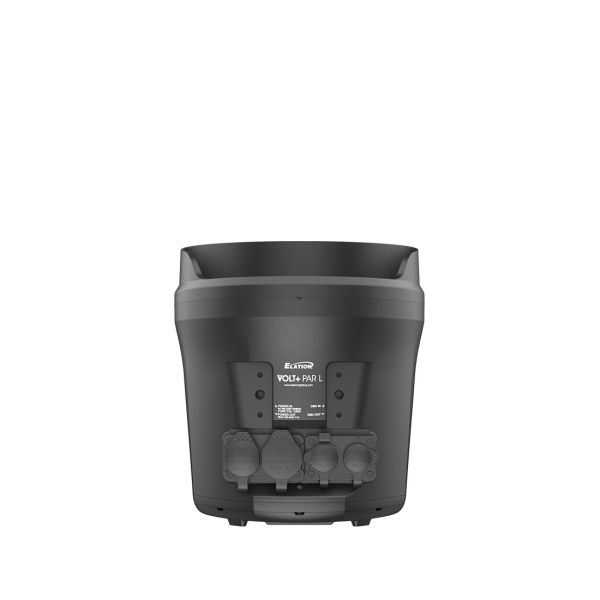

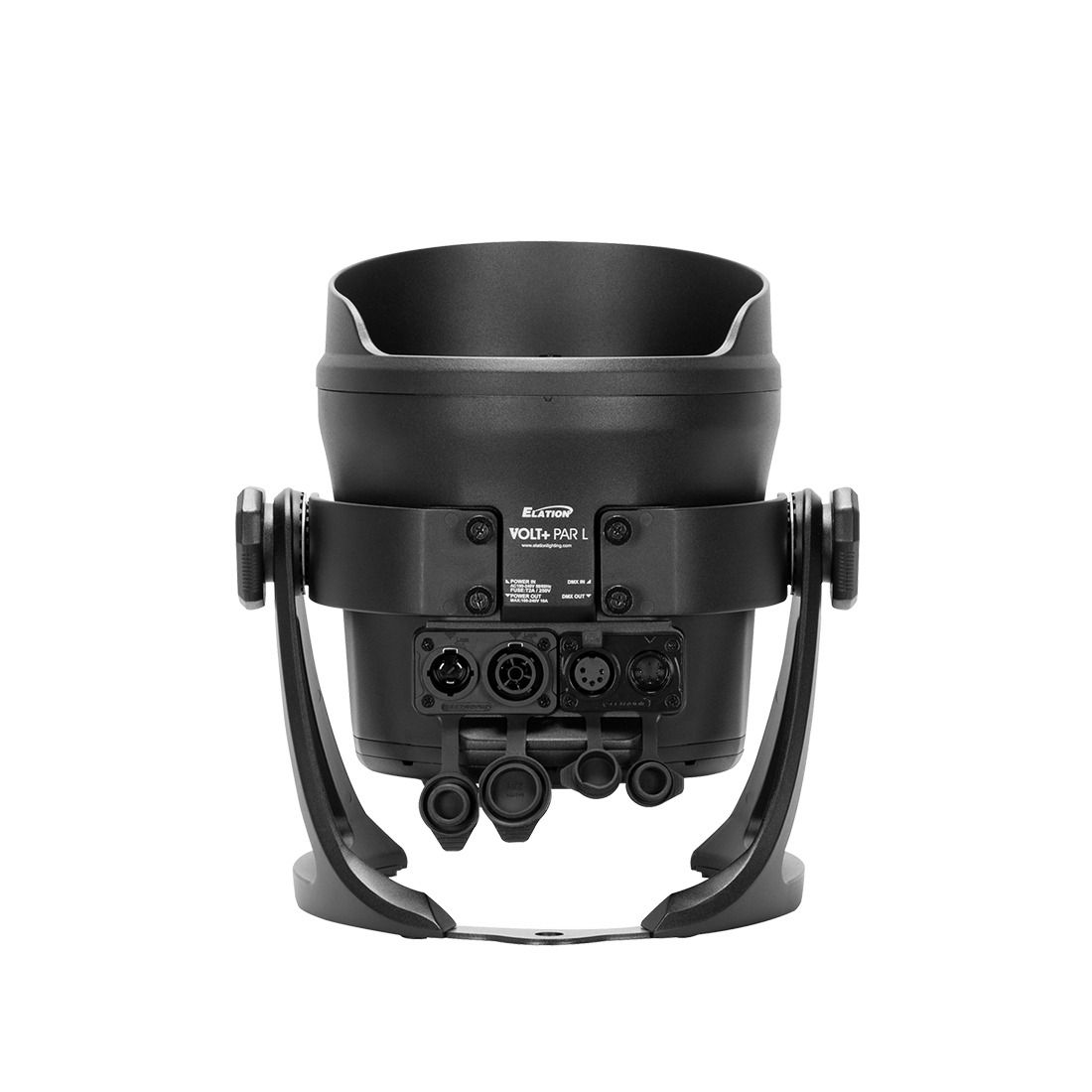

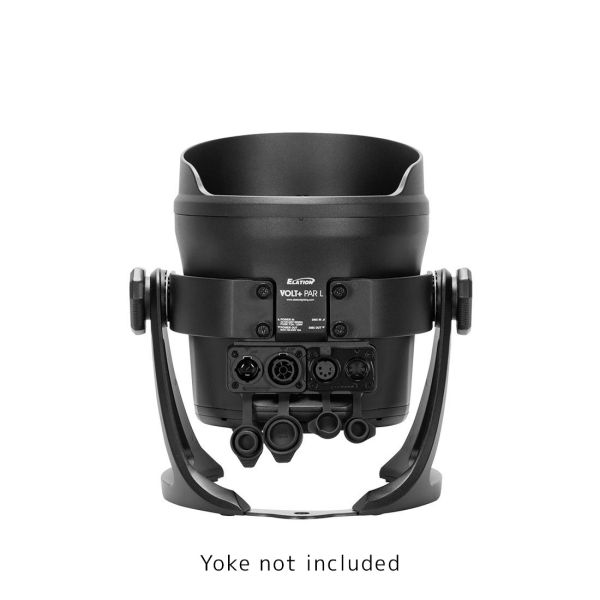

5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT

Length: 206mm (8.11")
Width: 206mm (8.11")
Vertical Height (with Snoot): 235.7mm (9.28")
Vertical Height (without Snoot): 180mm (7.08")
Weight: 6.85kg (15.1lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
70W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 238.7

BATTERY

Lithium Ion Rechargeable
Battery Capacity: 19.2Ah
Battery Voltage: 18V
Charge Time: 4.5hr
Battery Life: >12hr
Battery Recharge Cycles: >300 to 80% Capacity

INCLUDED ITEMS

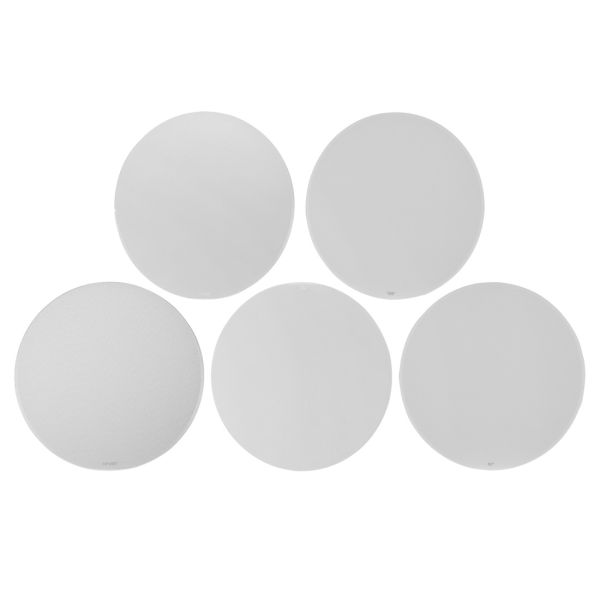

Diffusion Filter
Concentric Ring
Removable Half Snoot

OPTIONAL ITEMS

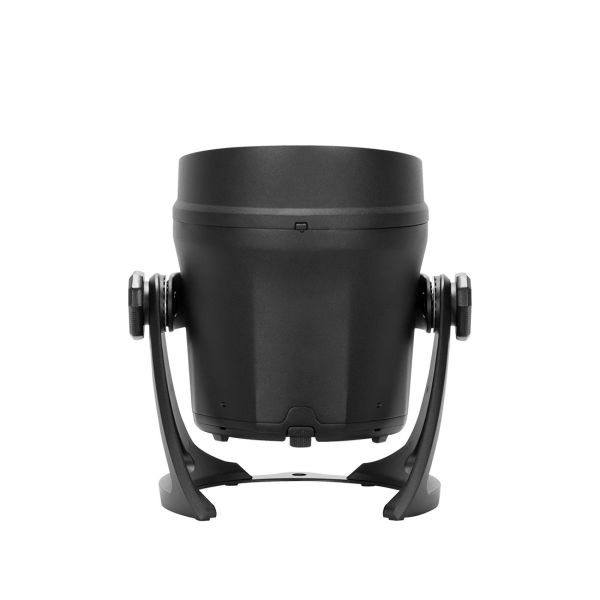

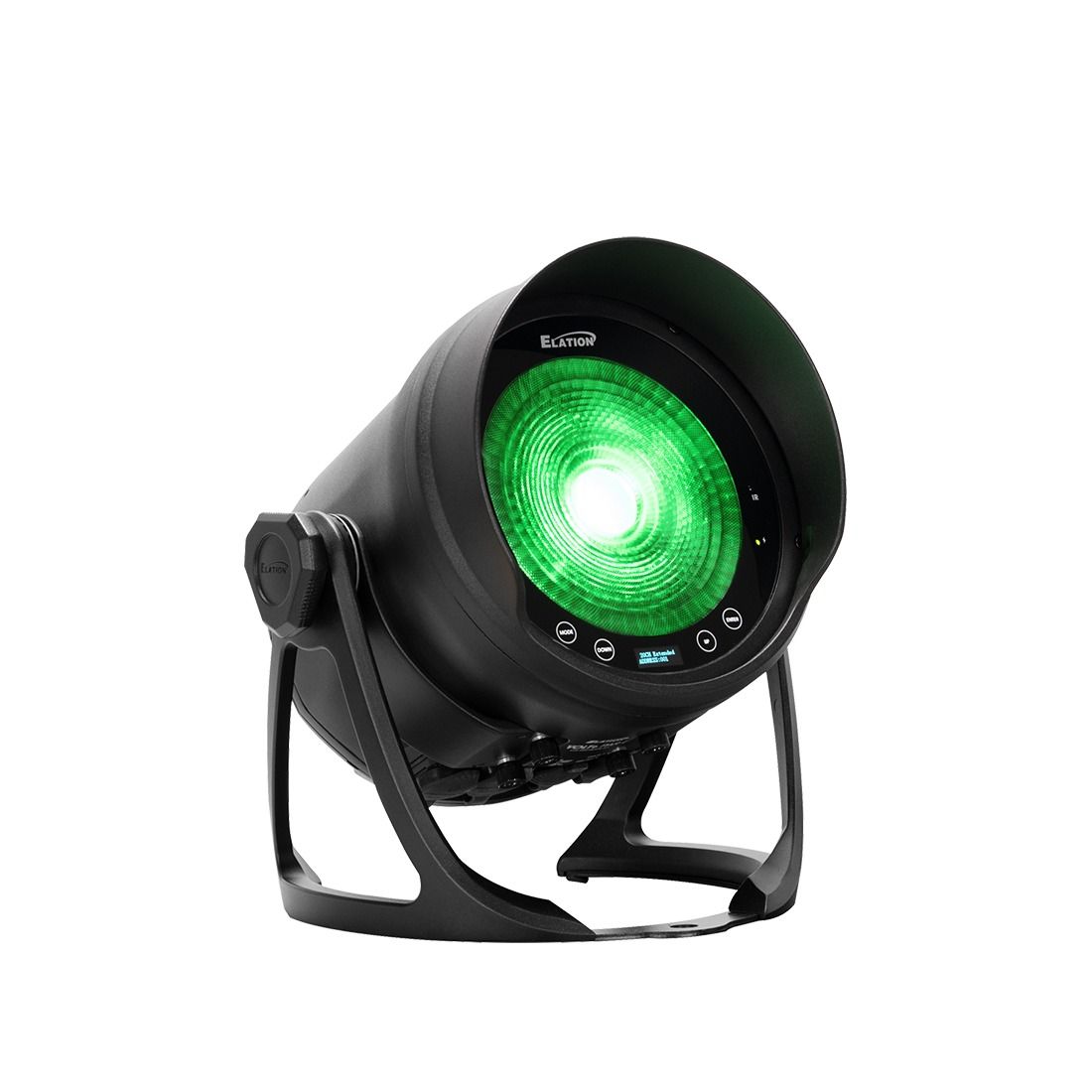

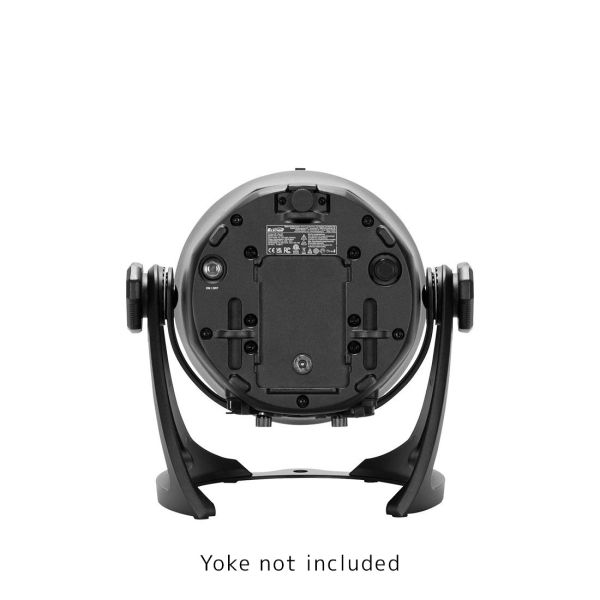

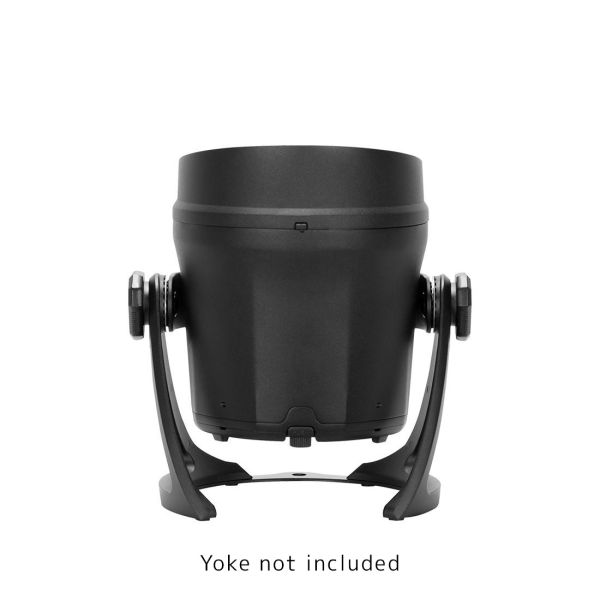

Floor Stand/ Yoke

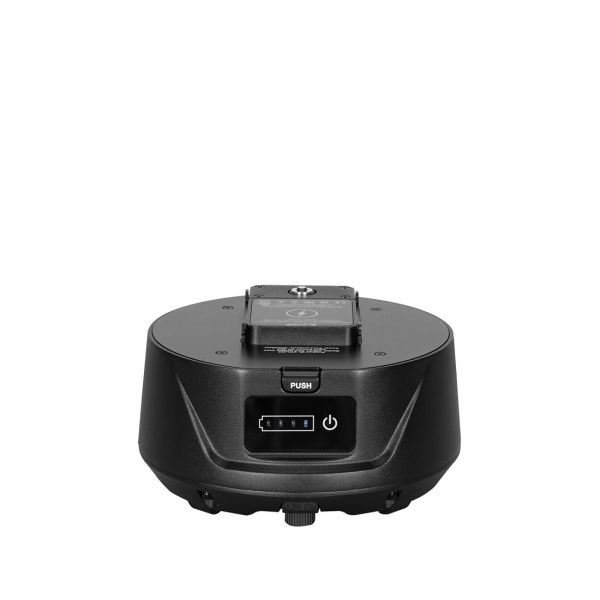

External Expansion Battery
Charging Case

Specifications and documentation subject to change without notice
