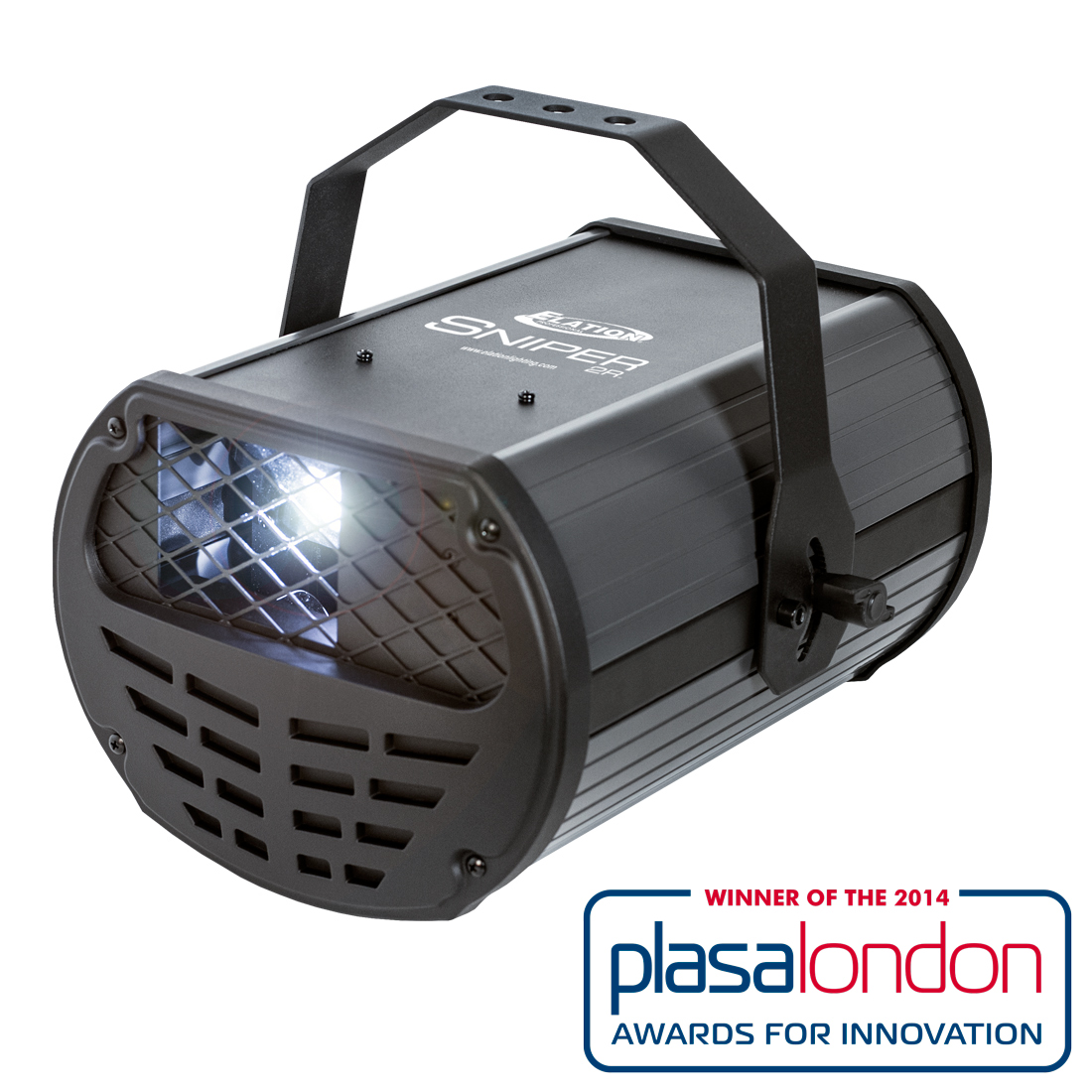

Sniper 2R

Fast, precise and powerful!

The new Sniper 2R™ is a revolutionary new hybrid effects projector, scanner and laser simulator which features new lamp technology, the MSD Platinum 2R Lamp at 132 W / 6,000 hours.

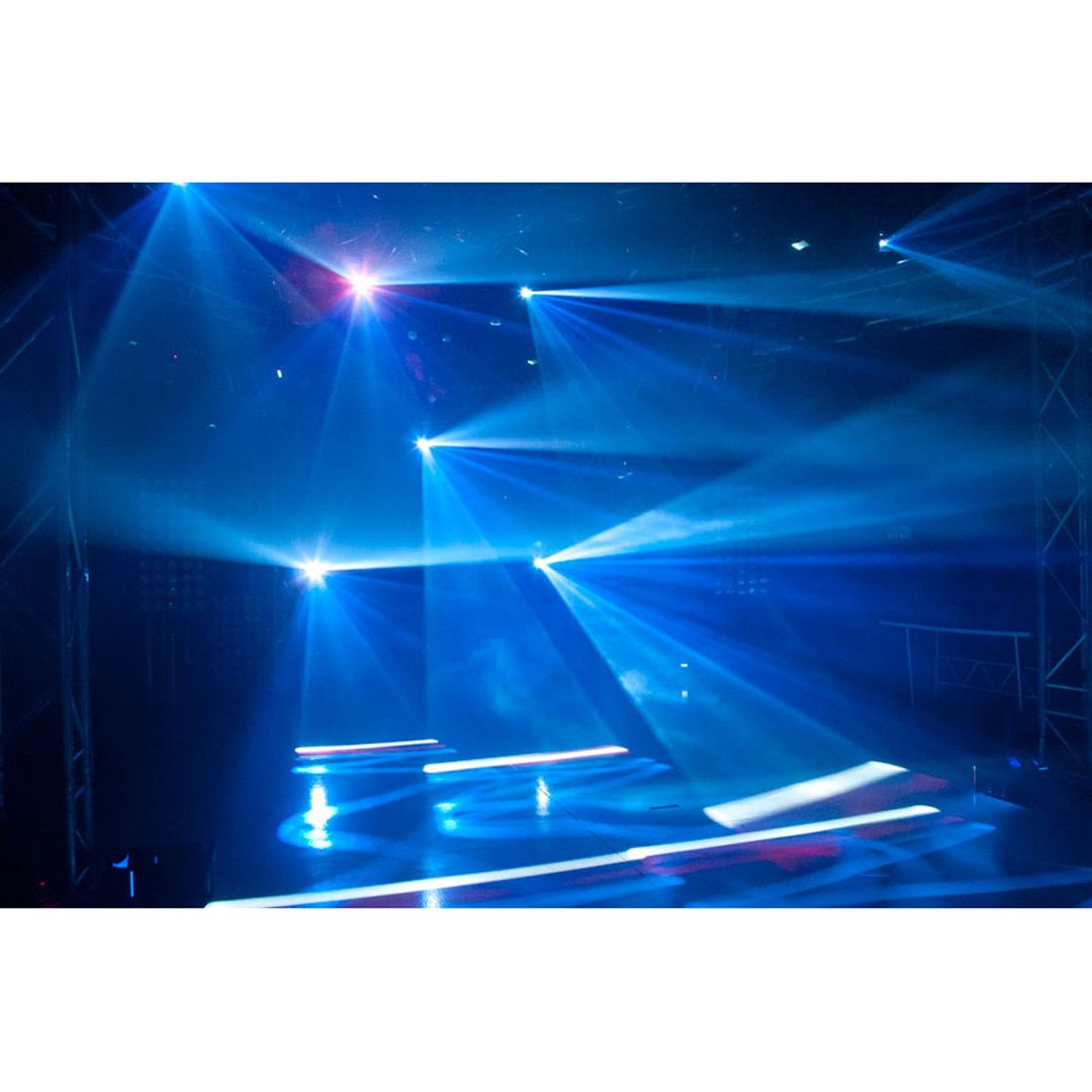

Capable of producing powerful and precise beam and laser like effects - including liquid sky, laser wave, and laser cones, all moving at speeds never seen before .
The main functions include a X / Y scan and Z rotation mirror system, 3 facet rotating prism, variable speed shutter / dimmer / strobe, 14 dichroic colors, 17 static gobos including beam reduction gobos, locking 5pin DMX and locking power in/out connections, 4 button control panel, 220W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).

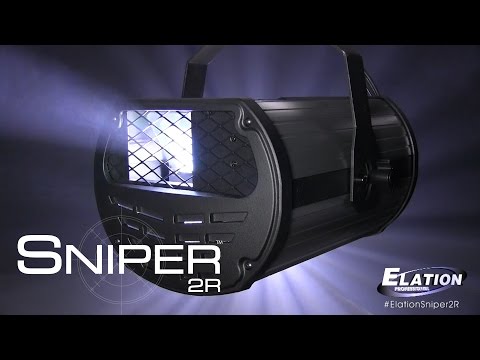

Sniper Lightshow Demo: http://elationprofessional.wistia.com/medias/bzzc2uc72y

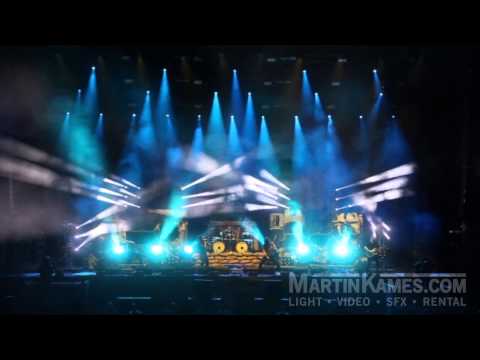

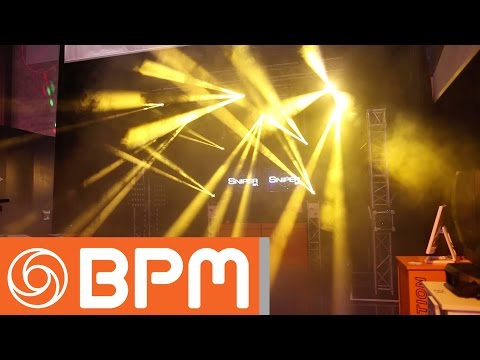

40 x SNIPER 2R Live-Show: https://youtu.be/_yqyiC36CW0

Technical Data

FEATURES

Multi Effect Luminaire, Beam, Scanner, Laser Simulator
3° Precision Beam
3 Facet Rotating Prism
X / Y and Z High-Speed Mirror System

SOURCE

132W Platinum 2R Lamp
6,000 Hour Average Life

PHOTOMETRIC DATA

45,010 LUX 4,181 FC @5m (16.4’) (3° Full ON)
12,050 LUX 1,119 FC @10m (32.8’) (3° Full ON)
5,633 LUX 523 FC @15m (49.2’) (3° Full ON)
3,178 LUX 295 FC @20m (65.6’) (3° Full ON)
2,276 LUX 212 FC @25m (82.0’) (3° Full ON)

EFFECTS

Strobe
Electronic Dimmer
3 Facet Rotating Prism
Multiple Pattern Macros

COLOR

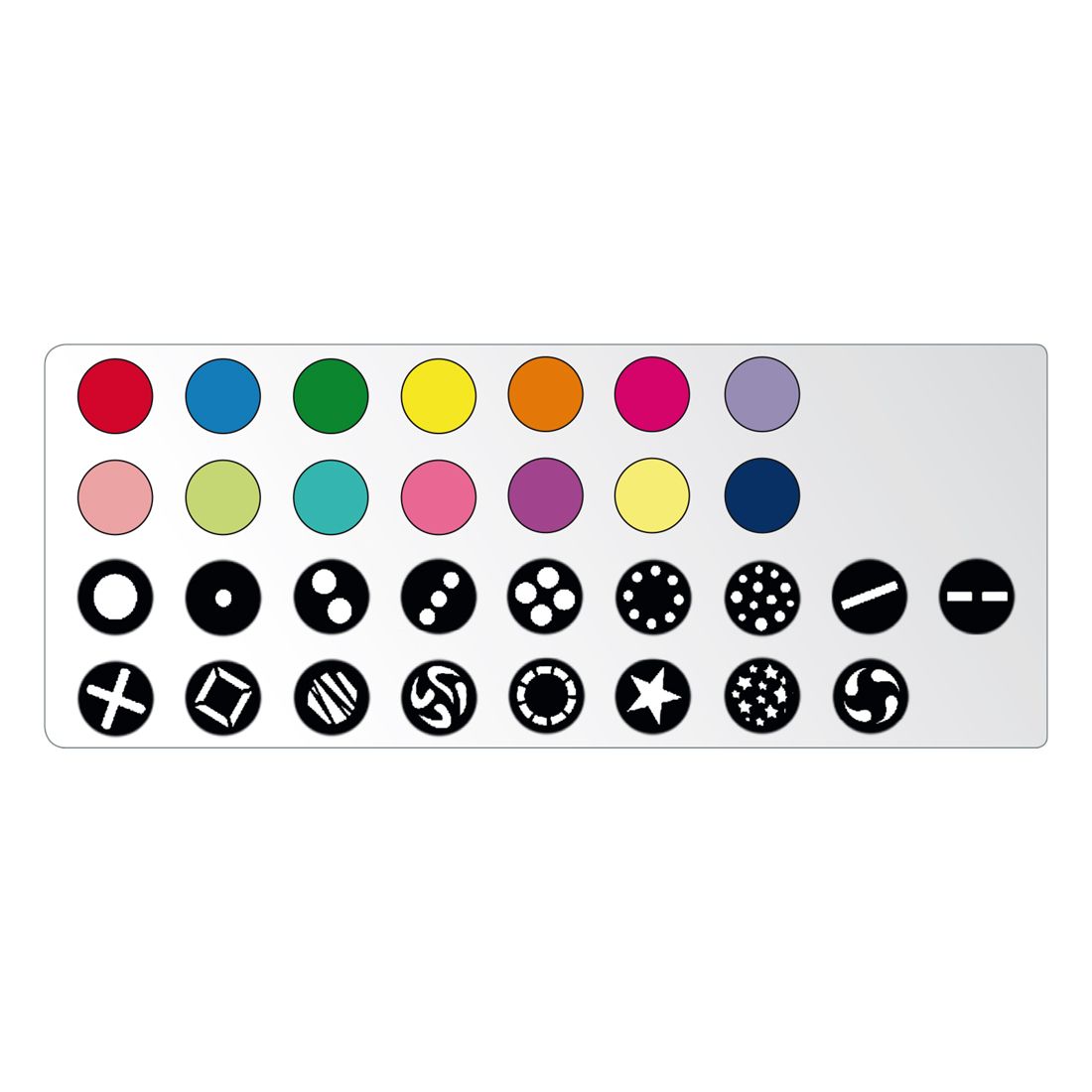

14 Dichroic Colors + White

GOBOS

17 Gobos + Open

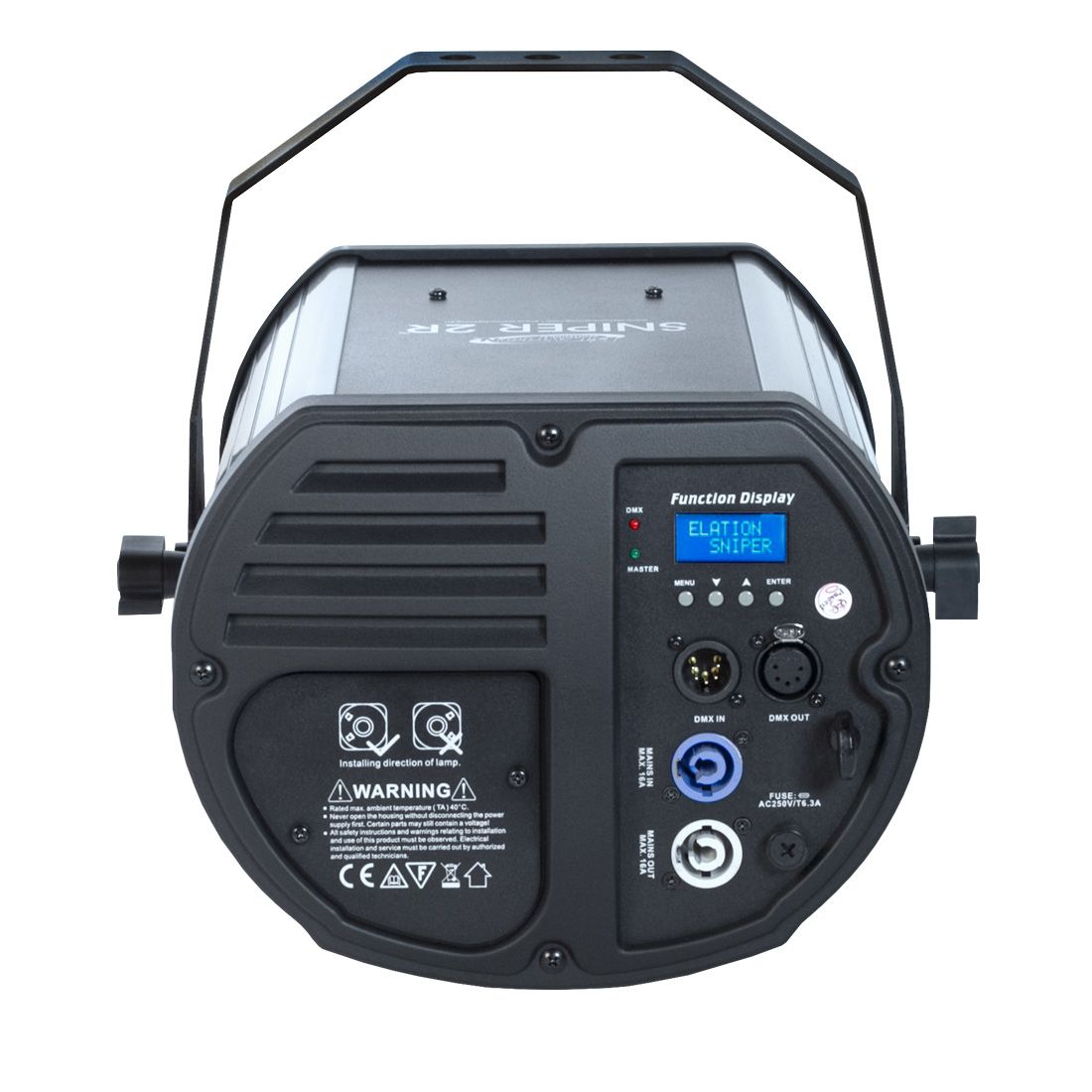

CONTROL / CONNECTIONS

3 DMX Channel Modes (14 / 16 / 18 / 20)
4 Button Control Panel
Locking 5pin DMX In/Out
Locking power connector In/Out

SIZE / WEIGHT

Length: 361mm (14.2”)
Width: 305mm (12.0”)
Vertical Height: 295mm (11.6”)
Weight: 9,5kg (21.0 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
220W Max Power Consumption
40°C (104°F) Max Ambient Temperature

INSTALLATION

Rigging: Clamps (Not Included)
Working Position: Any (360°)

INCLUDED ITEMS

1 Adjustable Mounting Yoke
1 locking power connector cable



Please note: The minimum order quantity for the Sniper 2R is 4pcs.

Specifications and documentation subject to change without notice
