SixPar 100IP

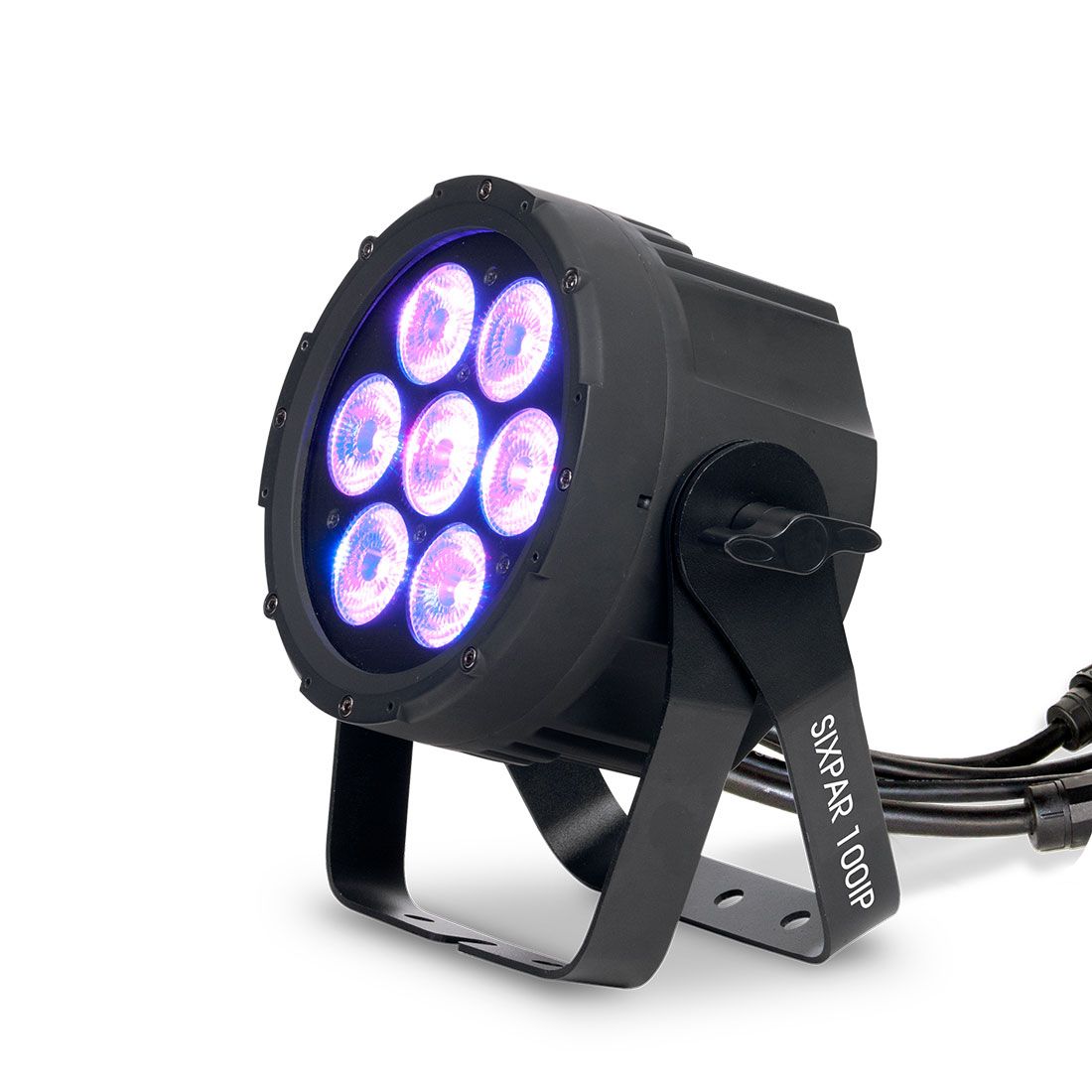

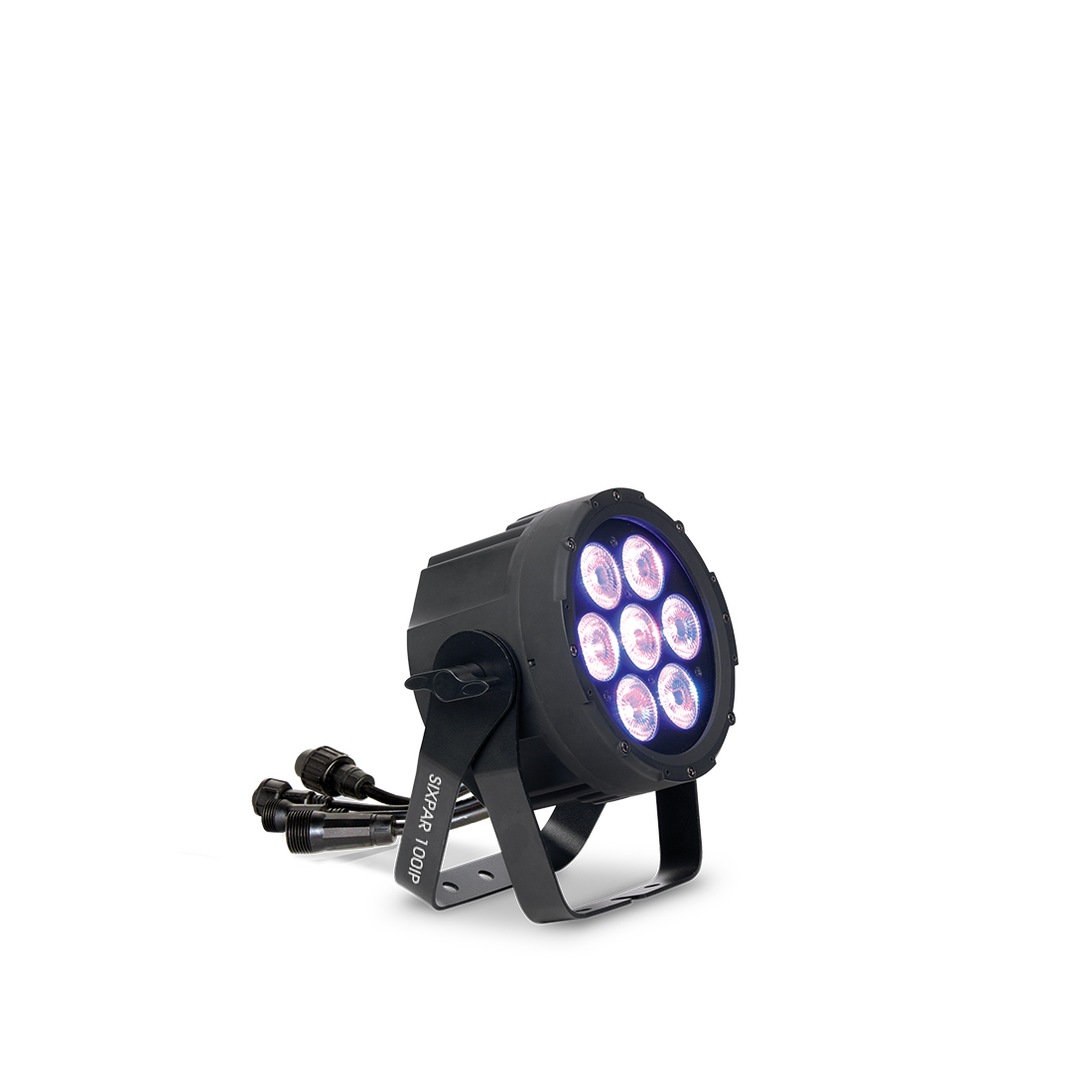

The IP65 rated SIXPAR 100IP™ features (7) 12W 6-IN-1 RGBAW+UV LEDs, 15° beam and 25° field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).

Technical Data


IP65 Rated 15° Beam 25° Field Angles
5 Variable Dimming Curve Modes
Dual Yoke / Floor Stand
Multiple Unit Power Linking
RDM - Remote Device Management
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM


(7) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


12,850 LUX 1,194 FC @ 1m (3.3’) (15° Full ON)


Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% - 100%
5 Variable Dimming Curve Modes


(4) DMX Channel Modes (6 / 7 / 8 / 12)

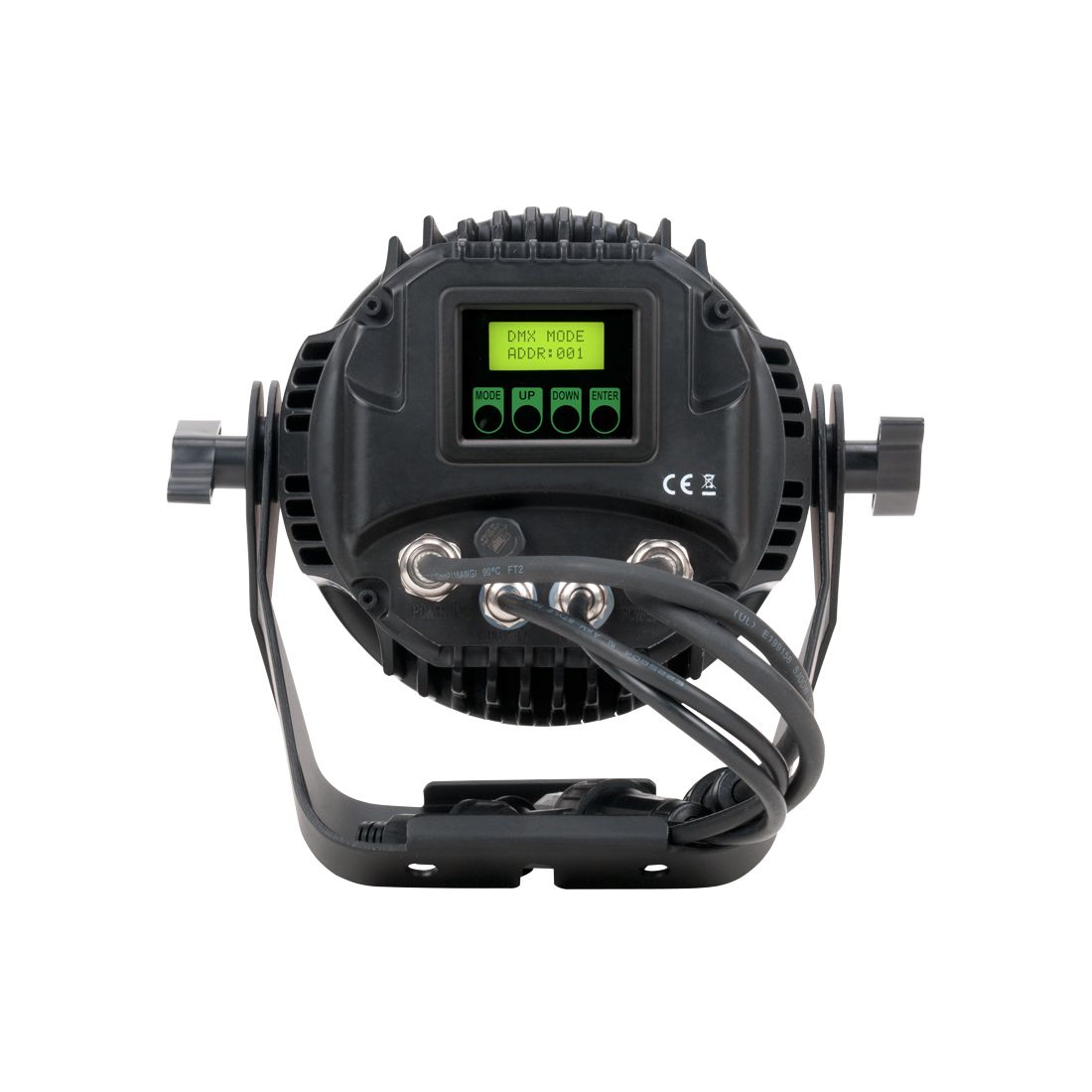

(4) Button Touch Control Panel LCD Menu Display IP
locking DMX In/Out and Power In/Out
With Wired Digital Communication Network


Length: 257mm (10.1”)
Width: 158mm (6.2”)
Vertical Height: 243mm (9.6”)
Weight: 4.3 kg (9.5 lbs.)


AC 110-250V - 50/60Hz
89W Max Power Consumption
Power Linking: 12pcs @110V / 25pcs @240V
-15°C to 45°C (5°F to 113°F)
UV Wavelength: 395nm

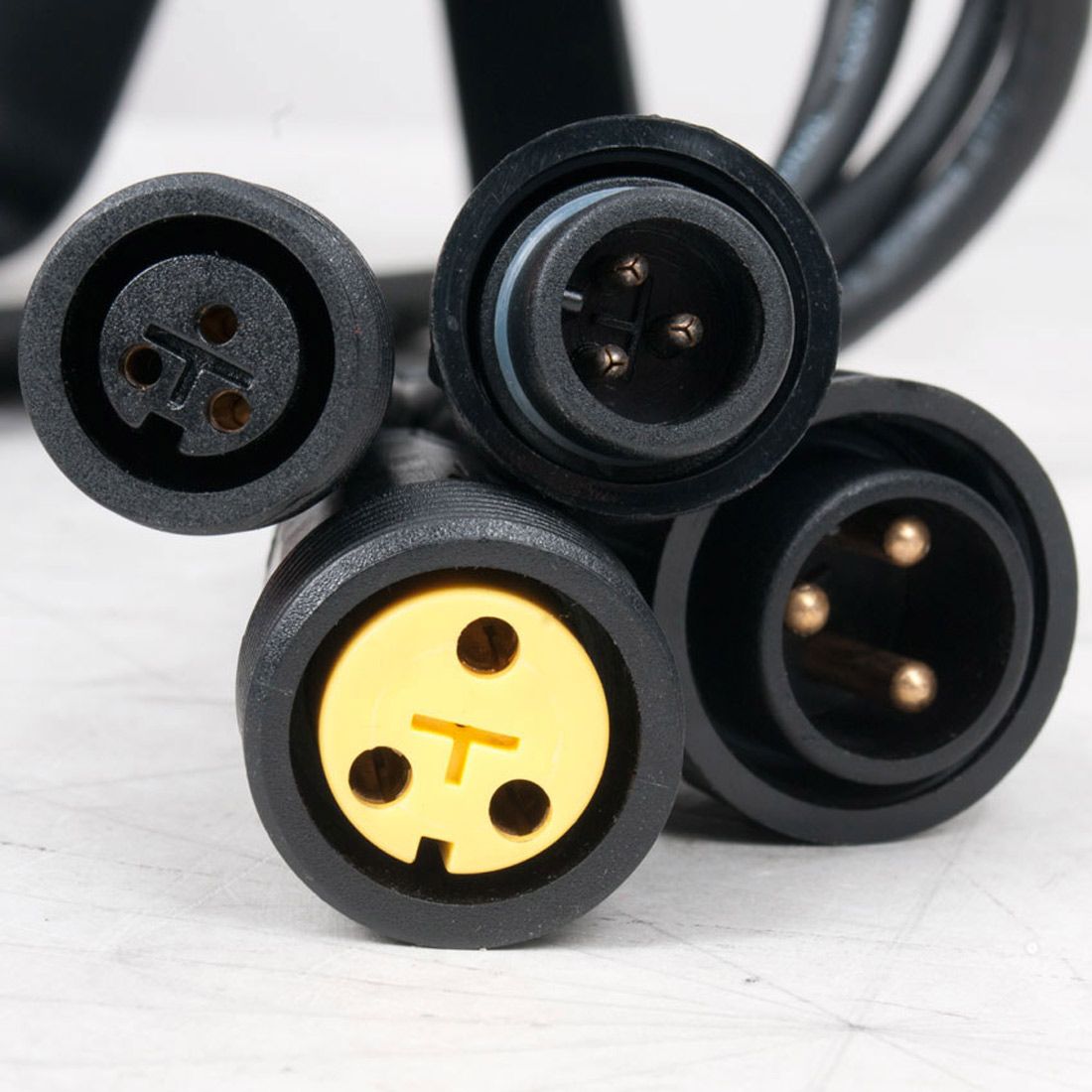

Male CEE 7/7 to IP Female Power Cable 2m (6.6 ft.)
Male 5pin XLR to IP Female DMX Input Cable 1m (3.3 ft)
Female 5pin XLR to IP Male DMX Output Cable 1m (3.3 ft)


1621000055 SIXPAR100/GFH Gel Frame Holder
1621000058 SIXPAR/BD100 Barn Doors
1226100230 LSF 10°
1226100228 LSF 20°
1226100227 LSF 30°
1226100229 LSF 60x1°
1322000060 C-Loader II
1621000066 1M Power Link Cable
1621000042 2M Power Link Cable
1621000043 3M Power Link Cable
1621000044 5M Power Link Cable
1621000045 10M Power Link Cable
1621000067 20M Power Link Cable
1621000068 35M Power Link Cable
1621000053 Power IN CEE 7/7-IP Adapter Cable
1621000054 Power Out IP-CEE 7/7 Adapter Cable
1621000063 1M Data Link Cable
1621000046 2M Data Link Cable
1621000047 3M Data Link Cable
1621000048 5M Data Link Cable
1621000049 10M Data Link Cable
1621000064 20M Data Link Cable
1621000065 35M Data Link Cable
1621000051 DMX In XLR3-IP Adapter Cable
1621000052 DMX Out IP-XLR3 Adapter Cable
1621000125 DMX IN XLR5-IP Adapter Cable
1621000126 DMX Out IP-XLR5 Adapter Cable
1621000050 Terminator


Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
