  • Seven Batten 42
2250
Code 1236200086

Seven Batten 42

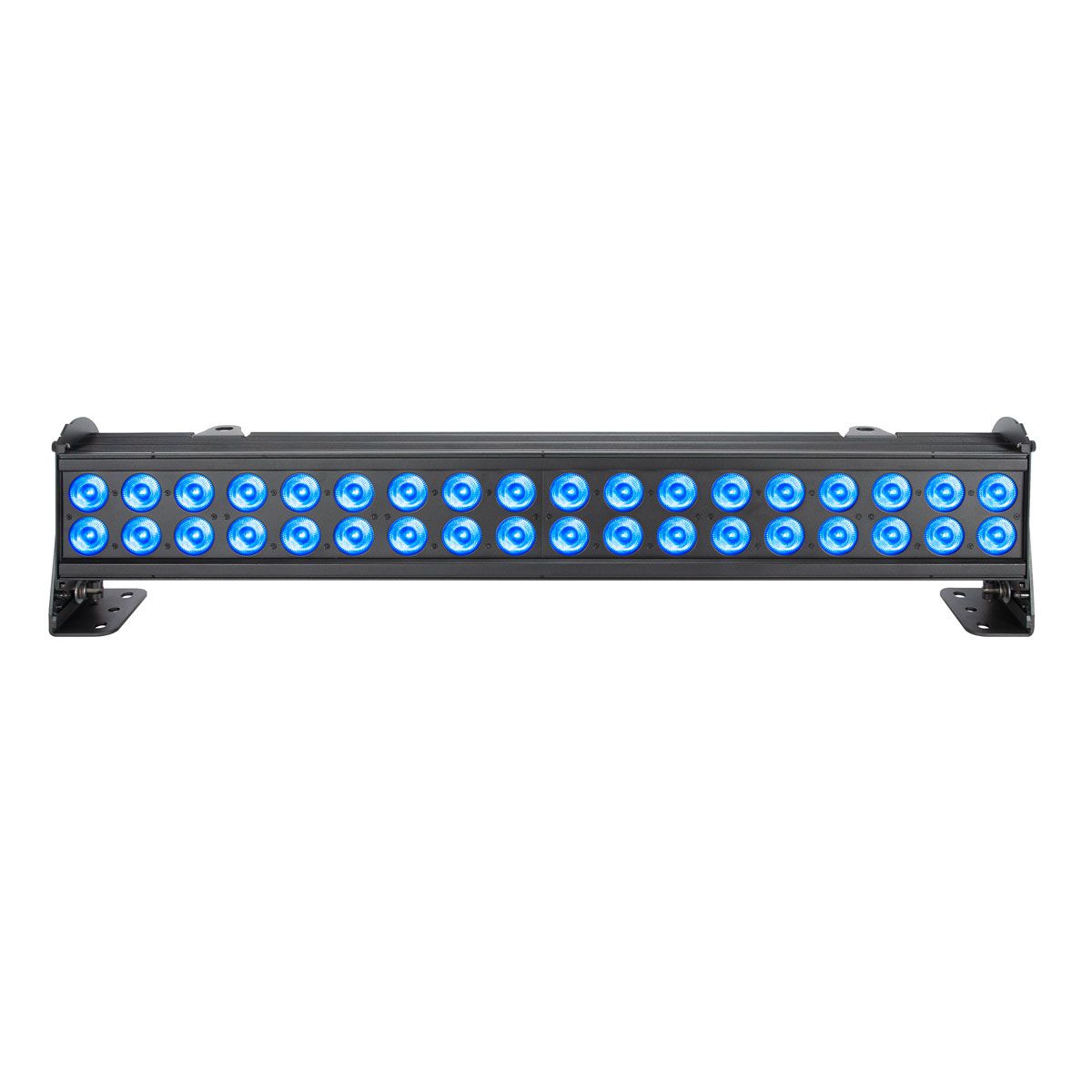

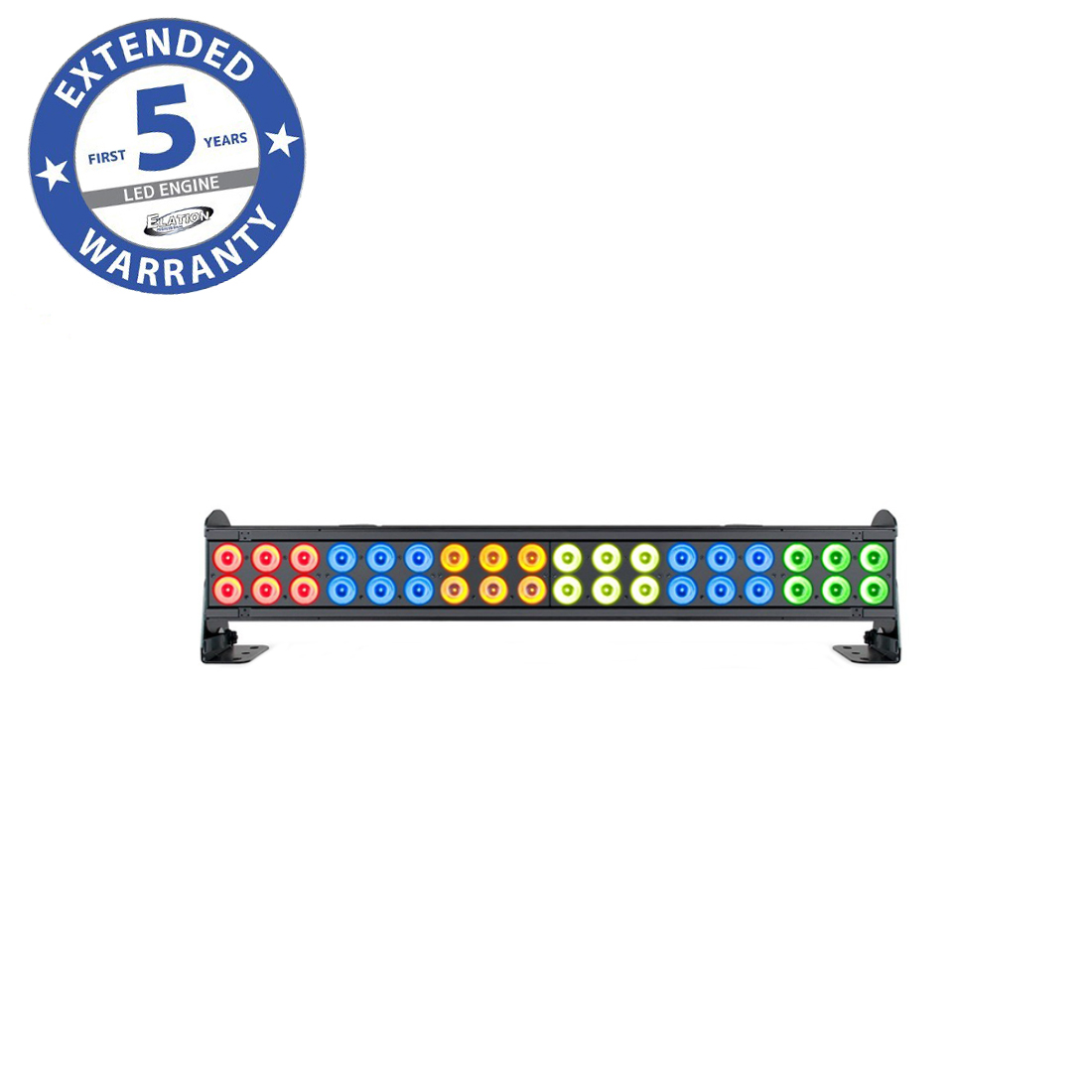

The SEVEN Batten 42™ is a seven color 3.5 foot (1m) long batten wash luminaire with (36) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Features include individual hue, saturation, and intensity control, special RGB SEVEN 3 channel mode (RGB + dynamic white, amber, lime, and UV), 6 pixel mapping zones with pixel flip mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX Art-Net, Kling-Net, and RDM (Remote Device Management) protocol support, 3/5pin DMX, RJ45 Ethernet, and locking power cable in/out connections, dual 220° manual tilt adjustable mounting brackets, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), a rugged powder coated die-cast aluminum exterior, and an integrated gel / frost filter slot.

Technical Data

FEATURES

3.5 Foot (1m) Seven Color Batten Wash Luminaire
(36) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
Individual Hue, Saturation, and Intensity Control
Special RGB SEVEN 3 Channel Mode (RGB + Dynamic White, Amber, Lime, UV)
6 Pixel Mapping Zones with Pixel Flip Mode
Smooth Color Mixing, Internal Programs with Speed and Fade Control
64 Unique 7-Color Macros
Selectable 16-bit Dimming Curve Modes
Adjustable LED Refresh Rate + Gamma Brightness
Flicker Free Operation for TV and FILM
Art-Net, Kling-Net, and RDM Protocol Support

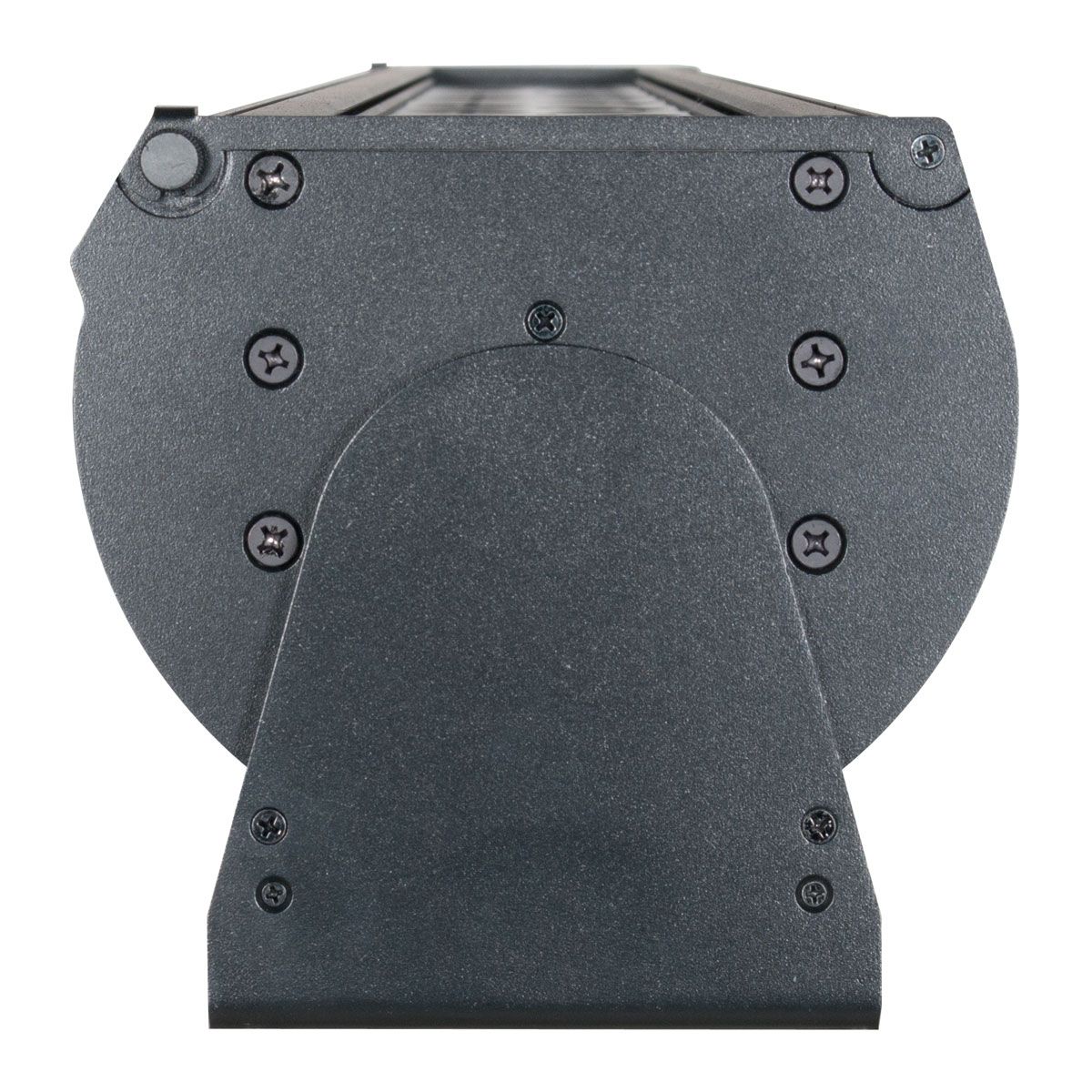

Dual 220° Manual Tilt Adjustable Mounting Brackets
Rugged Powder Coated Die-Cast Aluminum Exterior

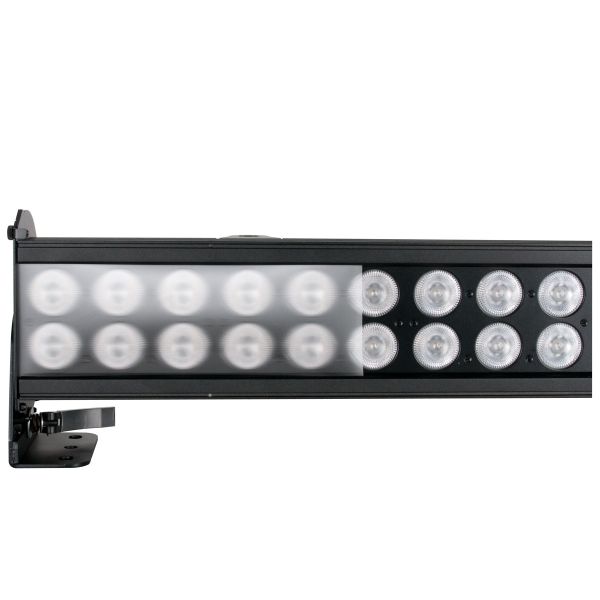

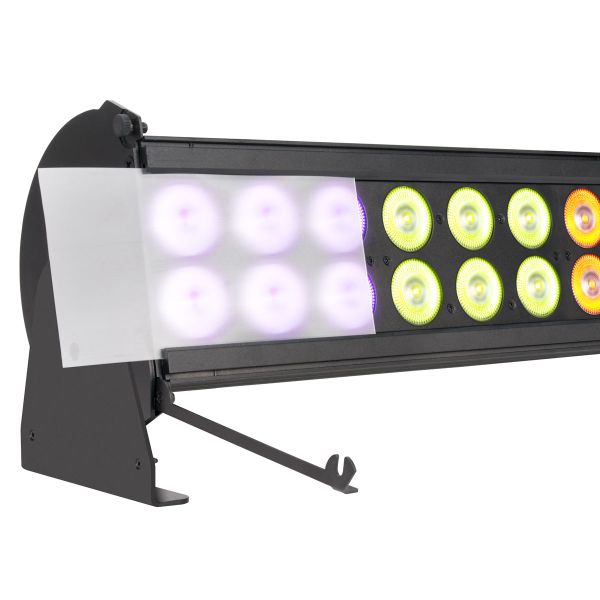

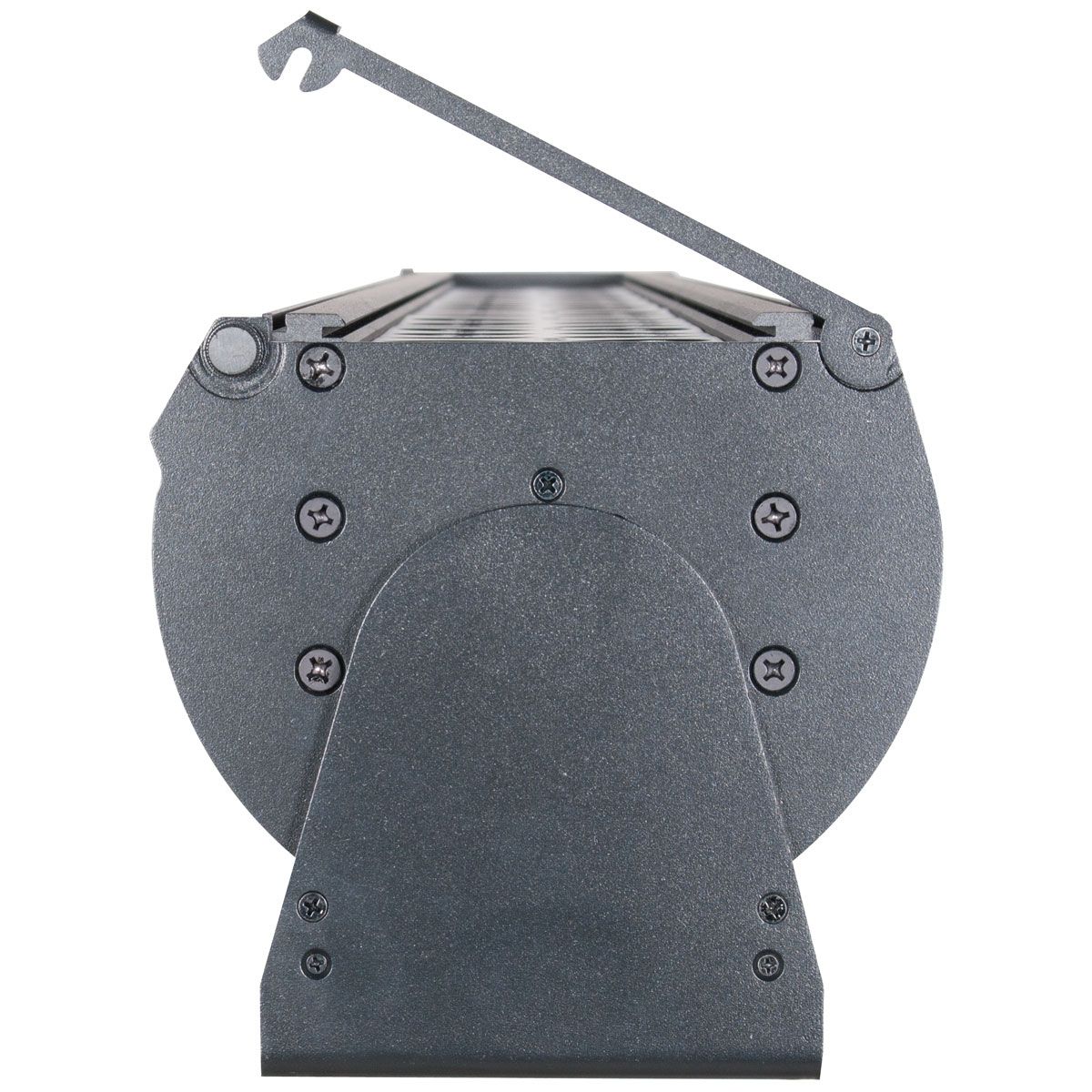

Integrated Gel / Frost Filter Slot

SOURCE

(36) 25W 7-IN-1 RGBAW + Lime + UV LEDs
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

7,669 LUX 713 FC @ 9.8” (3m)

EFFECTS

Individual Hue, Saturation, and Intensity Control
Special RGB SEVEN 3 Channel DMX Mode (RGB + Dynamic White, Amber, Lime, UV)
6 Pixel Mapping Zones with Pixel Flip Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable 16-bit Dimming Curve Mode

COLOR

RGBAW + Lime + UV (395nm)

CONTROL / CONNECTIONS

10 DMX Channel Modes (50 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
Adjustable Refresh Rate (900-28,800 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
Art-Net, Kling-Net, and RDM Remote Device Management) Protocol Support

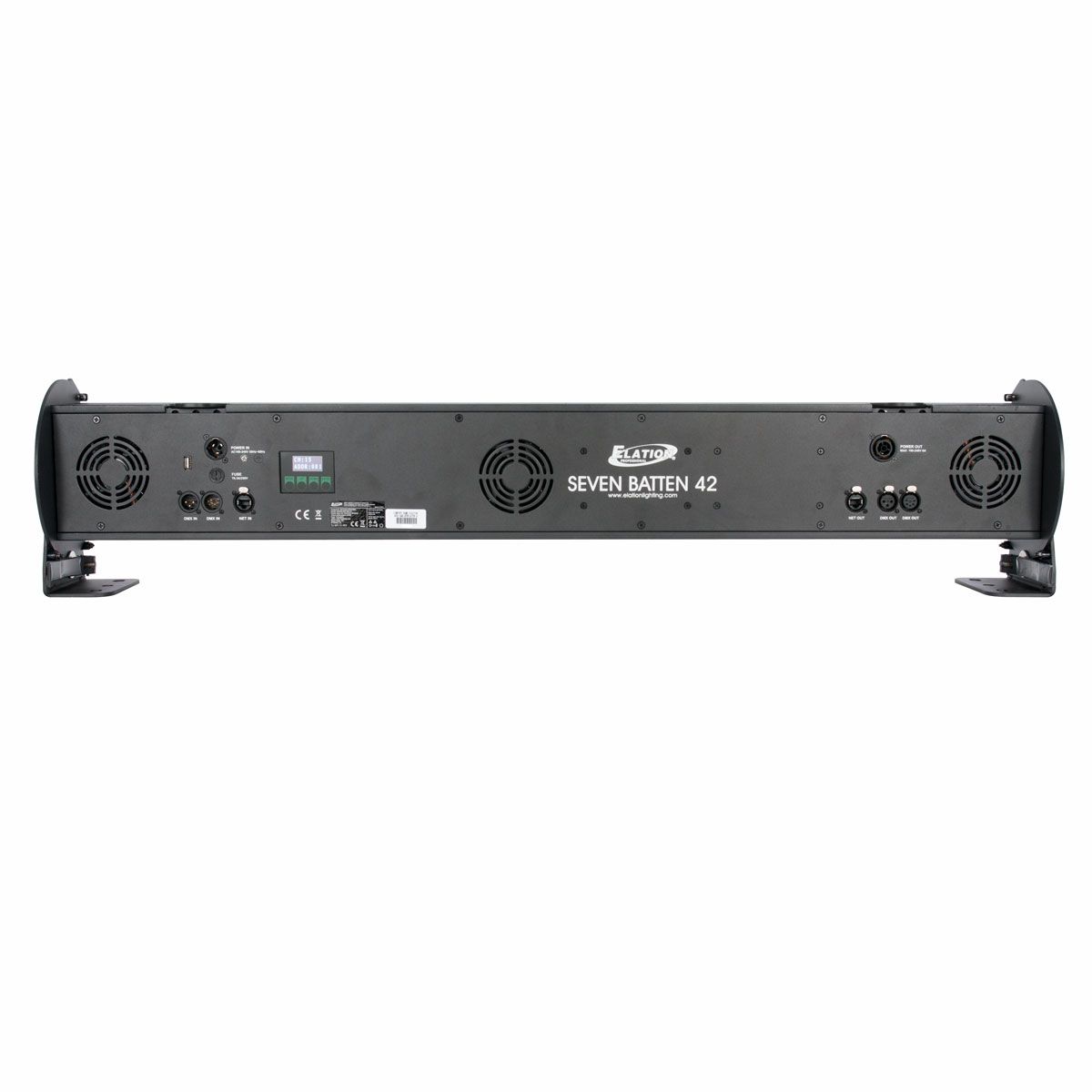

3/5pin DMX, RJ45 ethernet, and locking Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 42.0” (1066.8mm)
Width: 4.5” (114.3mm)
Vertical Height: 9.0” (228.6mm)
Weight: 39.0 lbs. (17.7kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
614W Max Power Consumption
5°F to 113°F (-15°C to 45°C)

OPTIONAL ACCESSORIES

Glareshield (see below in Related Products) - giving you further control of the light distribution.

FIRMWARE UPDATES

Current firmware can be found here (login required)





Specifications and documentation subject to change without notice
