5450

Satura Profile

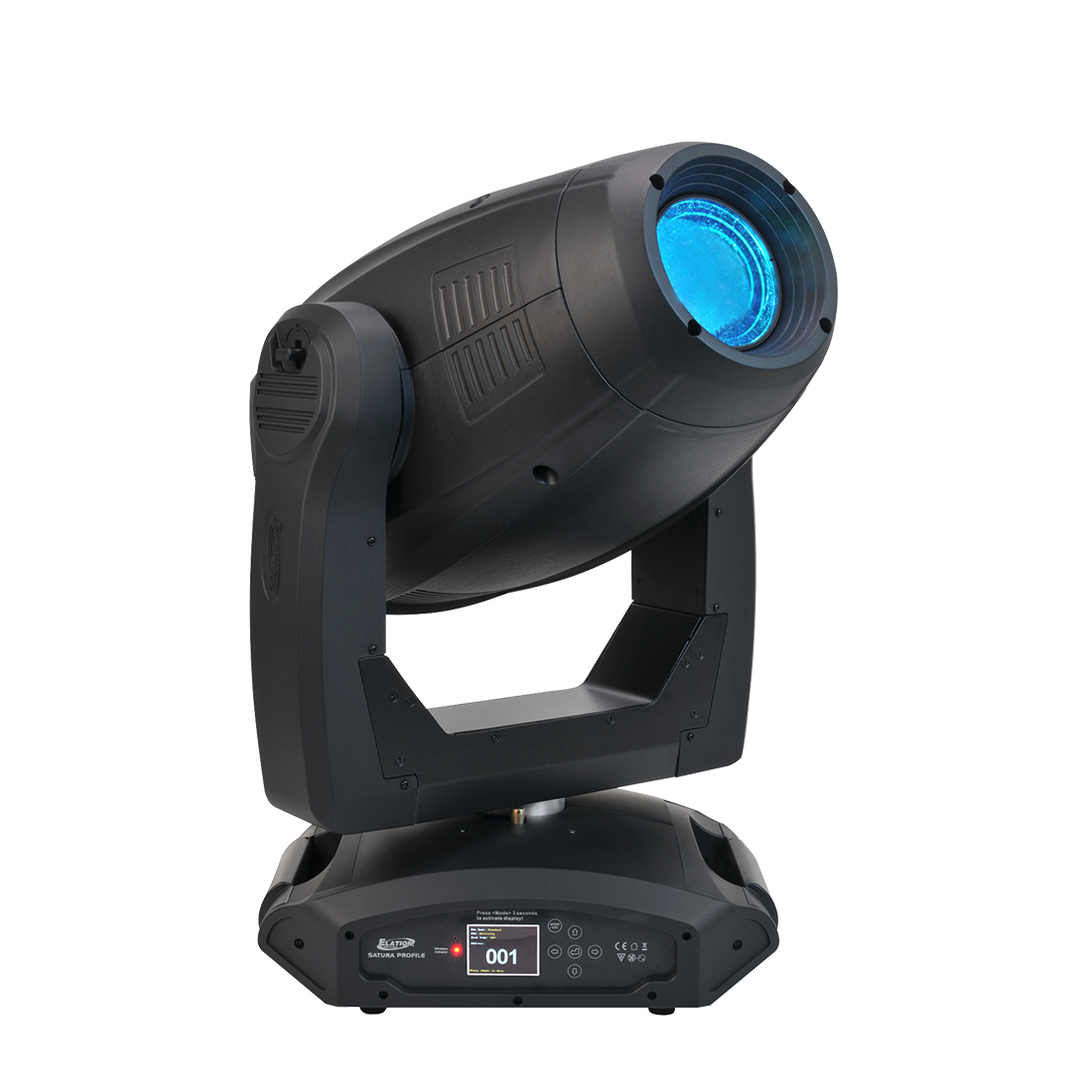

The Satura Profile™ features a 440W High CRI >85 Cool White LED engine, delivering a total of 20,000 lumen, state-of-the-art motorized 4-blade framing shutter module, 11° to 38° zoom and focus, full CMY color mixing plus linear CTO color correction, 7 dichroic colors and white (open), 6 rotating, interchangeable glass & metal gobos and 7 interchangeable static-stamped metal gobos, 3-facet rotating prism, wash frost filter, motorized iris, variable dimming curves, DMX, RDM (Remote Device Management), Art-NET (DMX over Ethernet) support, locking 3pin and 5pin DMX in/out, RJ45 ethernet in/out and power in connections, flicker free operation for TV and Film, 6 button control full color 180° reversible menu display, 650W max power consumption and a multi-voltage universal auto switching power supply (120-240V).

Technical Data

FEATURES

440W Cool White 6,500K High CRI >85 LED Profile Luminaire

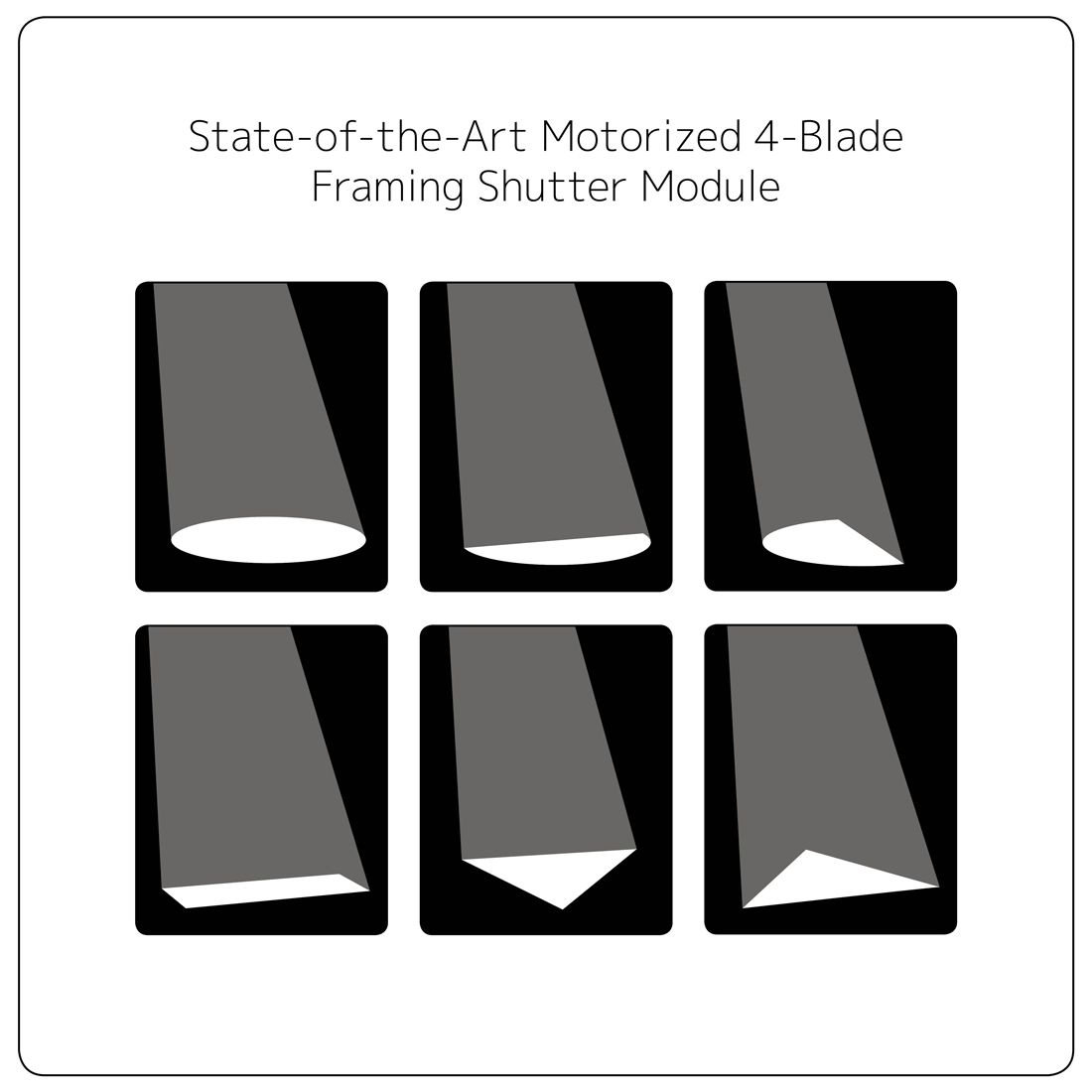

State-of-the-Art Motorized 4-Blade Framing Shutter Module
11° to 38° Motorized Zoom
Full CMY Color Mixing and Linear CTO Color Correction
3-Facet Rotating Prism
Low Heat, Quiet Operation, Hibernation Mode
Variable Dimming Curves
Flicker Free Operation for TV and Film
Art-NET (DMX over Ethernet)
RDM – Remote Device Management

SOURCE

440W Cool White LED Engine
15,000 Total Output Lumens, 6,500K, High CRI >85
50,000 Hour Average LED Life*

PHOTOMETRIC DATA

17,835 LUX 1,657 FC @ 16.4’ (5m) (Min. Zoom)
2,182 LUX 203 FC @ 16.4’ (5m) (Max. Zoom)

EFFECTS

4-Blade Framing Shutter System
Animation Effect (Optional Kit)
3-Facet Rotating Prism
Wash Frost Filter
Motorized Iris
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves

COLOR

Full CMY Color Mixing and Linear CTO Color Correction
7 Dichroic Colors + White

GOBOS

6 Interchangeable / Rotating / Indexing Glass Gobos
Size Glass Gobos: OD 28.8mm / ID 24mm**
7 Interchangeable Static-Stamped Metal Gobos
Size Metal Gobos: OD 27mm / ID 22mm**
Optional Animation Effect Wheel Replaces Static Gobo Wheel

CONTROL / CONNECTIONS

(3) DMX Channel Modes (33 / 35 / 54)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement

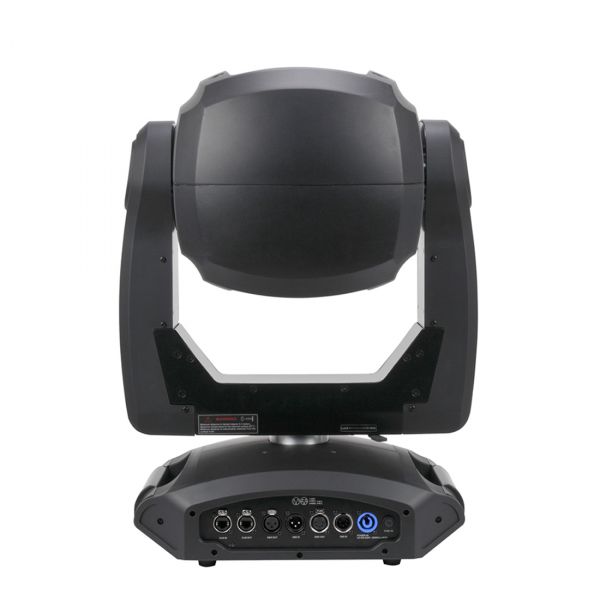

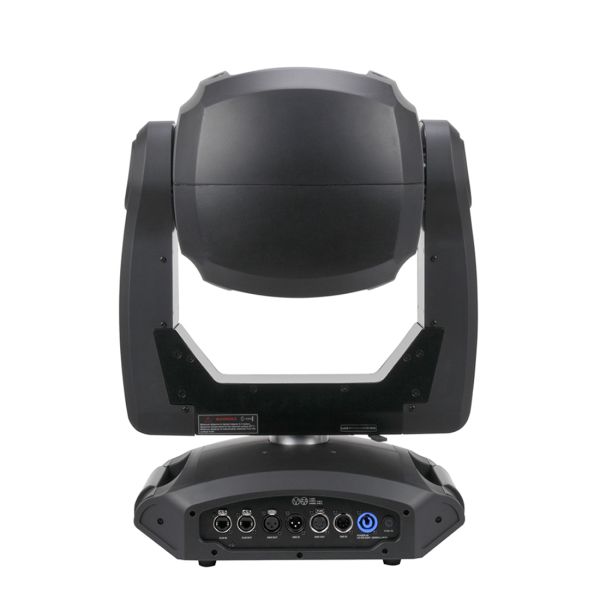

3/5pin XLR DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
Locking Power Cable In

SIZE / WEIGHT

Length: 17.7” (450mm)
Width: 12.2” (310mm)
Vertical Height: 29.3” (745mm)
Weight: 75.0 lbs. (34.0 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
600W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

FIRMWARE UPDATES

Current firmware can be found be here (login required)


*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.

Specifications and documentation subject to change without notice

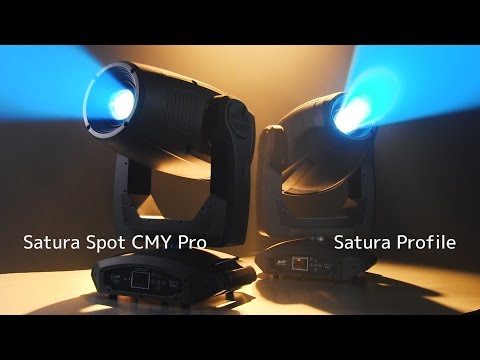

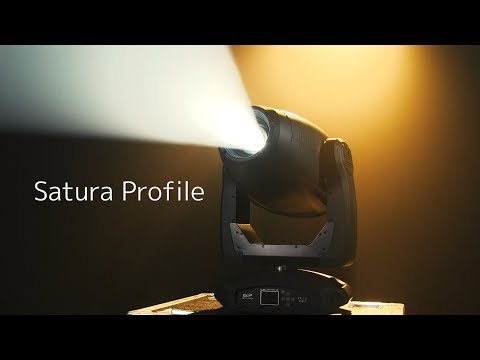

Videos
