Rayzor 360Z

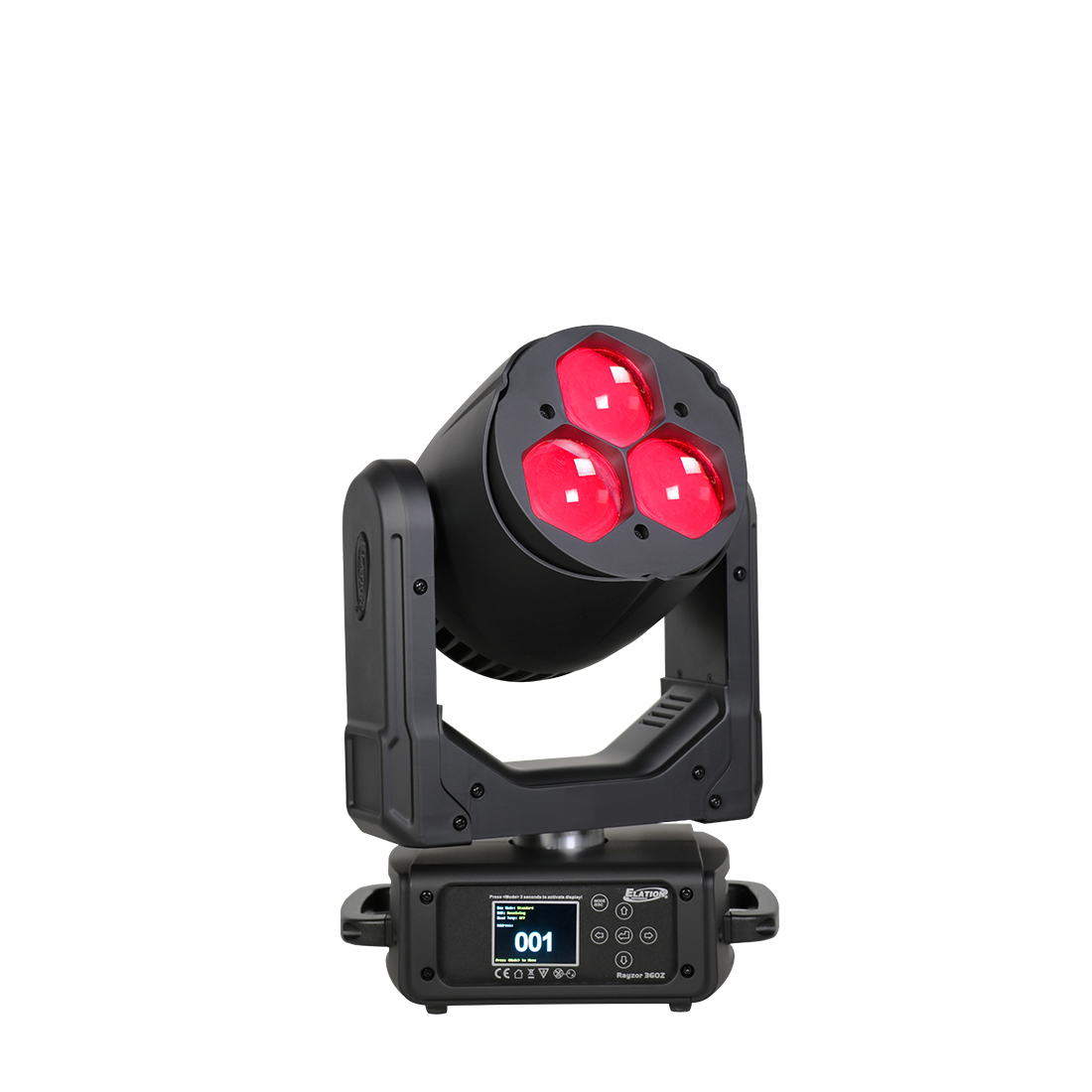

The RAYZOR 360Z™ is a brilliant compact beam moving effect luminaire with (3) 60W Osram™ RGBW LEDs. Features include 8° to 77° motorized zoom, fast and precise 16-bit continuous full 360° pan and tilt rotation, pixel control, adjustable color temperature (2,700K - 8,000K), electronic strobe, dimmer, and selectable dimming curve effects, DMX, RDM (Remote Device Management), and Art-NET support, 5pin XLR, RJ45 ethernet, and IP65 locking power cable in/out connections, (7) button control full color 180° reversible menu display, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

Compact Beam, Wash and Effect Luminaire
3x 60W Osram™ RGBW LEDs
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Pixel Controlled LEDs

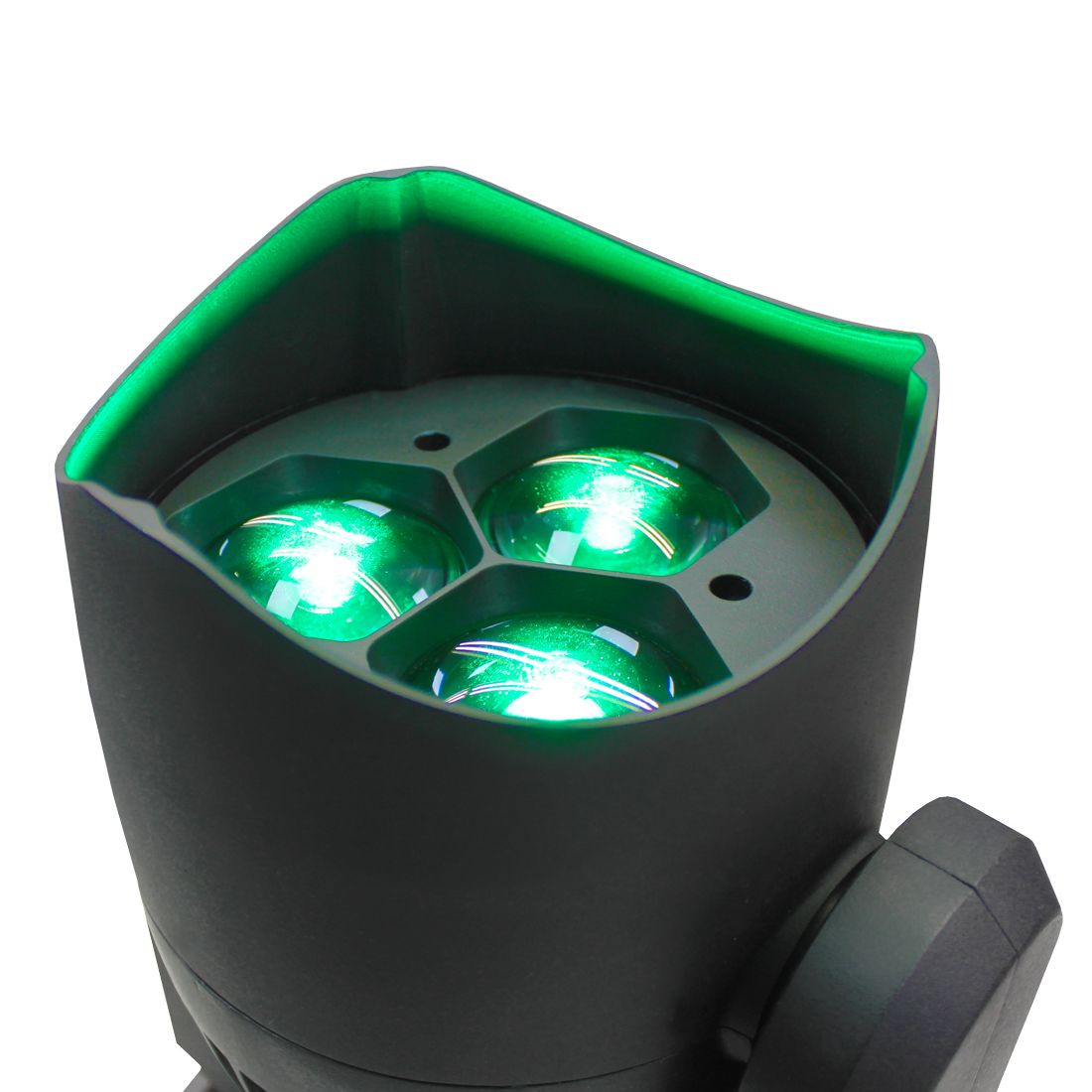

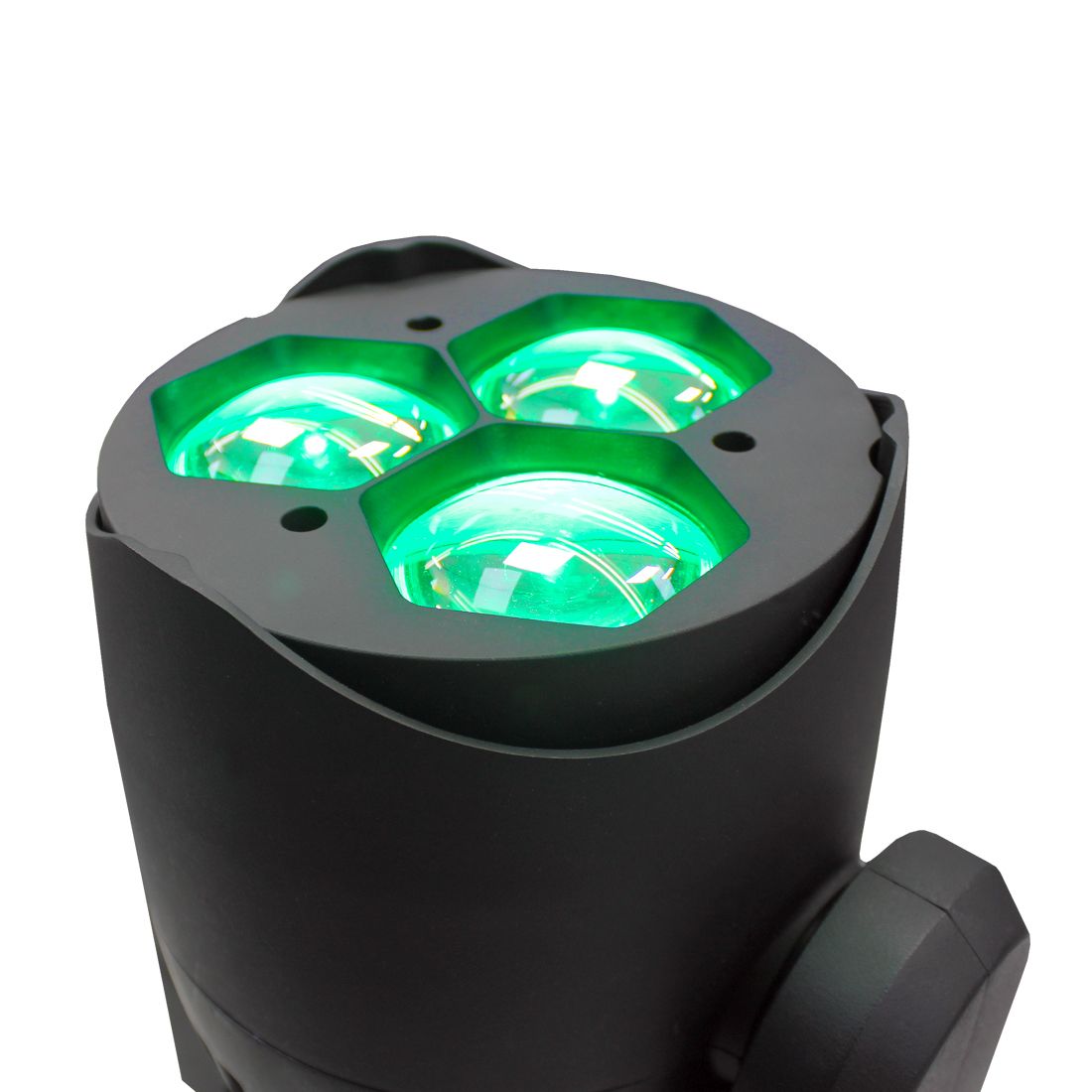

8° to 77° Motorized Zoom
Low Heat, Quiet Operation
Adjustable Refresh Frequency and Gamma
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film

SOURCE

(3) 60W Osram™ RGBW LEDs
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

28,020 LUX 2,603 FC @6.6’ (2m) (8° Min Zoom) Full ON
545 LUX 51 FC @6.6’ (2m) (77° Max Zoom) Full ON
CRI 80
Zoom Range 8° - 77°
Beam Angle 4.6° - 56.8°
Field Angle 5.8° - 74.1°

EFFECTS

Motorized Zoom
Linear Color Temperature Presets (2,700 - 8,000K)
RGBW Color Mixing and Pixel Control
8 Color Presets and 8 Chase Macros
Electronic Strobe and Variable Dimming Curves

COLOR

RGBW

CONTROL / CONNECTIONS

(3) DMX Channel Modes (20 / 26 / 32)
360° Continuous Pan and Tilt Movement
Adjustable Refresh Rate (900-25,000Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
(6) Button Touch Control Panel
8 / 16 Bit Resolution Adjustable Movement
Full Color 180° Reversible LCD Menu Display
RDM (Remote Device Management)

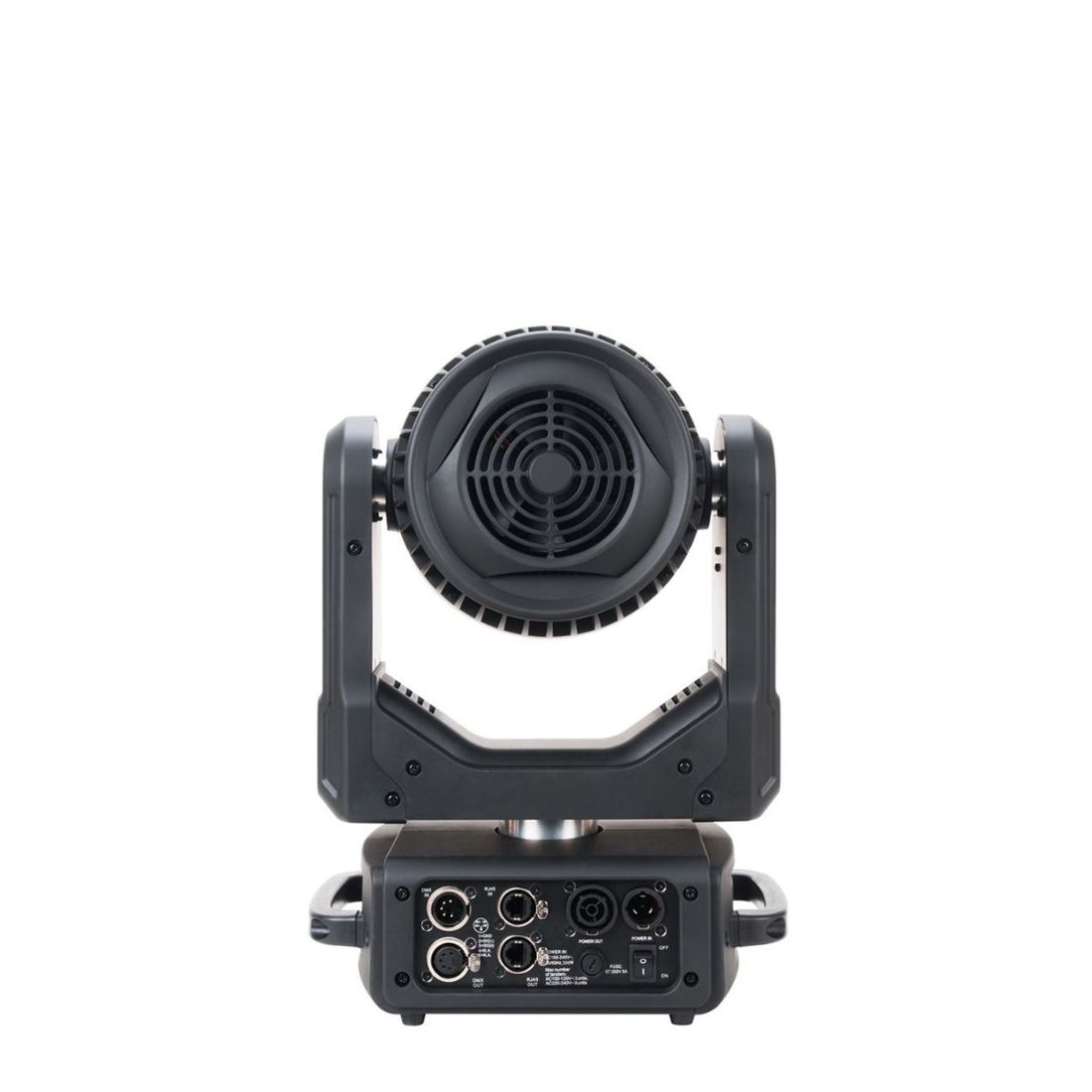

5pin XLR DMX In/Out
RJ45 ethernet In/Out (Art-NET, sACN and KlingNET)
IP65 Locking Power Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 11.0” (280.6mm)
Width: 7.9” (199.5mm)
Vertical Height: 16.6" (422.1mm)
Weight: 17 lbs. (7.7 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
300W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 930.93

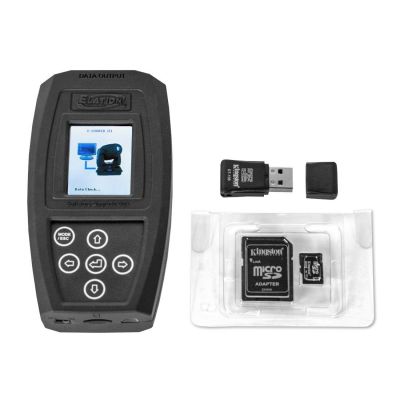

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice

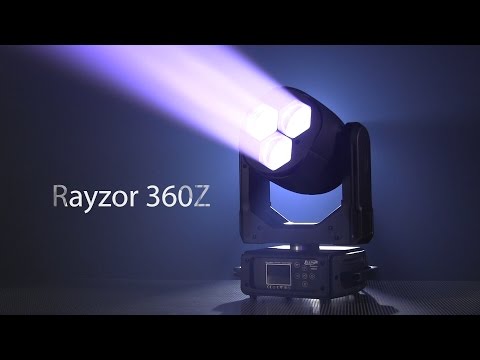

Videos
