Pulse Bar L

IP65 Strobe Bar, 1 meter

Code 1237000344

Ignite excitement and get the crowd pumping with the new PULSE BAR L! The first in an innovative Pulse line of strobe lights, the Pulse Bar is a highly impactful strobe and visual effect bar that injects dynamism and spark into any performance! Measuring a meter in length, the PULSE BAR L incorporates 960 1.5W RGB LEDs distributed across 40 zones along its perimeter. Additionally, it features a central strobe line equipped with 400 5W cool-white...

Code 1237000344

Pulse Bar L

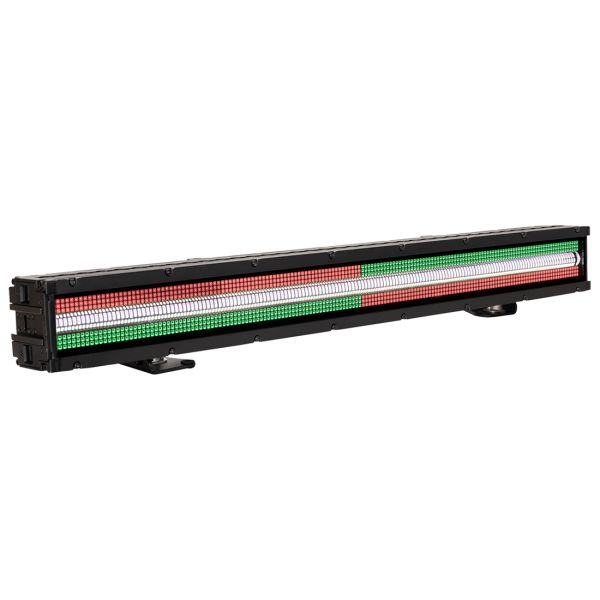

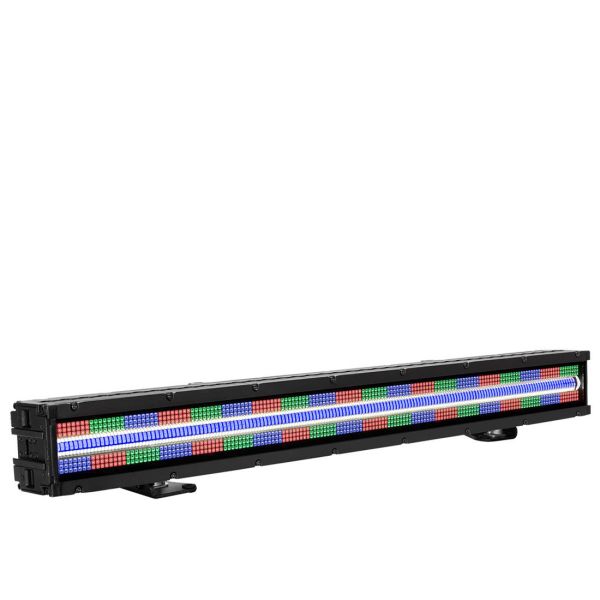

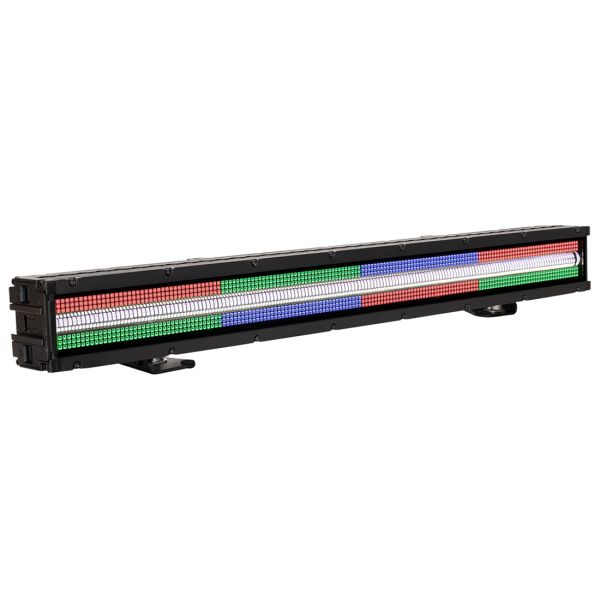

Measuring a meter in length, the PULSE BAR L incorporates 960 1.5W RGB LEDs distributed across 40 zones along its perimeter. Additionally, it features a central strobe line equipped with 400 5W cool-white LEDs across 40 zones, complemented by 160 1.5W RGB LEDs arranged in 20 zones at its core. When combined, these components deliver an output exceeding 25,191 total lumens.

Infuse your performance with intense, attention-grabbing moments of white or colored light that enhance the energy of the moment. Add impact with rhythmic flashes that synchronize with the music or craft special effects that make for a more visually stimulating experience. Ideal for direct view applications, zone control opens up for a myriad of design possibilities.

The PULSE BAR L includes a library of customizable RGB and CW strobe effects along with variable dimming modes and curves for quick programming.

Wrapped in a durable, fully IP65-rated housing, the PULSE BAR L is suitable for any environment, indoors or outdoors, and its marine grade coating adds additional protection for harsher environments- even coastal locations.

The fanless convection cooling of the PULSE BAR L guarantees silent operation, making it ideal for noise-sensitive environments. Designed for ultimate flexibility, an integrated accessory slot accommodates optional diffusion filters, ND filters and other optics.

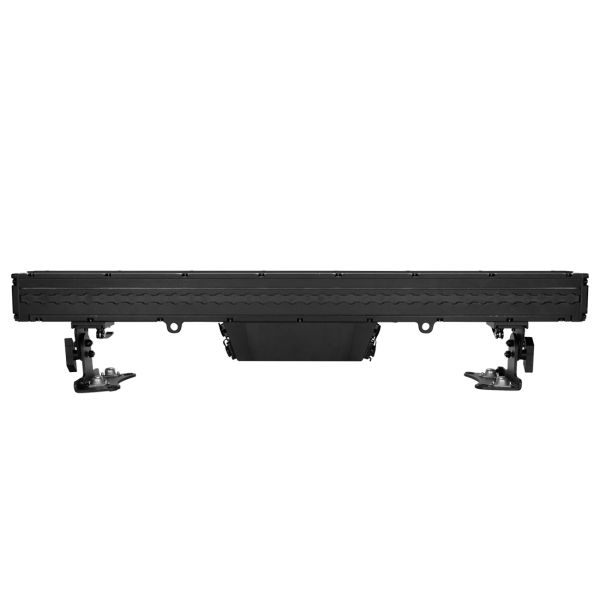

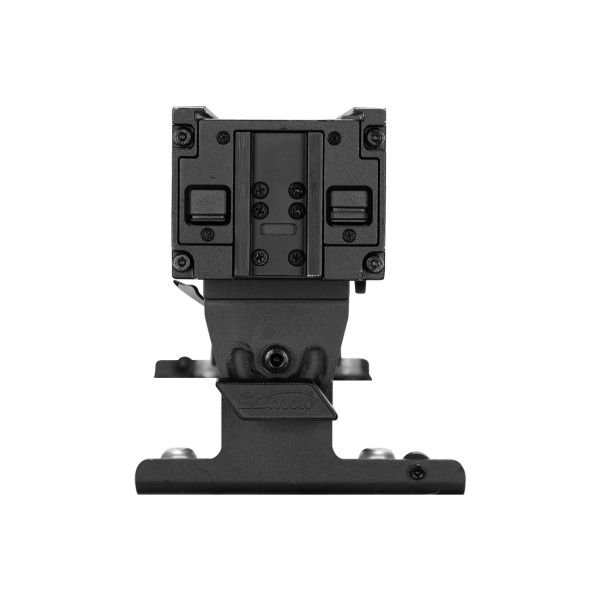

The PULSE BAR L’s innovative housing allows for end-to-end interconnection and includes integrated L track for flexible mounting and positioning. Trunnions designed for attachment to the L track can be fixed at multiple points to optimize positioning around objects or obstacles.

Controllable via DMX/RDM, Art-Net, sACN and Klingnet protocols, the PULSE BAR L also features proprietary Aria x2 wireless device management for simplified system setup and maintenance.

When the moment calls for high-impact bursts of light and visually striking effects, look no further. The PULSE BAR L delivers!

Technical Data

FEATURES

(960) 1.5W RGB LED's in 40 Zones
(400) 5W CW Strobe LED's in 40 Zones
(160) 1.5W RGB StrobeLine LED's in 20 Zones
Completely Fanless Cooling
Integrated L Track for Flexible Mounting
Unique End-to-End Interconnection System
Art-Net, sACN and Klingnet support
IP65 Rated

SOURCE

(1120) 1.5W RGB LEDs
(400) 5W CW Strobe LEDs
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output
Integrating Sphere
All LED: 22,614 Lumens
CW LED: 25,191 Lumens
RGB LED: 8,434 Lumens
CRI: TBD
Beam Angle: TBD
Field Angle: TBD

EFFECTS

40 Zones of RGB Plate LEDs (20 x 2)
40 Zones of CW Strobe LEDs (20 x 2)
20 Zones of RGB StrobeLine LED's (20 x 1)
1- 20Hz Strobe Rate
Library of Customizable RGB and CW Strobe Effects
Variable Dimming Modes and Curves

COLOR

RGB Color Array

CONTROL / CONNECTIONS

9 DMX Channel Modes (3ch, 11ch, 22ch, 52ch, 92ch, 234ch, 132ch, 242ch, 220ch)
4 Button Control Panel, LED Display
DMX, RDM, Art-NET, sACN Protocol Support
Aria x2 Wireless Device Management
RDM (Remote Device Management)

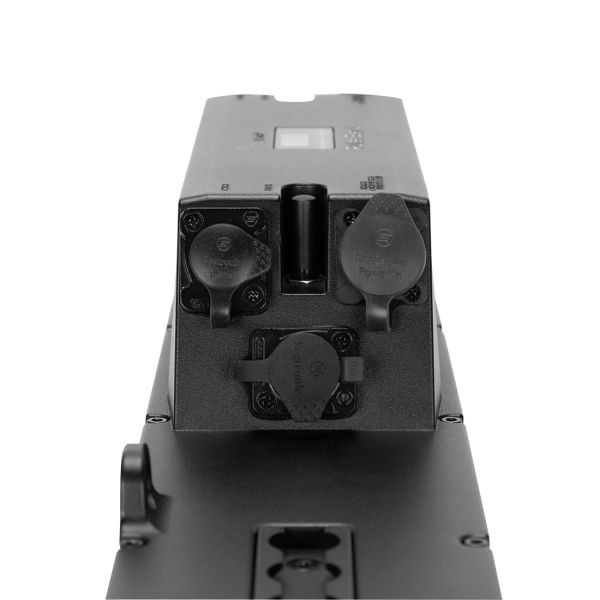

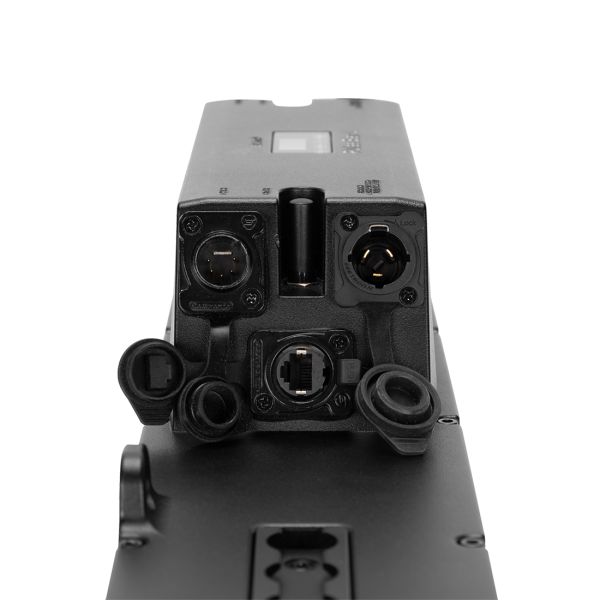

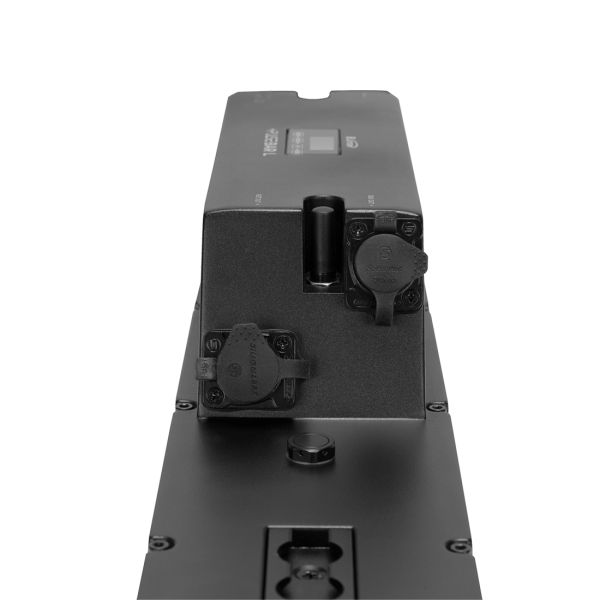

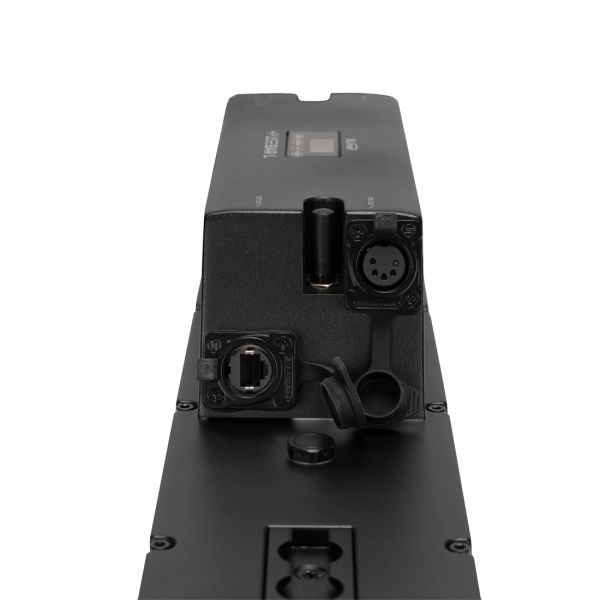

IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN, Klingnet)
IP65 Locking Power Cable In

SIZE / WEIGHT

Length: 1000 mm (39.4”)
Width: 176 mm (6.9”)
Horizontal Height: 205 mm (8.1”)
Weight: 12.5kg (27.55 lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
Max Power Consumption 1300W
-15°C to 45°C (25°F to 113°F)
BTU/hr (+/- 10%) 4433

INCLUDED ITEMS

IP65 Locking Power Cable
Fixture Interconnect Key

OPTIONAL ITEMS

1223200113 BAR L NSP Lens (BLL021)
1223200112 BAR L WFL Lens (BLL061)
1223200111 BAR L XFL Lens (BLL101)
1223200110 BAR L L140 Lens (BLL141)
1223200109 BAR L L1060 Lens (BLL161)

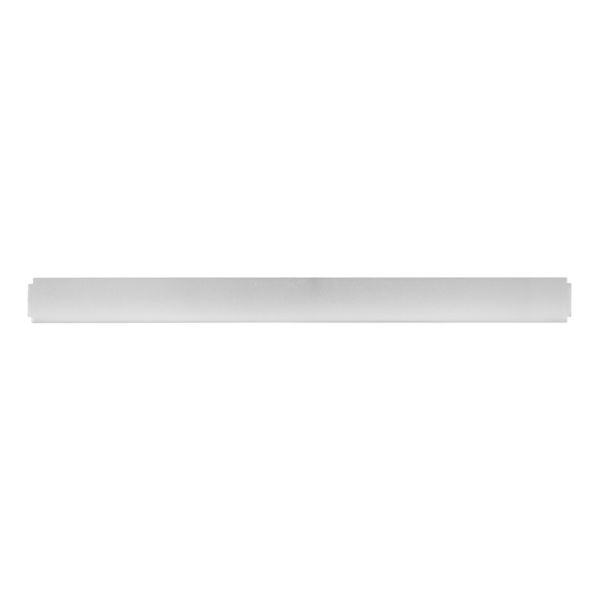

1237000398 BAR L Frost (BLL001)
1237000350 BAR L Dome Frost Lens (BLL181)
1237000399 BAR L Black Lens (BLL125)
1236300110 Fixture Interconnect Splice Package (FISP06)
1744000021 L Track A1
1744000022 L Track A2
1744000023 L Track CA1
1744000025 L Track CA2
1236300115 Interconnect Clamp Adapter (FICA01)
9900007439 OmegaBracket-Short C-serie
9900025610 IP OmegaBracket short
