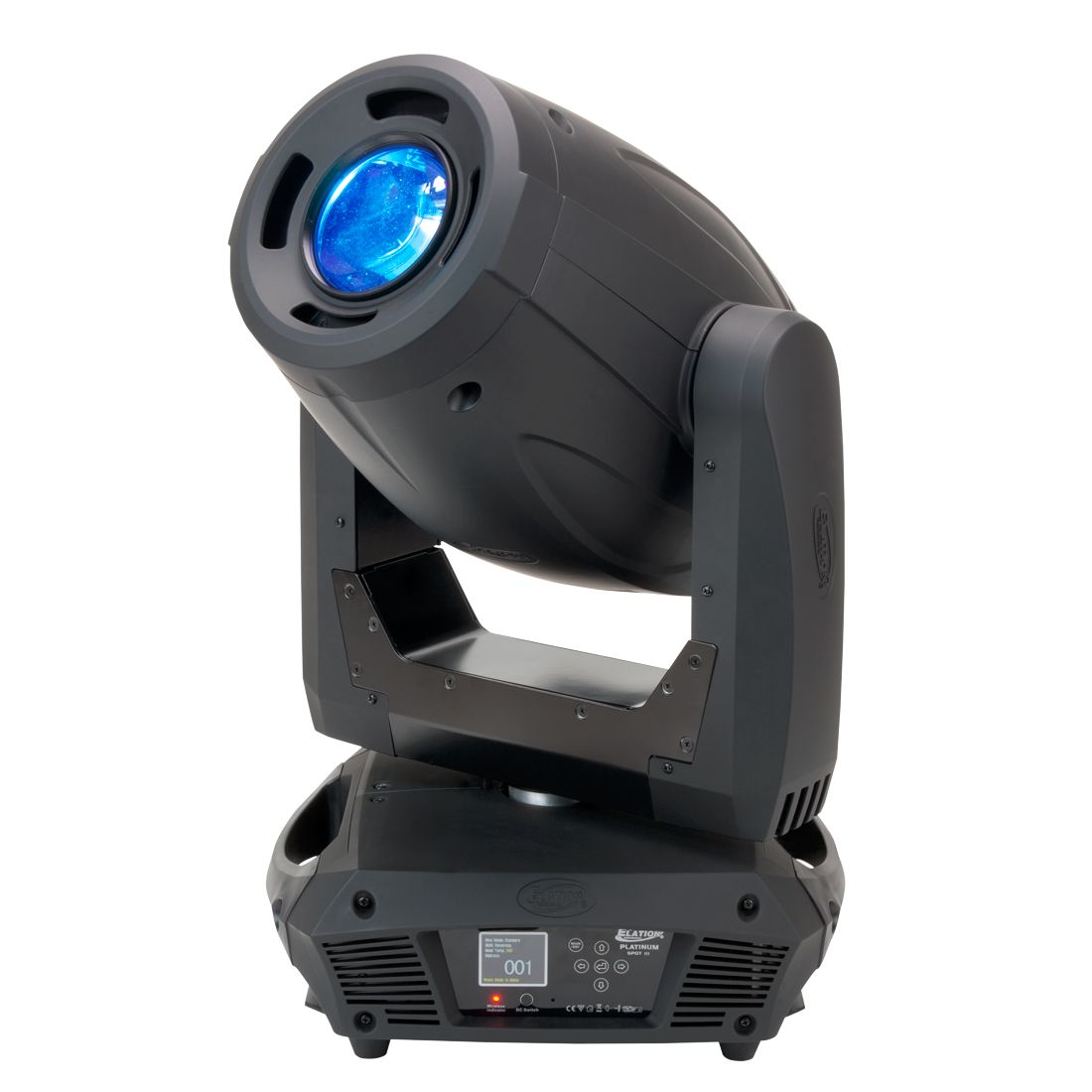

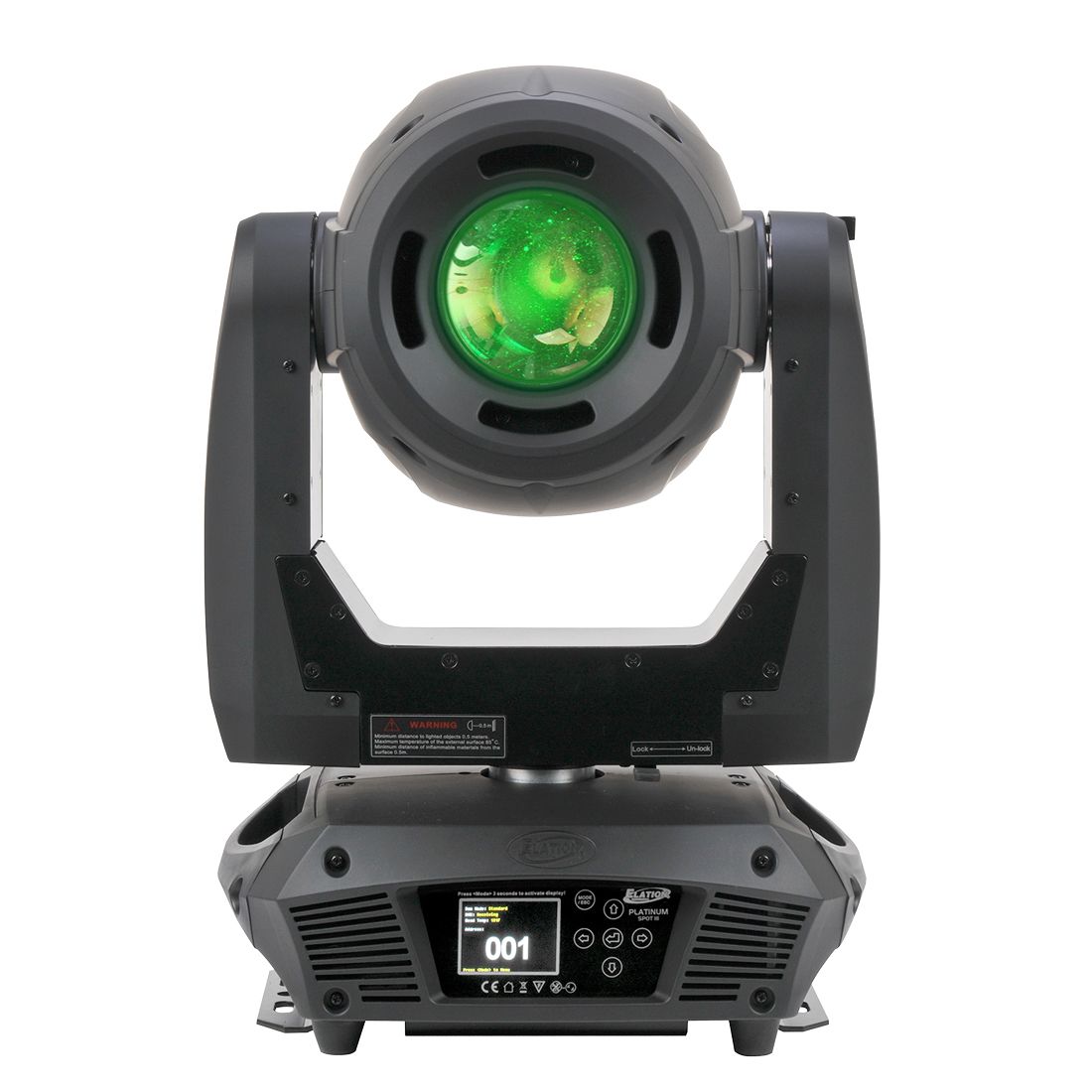

Platinum Spot III

The Platinum Spot III™ features a 230W 8,500K, >79CRI Cool White LED engine, delivering 7,200 total lumen, 16° to 32° motorized zoom, 8 dichroic colors including white (open), 7 rotating, interchangeable glass & metal gobos and 7 static-stamped gobos, 3-facet rotating prism, wash frost filter, a bi-directional variable speed animation wheel, motorized iris, variable dimming curves, DMX, RDM (Remote Device Management), locking 3/5pin DMX in/out and locking power in connections, flicker free operation for TV and Film, 6 button control full color 180° reversible menu display, 350W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

Cool White 230W LED Spot Luminaire
16° to 32° Motorized Zoom
Bi-Directional Animation Wheel
Wash Frost Effects
3-Facet Rotating Prism
Pan/Tilt Lock
Low Heat, Quiet Operation, Hibernation Mode
Variable Dimming Curves
Flicker Free Operation for TV and Film
RDM – Remote Device Management


SOURCE

230W Cool White LED Engine
7,200 Lumen 8,500K, >79CRI
60,000 Hour Average LED Life*


PHOTOMETRIC DATA

4,450 LUX 413 FC @ 16.4’ (5m) (Min. Zoom)
1,438 LUX 134 FC @ 16.4’ (5m) (Max. Zoom)


EFFECTS

3-Facet Rotating Prism
Bi-Directional Animation Wheel
Wash Frost Effect
Motorized Iris and Focus
Shutter: 1-18fps
Dimmer: 0% - 100%
Variable Dimming Curves


COLOR

8 Dichroic Colors + White (Open)


GOBOS

7 Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD 26.8mm / ID 21.4mm**
7 Static-Stamped Metal Gobos


CONTROL / CONNECTIONS

(3) DMX Channel Modes (18 / 20 / 27)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement

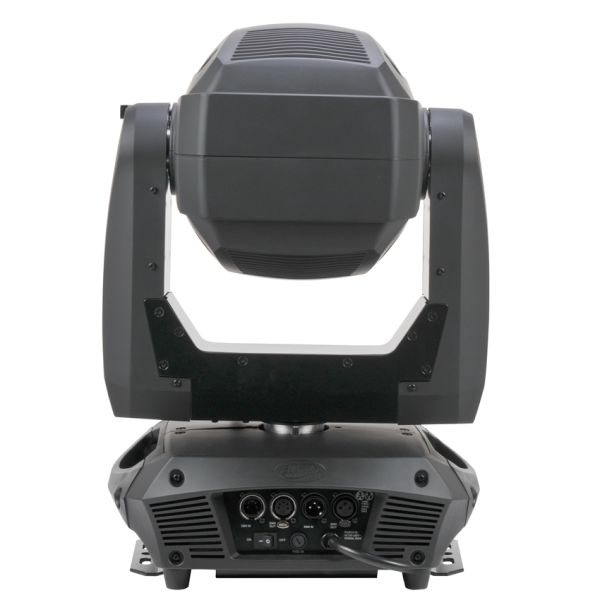

Locking 3/5pin DMX In/Out
Locking power connector In


SIZE / WEIGHT

Length: 14.8” (375mm)
Width: 13.2” (336mm)
Vertical Height: 23.7” (601mm)
Weight: 46 lbs. (20.8 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
350W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


OPTIONAL ACCESSORIES

1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome
1322000054 E Loader III

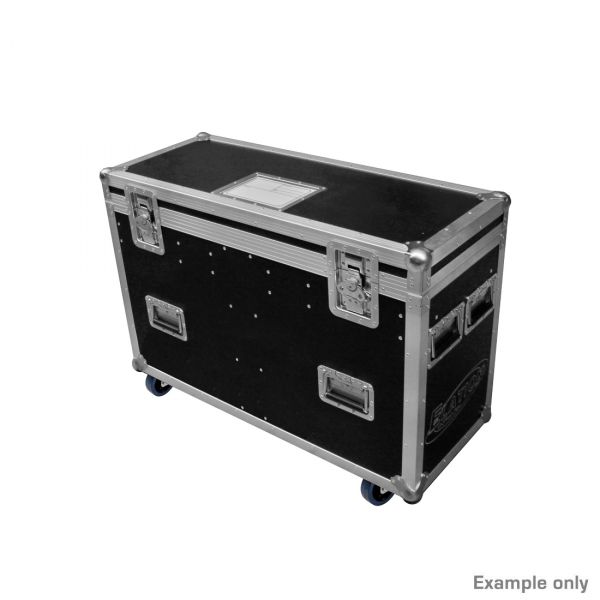

1521000172 Touring Case 2x Platinum Spot III
1521000210 PRO Case 2x Platinum Spot III


FIRMWARE UPDATES

Current firmware can be found here (login required)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.


Specifications and documentation subject to change without notice
