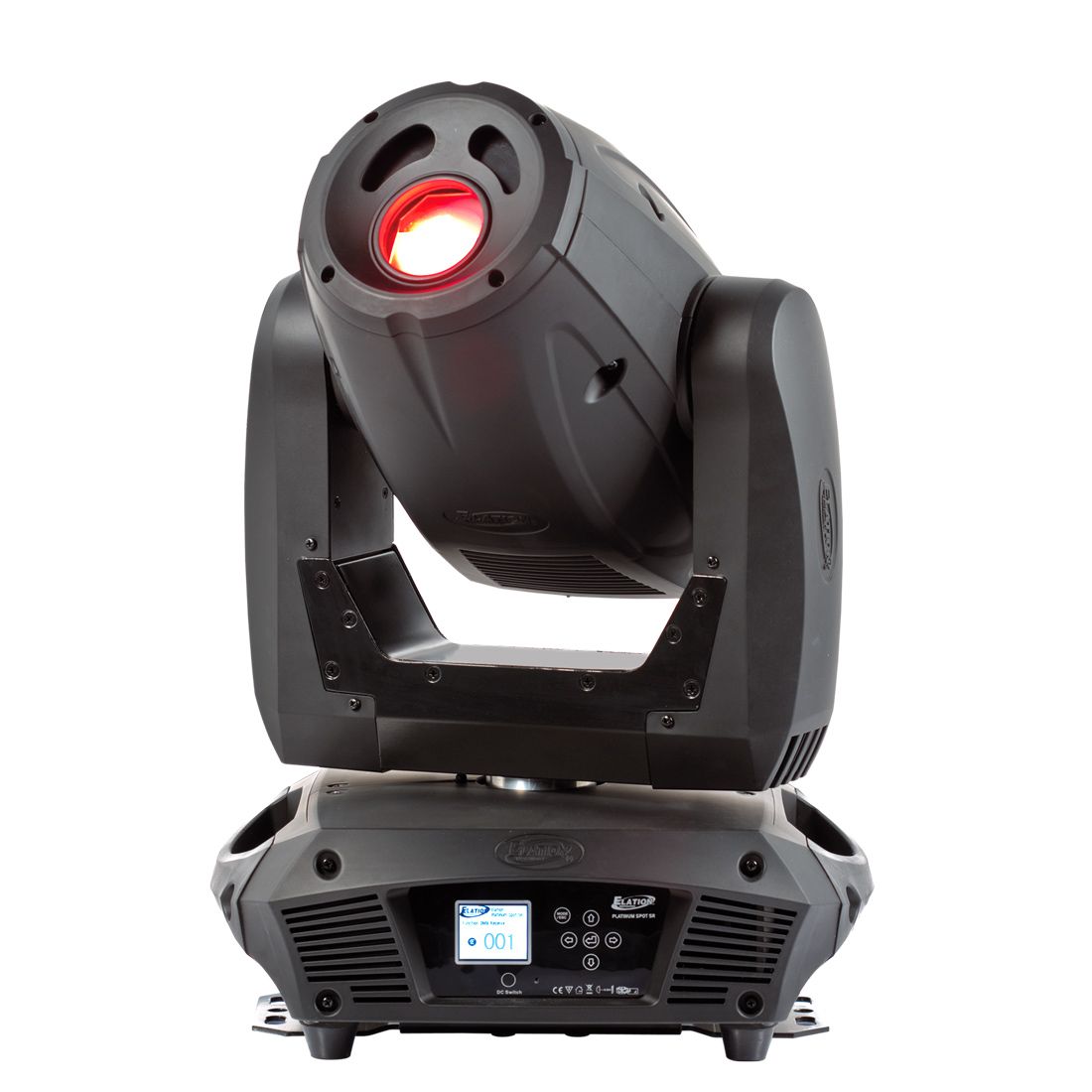

Platinum Spot 5R

The Platinum Spot 5R features the MSD Platinum 5R, 189-watt lamp from Phillips™, 16-bit resolution on all motor functions, 2 gobo wheels with a total of 8 interchangeable, rotating, and indexing glass gobos, 14 fixed indexing gobos, a static color wheel with 8 dichroic colors including UV and CTB, 3 facet rotating / indexing prism, frost filter, motorized focus, 3 and 5pin DMX connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data


540°/630° Pan
265° Tilt
8 / 16 Bit Resolution Adjustable Movement
1/3 Smaller @ Output of 575 Watt Fixture
Motorized Focus
6 Button Touch Control Panel
Full Color 180° Reversible Menu Display
Microphone for Sound Activated Programs
Rechargeable Backup Battery for Menu Display
Stand Alone Operation with Primary/Secondary Function
Software Upload via Optional External DMX Accessary

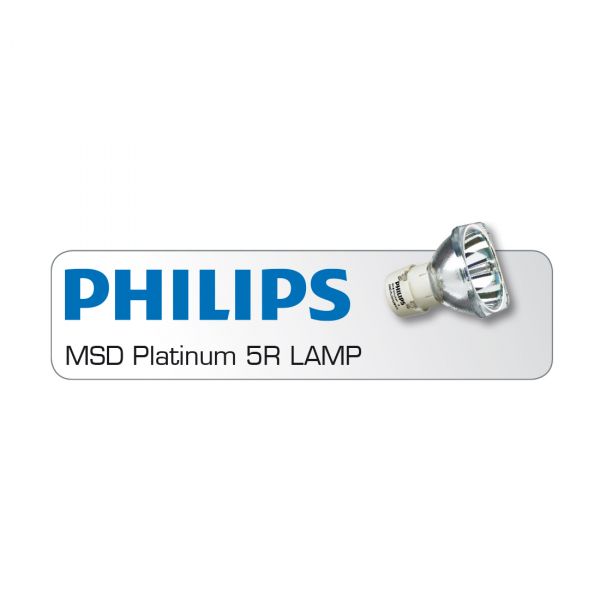

Philips 189-Watt MSD PLATINUM 5R
7,950 Lumen, 8,000k, >75 CRI, 3,000 Hour Average Life*


Max 15,290 LUX @2,5M 16°


Frost Filter
Motorized Iris: 5% - 100%
Two Direction Rainbow Effect
Mechanical Dimming: 0% - 100%
High Speed Mechanical Shutter / Strobe
3 Facet Rotating Prisms


8 Static Dichroic Colors Including UV + CTB + White (Open)


2 Gobo Wheels With 8 Interchangeable Glass Rotating / Indexing Gobos
Plus 14 Static Interchangable Gobos Plus Open
Size:  OD 14mm / ID 7mm


3 DMX Channel Modes (15 / 17 / 24)

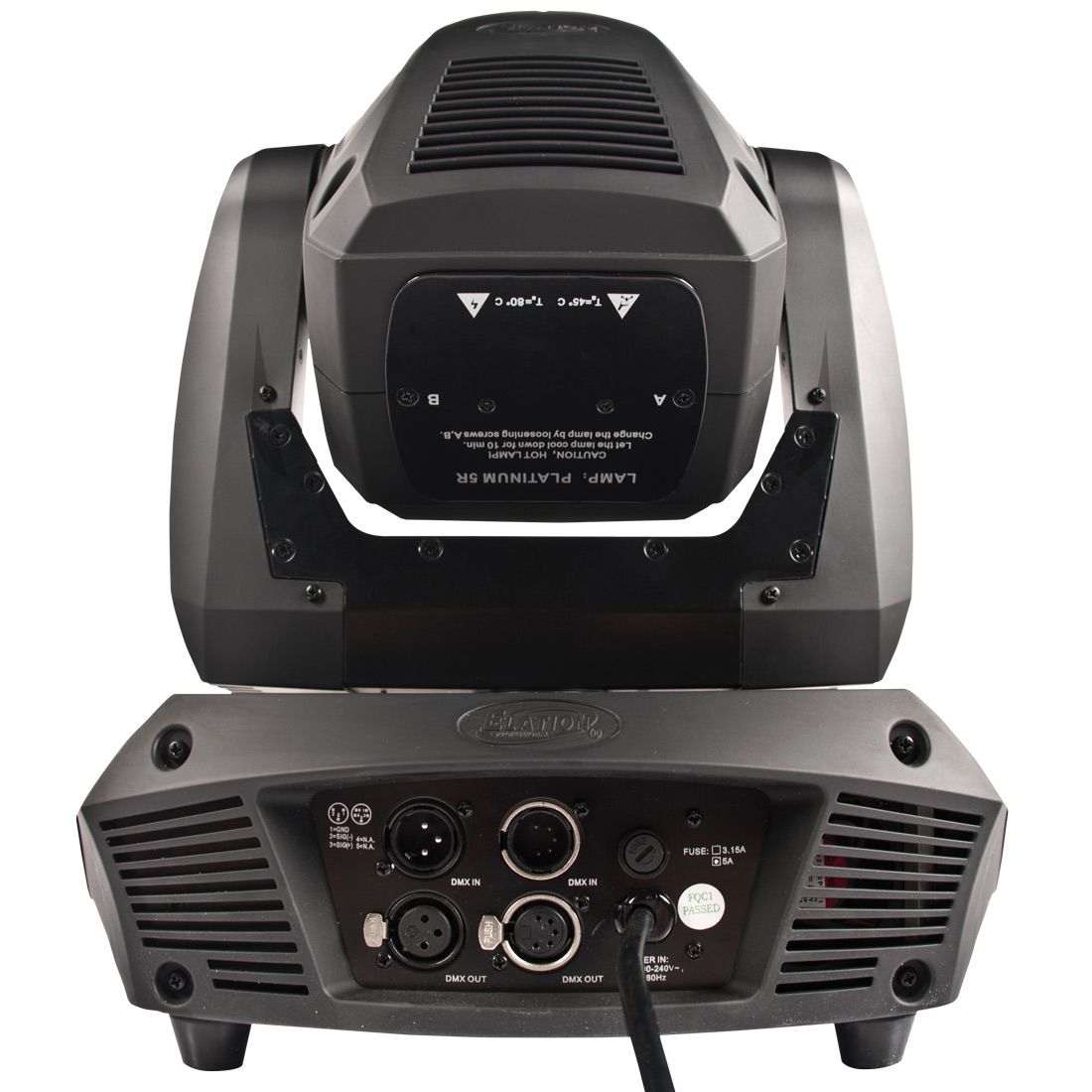

3pin & 5pin DMX In/Out


Length: 360mm
Width: 337mm
Vertical Height: 450mm
Weight: 12,9kg


AC 100-240V - 50/60Hz
342W Max Power Consumption
-25°C to 45°C
*Applies to Philips™ 5R lamps with a production date of February 25, 2015, or later. Actual lamp life may vary depending on several factors including but not limited to: environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.

Specifications and documentation subject to change without notice
