Code 1237000099

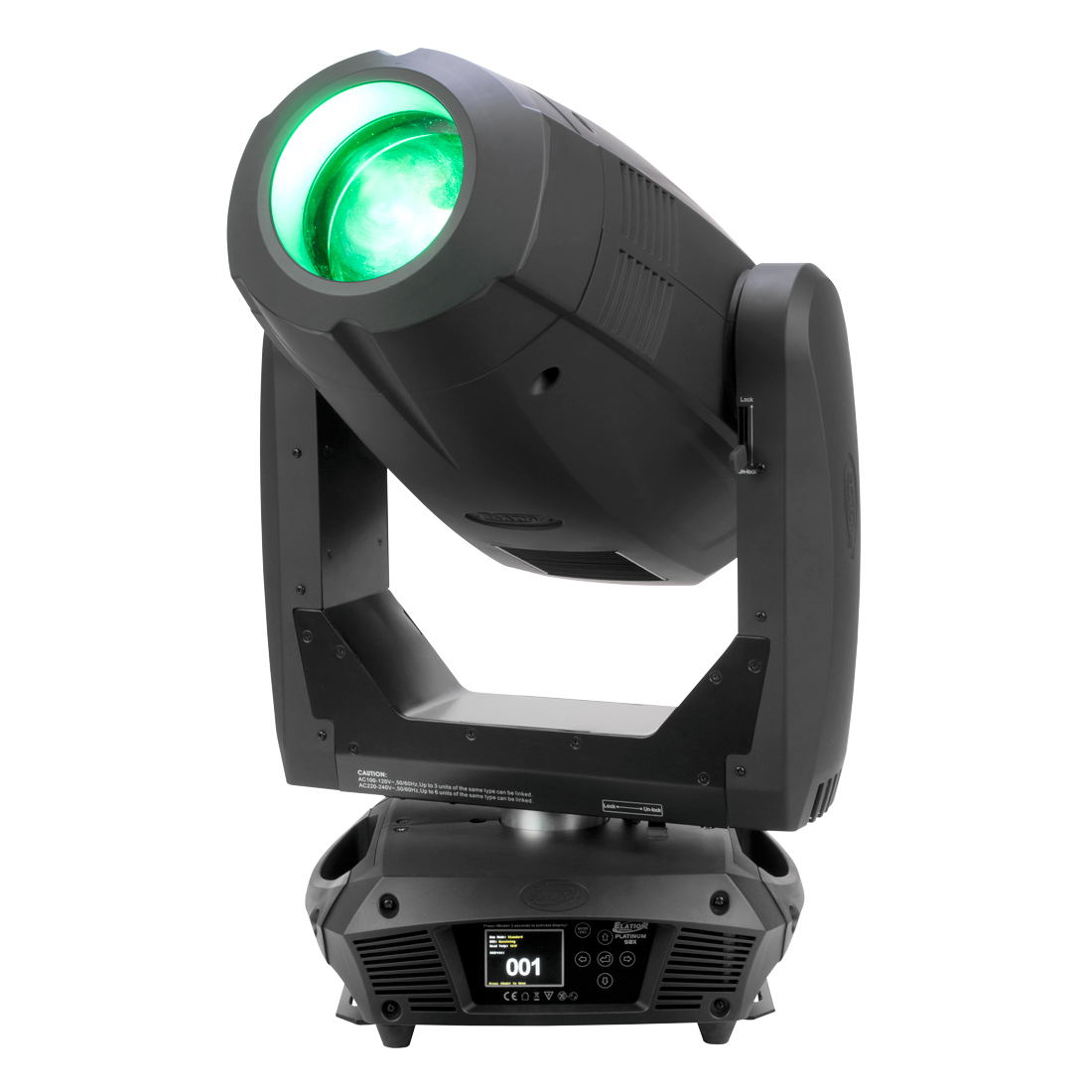

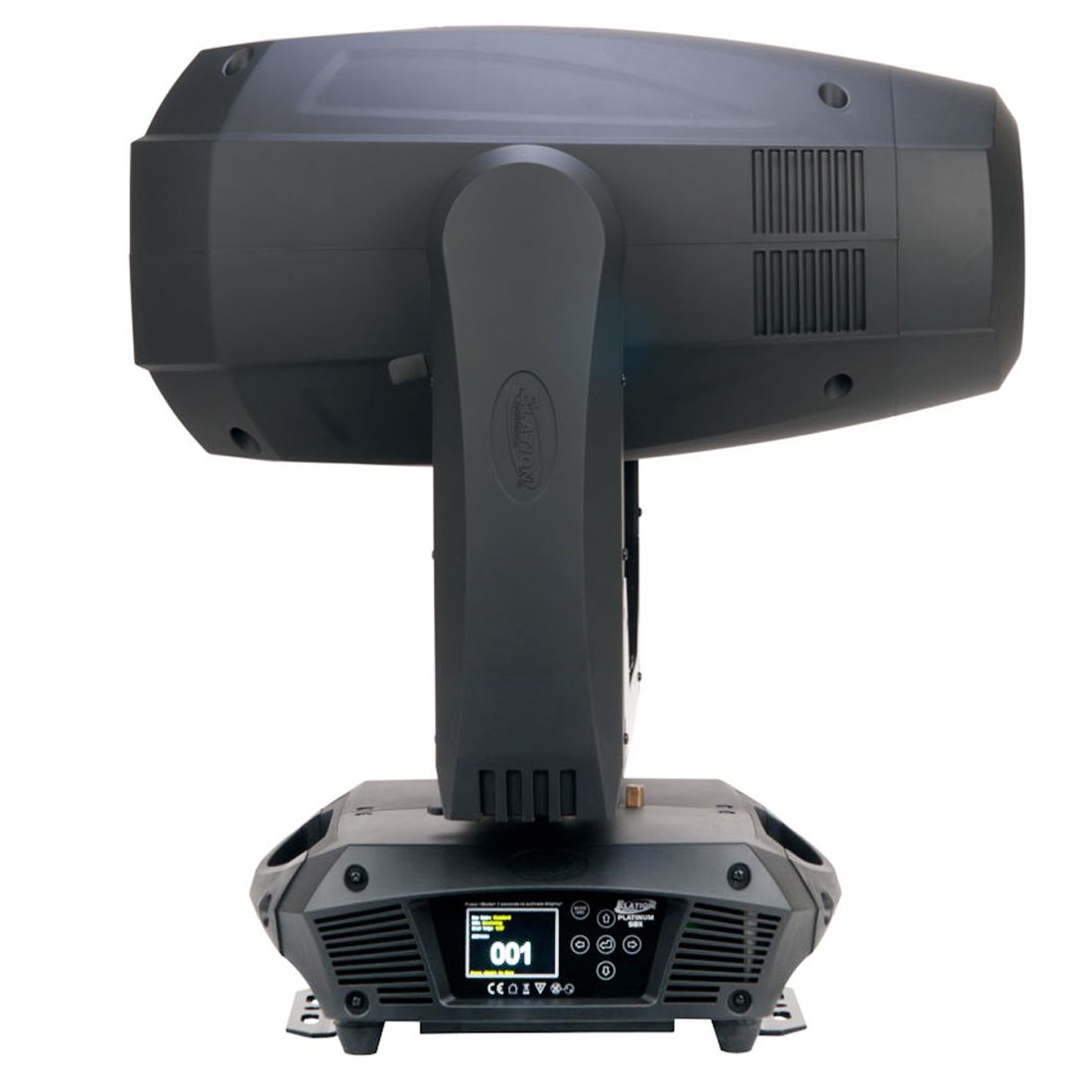

Platinum SBX

The new Platinum SBX™ is an innovative full-featured 3-in-1 luminaire with patent-pending design that can be utilized as a beam, spot or wash fixture. It features the brand new Philips™ MSD Platinum 17 RA 350W, 6,900K, 85CRI lamp, 15,000 total lumens delivering comparable output to 700W fixtures, 3° to 18° zoom in beam mode and 5° to 30° zoom in spot mode, 10 dichroic colors including UV, CTO, CTB and white (open), 8 rotating, interchangeable glass & metal gobos and 12 static-stamped metal gobos, 6-way linear and 8-facet rotating prisms, frost filter, Art-NET (DMX Over Ethernet) support, locking 5pin DMX in/out, locking RJ45 ethernet in/out and locking power in/out connections, (6) button control full color 180° reversible menu display, 550W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

Patent Pending 3-in-1 Fixture - Beam, Spot, and Wash Luminaire
Comparable Output to 700W Fixtures
Innovative Auto Focus Function
No LUX Loss in Spot Mode
3° - 18° Beam and 5° - 30° Spot Zoom
CTO & CTB Color Correction
6-Way Linear and 8-Facet Rotating Prisms
Pan/Tilt Lock
Art-NET (DMX Over Ethernet) Support
RDM - Remote Device Management


SOURCE

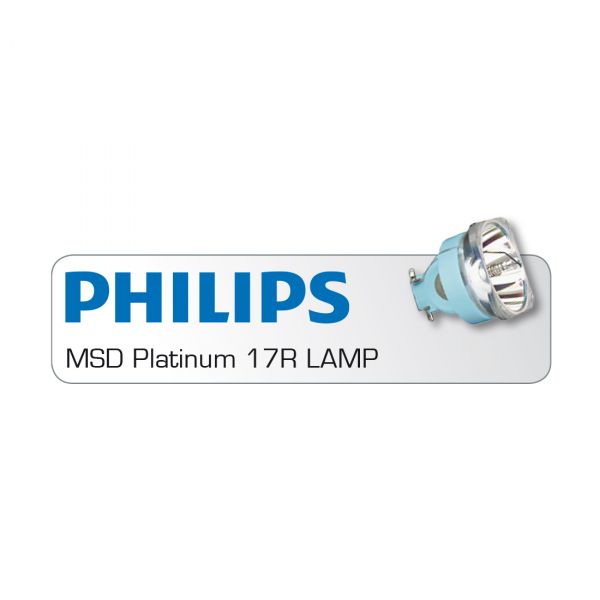

Philips™ MSD Platinum 17 RA 350W Lamp
15,000 Total Lamp Lumens, 6,900K, 85CRI
1,500 Hour Average Lamp Life


PHOTOMETRIC DATA

14,324 Lumen Beam Mode / 7,281 Lumen Spot Mode
107,000 LUX @ 15m (3° Beam)
5,133 LUX @ 15m (5° Spot)


EFFECTS

8-Facet Rotating Prism and (16) Macros
Frost Filter
Strobe: 1-18fps
Dimming: 0% - 100%


COLOR

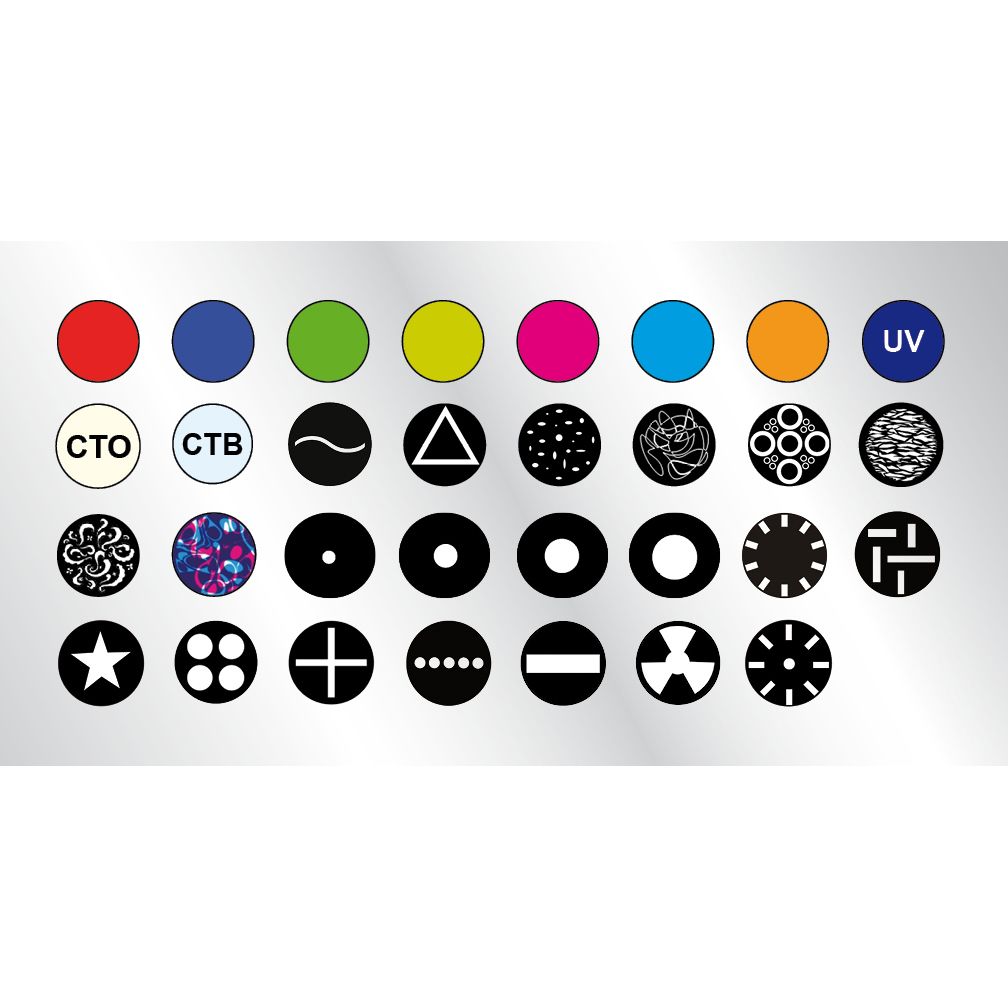

(10) Dichroic Colors Including UV, CTB, CTO + White


GOBOS

(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Glass & Metal Gobos
(12) Static-Stamped / Indexing Metal Gobos
Size: OD 16.3mm / ID 10mm

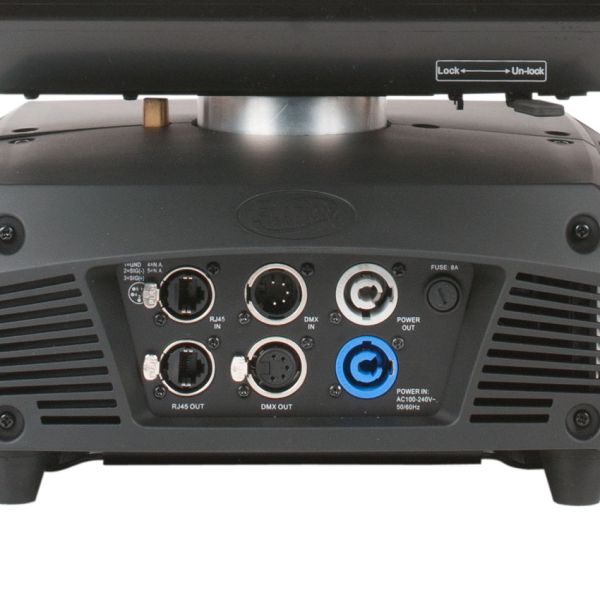

CONTROL / CONNECTIONS

(3) DMX Channel Modes (16 / 18 / 25)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
Locking 5pin DMX In/Out
Locking RJ45 ethernet In/Out (Art-NET)
Locking power connector In/Out


SIZE / WEIGHT

Length: 14.1” (359mm)
Width: 19.7” (502mm)
Vertical Height: 28.7” (730mm)
Weight: 73.0 lbs. (33.1 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
550W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


Specifications and documentation subject to change without notice

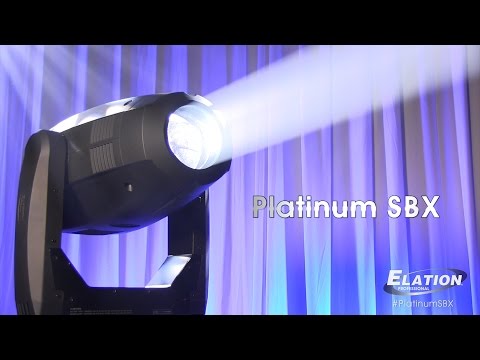

Videos
