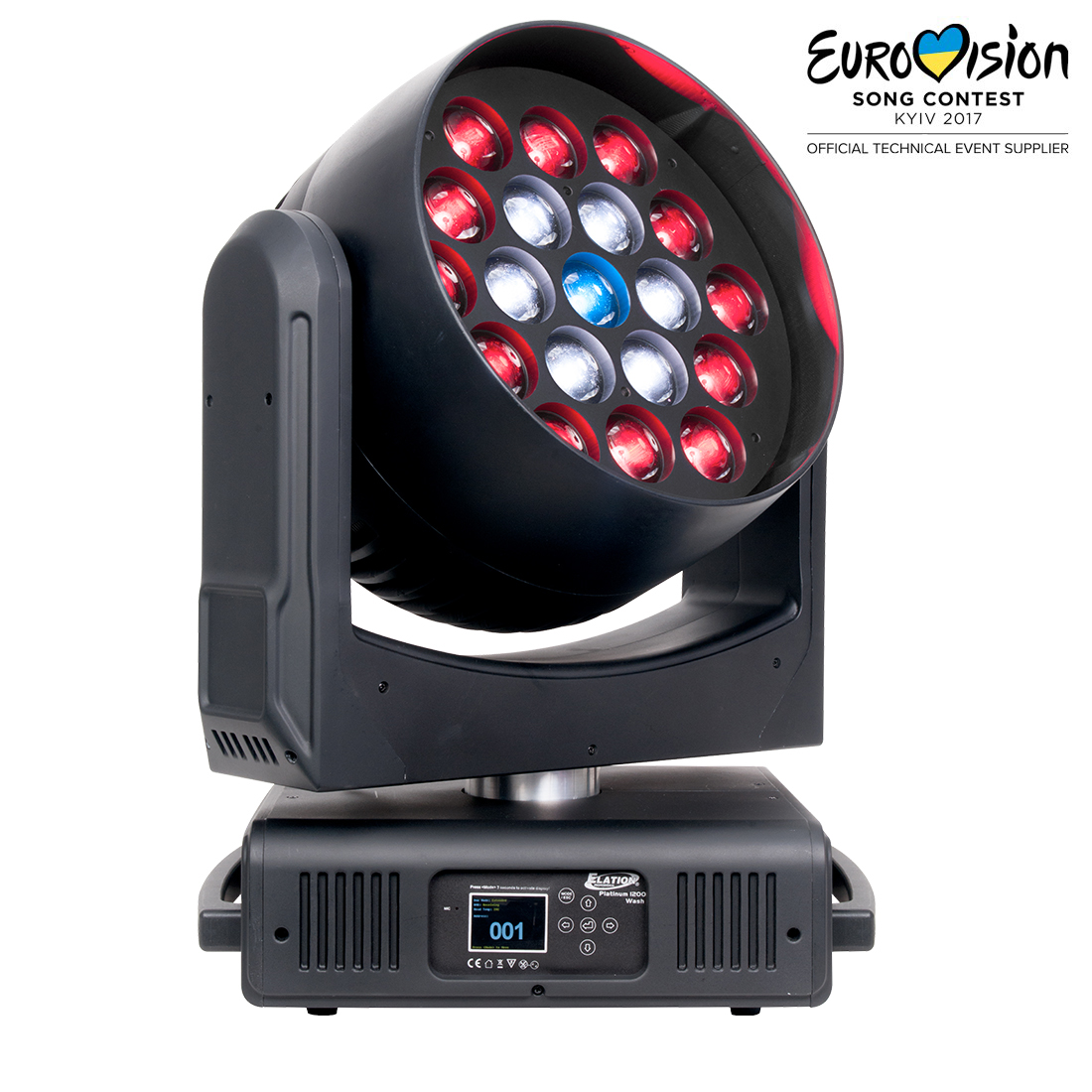

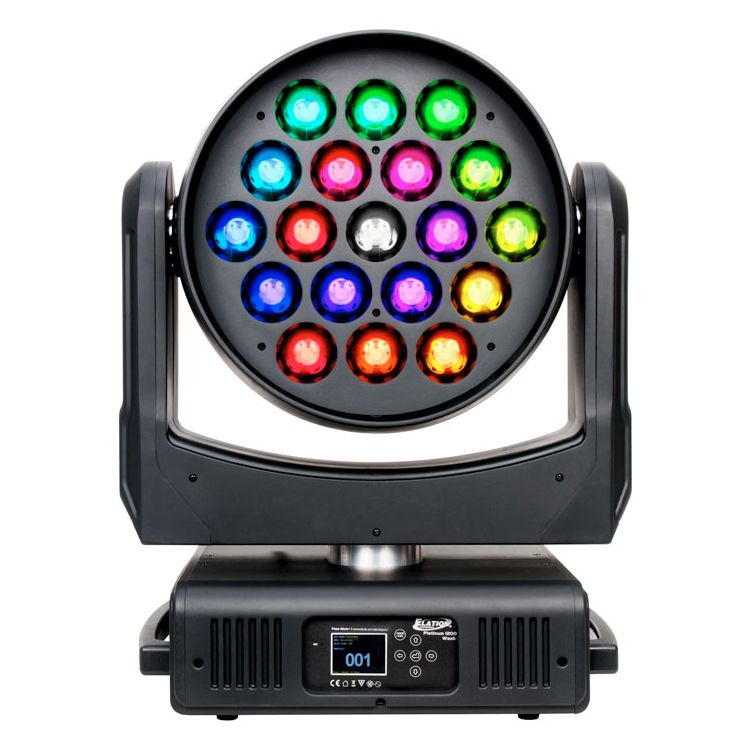

Platinum 1200 Wash

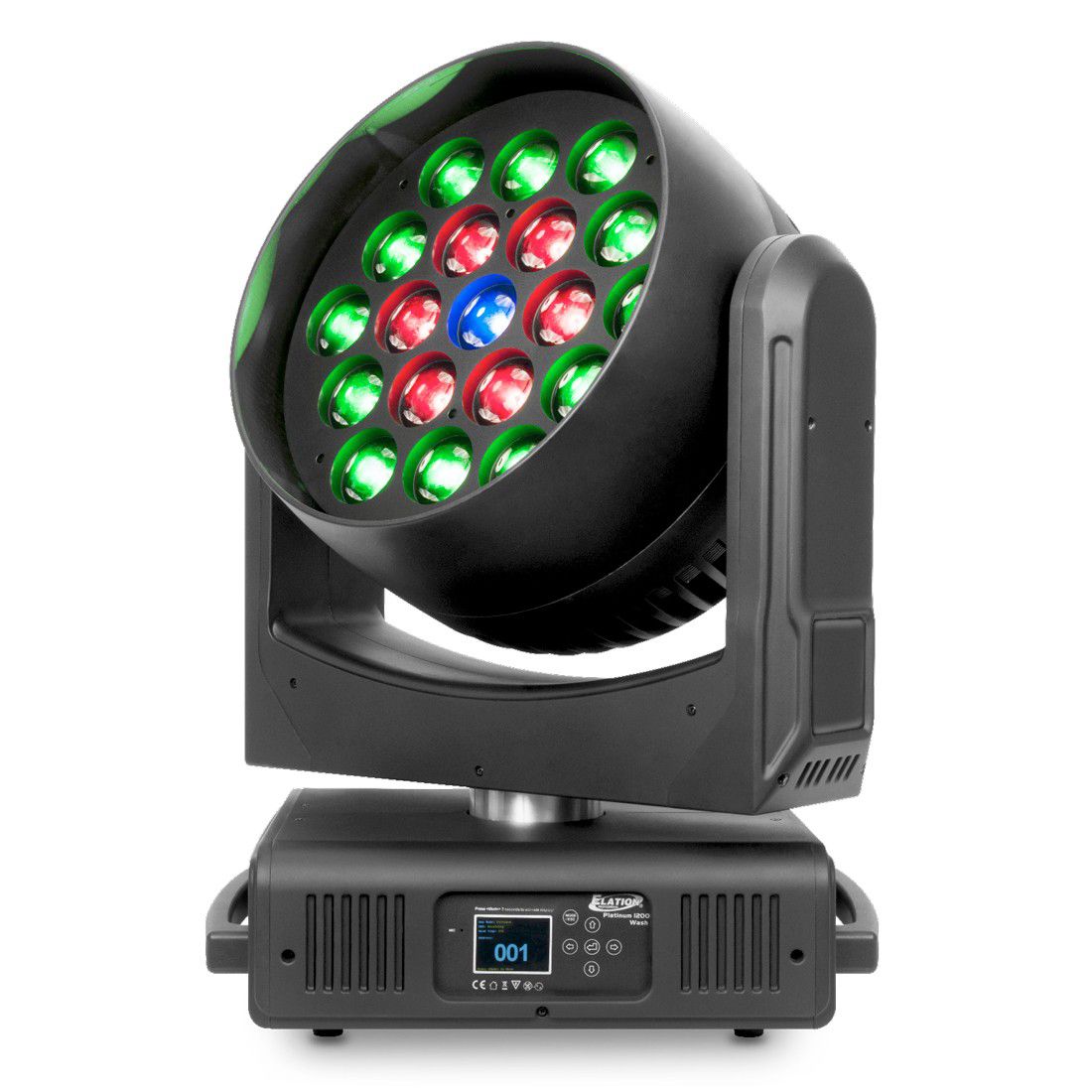

The Platinum 1200 Wash™ is an extremely bright LED color wash moving head luminaire with (19) 60W Osram™ multi-chip RGBW LEDs, which produces color washes on par with 1500W discharge fixtures. Features include 8° to 77° motorized zoom, advanced cooling and movement control, 8/16-bit color mixing, full pixel and pixel ring control, adjustable linear color temperature (2,700K - 8,000K), electronic strobe, pulse, and selectable dimming curve effects, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, powerCON 32A power in, 5pin XLR and RJ45 etherCON in/out connections, (6) button control full color 180° reversible menu display, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

High Power Moving Head Wash Luminaire
19x 60W Osram™ RGBW LEDs
Pixel or Pixel Ring Controlled LEDs
8° - 77° Wide Zoom Range
Pan/Tilt Lock
Advanced Cooling Control Systems
Adjustable Refresh Frequency and Gamma
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film

SOURCE

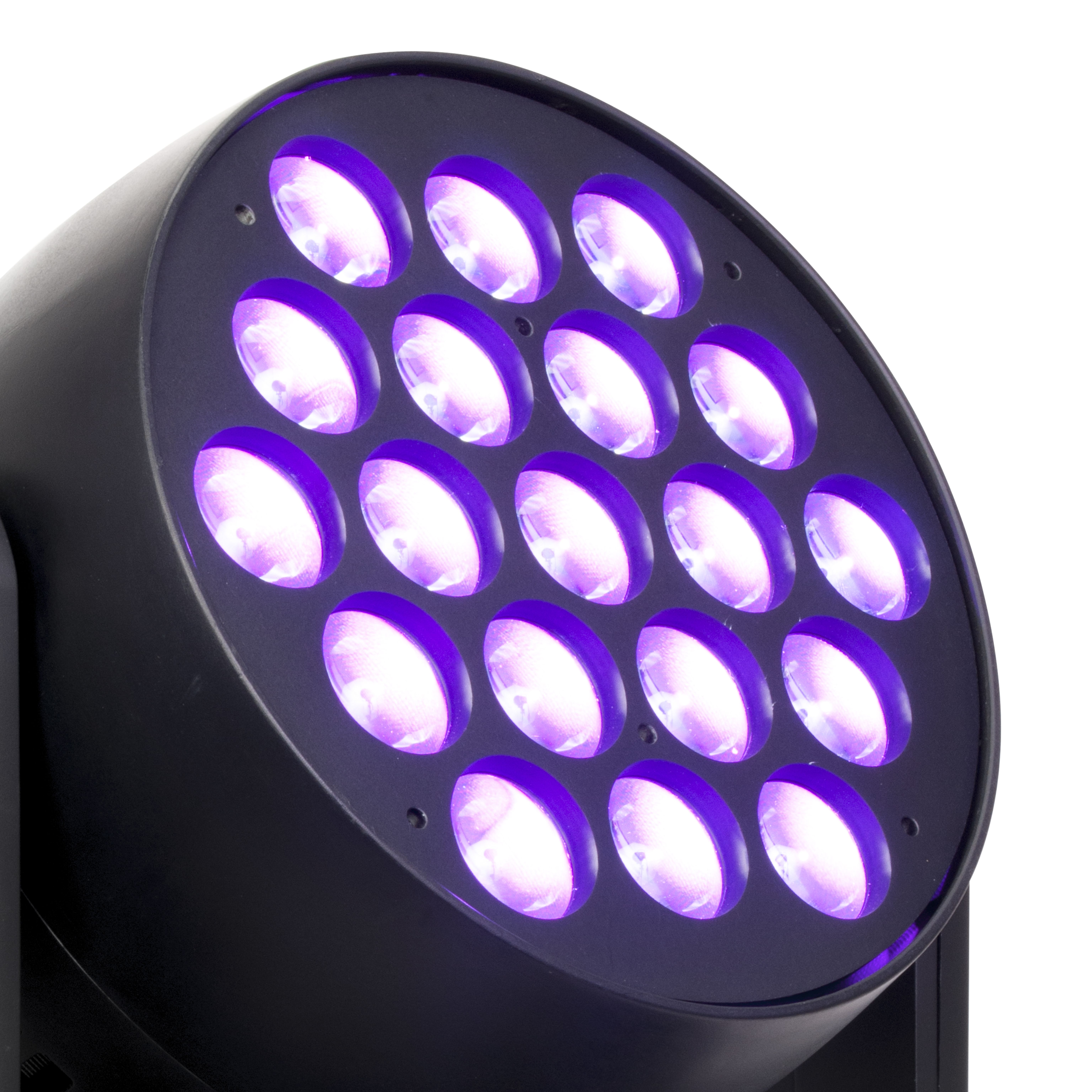

19x 60W Osram™ Multi-Chip LEDs
50,000 Hour Average Lamp Life*

PHOTOMETRIC DATA

41,730 LUX 3,877 FC @ 16.4’ (5m) (Min. Zoom)
3,637 LUX 338 FC @ 16.4’ (5m) (Max. Zoom)

EFFECTS

Pixel or Pixel Ring Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves

COLOR

RGBW Multi-Chip LEDs
Variable Color Temperature (2,700K – 8,000K)

CONTROL / CONNECTIONS

3 DMX Channel Modes (17 / 35 / 93)
DMX, Art-NET, sACN and Kling-NET Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 - 25,000Hz)
Adjustable Gamma (2.0, 2.2, 2.4, 2.8)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
Locking 5pin XLR DMX In/Out
Locking RJ45 Ethernet In/Out (Art-NET, sACN and Kling-NET)
Locking Power 32A In

SIZE / WEIGHT

Length: 21.0” (533mm)
Width: 16.1” (410mm)
Vertical Height: 23.2” (588mm)
Weight: 86.0 lbs. (39 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
2000W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

OPTIONAL ACCESSORIES

1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome
1322000054 E Loader III

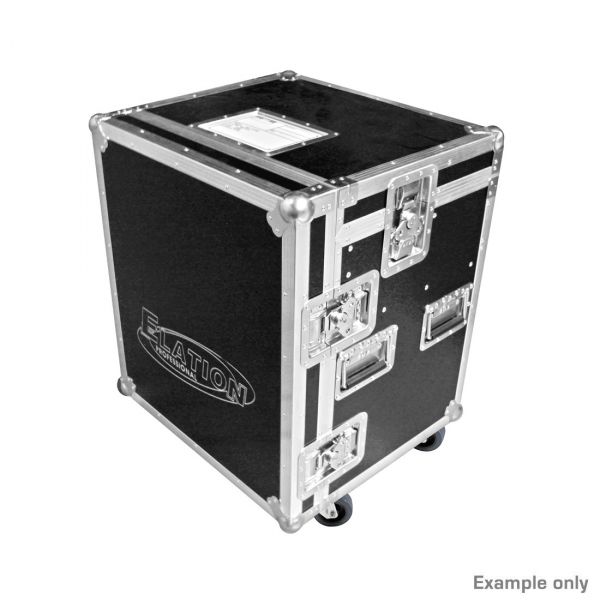

1521000318 PRO Case 1x Platinum 1200 Wash

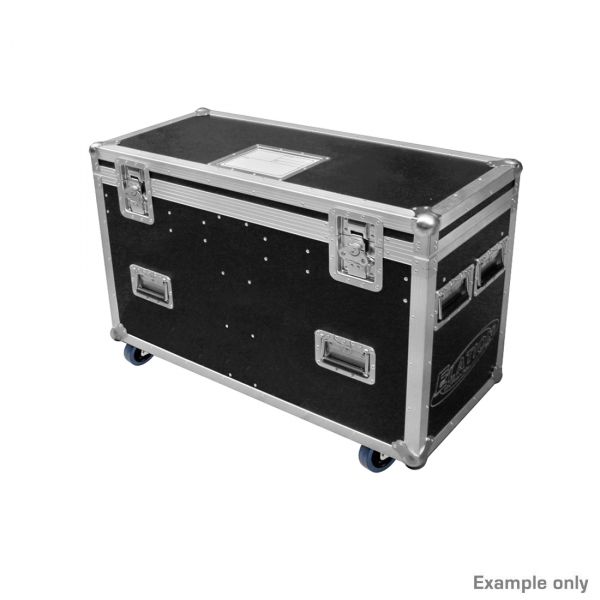

1521000319 PRO Case 2x Platinum 1200 Wash

FIRMWARE UPDATES

Current firmware can be found here (login required)



*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.



Specifications and documentation subject to change without notice

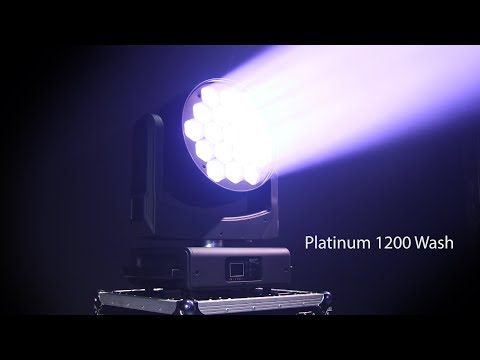

Videos
