Pixel Driver 4000

Pixel Driver 4000™ is designed specifically for the Elation Pixel Bar 30IP, 60IP, and 120IP series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net, and 680 max pixels via Art-Net and sACN (streaming ACN) protocols.

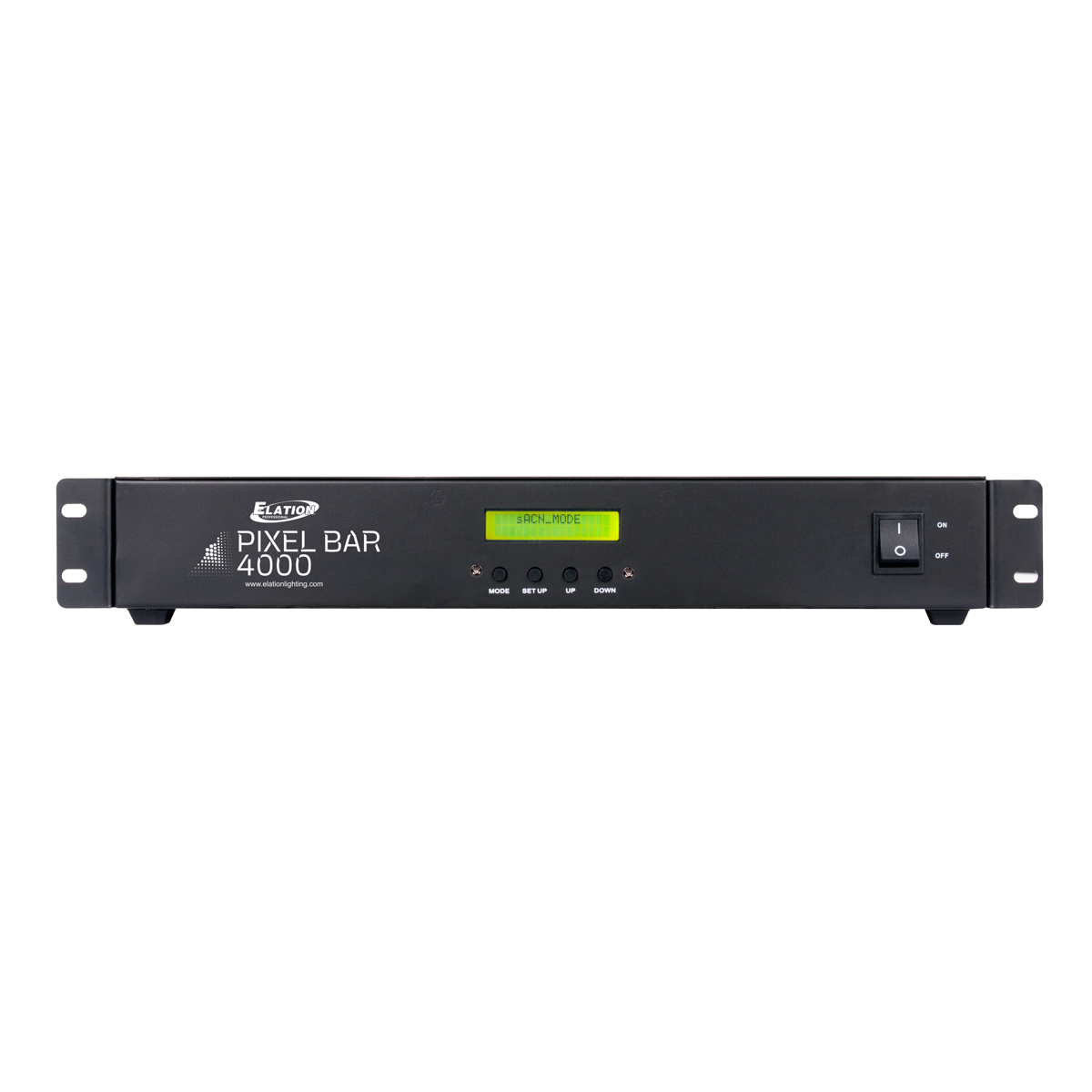

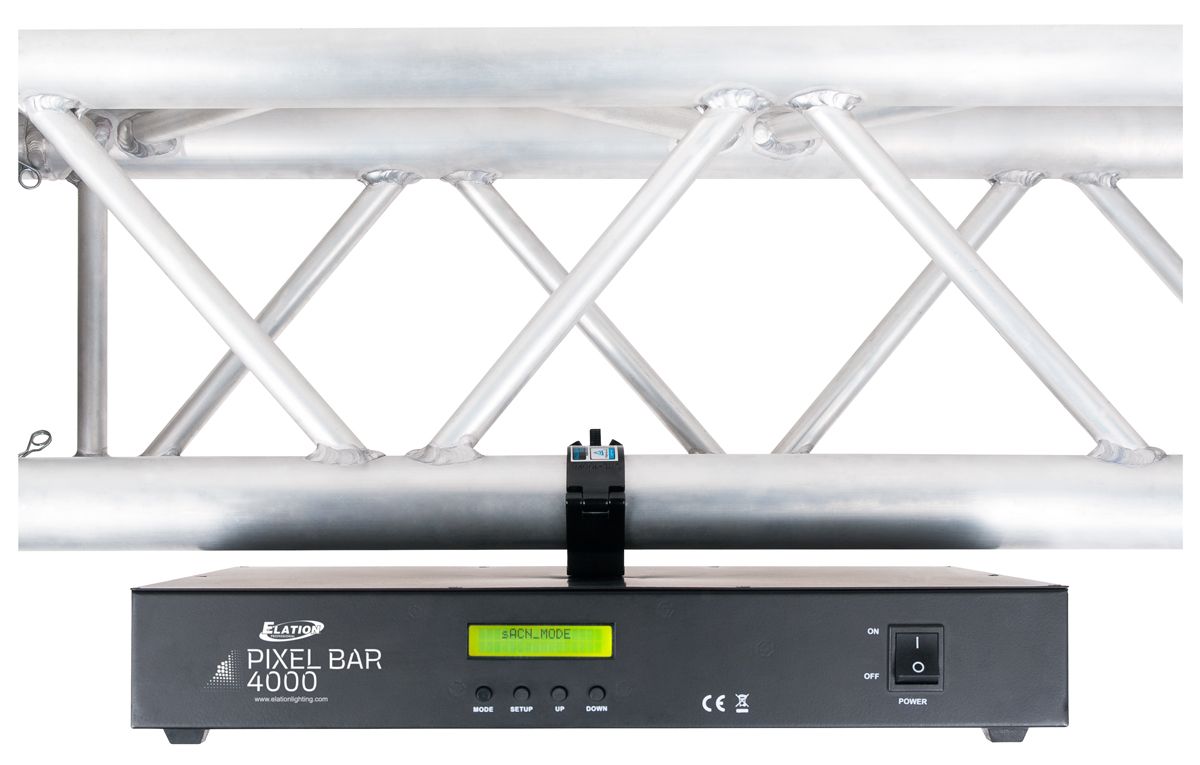

The Pixel Driver 4000 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, locking RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP rated 4pin combo cables (sold separately) that supply power and data to each pixel bar, (available in lengths from 0.6 to 15 meters). The Pixel Driver 4000 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).

Technical Data

FEATURES

Power/Data Supply for Elation Pixel Bar 30IP, 60IP, and 120IP
Simple On-Board Manual Dimming and Strobe Control
Kling-Net, Art-Net, and sACN Protocol Support
4,080 Max Pixel Mapping via Kling-Net
680 Max Pixel Mapping via Art-Net and sACN
19-inch (483mm) Rack Mount Kit Included Truss Mounting Options (clamp not included)
Multi Unit Linking via Locking RJ45 Ethernet (4) Outputs

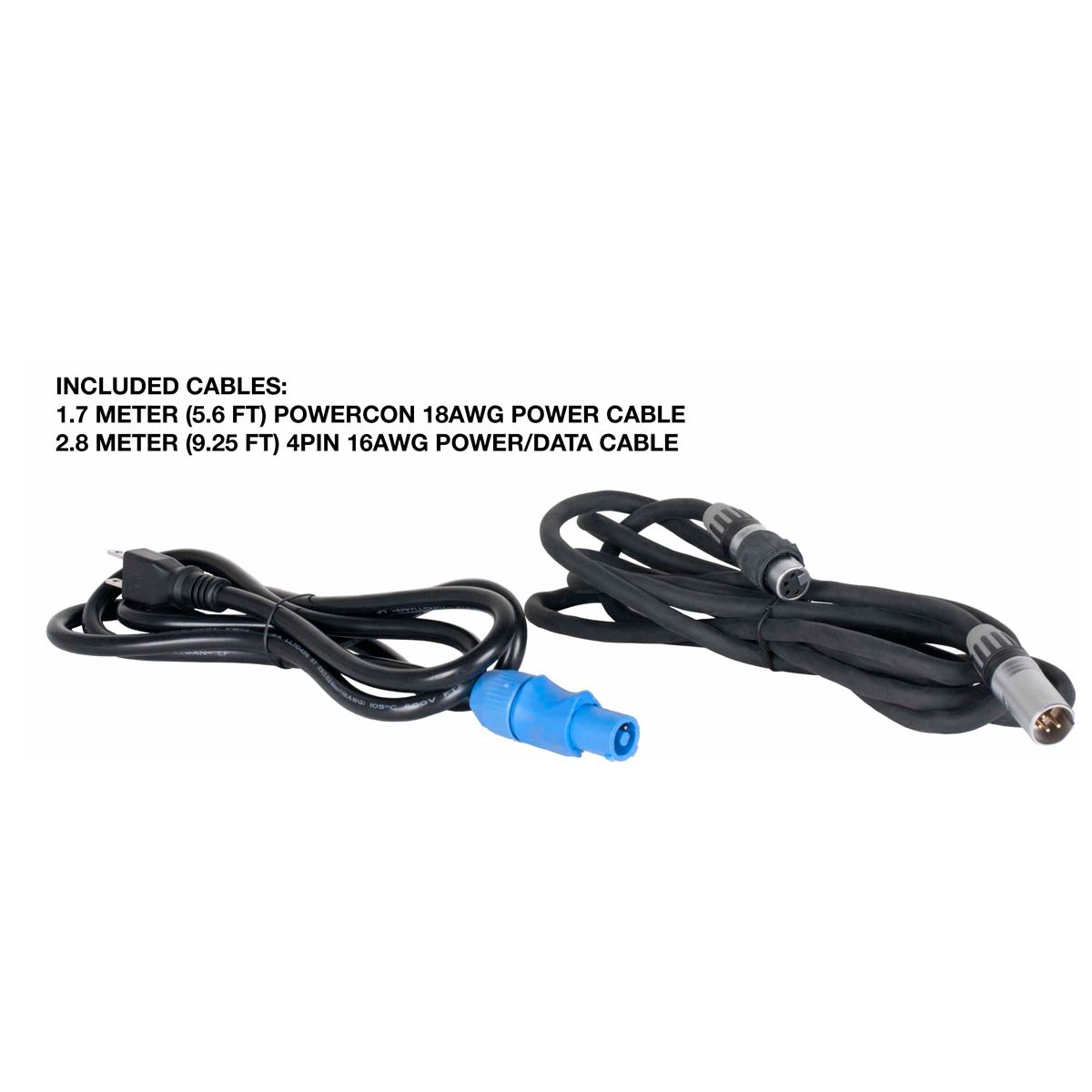

5.65ft (1.7m) Power Cable Included
9.25ft (2.8m) 16AWG Power/Data Cable Included
Proprietary IP Rated Power/Data Combo Cables*
*Available in 0.6 to 15 Meter Lengths

CONTROL / CONNECTIONS

Manual RGB Mode
Internal Programs
Art-NET | sACN | Kling-NET

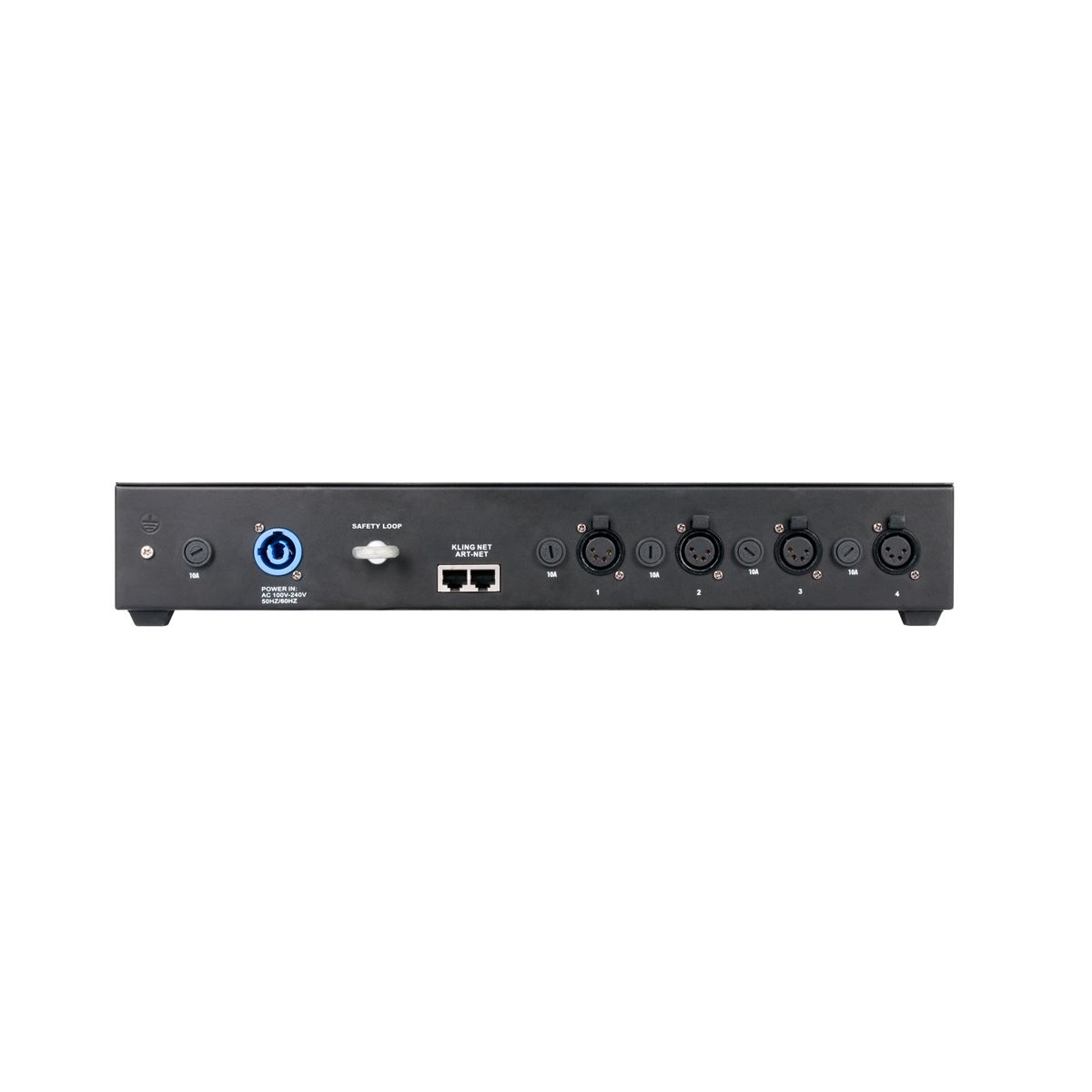

2 locking RJ45 Ethernet Ports
4 4pin Power/Data Outputs

SIZE / WEIGHT

Length: 16.7” (425mm)
Width: 11.9” (301mm)
Height: 2.9” (74mm)
Weight: 9.5 lbs. (4.3kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60HZ
800W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)

Specifications and documentation subject to change without notice
