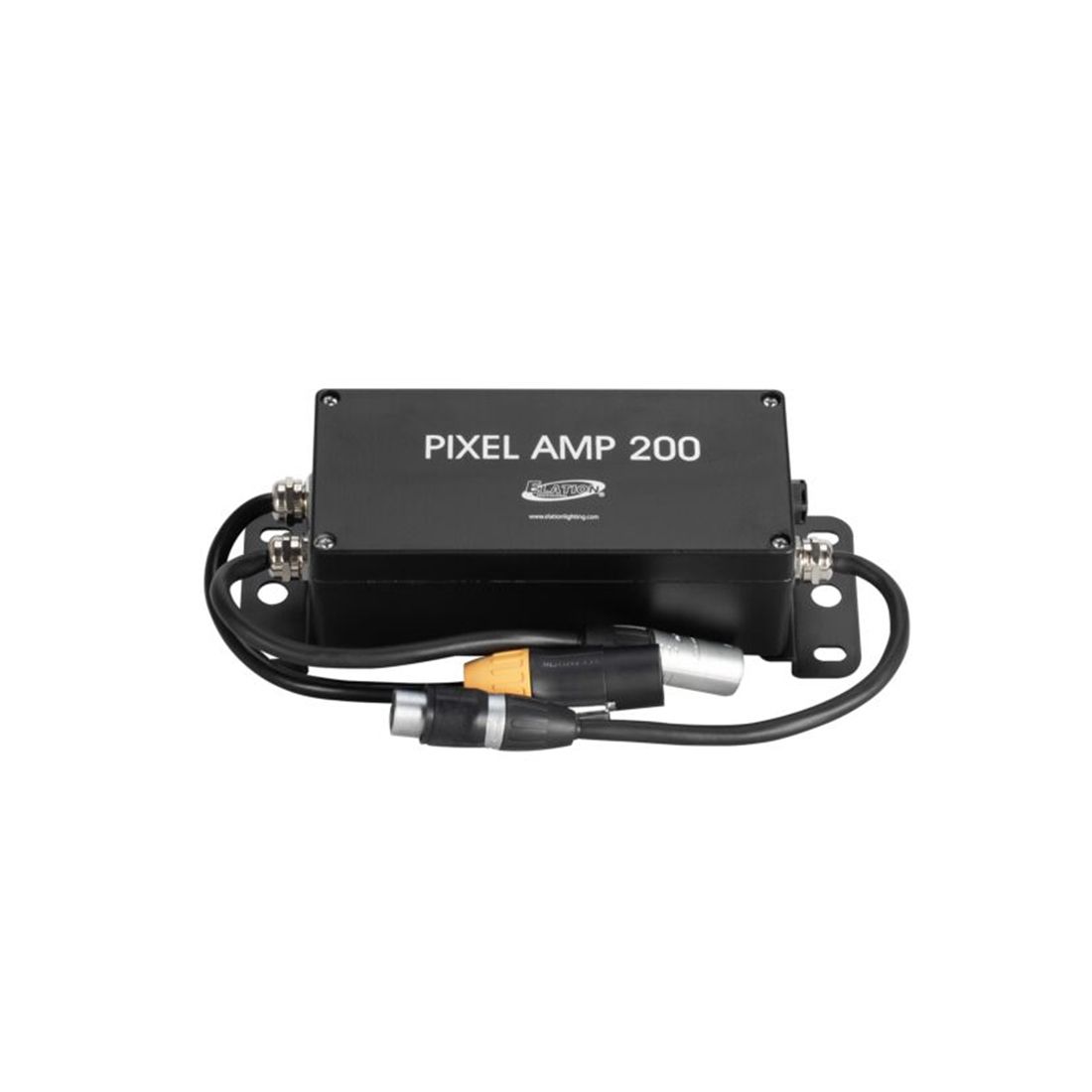

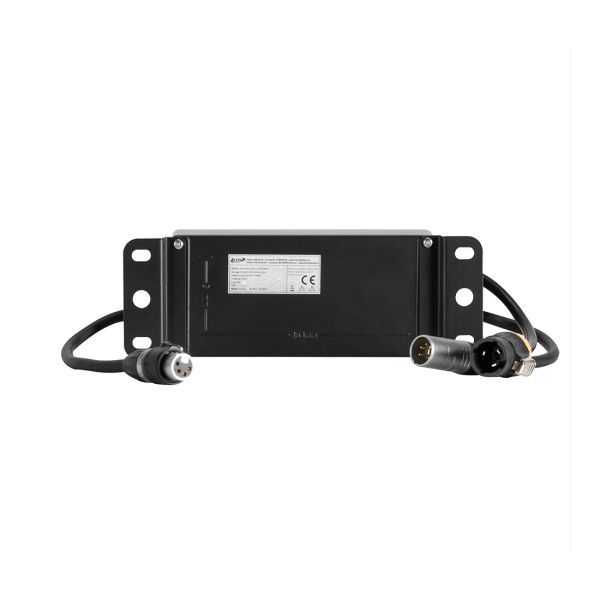

Pixel Amp 200

The Pixel Amp 200 is a 200W power and signal amplifier for the Pixel Wash 40IP. This amplifier is designed to work in conjunction with the Elation Pixel Driver 170IP, Pixel Driver 1000IP or the Pixel Driver 4000V2. Each Pixel Amp 200 can power up to 8 Pixel Wash 40IP’s in standard mode or 5 Pixel Wash 40IP’s in HiPower mode. Up to 4 Pixel Amp 200’s can be used in line for each driver output giving you the ability to control a total of 40 Pixel Wash 40IP’s in standard mode or 25 Pixel Wash 40IP’s in HiPower mode for each driver output. The unit comes equipped with Power In, Data In/Out pigtail connections, and is IP65 rated, which protects the unit from the ingress of dust, as well as low pressure water jets sprayed from any direction.

Technical Data

FEATURES

200W Power Amplifier for Pixel Wash 40IP
For use with Pixel Driver 170IP, Pixel Driver-1000IP, and Pixel Driver-4000 V2
Can power/drive up to 8 Pixel Wash 40IP’s in standard mode or 5 Pixel Wash 40IP’s in HiPower mode

CONTROL / CONNECTIONS

Art-NET | sACN | Kling-NET Protocol Support
1 4-pin Power Input
1 4-pin Data Input
1 4-pin Data Output

SIZE / WEIGHT

Length: 78mm (3.1”)
Width: 233mm (9.2”)
Height: 74mm (2.9”)
Weight: 1.3kg (2.9lbs)

ELECTRICAL / THERMAL

Power Input: 100-240V, 50/60Hz
Power Output: DC24V, 8.3A Max
200W Max Power Consumption

Specifications and documentation subject to change without notice
