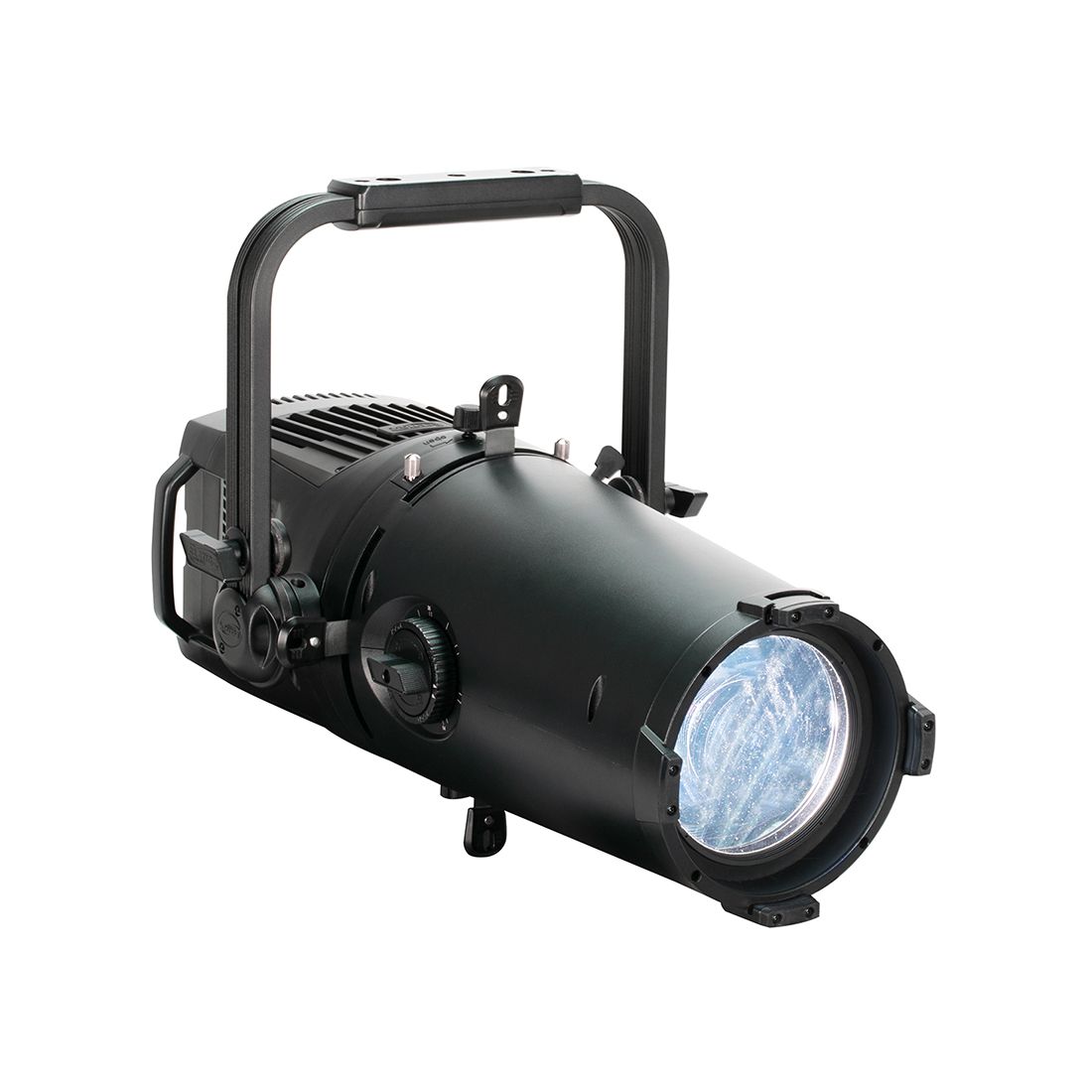

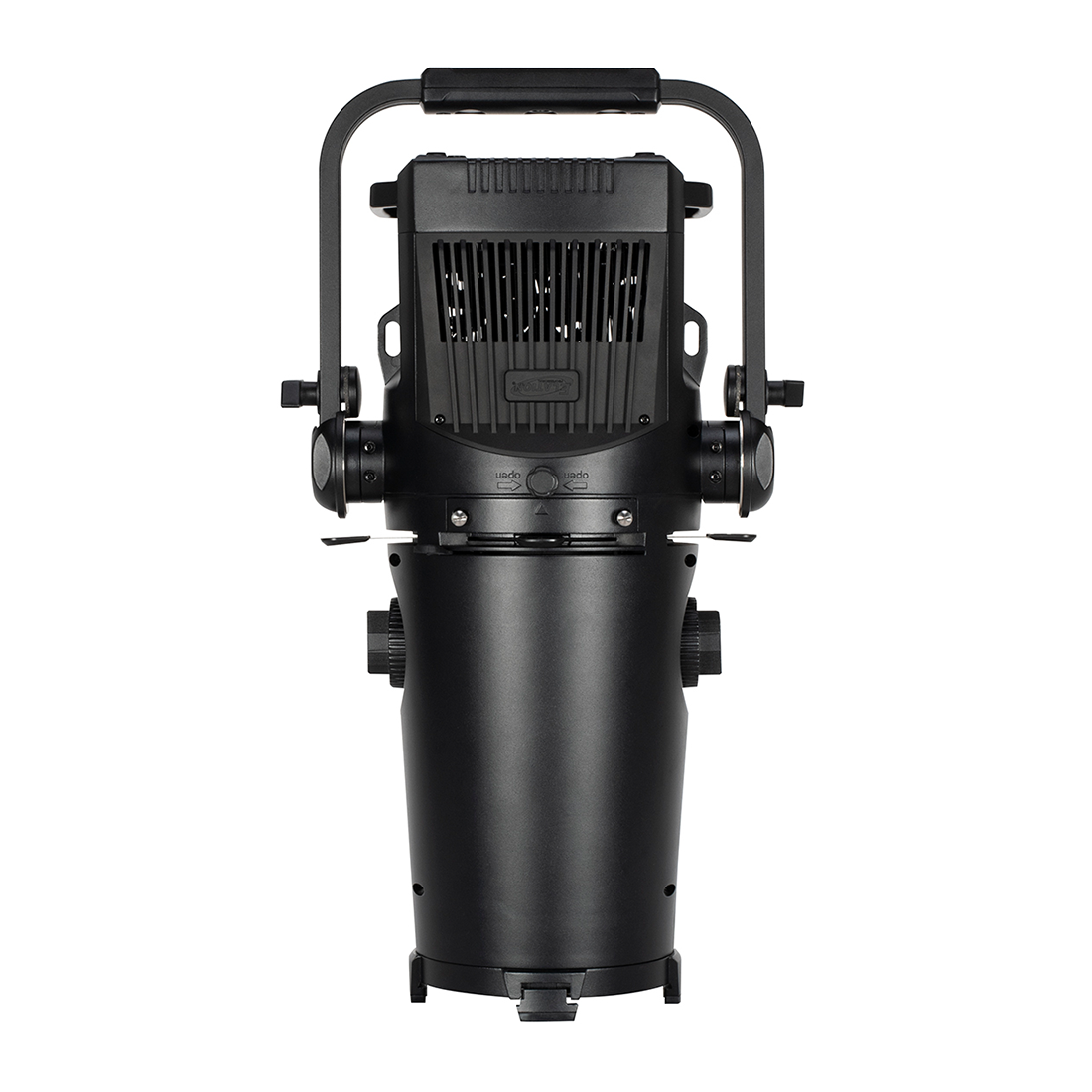

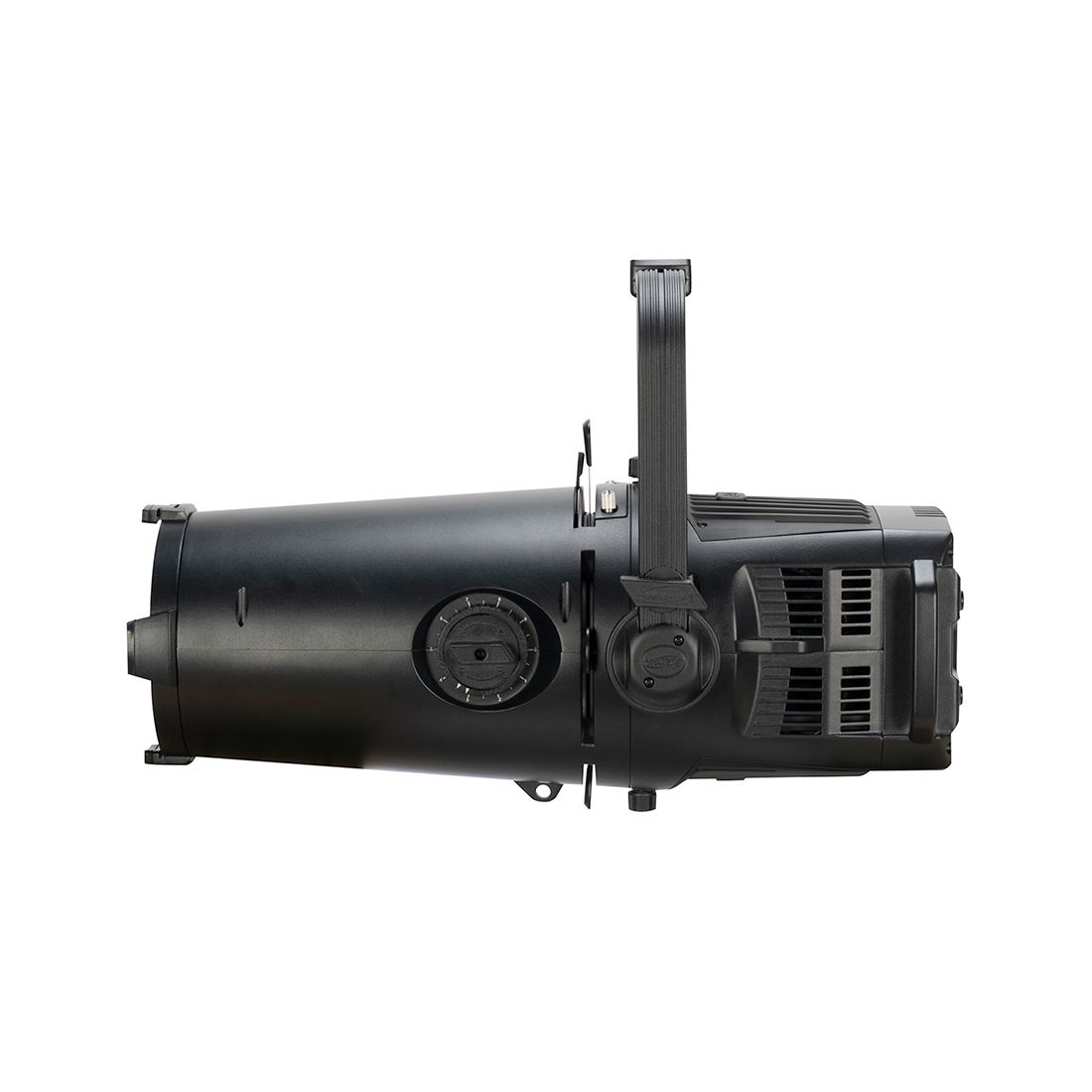

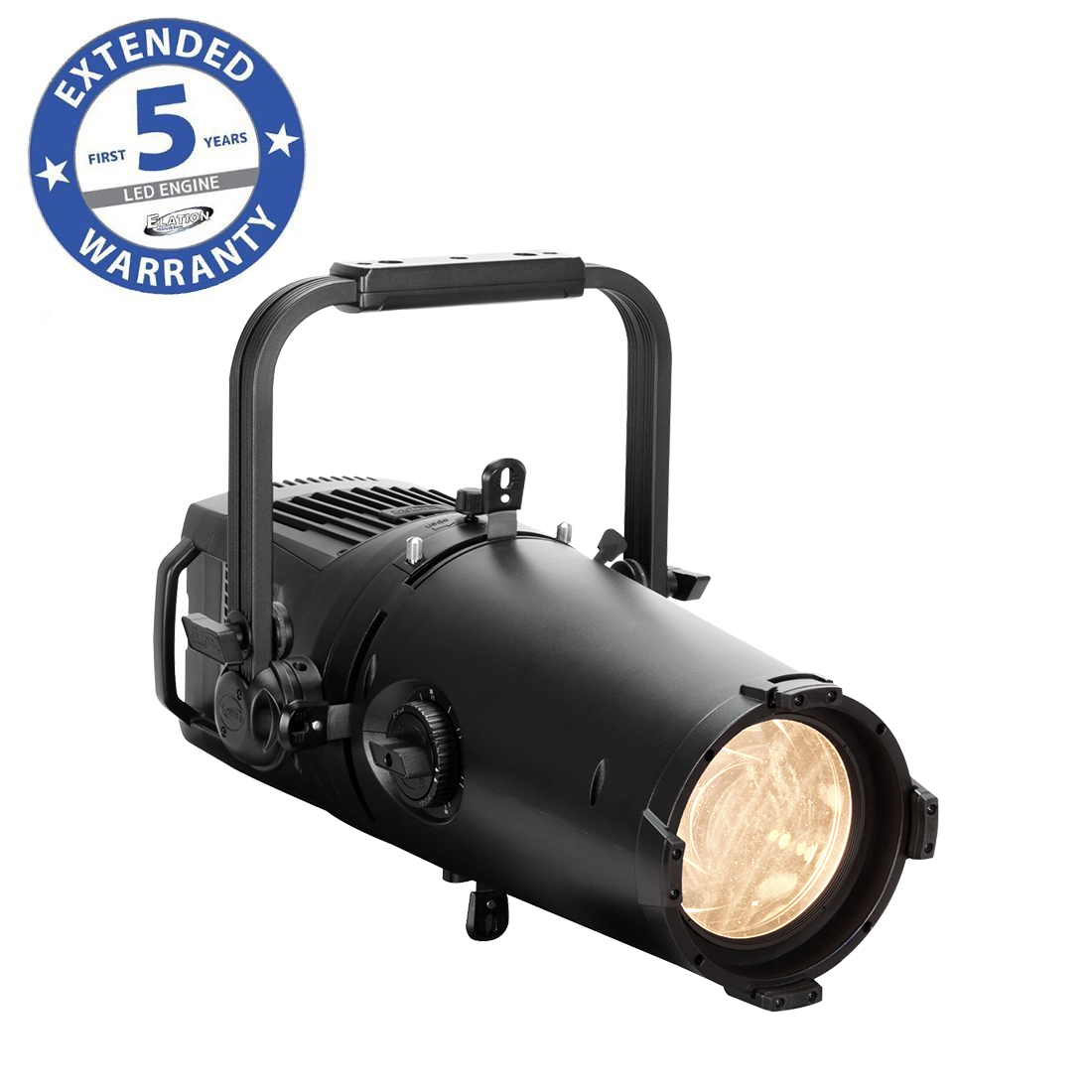

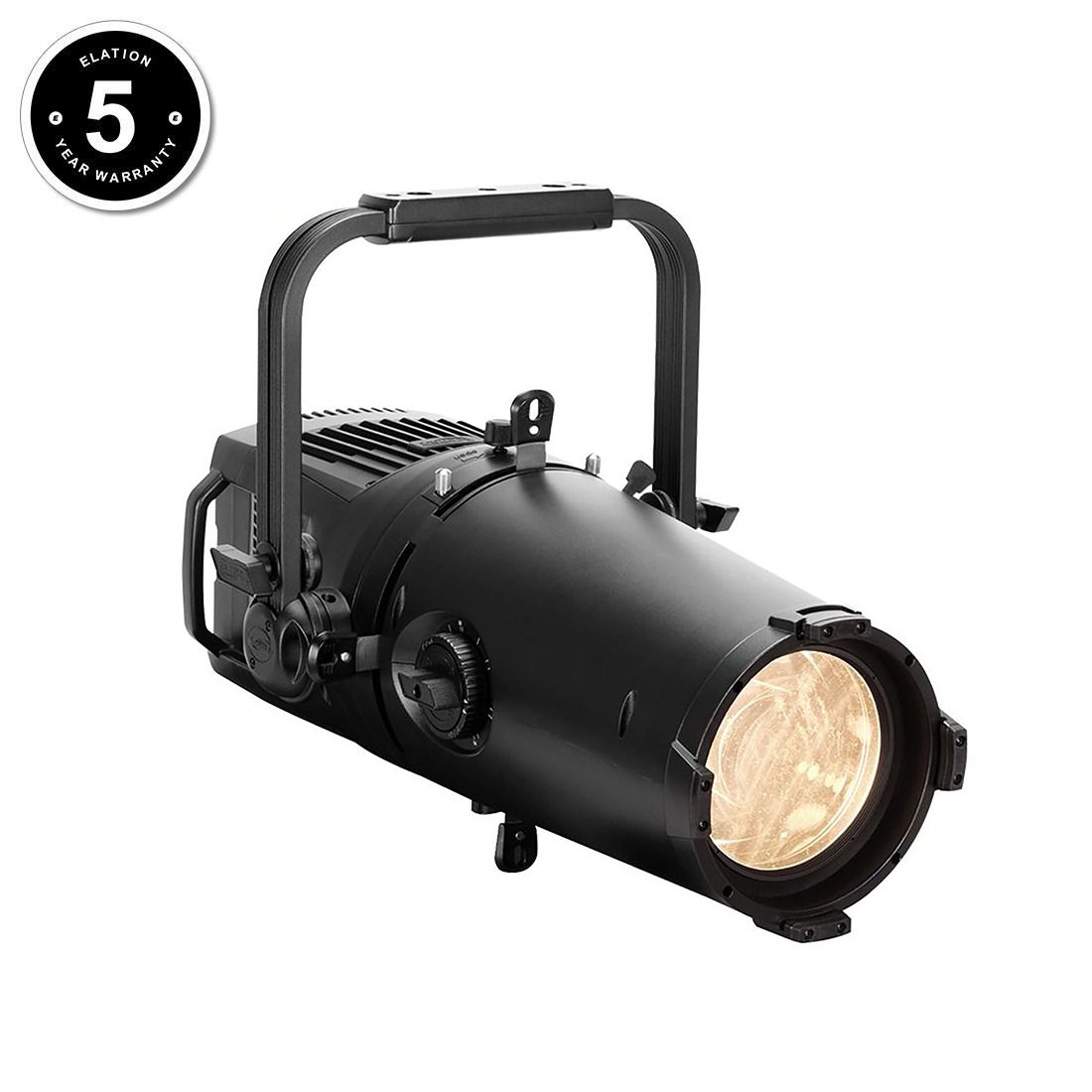

The KL PROFILE FC™ is a manual LED framing fixture designed for a wide array of precision lighting applications. With an integrated manual zoom range of 6 to 50 degrees, the fixture requires no additional lens tubes, reducing cost, complexity and providing excellent flexibility for any theater, performance venue, or show. The integrated manual Iris allows further beam control.

The 93.5 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources with a power of 305W. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment provides the designer with immediate access to the impressive LED color array. Exceptionally quiet, the fixture offers enhanced fan controls down to Elation’s Mute Mode which disables the internal cooling fan.

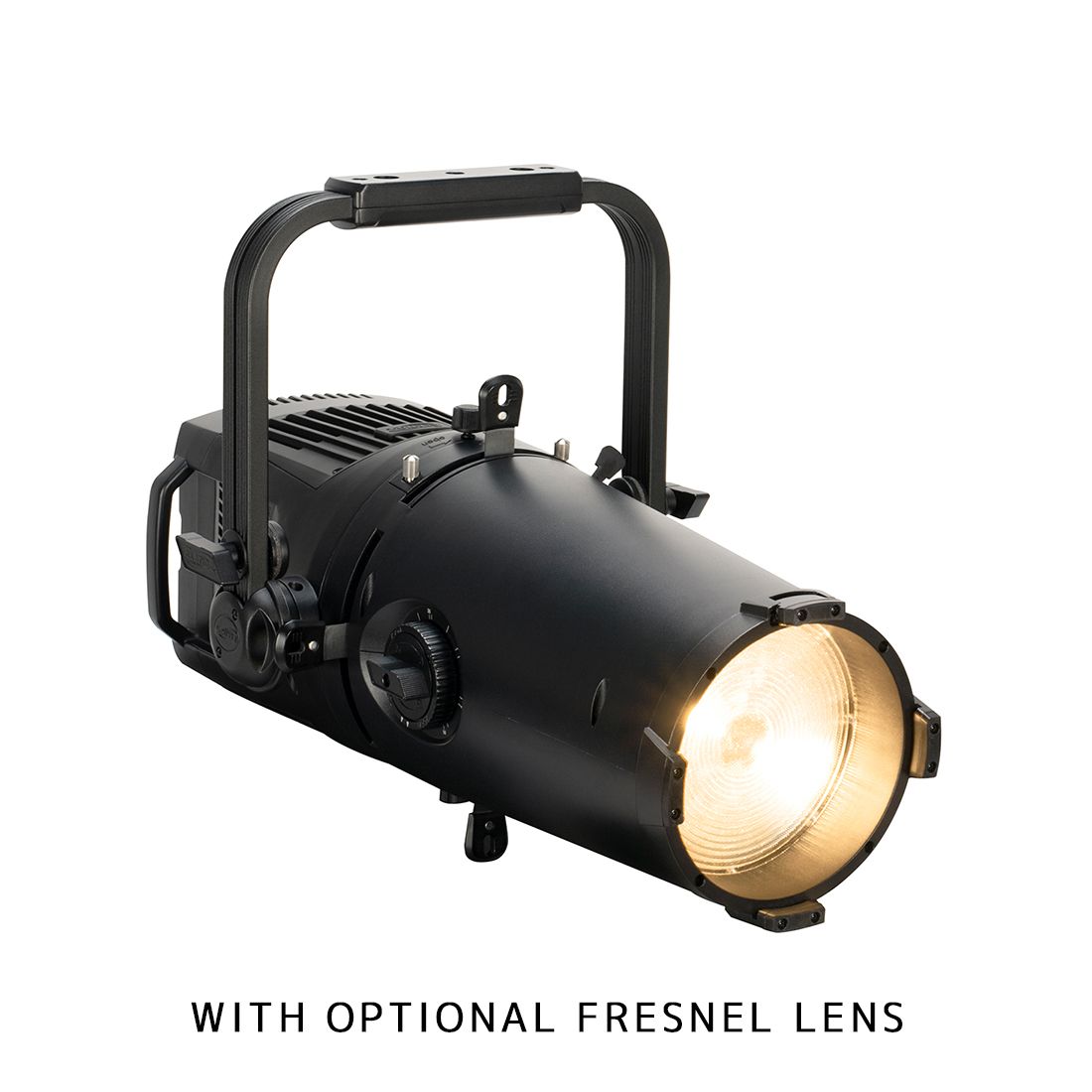

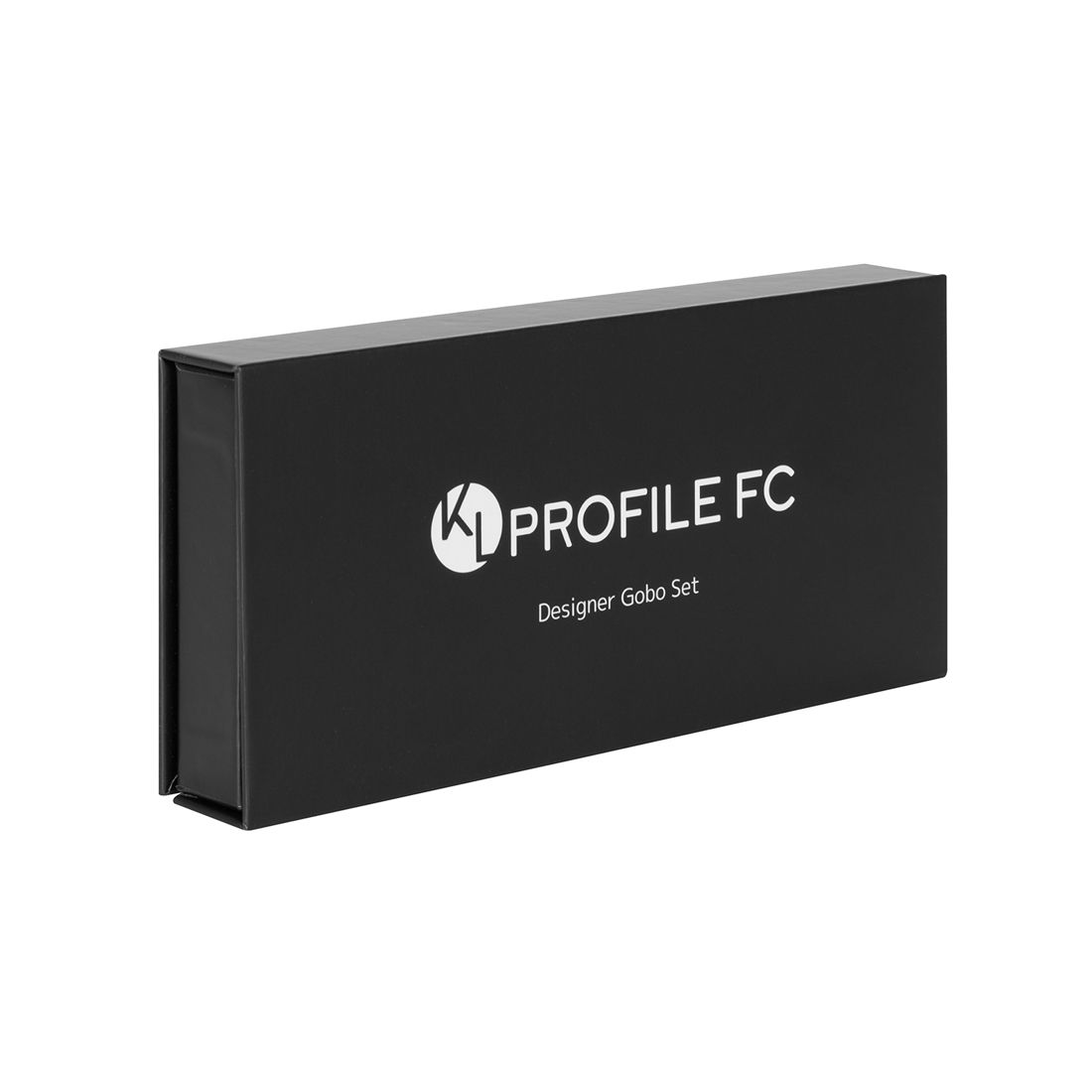

For ease of use, the fixture contains a 16-bit rotating/indexing gobo slot and is shipped with the KL Profile Designer Gobo Set, containing 10 high-resolution glass gobos. The gobo slot is easily accessible from the top of the fixture. The optional Fresnel Lens Conversion Kit allows to utilize the fixture as a framing wash fixture while providing a uniform appearance and fixture spacing.
The KL PROFILE FC is designed for any application where an ellipsoidal or wash fixture with an outstanding and impactful color range and quality and a flexible zoom range is required.
The fixtures enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted color shifting and aberrations in all zoom, focus, or framing positions.

Technical Data


Compact Zooming Ellipsoidal
Extended Color RGBMA LED Engine, 93.5 CRI
Exceeding 10.000 lumens
Integrated Rotating Gobo Slot
Full Blackout Manual Framing System
Wide Zoom Range from 6° to 50°
7.5” Front Accessory Holder
Includes 7.5" Gel Frame

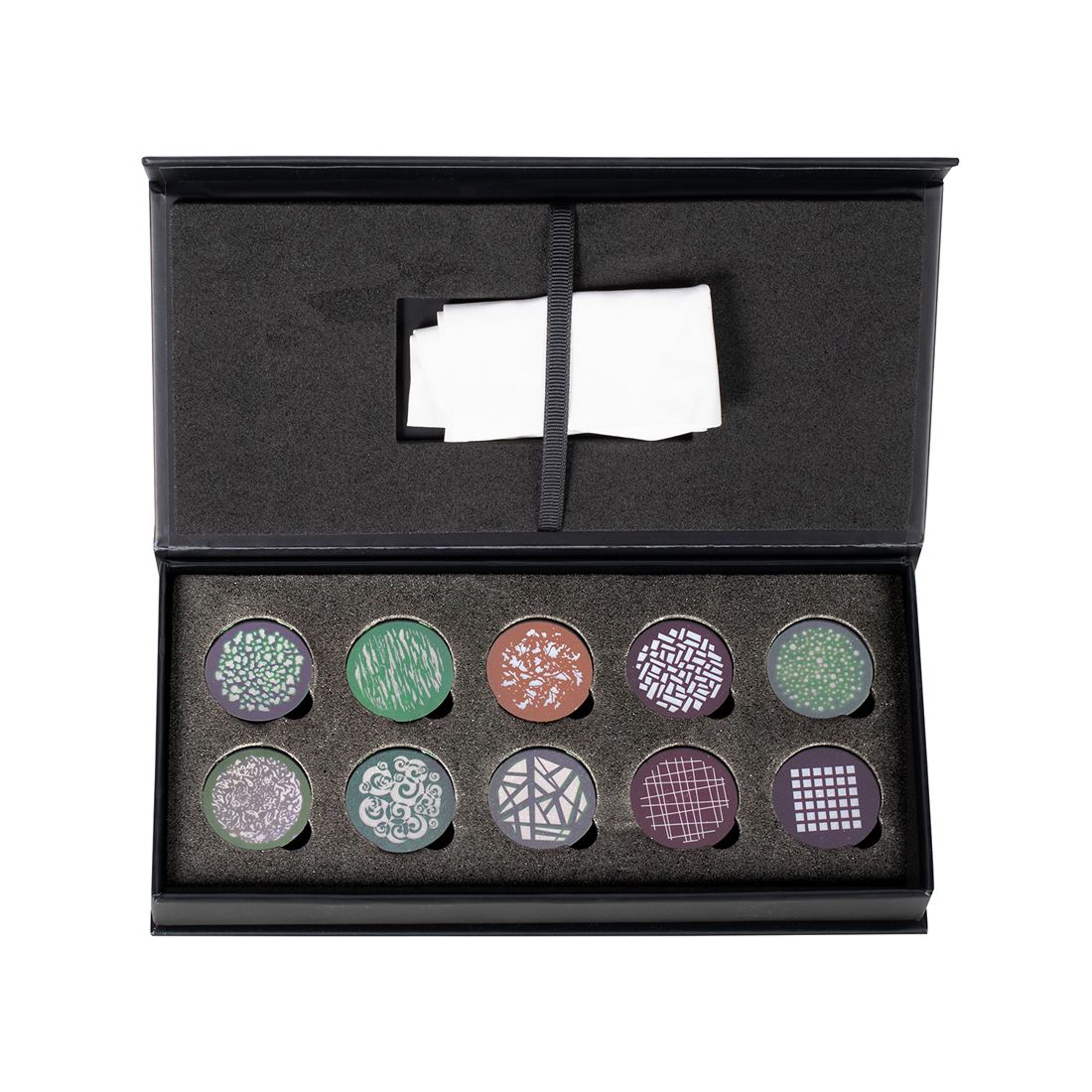

Designer Gobo set with 10 high resolution glass gobos
Optional Fresnel Wash Lens Conversion Kit


305W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


10,600 Total Lumen Output
CRI 93.5
Zoom Range 6° - 50°
Beam Angle 5.9° - 45.6°
Field Angle 6.6° - 50°


Manual Locking Zoom, Focus
4 Manual Rotating Full Blackout Framing Blades
Manual Barrel Rotation
Integrated Manual Iris
Variable 16-bit Dimming Curves


RGBMA Color Array
CMY and RGB Emulation Modes
Virtual Color Correction 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book


1x 16bit Rotating / Indexing Interchangeable Glass Gobo


8 DMX Channel Modes (1/5/12/21) CMY(10/17) RGB(10/17)
DMX Adjustable LED Frequency
DMX, RDM Protocol Support

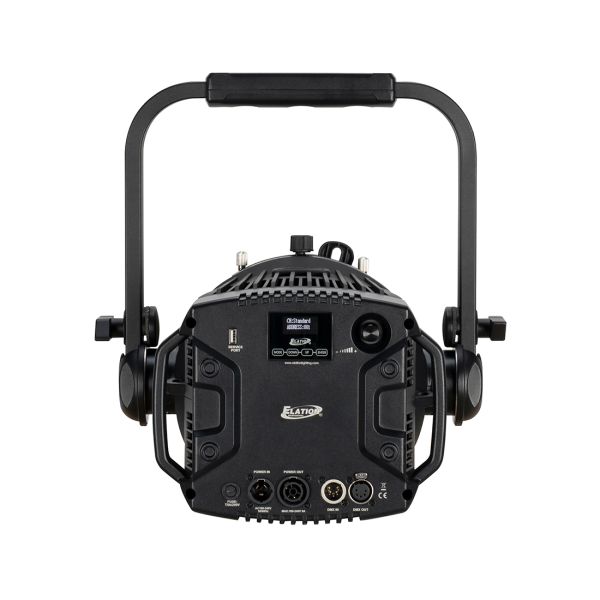

4 Button Touch Control Panel
Encoder Control for Standalone Operation
Full Color 180° Reversible LCD Menu Display
5pin DMX In/Out
IP65 Locking Power In/Out
Elation’s E-FLY™ Internal Wireless DMX Transceiv


Length: 638mm (25.11")
Width: 390mm (15.35")
Height (Fixture Body): 279mm (10.98”)
Height (Yoke 90°): 466mm (18.35”)
Weight: 15.9kg / 32.2lbs
7.5” Front Accessory Slot


AC 100-240V - 50/60Hz
358W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 1124.1


Current firmware can be found here (login required)


Specifications and documentation subject to change without notice.


Specifications and documentation subject to change without notice


Gobo Wheel 1
Gobo 17
 Gobo 23
 Gobo 43
 Gobo 80
 Gobo 126
 Gobo 127
 Gobo 128

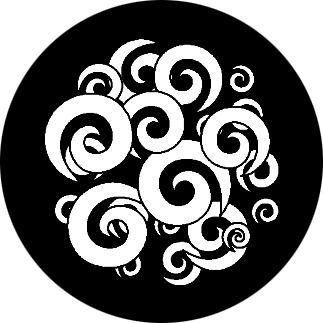

 Gobo 129

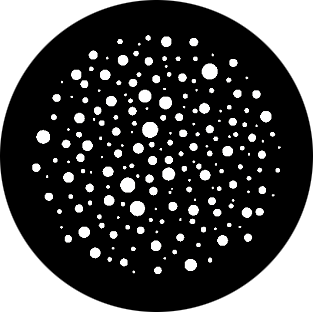

 Gobo 130

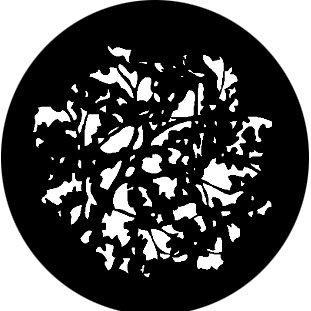

 Gobo 131
Endless Rotation
