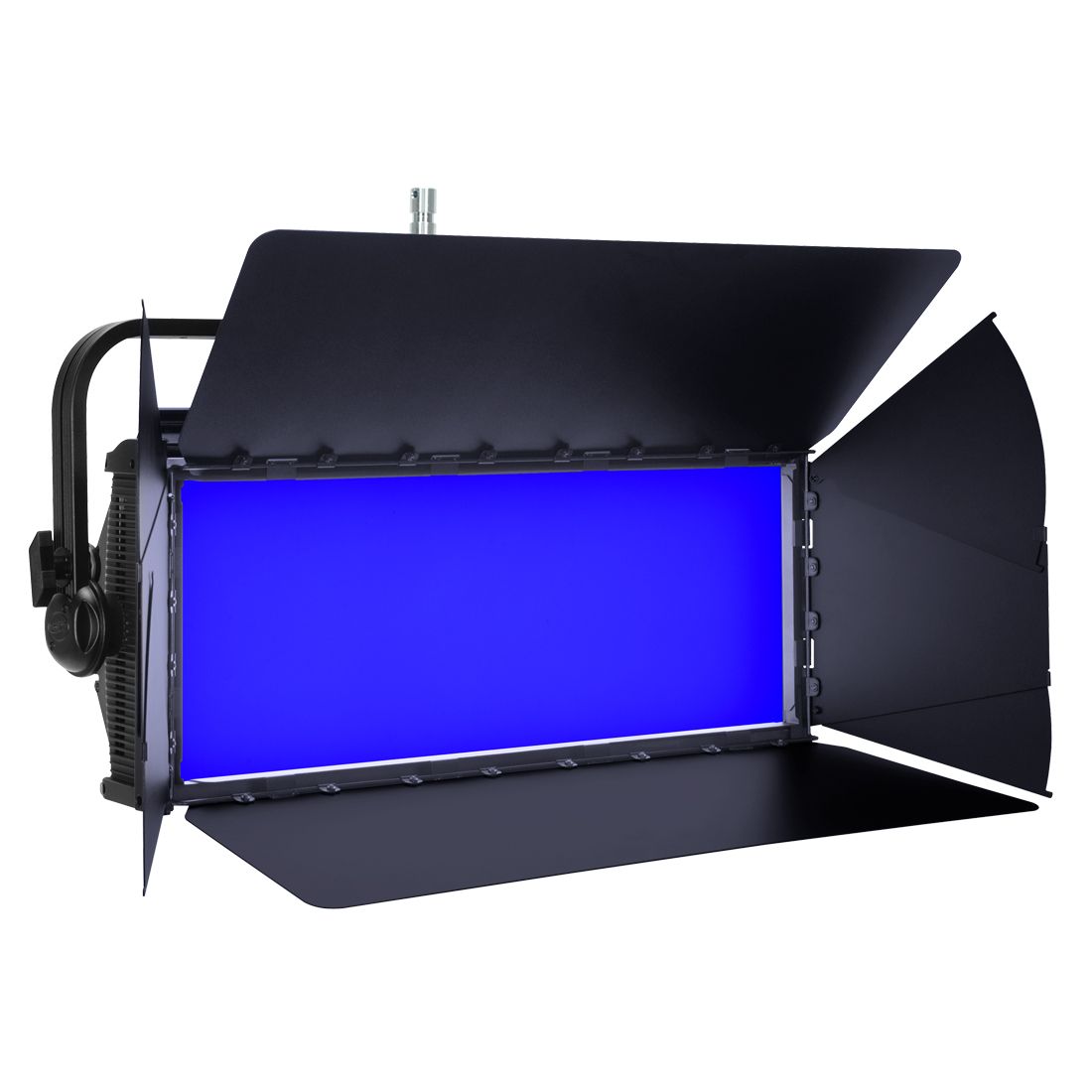

KL Panel XL

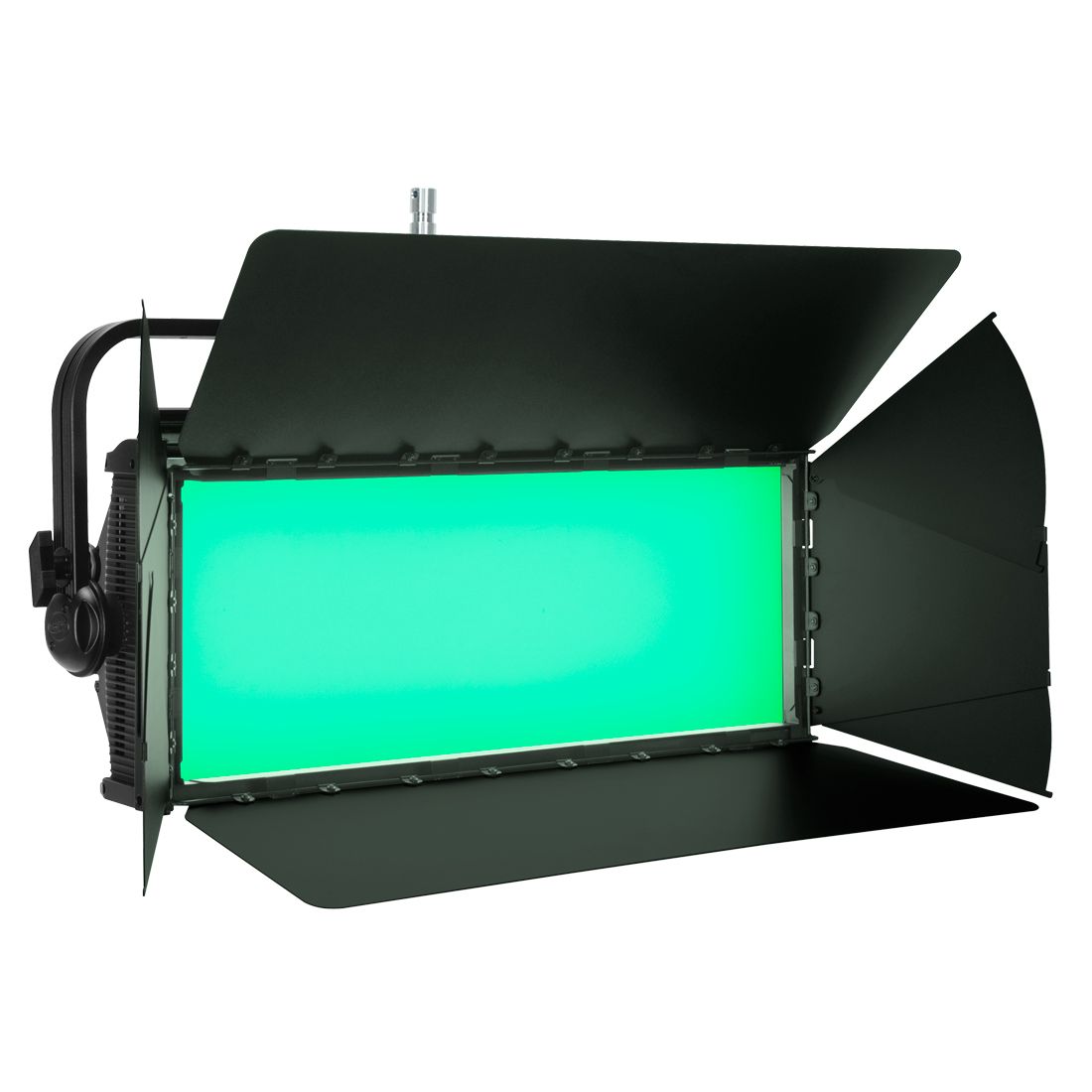

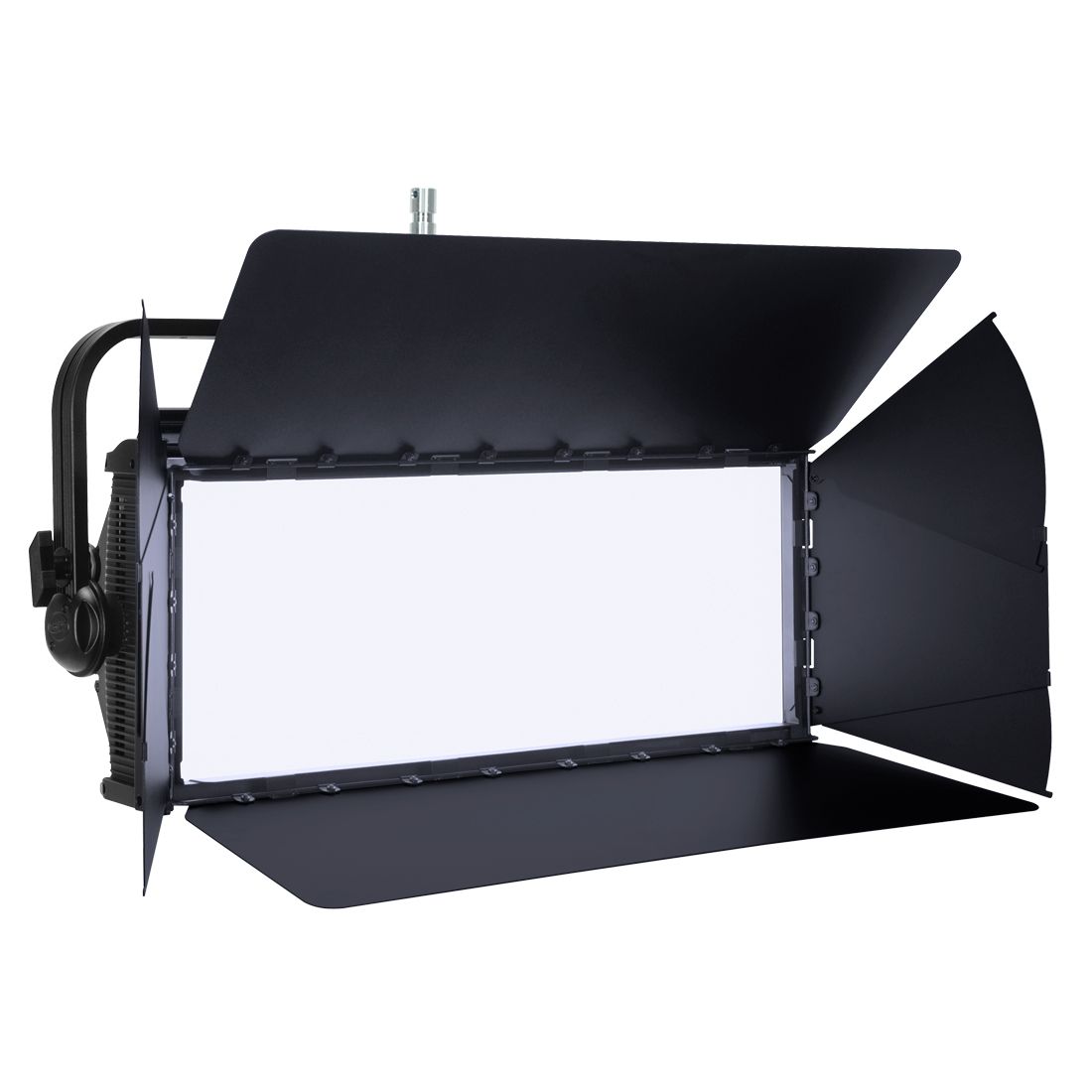

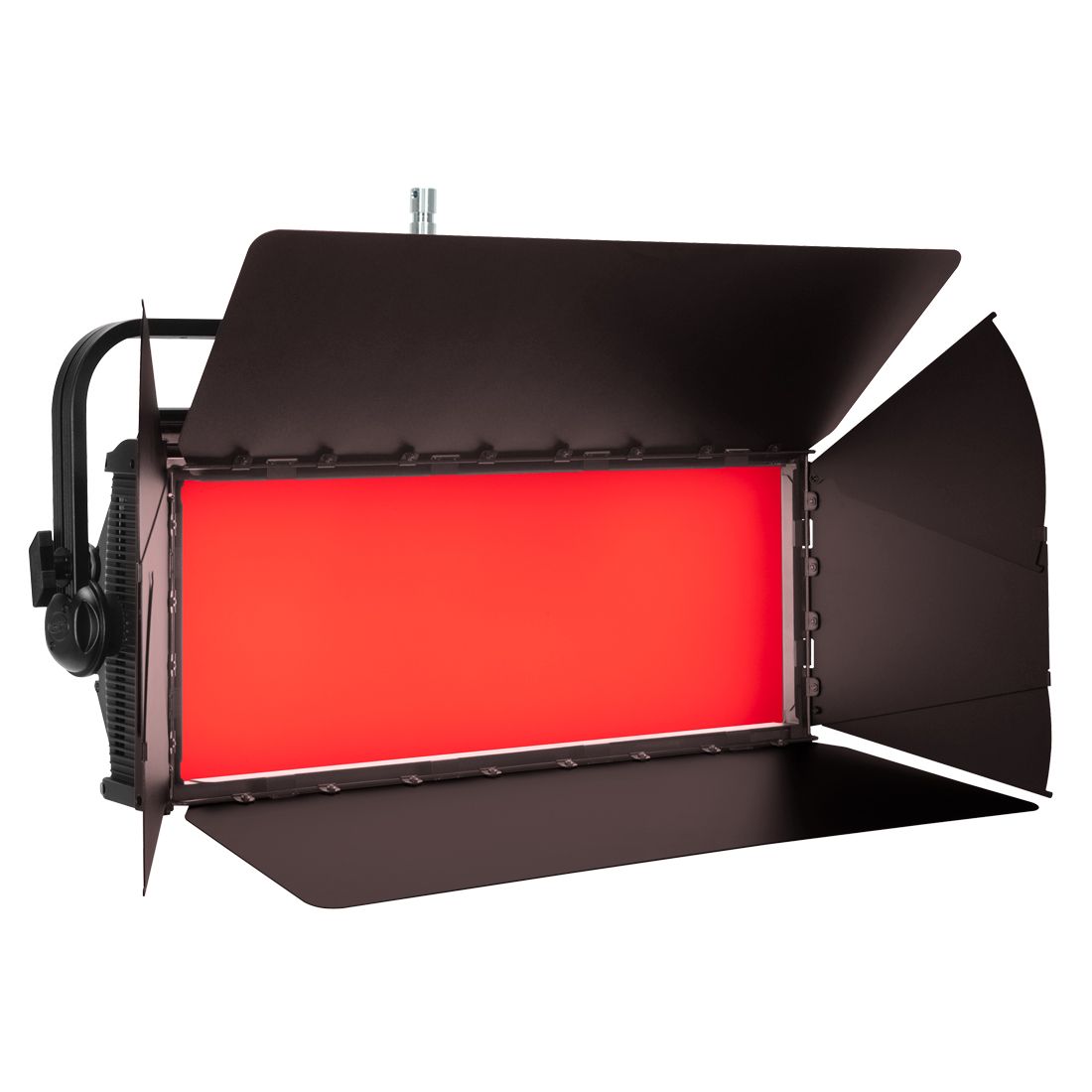

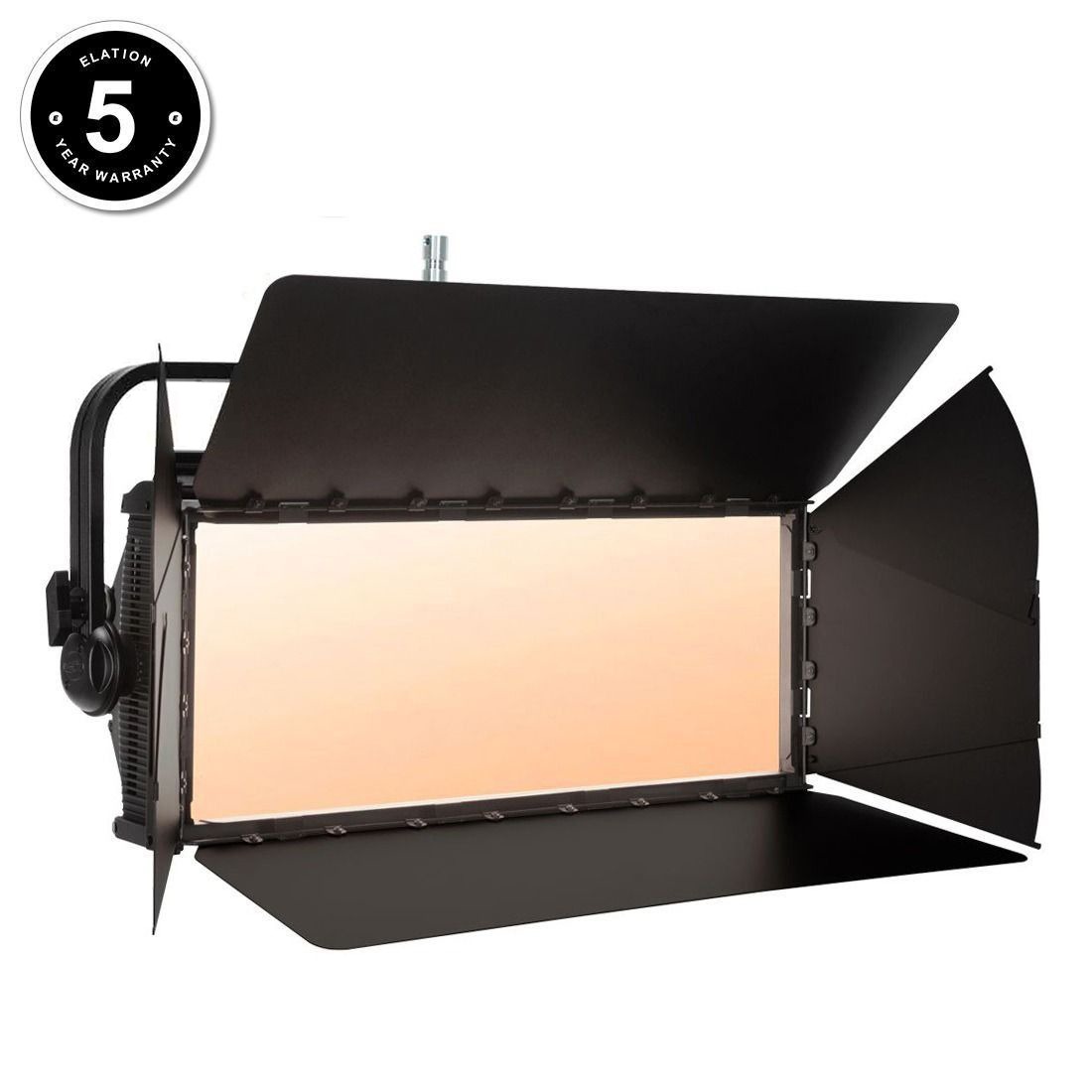

The KL PANEL XL™ is a full-color-spectrum LED soft light that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality. The KL PANEL XL incorporates a highly efficient 6-in-1 LED package that produces up to 44,000 field lumens at a 100° half-peak angle. The optional 4x2 Section control provides additional creative capabilities for color effects and visual impact.

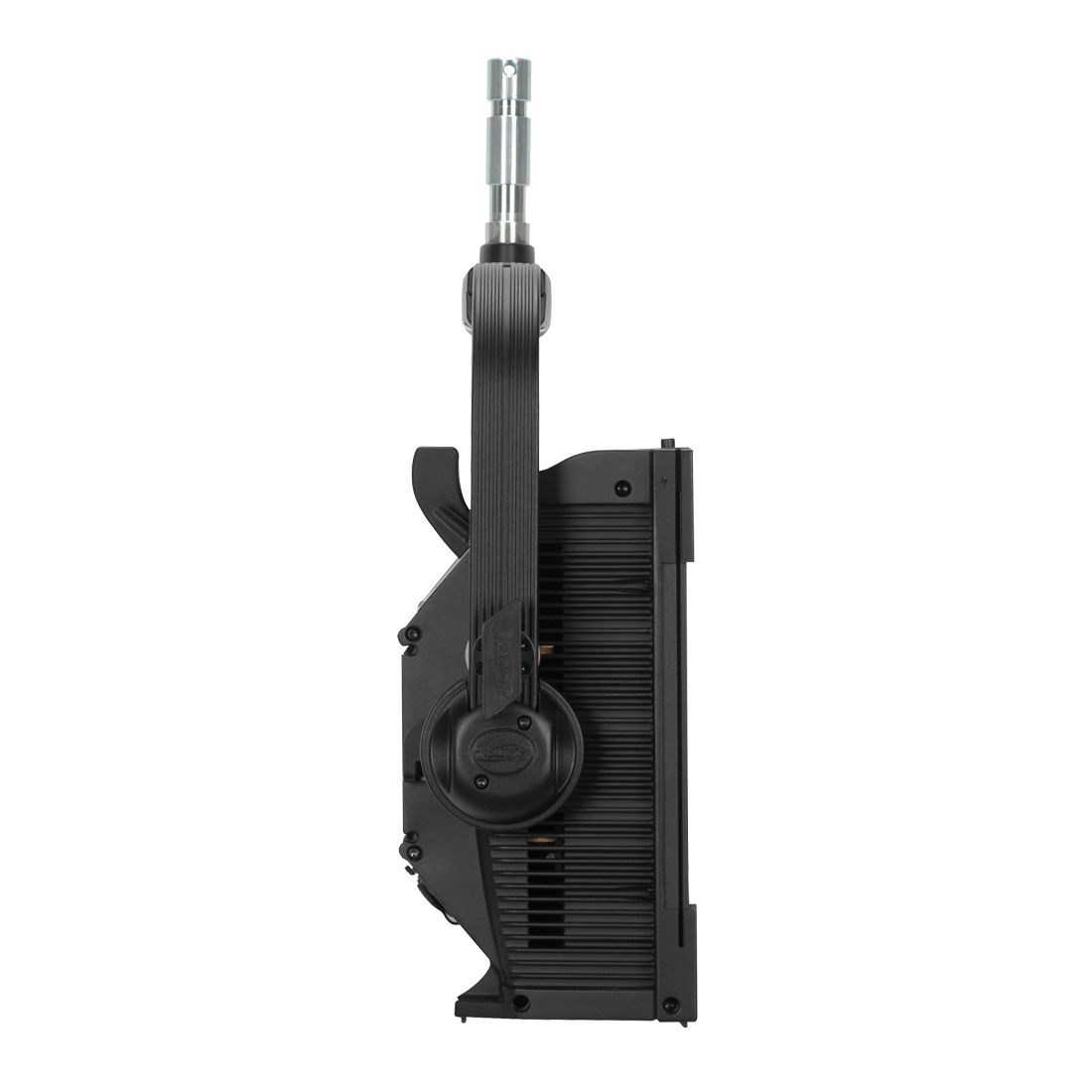

Compact and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. Rugged housing with impact-resistant surrounds and base plate ensures the KL Panel XL can handle the rough handling on today's fast-paced sets.It is fully self-contained without the need for an external power supply. It can also be remotely powered thru its integrated 4-pin XLR 24-36 VDC battery input.

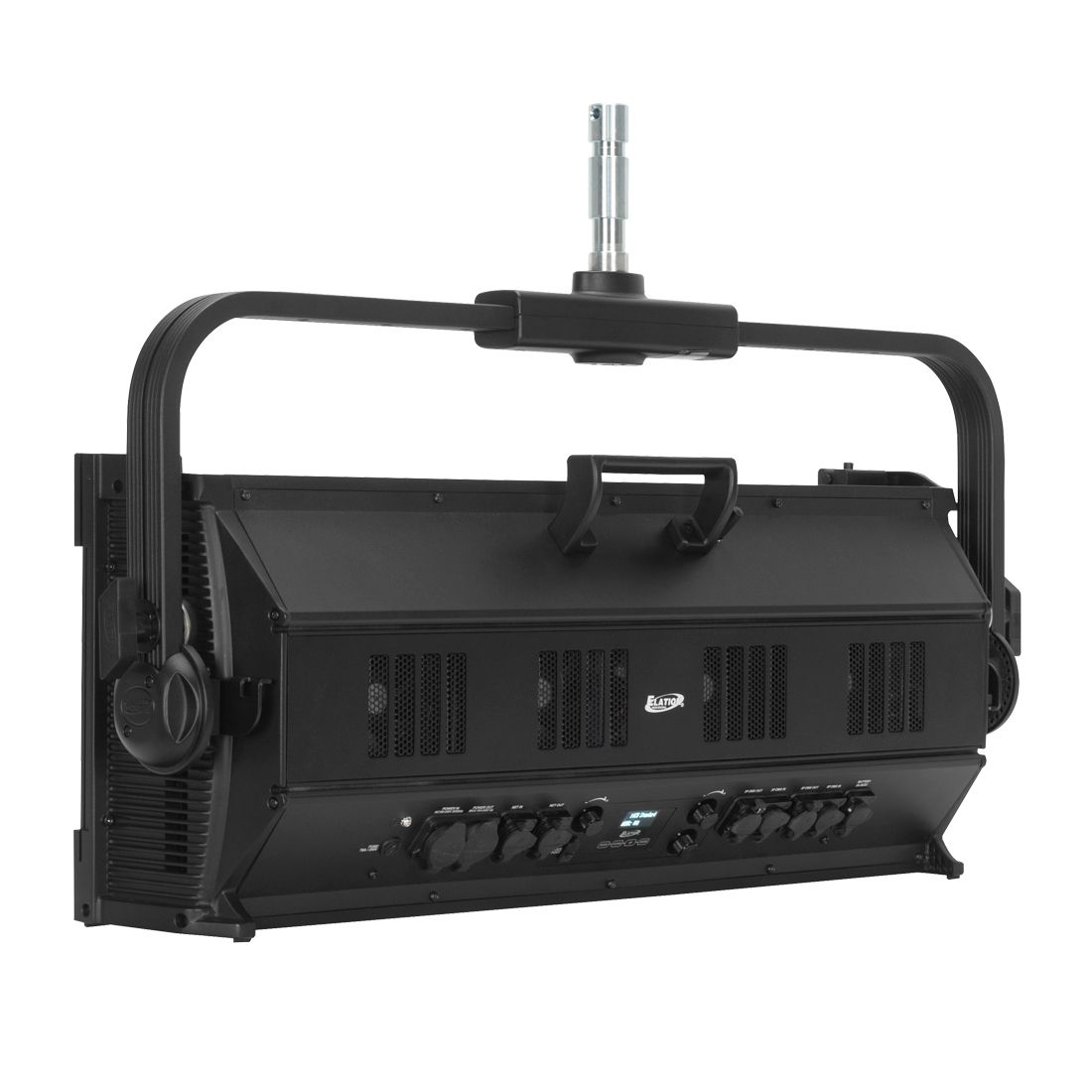

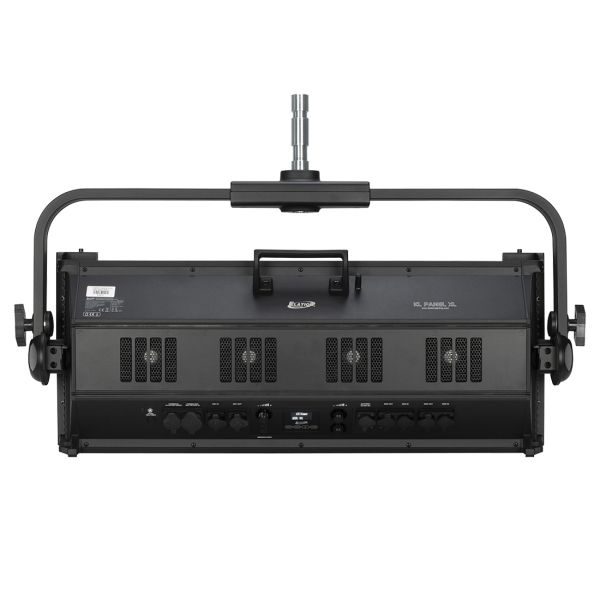

The KL Panel can be operated through industry-standard DMX, Art-NET or sACN protocols. In addition, it can also be adjusted manually using the included encoders and OLED display, providing instant control of Intensity, Color temperature, Green shift, and other important settings. The display and encoders are conveniently positioned on the bottom of the fixture to ensure easy access while the KL Panel is mounted on a stand. The integration of Elation’s E-FLY™ wireless system allows for even more flexibility of use.

Technical Data

FEATURES

544W RGBWLC (Red, Green, Blue, White, Lime, Cyan) LED Array
CRI 95, CCT Adjustment from 2000 to 10000K
44,000 Total Lumen Fixture Output

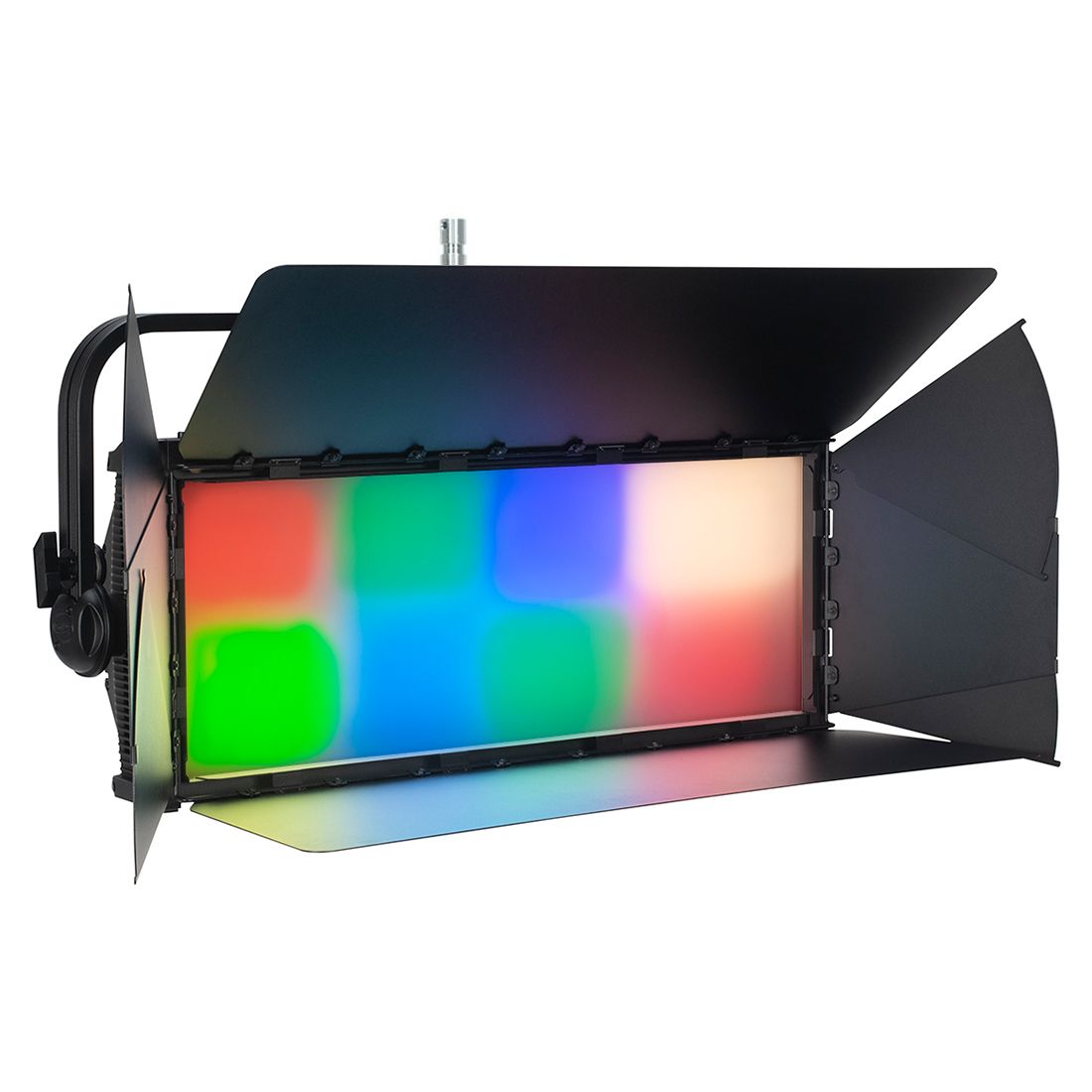

4x2 Section control option
Internal Power Supply with Power Pass-Through
24-36 VDC Battery Operation (Battery not included)
DMX/RDM, Art-Net and sACN Protocol Support
E-FLY™ Internal Extended Range Wireless DMX Transceiver
Stand-Alone Control with 3 Encoders and OLED Display

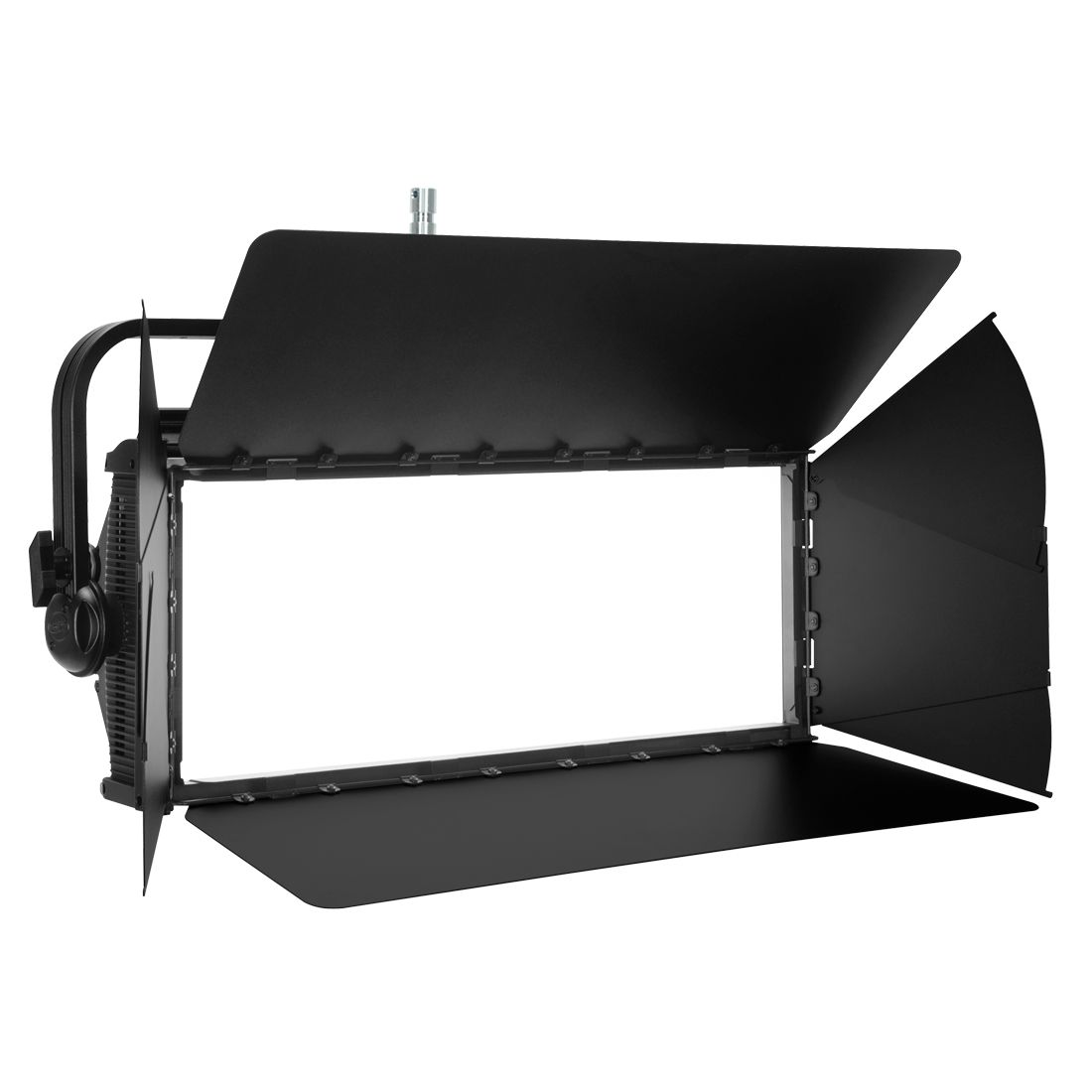

Barn Doors, Diffuser, and Junior Pin (28mm - 1 ⅛”) included

SPECIFICATIONS

SOURCE

6-in-1 (Red, Green, Blue, White, Lime, Cyan) Full Spectrum LED Array
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

up to 44,000 Total Lumen Output

Diffuser

Beam Angle 101°
Field Angle 159.4°

Without Diffuser

Beam Angle 111°
Field Angle 155.4°


EFFECTS

Variable CCT 2000K - 10000K
Green-Shift Adjustment
4x2 Section Control
Virtual Gel Library
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Remote Adjustable LED Refresh Rate Frequency (900-25kHZ)

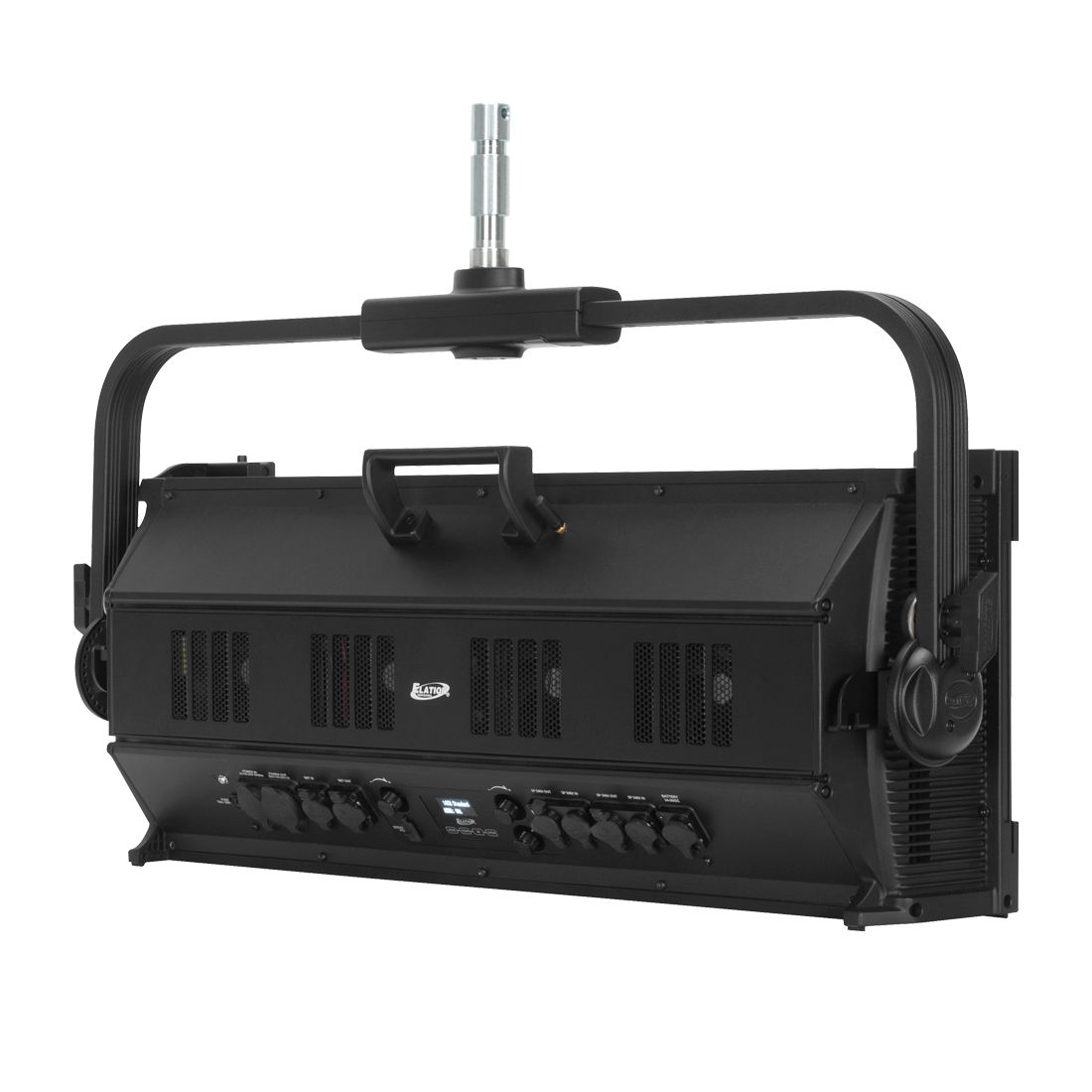

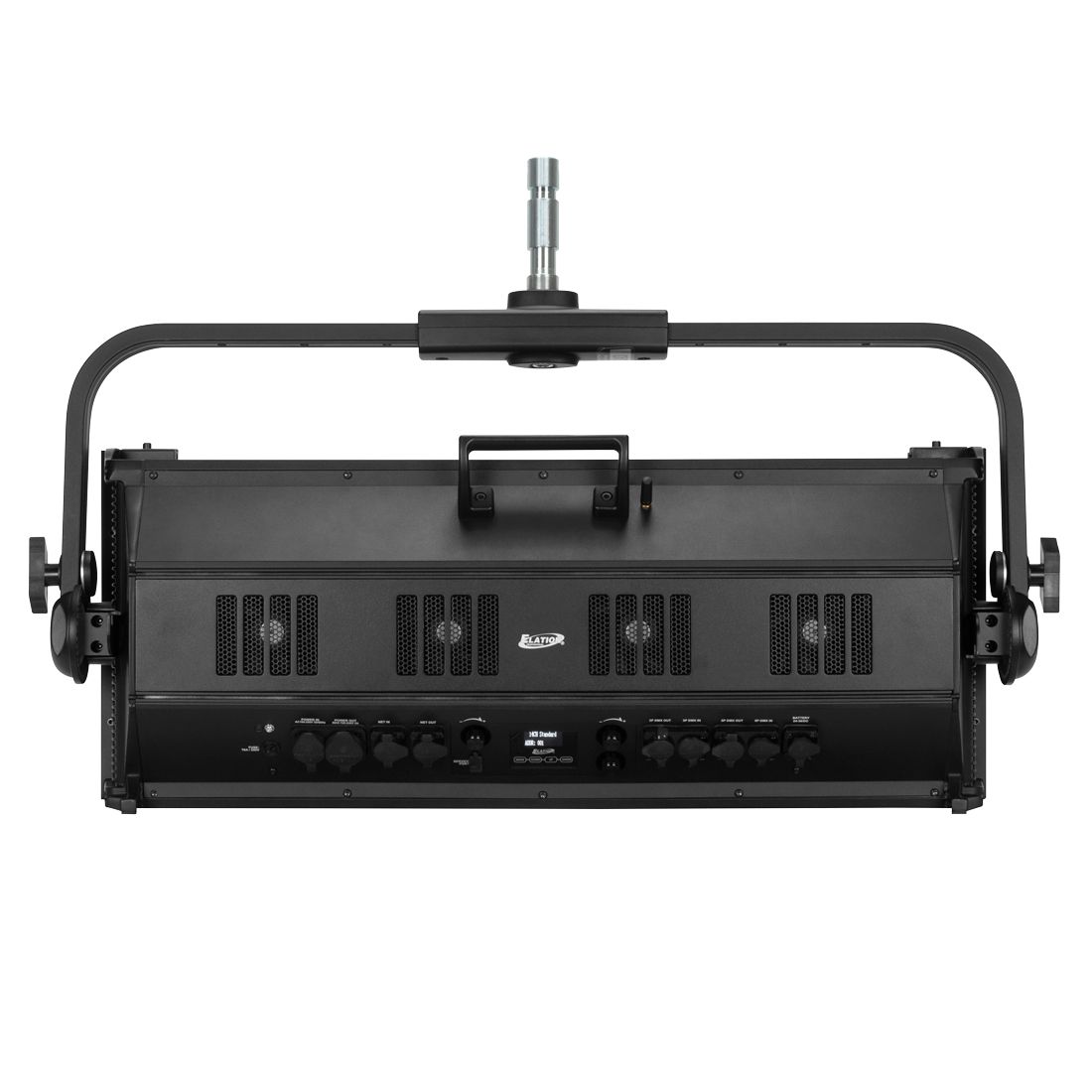

CONTROL / CONNECTIONS

12 DMX Channel Modes (1-96 Ch.)
1 or 8 cell control sections
3 Manual Adjustment Encoders
4 Button Control Panel and OLED Menu Display
DMX, RDM, Art-NET, sACN Protocol Support
E-FLY™ Internal Extended Range Wireless DMX Transceiver
Locking 5pin XLR Connector In/Out
Locking 3pin XLR Connector In/Out
Locking IP65 Power Connector In/Out
USB Connection (Firmware Updates, External 5V power for accessories)
4pin XLR External Battery Connection (battery not included)


SIZE / WEIGHT

Length: 858mm (33.18”)
Width: 155.5mm (6.1”)
Height: 306.3mm (12.1”)
Height (with yoke): 426.8mm (16.8”)
Weight: 17.2 kg (37.9 lbs.)
Weight: (Junior Pin) 0.46 kg (1.02 lbs.)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
24-36 VDC (Battery operation - Battery not included)
Max Power Consumption 544W
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 1708.2

FIRMWARE UPDATES

Current firmware can be found here (login required)


Specifications and documentation subject to change without notice

Related Products

KL Panel

KL Panel

KL Panel XL Intensifier Lens

KL Panel XL Intensifier Lens

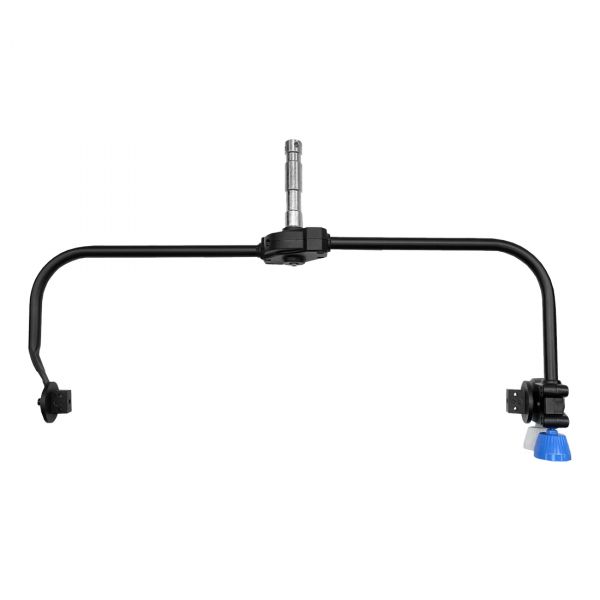

KL Panel XL Pole Operation Bracket

KL Panel XL Pole Operation Bracket

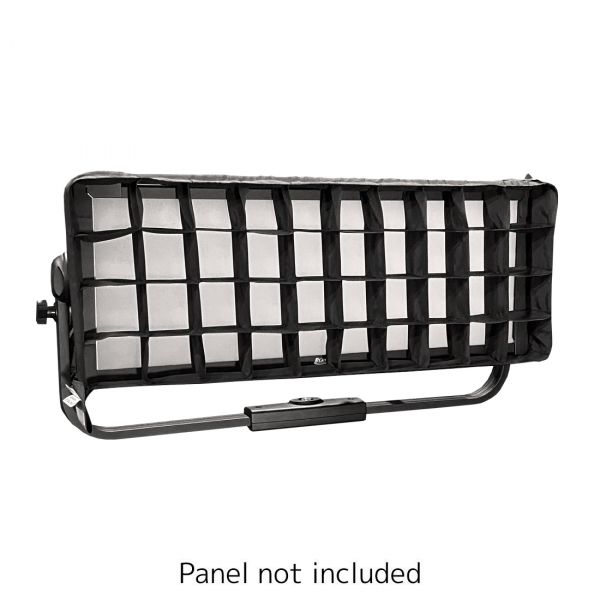

SNAPGRID 40° KL-PANEL XL

SNAPGRID 40° KL-PANEL XL

SNAPBAG KL-PANEL XL

SNAPBAG KL-PANEL XL

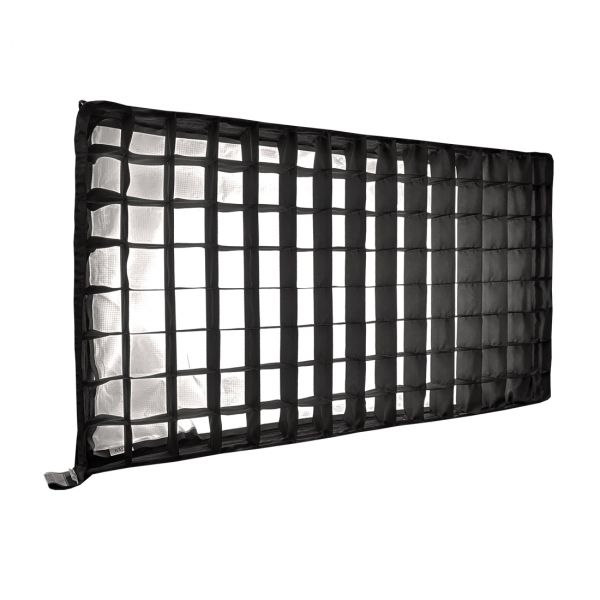

SNAPGRID 40° f. SNAPBAG KL PANEL XL/XLIP
