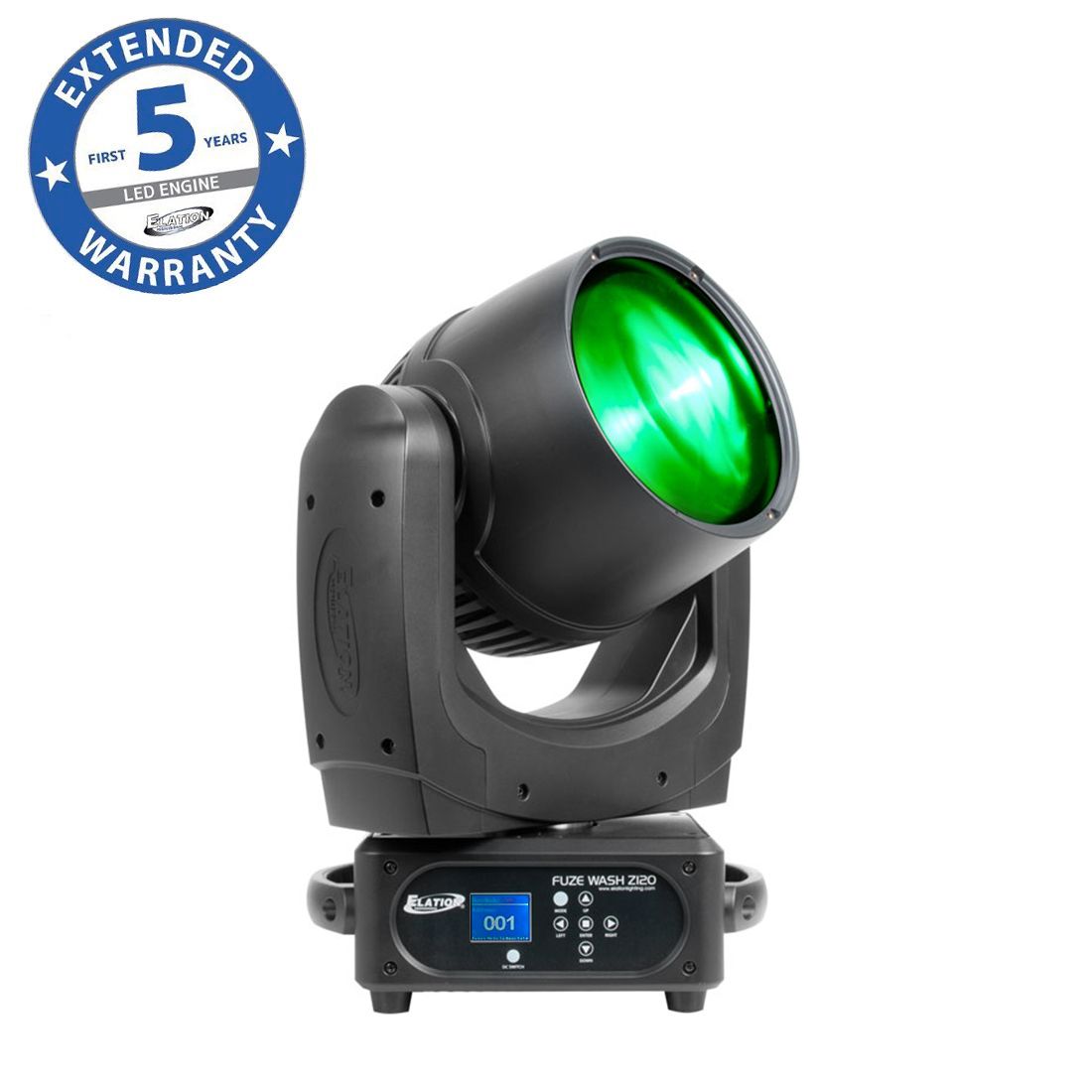

Fuze Wash Z120

The FUZE WASH Z120™ is a single source par moving head luminaire with a 120W Quad Color RGBW COB LED. Features 7° to 55° motorized zoom, pan and tilt, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, DMX and power in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).

Technical Data

FEATURES

120W RGBW COB LED Moving Head Wash Luminaire
RGBW Color Mixing
7° to 55° Wide Motorized Zoom Range
Variable Dimming Curves
Multiple Unit Power Linking
RDM (Remote Device Management)
Flicker Free Operation for TV and FILM

SOURCE

120W RGBW COB LED
100,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

10,640 LUX 988 FC @ 3m (9.8’) (7° Full ON)
692 LUX 64 FC @ 3m (9.8’) (55° Full ON)

COLOR

RGBW

EFFECTS

RGBW Color Mixing
7° - 55° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
Pan Angle: 540/630
Tilt Angle: 250


CONTROL / CONNECTIONS

4 DMX Channel Modes (19 Total Channels)

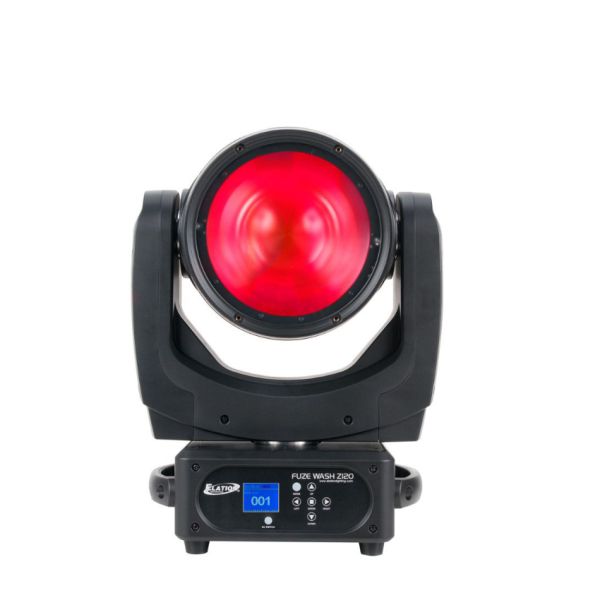

7 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)

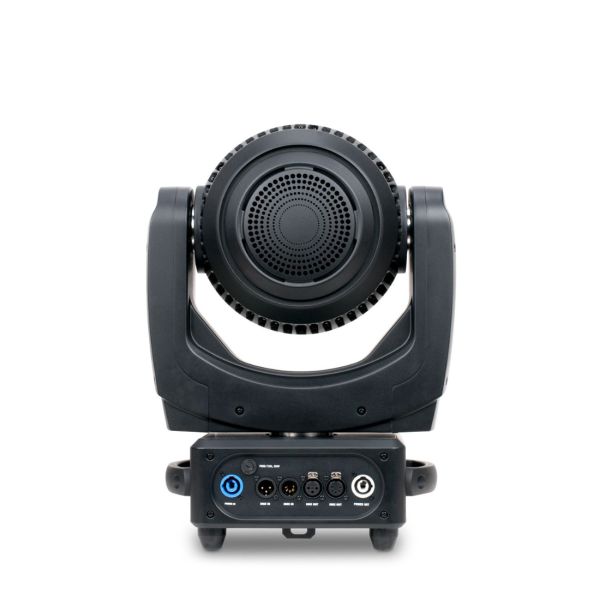

3pin/5pin DMX and Locking Power Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 338mm (13.3")
Width: 229mm (9.0")
Vertical Height: 466mm (18.2")
Weight: 10 kg (22 lbs.)

ELECTRICAL / THERMAL

AC 110-240V - 50/60Hz
157W Max Power Consumption
Multiple Unit Power Linking
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 535.37

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice

Videos

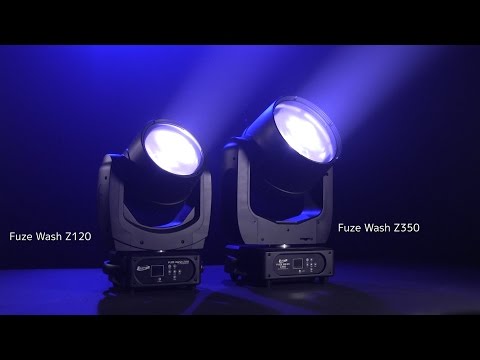

Fuze Wash Z120
