Flex Pixel WP

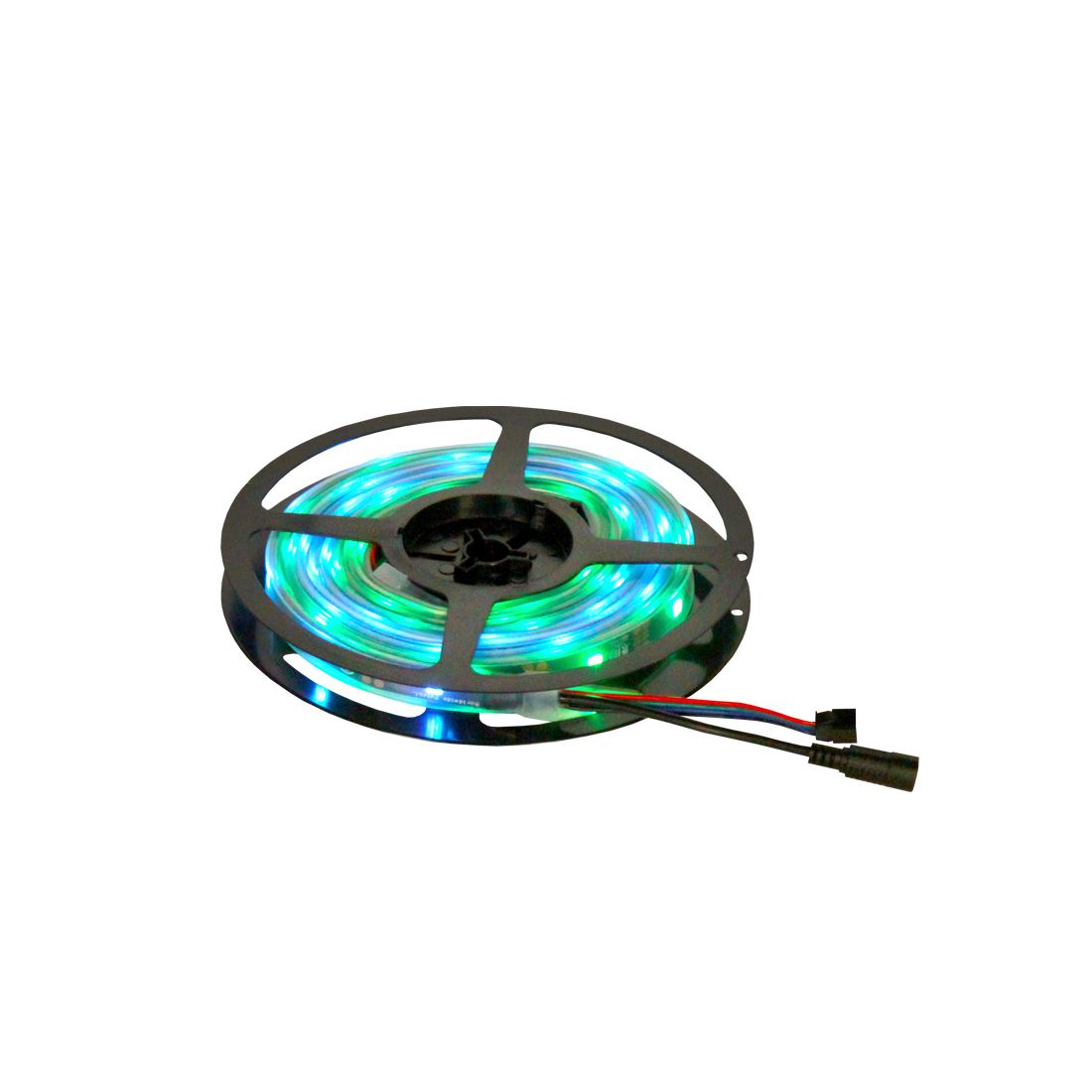

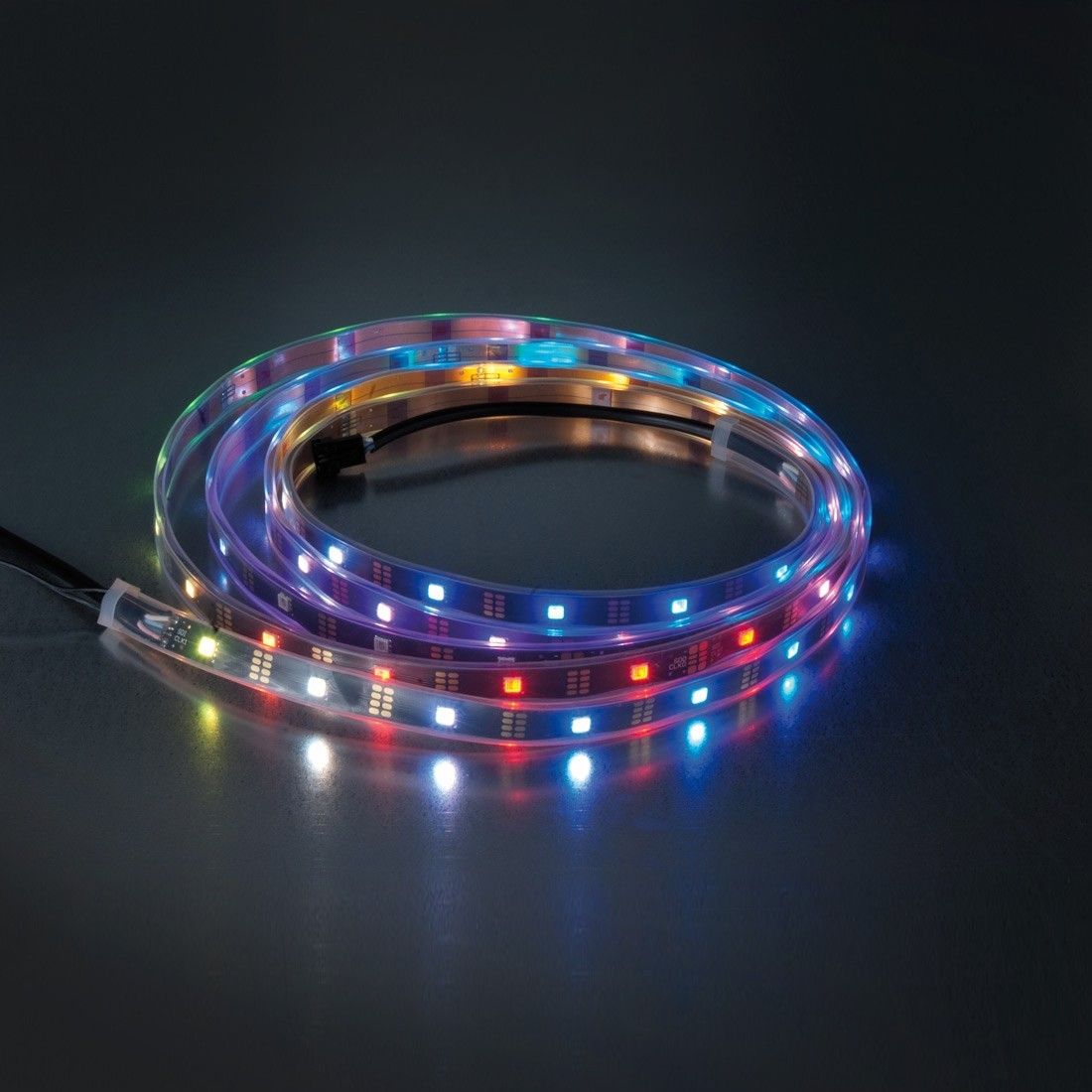

The Flex Pixel WP is a 3m flexible LED Pixel Tape with waterproof cover. It features 72 RGB SMD tri color LED Pixels (216 CH.) per tape spaced on 40mm centers. You can mount the tape to any surface using our Flex IP Clip kit (optional) and the tape can be cut and extended every 10cm.

Technical Data

FEATURES

Flexible IP65 Rated LED Pixel Tape
Over 1 Billion Color Possibilities
Bright Output Low Wattage Consumption


SOURCE

(72) RGB SMD LED Pixels


CONTROL / CONNECTIONS

(216) DMX Channels
Protocol APA-101-5V
Protocol compatible with APA-102C-5V, usable with Kling Force LED


SIZE / WEIGHT

Length: 9.8’ (3m) Roll
Width: 0.59” (15mm)
Vertical Height: 0.20” (5mm)
Weight: 10 oz. (0.3 kg)


ELECTRICAL / THERMAL

DC 5V
20W Max Power Consumption

Specifications and documentation subject to change without notice
