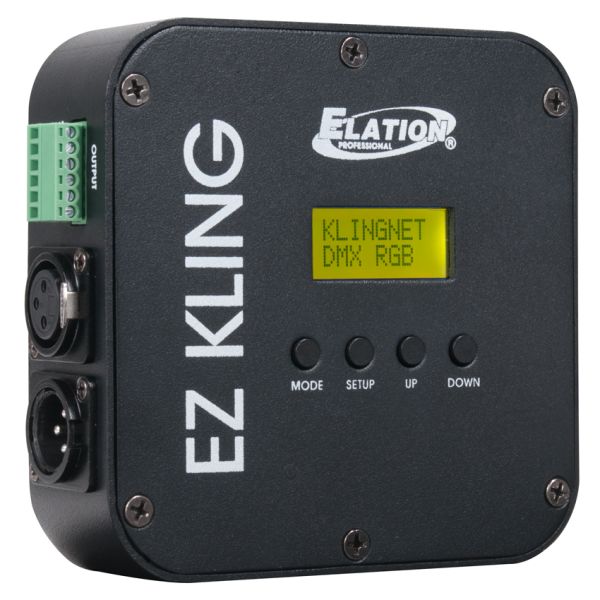

EZ Kling

The EZ KLING™ is an RJ45 to DMX, KlingNet™, ArtNet and sACN interface, which allows you to pixel map KlingNet™ and DMX compatible fixtures through the KlingNet™ mapper included in Media Master Express™ and Media Master Pro™ (not included). Ideal for use with Flex Pixel Tape™ and LED Pixel controllable DMX fixtures. One EZ KLING™ interface will drive up to 600 Flex Pixel RGB pixels using KlingNet™ control protocol or 170 DMX Pixels via ArtNet/ DMX control. EZ Kling™ can also be used as a 1-port Node to convert ArtNet to DMX. Includes a magnet on the back panel for easy metal surface mounting and a mini omega bracket for clamp/truss mounting.

Technical Data

FEATURES

Ideal for use with Elation RGB LED Flex Pixel Tape™ and RGBW/RGBA LED Pixel controllable DMX lighting fixtures
Drive up to 600 Flex Pixel RGB pixels using KlingNet™ control protocol
Drive up to 170 RGB Pixels via Art-Net/sACN control protocol
Drive up to 128 RGBW/RGBA Pixels via Art-net/sACN control protocol
Magnet on the back panel for easy metal surface mounting

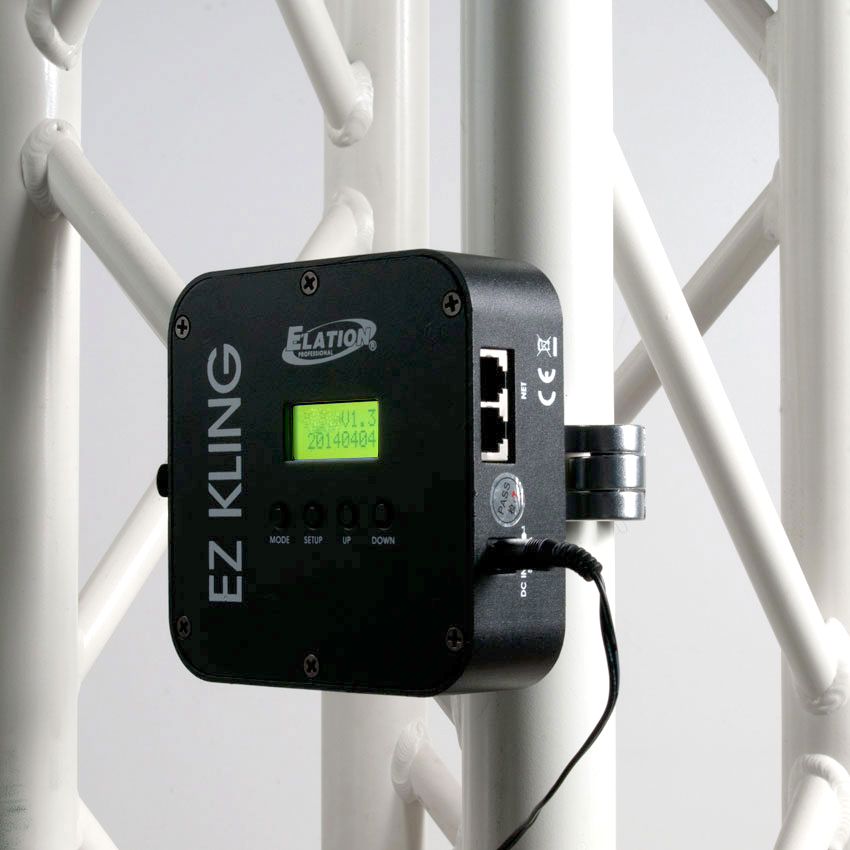

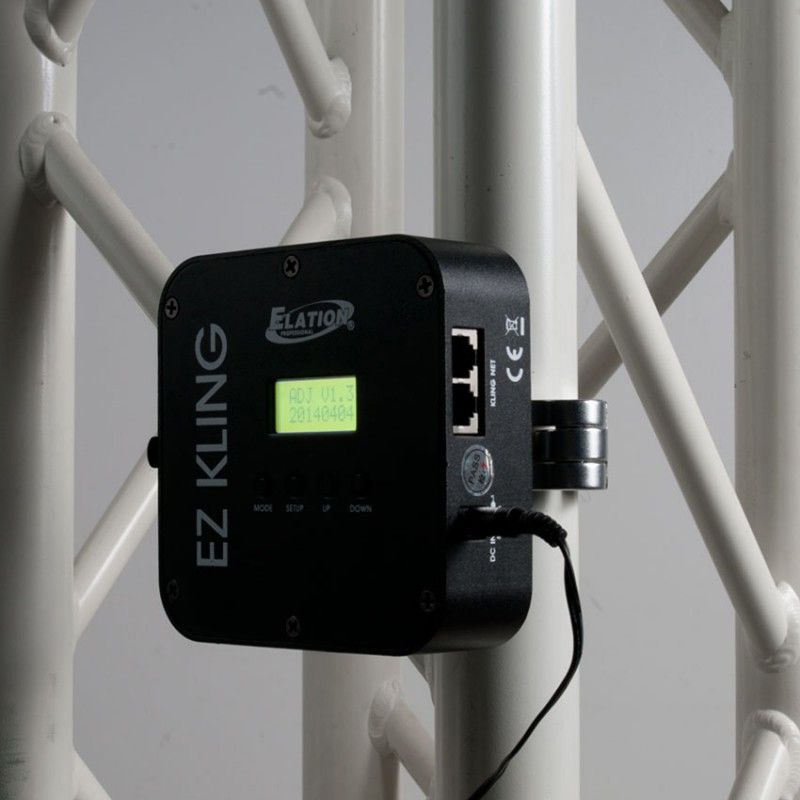

Clamp/Truss Mounting with Mini Omega Bracket

CONTROL / CONNECTIONS

DMX 512, KlingNet™, ArtNet Multicast and Unicast and sACN

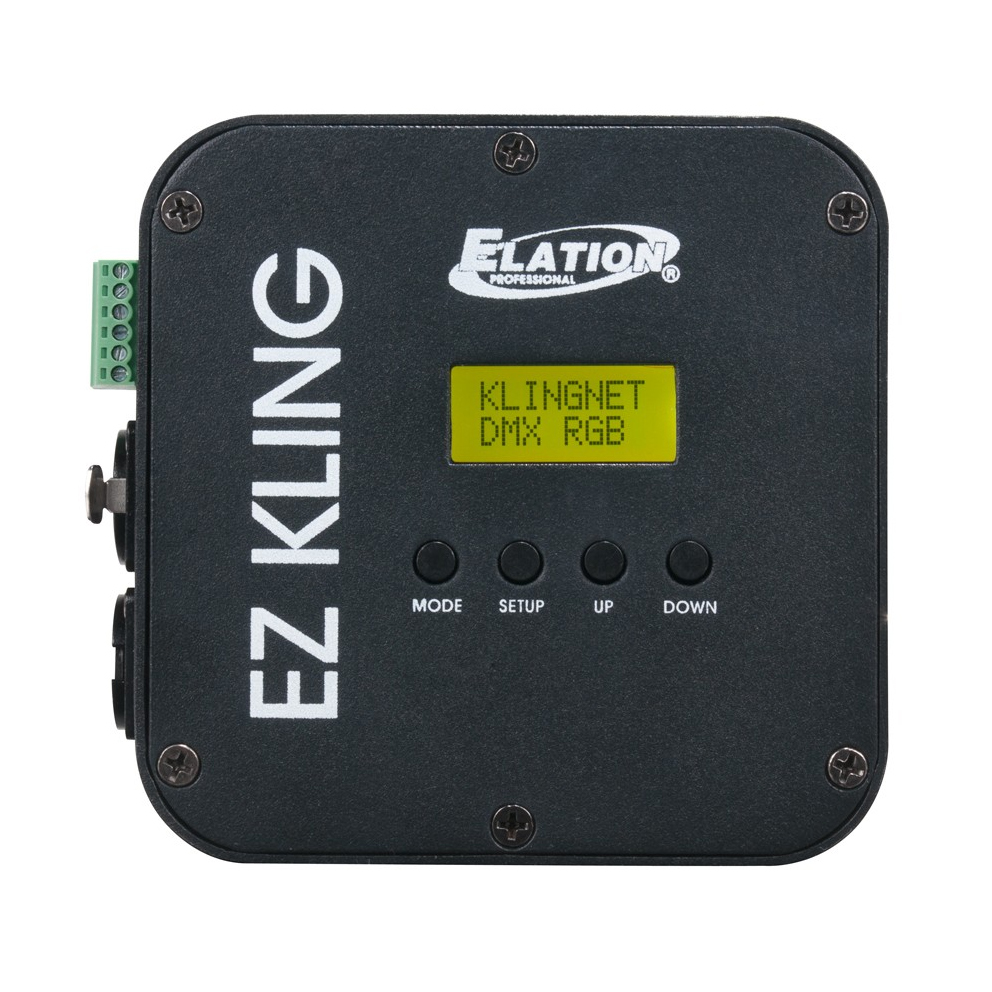

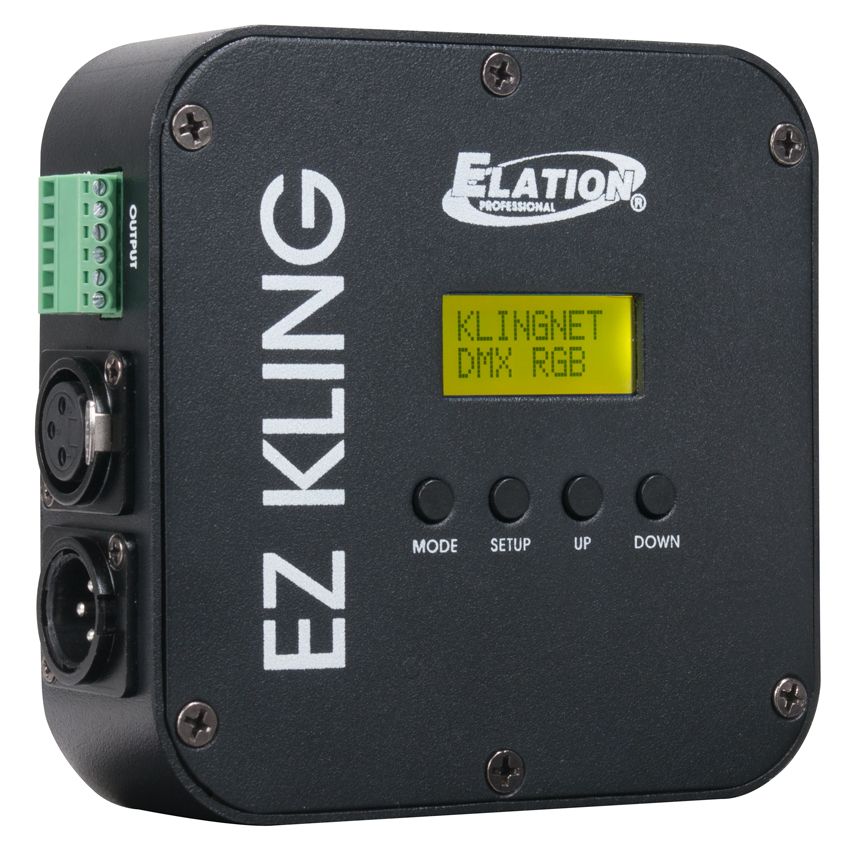

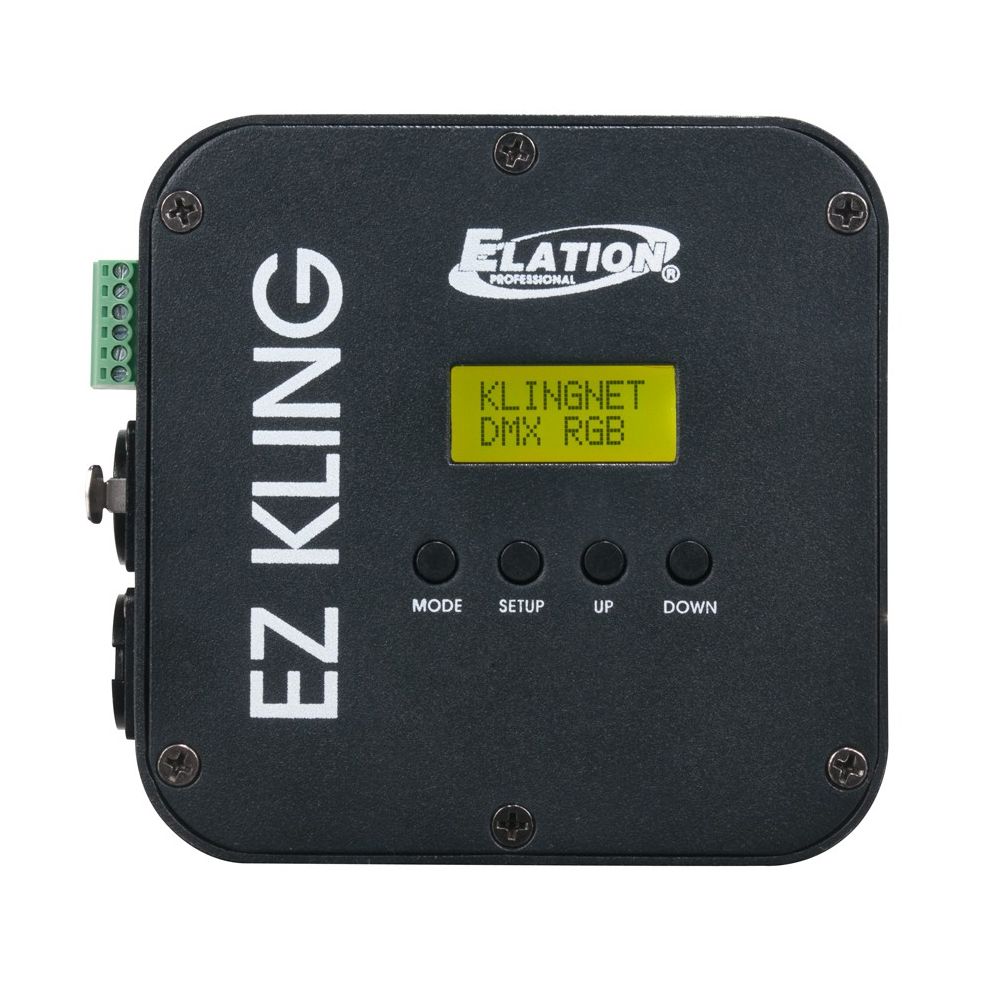

4 Button Control Panel and LCD Menu Display

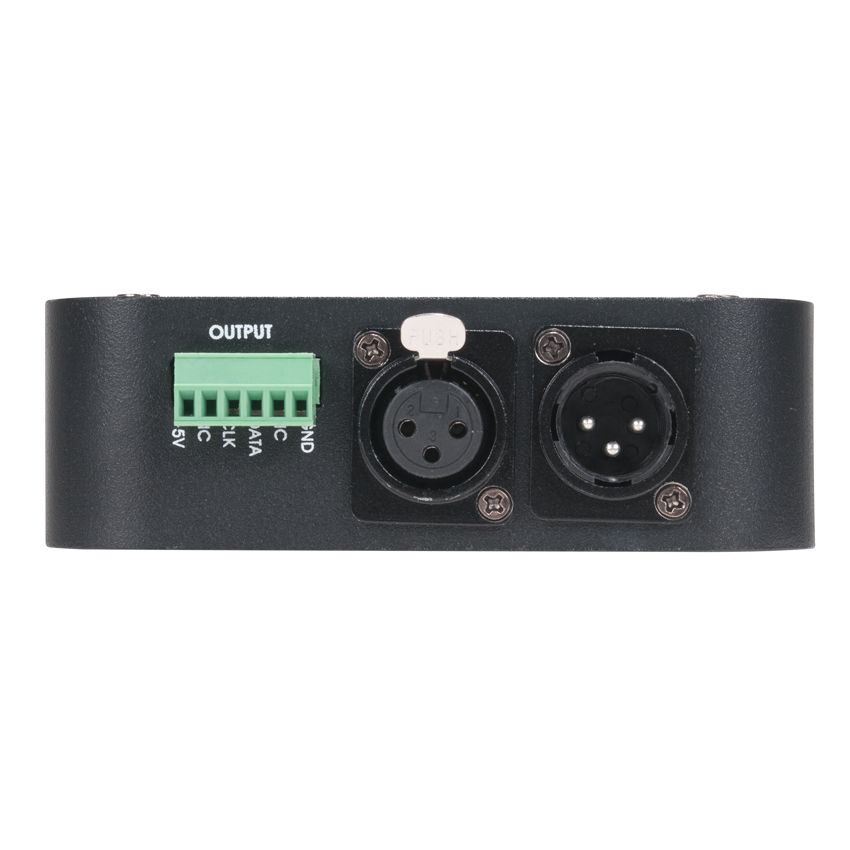

6 Bare Wire Terminal Block
1 locking 3pin XLR DMX Input
1 locking 3pin XLR DMX Output

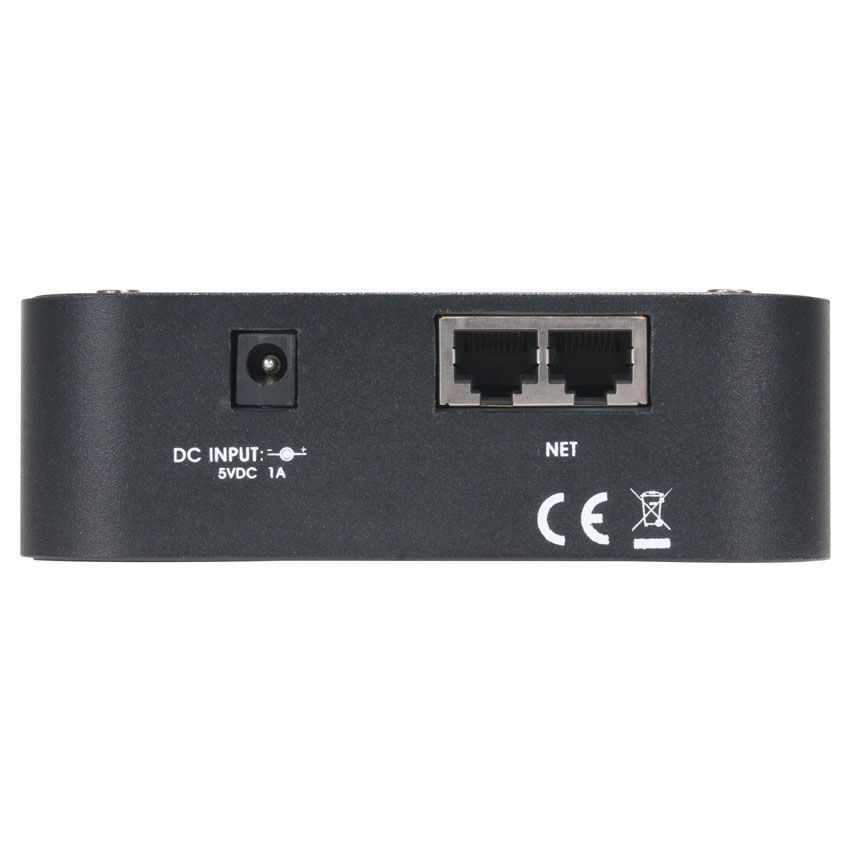

2 locking RJ45 Bilateral CAT5e Ports
1 5VDC Power Supply Input

SIZE / WEIGHT

Length: 135mm (5.31”)
Width: 125mm (4.92”)
Vertical Height: 41mm (1.61”)
Weight: 0.43kg (0.95 lbs.)

ELECTRICAL

5VDC
5W Max Power Consumption

INCLUDED ITEMS

5VDC Power Supply
Flex Pixel Tape Jumper First Cable
Back Panel Magnet for Easy Metal Surface Mounting
Mini Omega Bracket for Clamp/Truss Mounting

Specifications and documentation subject to change without notice
