EPV762 SMD LED Video Panel 488x488mm

EPV762 SMD LED Video Panel 488x488mmArchive

Code 1239100067

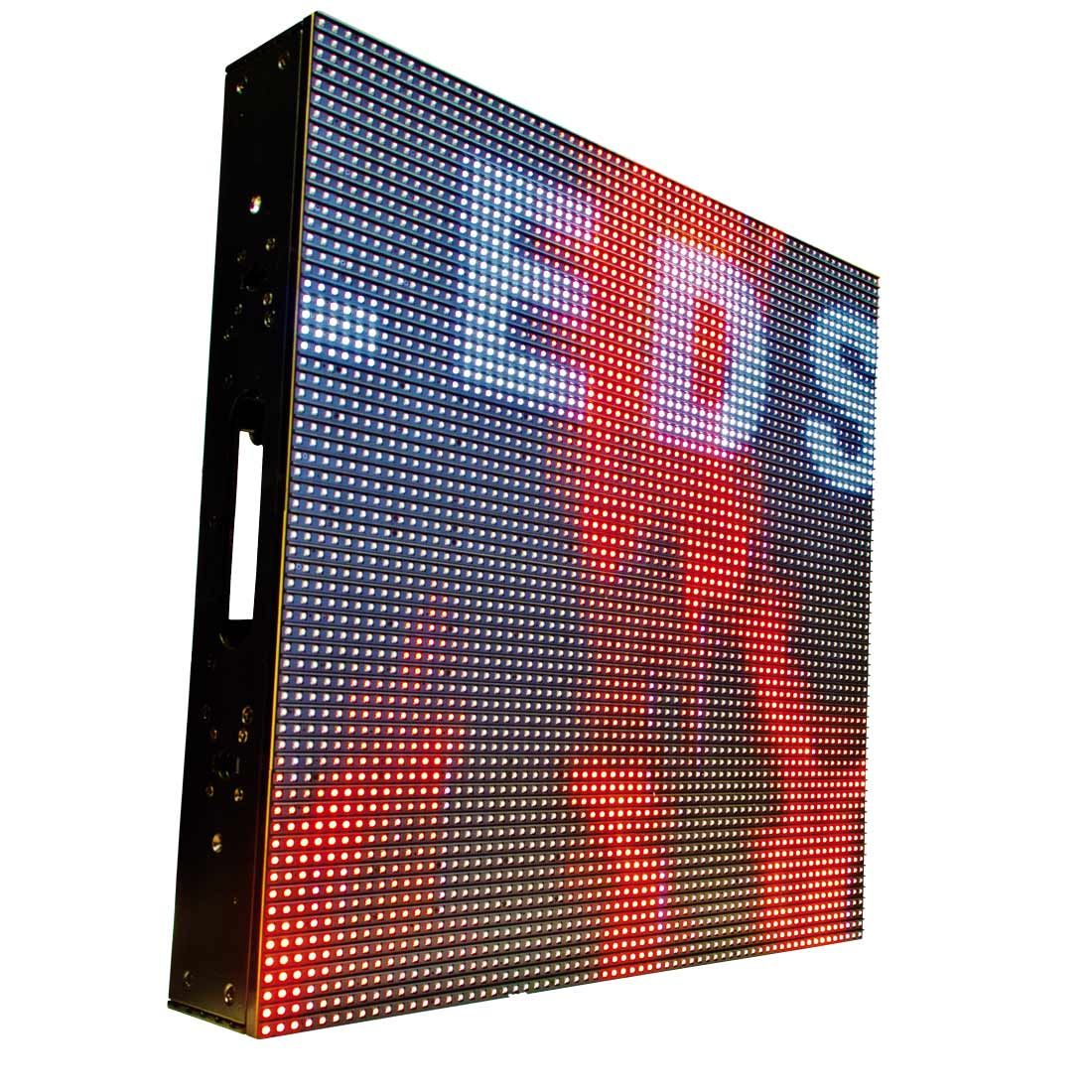

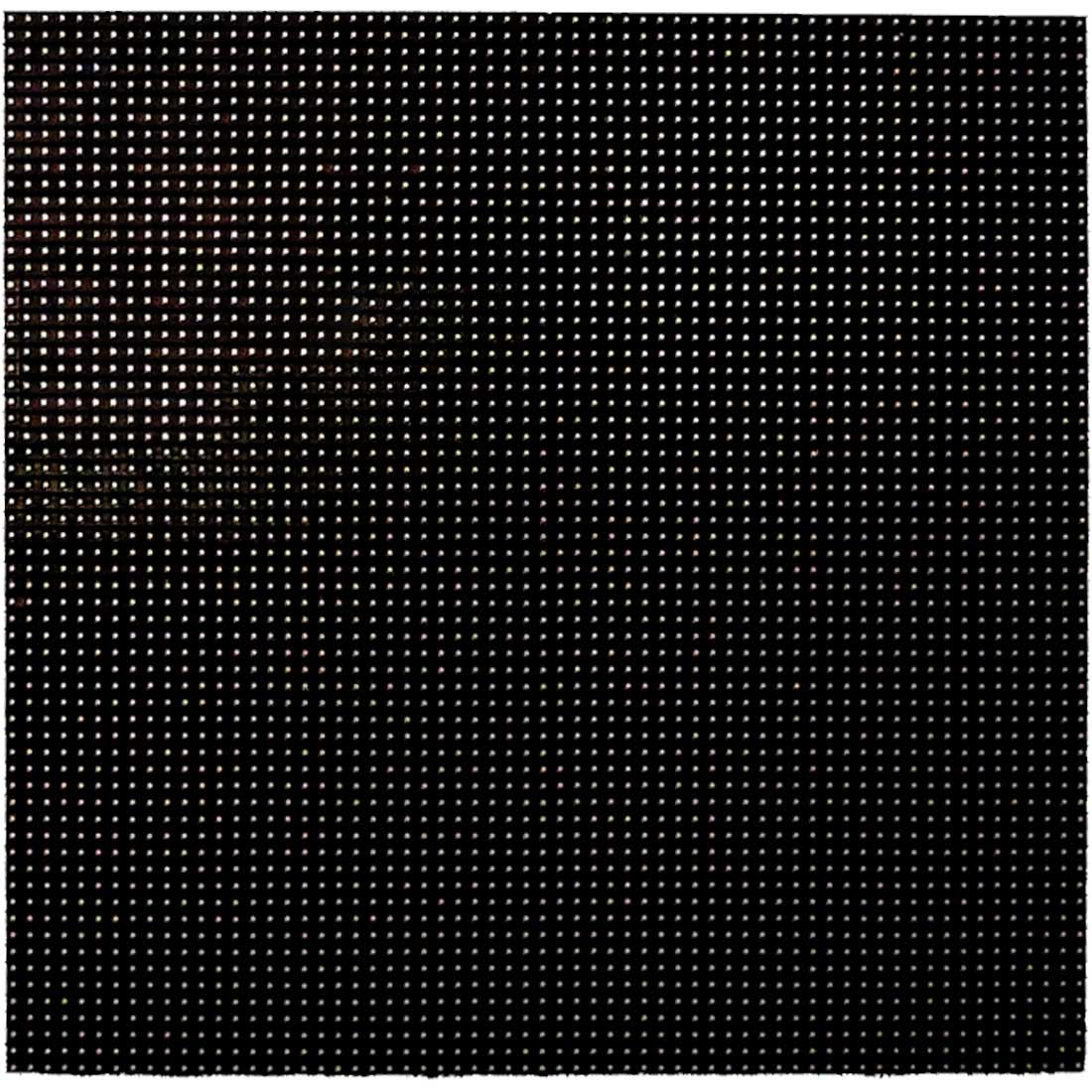

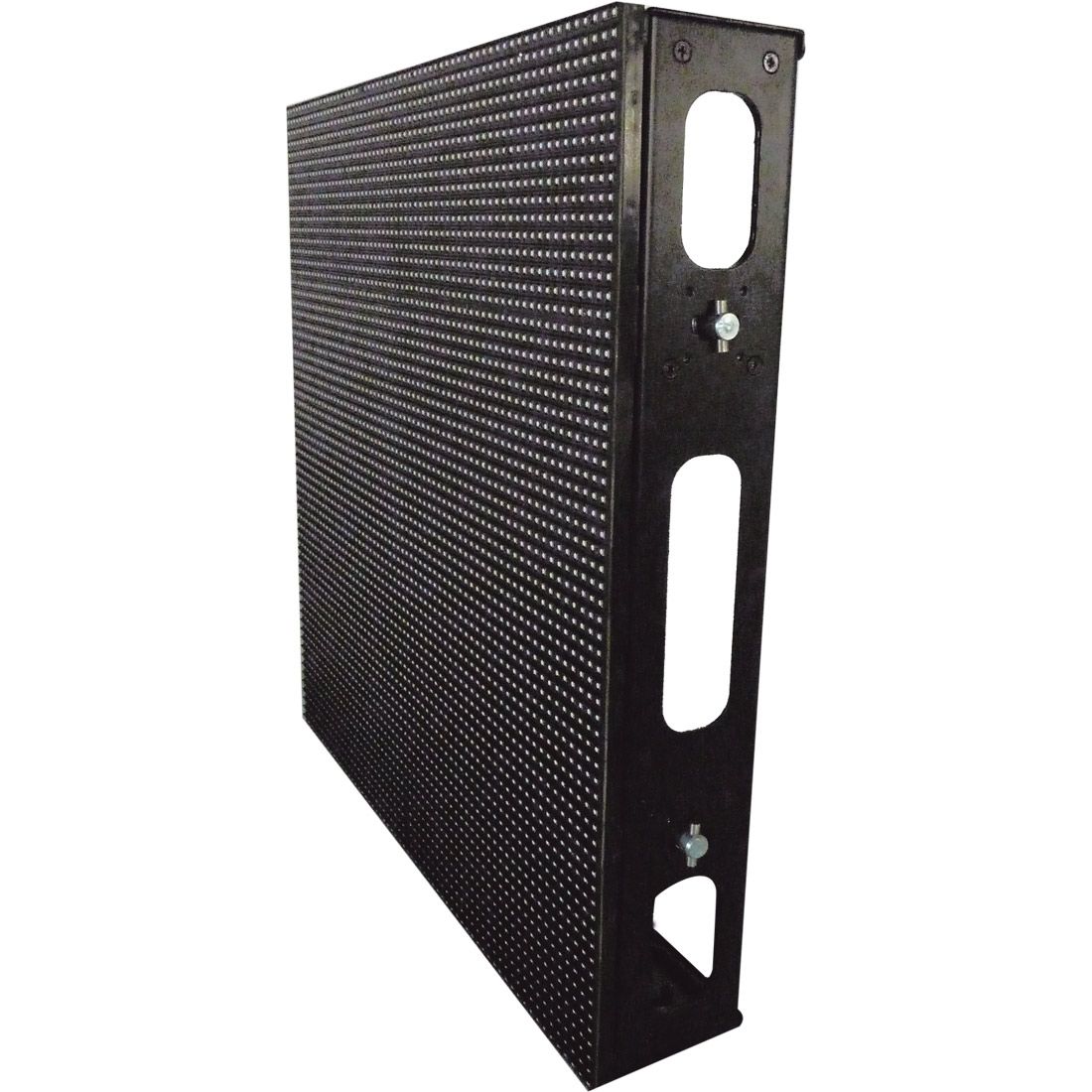

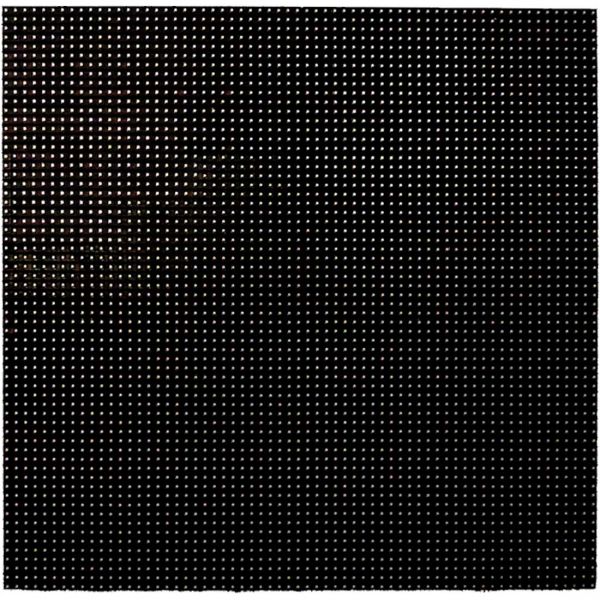

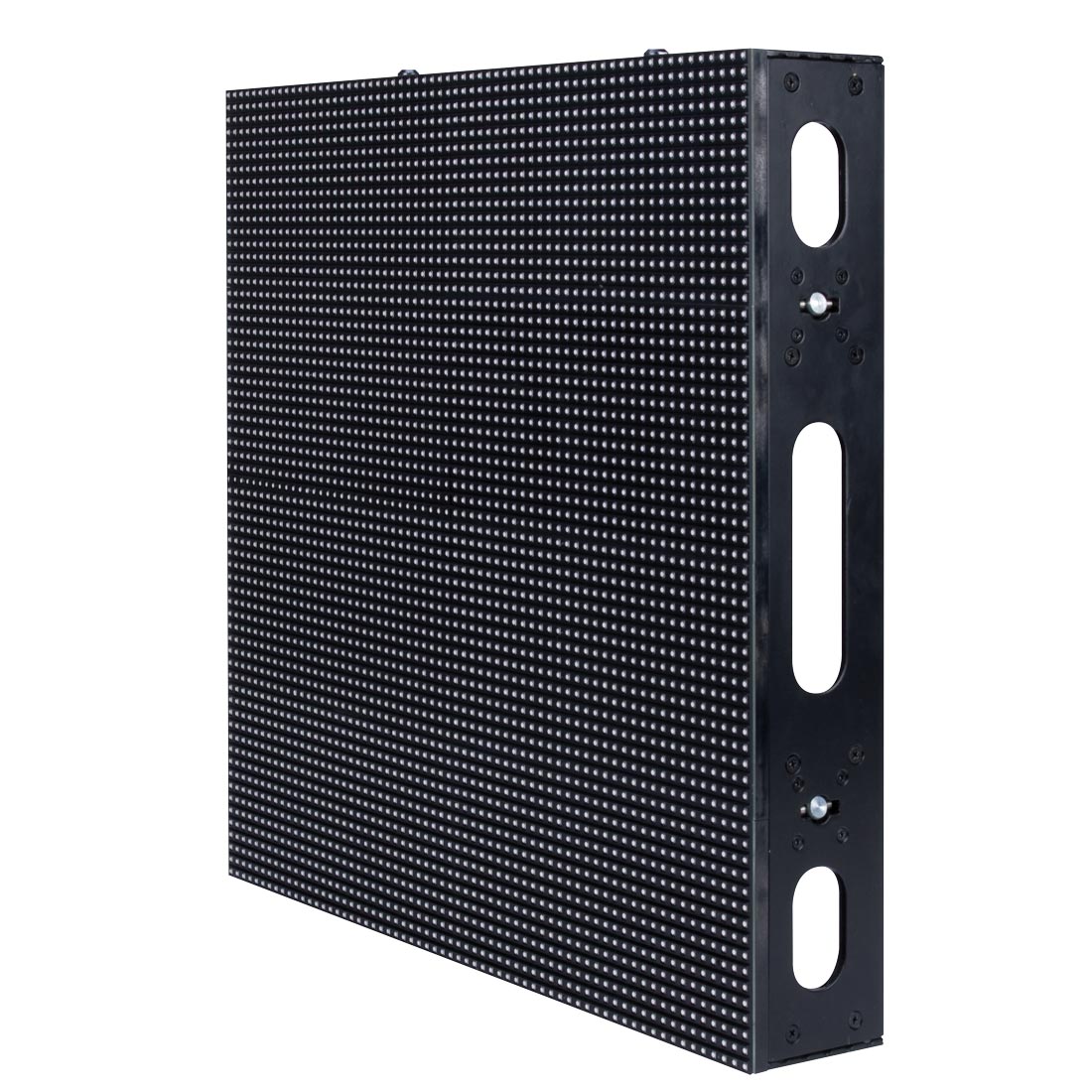

The EPV762 is a high resolution SMD LED display panel designed for indoor applications. With a 7.62mm pixel pitch and compact cabinet design it makes it ideal for corporate, production and installation applications. Integrated power / data on-board and easy rigging and quick connections make this unit ideal for portable applications.

Code 1239100067

EPV762 SMD LED Video Panel 488x488mm

Technical Data

- 7.62mm Pixel Pitch for High Resolution
- Seamless Mechanical System
- Easy To Hang / Rig
- Wide Viewing Angle (H 135° / V 110°)
- High Contrast Levels and extreme brighness
- High Refresh Rates For Flicker-Free Performance
- Slim Cabinet Design

Specifications

- 3-in-1 RGB SMD LED, type 3528
- Long Life LED (rated at 100,000 Hours)
- 7.62mm Pixel Pitch
- 2500 Nits brightness
- Frame Size 488mm x 488mm x 88mm
- Refresh Rate ≥2400Hz
- Contrast ratio ≥8192:1
- 16bit Processing Depth
- 4096 pixels (64 x 64) Pixels per Panel
- 17.222 pixel per square meter
- 300Hz Scanning Rate
- Viewing angle: H140°/V110°
- Minimum Viewing distance: 6m
- Locking Ethernet In/Out Data Connnectors
- Locking Power connector In/Out Power link
- Operating temperature: -20 C to +50 C
- Operating humidity: 5%-95%
- 100-240V AC, 50/60Hz (Multi-voltage)
- Power consumption per panel maximal: 240W
- Average power consumption per panel: 120W
- Weight: 13 kg

Specifications and documentation subject to change without notice
