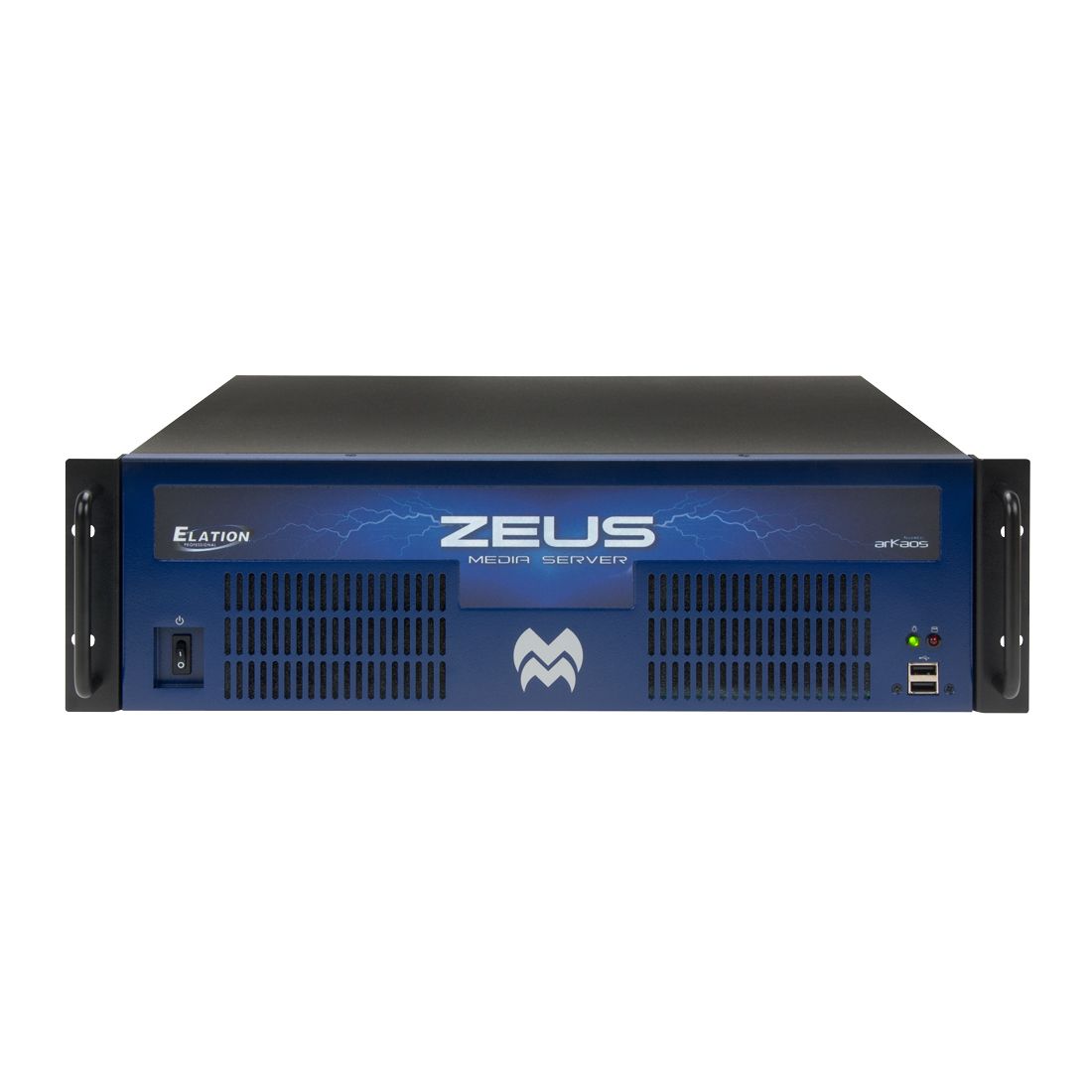

Zeus Media Server

The Zeus Media Server is a perfect solution for live entertainment, theatre, educational, audio-visual and worship applications. The two full HD outputs combined with the powerful ArKaos engine will produce smooth visuals, which can be programmed and played easily from any DMX lighting desk. Engineered to ensure rugged reliability and designed for quick and easy set-up, Zeus ships with MediaMaster-Pro and a vast library of high quality digital media from the world’s best visual content providers. The fast recovery system by Acronis allows extremely simple reset of the server from the boot menu. It is the ideal combination of scalability and creativity at an unbeatable price.

Technical Data

• ZEUS MEDIA SERVER WITH ARKAOS MEDIA MASTER PRO
• DUAL OUTPUT PRO GRADE MEDIA SERVER
• INCLUDES LED MAPPER, KLINGNET MAPPER, VIDEO MAPPER
• DATAPATH X4 AND MATROX COMPATIBLE
• VSC CONTROL CARD OPTION –EPV, EVLED, EVP OUTPUT SENDING CARD
• 6 USB CONNECTIONS
• INCLUDES AGE BLENDING SOFTWARE


FEATURES:

- Storage: 500GB HDD 16MB Cache

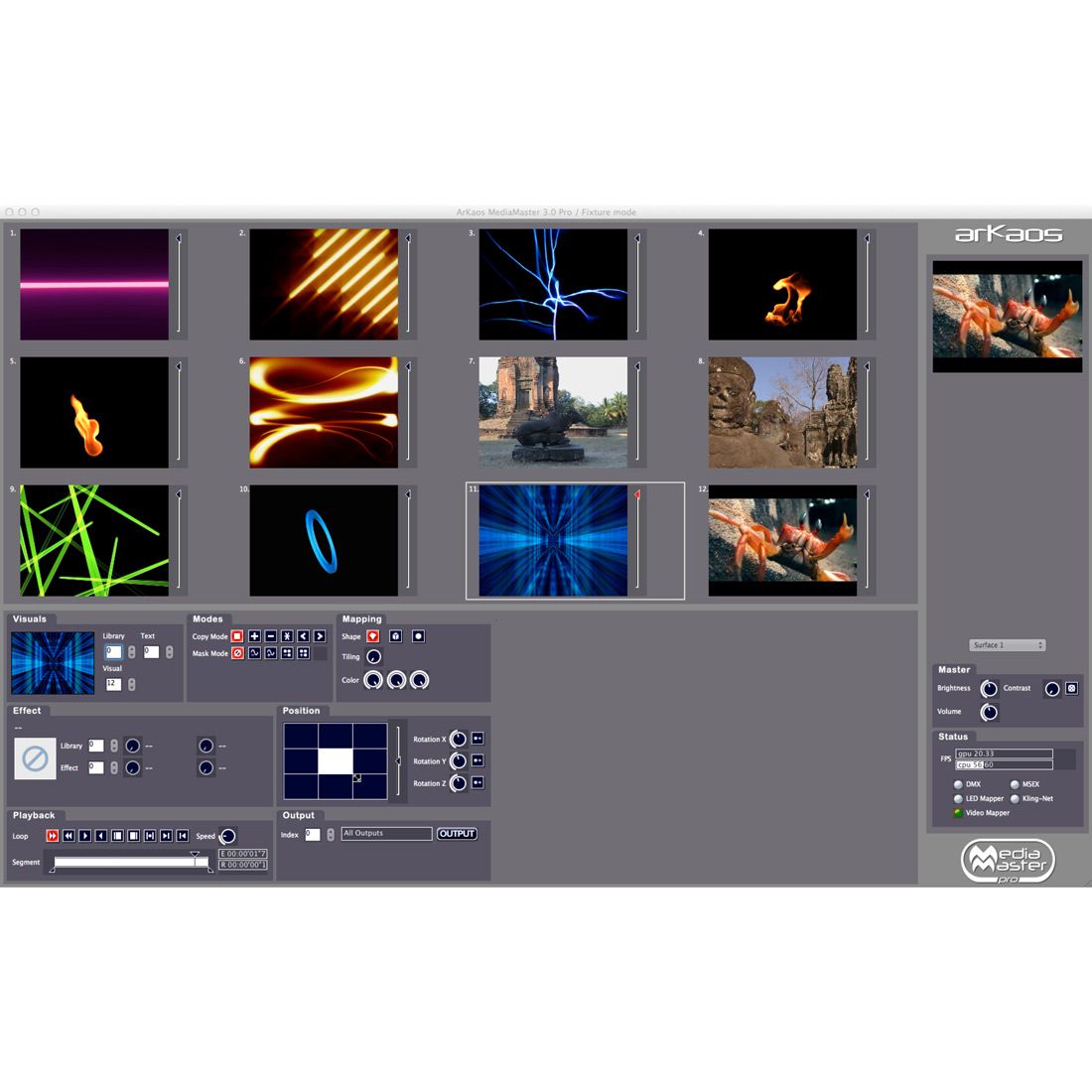

- Software: Mediamaster Pro
- Led Mapper: Yes
- Video Mapper: Yes
- Kling-Net Mapper: Yes (max. 1280x720 used pixels)
- Soft Egde: Basic
- Control: Keyboard/DMX/MIDI/Art-NET/Ma-NET (Windows)
- Interface Output: 1
- Interface Type: VGA/DVI/HDMI
- Output: 2
- Output Type: VGA/DVI/HDMI
- Layers Full HD 1080p (Simultaneous): 3
- Layers HD 720p (Simultaneous): 5
- Input: On Request HDMI/Analog/SDI/DVI
- Output Resolution: 8K
- USB: 8 (2 X USB 3.0)
- Datapath X4 and Matrox Compatible: Yes
- Voltage: 107-240V Auto Switching
- Height 132mm, Length 482mm, Depth 400mm
- Weight 10.5 kg


Specifications and documentation subject to change without notice
