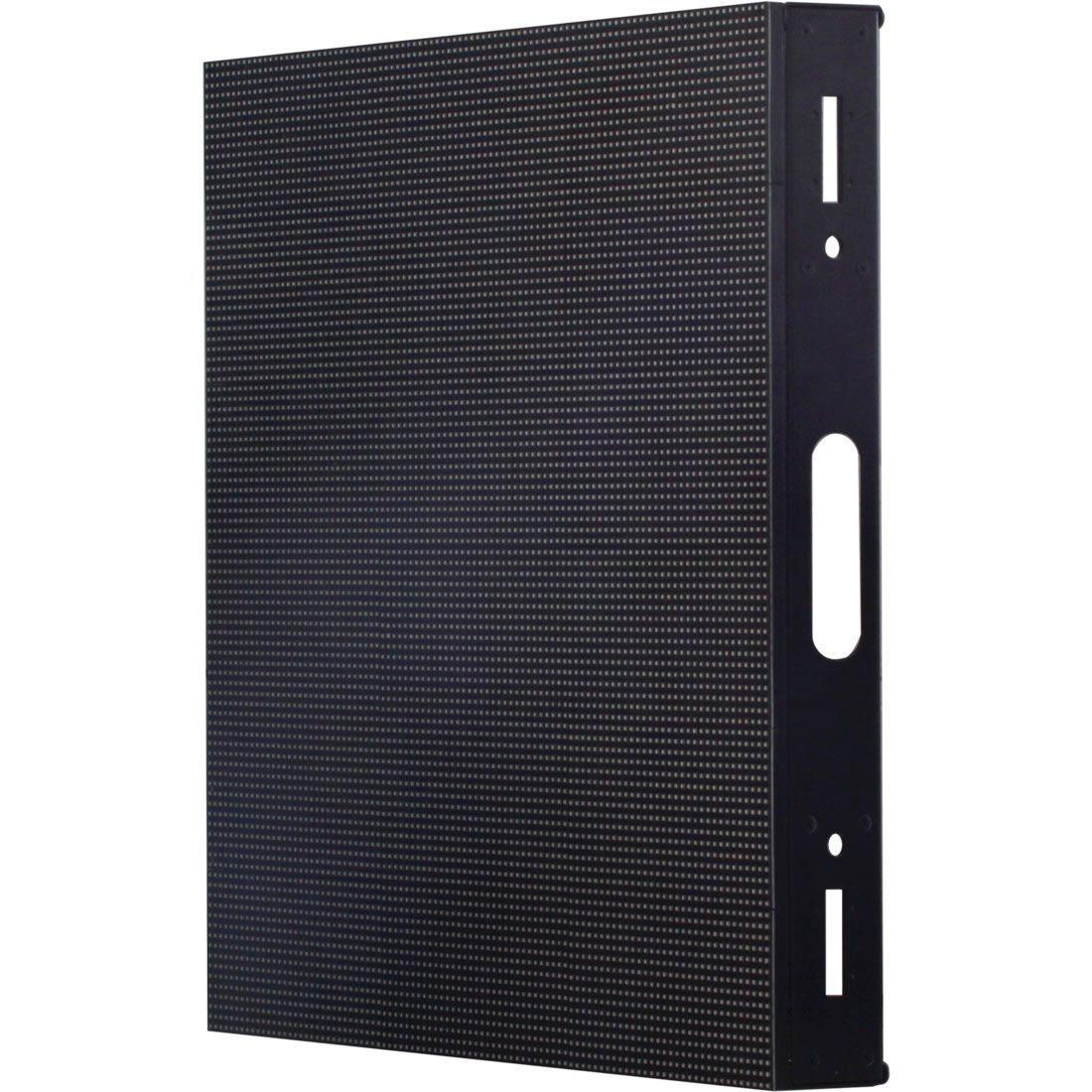

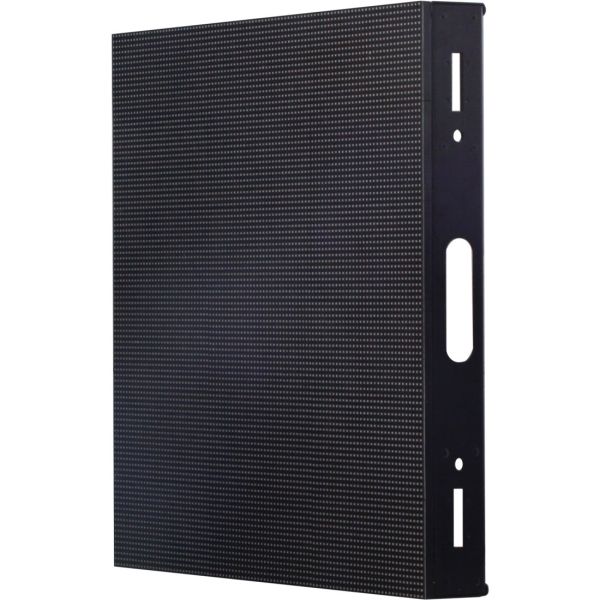

EPV6 SMD LED Video Panel 576x576mm

EPV6 SMD LED Video Panel 576x576mmArchive

Code 1239100068

The EPV6 is a high resolution SMD LED display panel designed for indoor applications. With a 6mm pixel pitch and a compact cabinet design it makes it ideal for corporate, production and installation applications. Integrated power / data on-board, easy rigging and quick connections make this unit ideal for portable applications.

Code 1239100068

EPV6 SMD LED Video Panel 576x576mm

Technical Data

- 6mm Pixel Pitch for High Resolution
- Seamless Mechanical System
- Easy To Hang / Rig
- Wide Viewing Angle (H 140° / V 110°)
- High Contrast Levels and extreme brighness
- High Refresh Rates For Flicker Free Performance
- Slim Cabinet Design

Specifications

- 3-in-1 RGB SMD LEDs, type 3528
- Long Life LEDs (rated at 100,000 Hours)
- 6mm Pixel Pitch
- 3000 Nits brightness
- Frame Size 576mm x 576mm x 80mm
- Refresh Rate ≥2400Hz
- Contrast ratio ≥8192:1
- 16bit Processing Depth
- 9216 pixels (96 x 96) Pixels per Panel
- 27.777 pixel per square meter
- Scanning Rate 300Hz
- Viewing angle: H140°/V110°
- Minimum Viewing distance: 5m
- Locking Ethernet In/Out Data Connnectors
- Locking Power connector In/Out Power link
- Operating temperature: -20 C to +50 C
- Operating humidity: 5%-95%
- 100-240V AC, 50/60Hz (Multi-voltage)
- Power consumption per panel maximal: 325W
- Average power consumption per panel: 205W
- Incl. 0,4m and 1m power & signal cable for horizontal or vertical connection
- Weight: 13.5 kg

Specifications and documentation subject to change without notice
