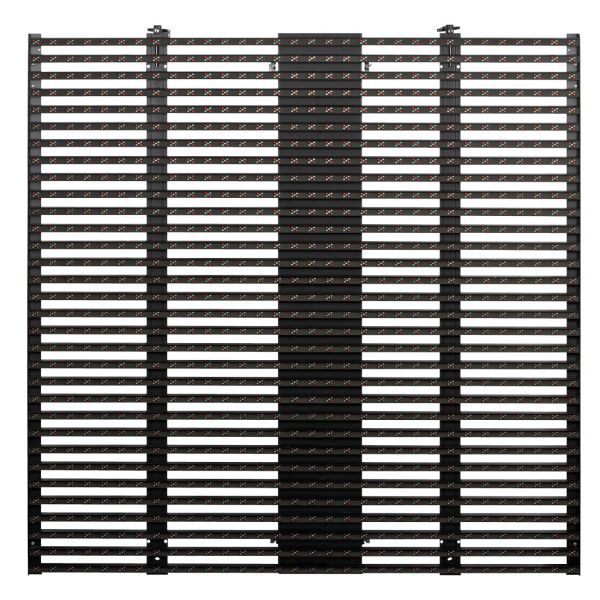

EPV375HO DIP LED Video Panel 1200x1200mm

EPV375HO DIP LED Video Panel 1200x1200mmArchive

Code 1239100090

EPV375 HO by Elation Professional is a PRO Series HIGH BRIGHTNESS LED display that is ideal for achieving see through effects in stage and event application. In designing the EPV375 HO we focused on having the best mechanical design in the market for fast rigging and outdoor rating. Stunning visuals are ensured by 8000 nits, 16-bit processing and a 135° horizontal viewing angle. Our PRO Series LED display is made of aluminum structure making it lightweight, rugged and strong. Rigging...

Code 1239100090

EPV375HO DIP LED Video Panel 1200x1200mm

Technical Data

FEATURES:

. IP65 outdoor rated

. 37.5mm pixel pitch

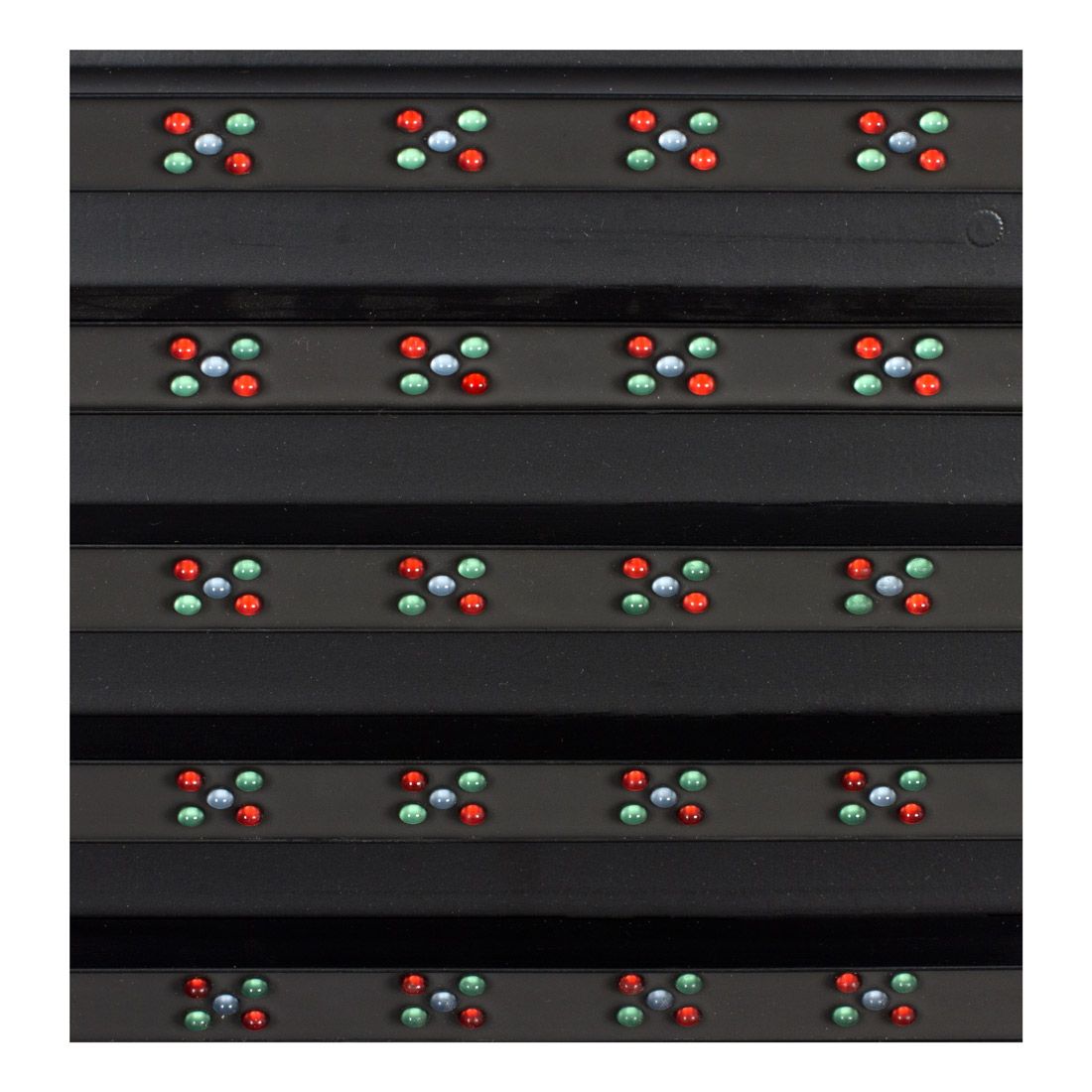

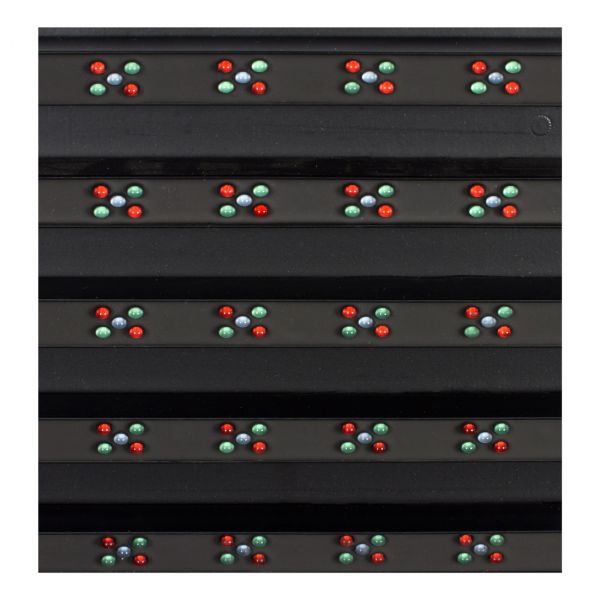

. RRGGB DIP LED system

. Full viewing angle color stability

. Seamless assembling

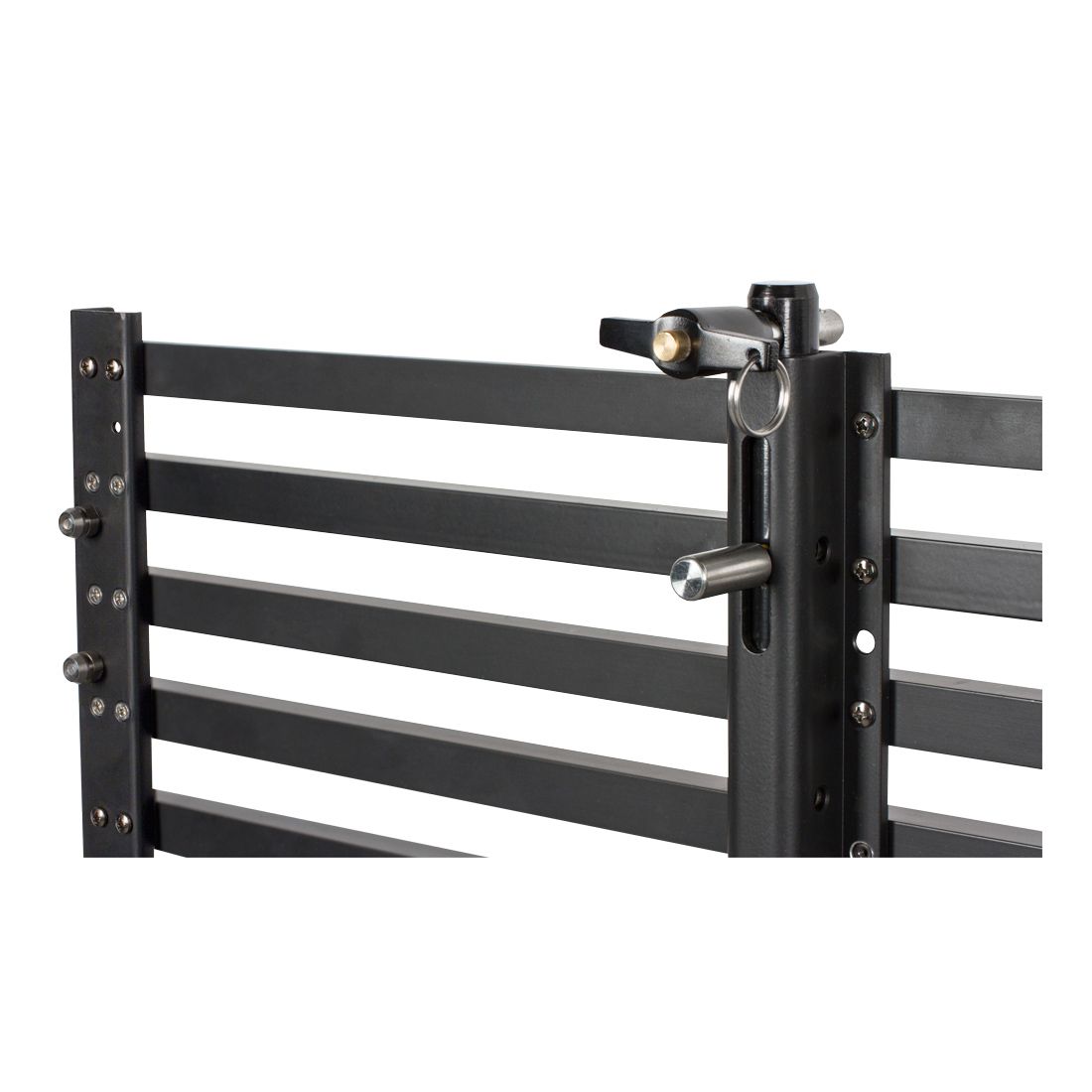

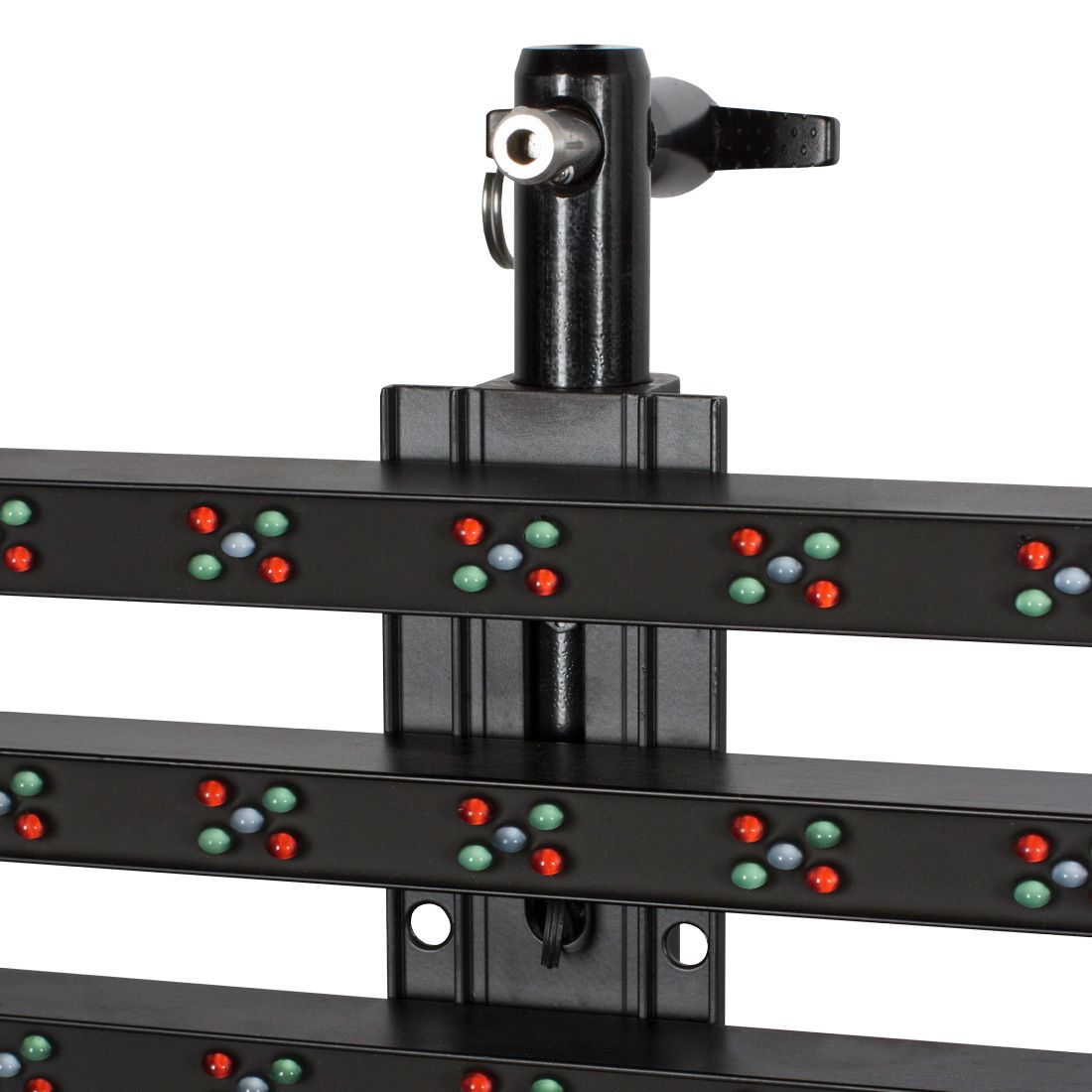

. Slim cabinet design, easy to hang/rig

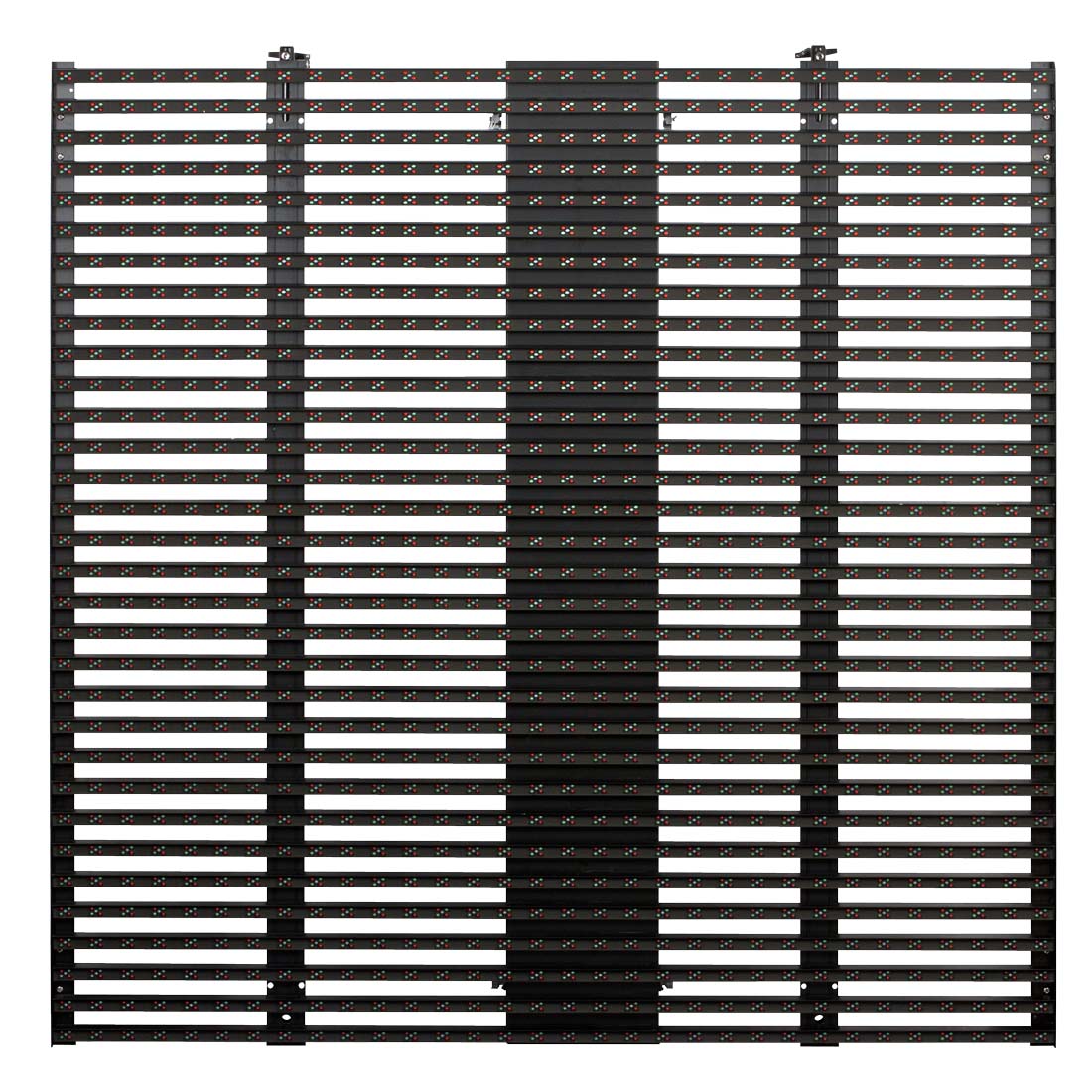

. Lightweight, super-thin, semi-transparent

SPECIFICATIONS:

. IP65 Outdoor rated

. Single Color RRGGB DIP LED´s

. Long Life LED (rated at 100,000 Hours)

. 37.5mm Pixel Pitch

. 8000 Nits Brightness

. Frame Size 1200mm x 1200mm x 105mm

. Refresh Rate =2000Hz

. Contrast ratio =8192:1

. 16bit Processing Depth

. 1024 pixels (32 x 32) Pixels per Panel

. 720 pixel per square meter

. Scanning Rate 300Hz

. Viewing angle: H110°/V50°

. Minimum Viewing distance 20m

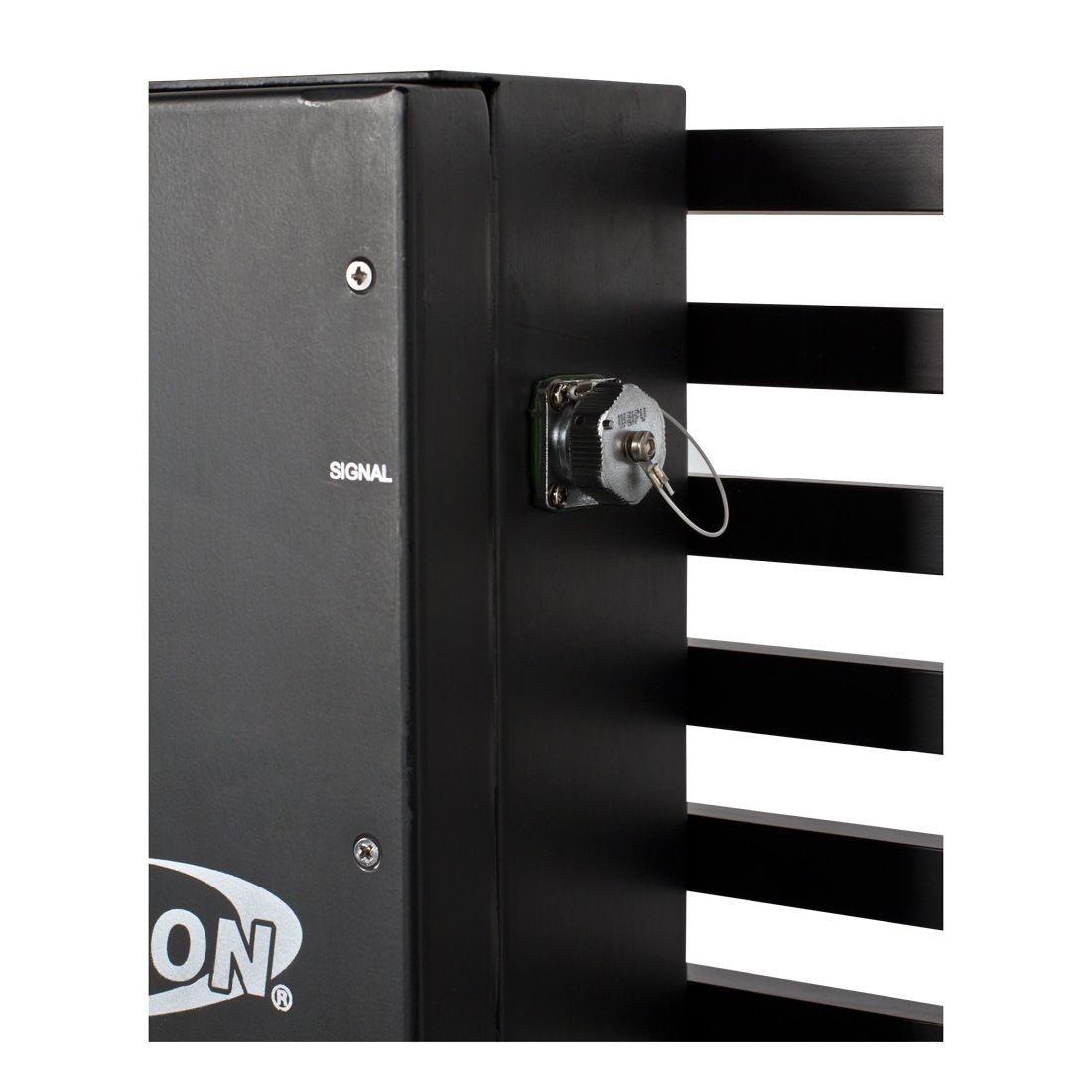

. Weipu outdoor data connectors

. Weipu outdoor power link

. Operating temperature: -20 C to +50 C

. Operating humidity: 5%-95%

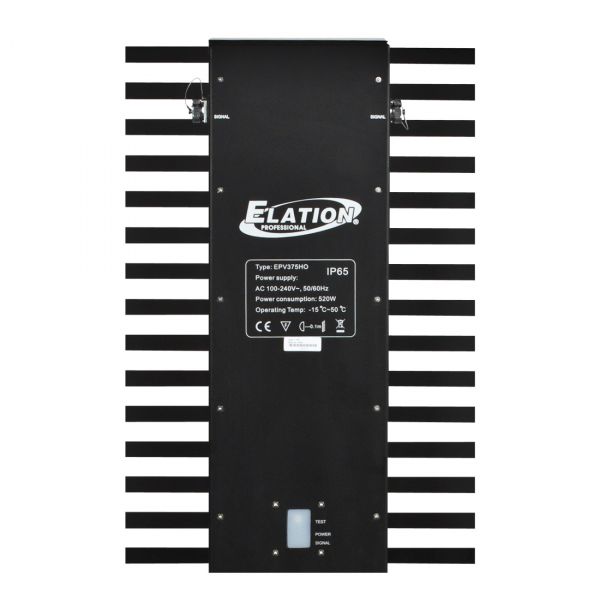

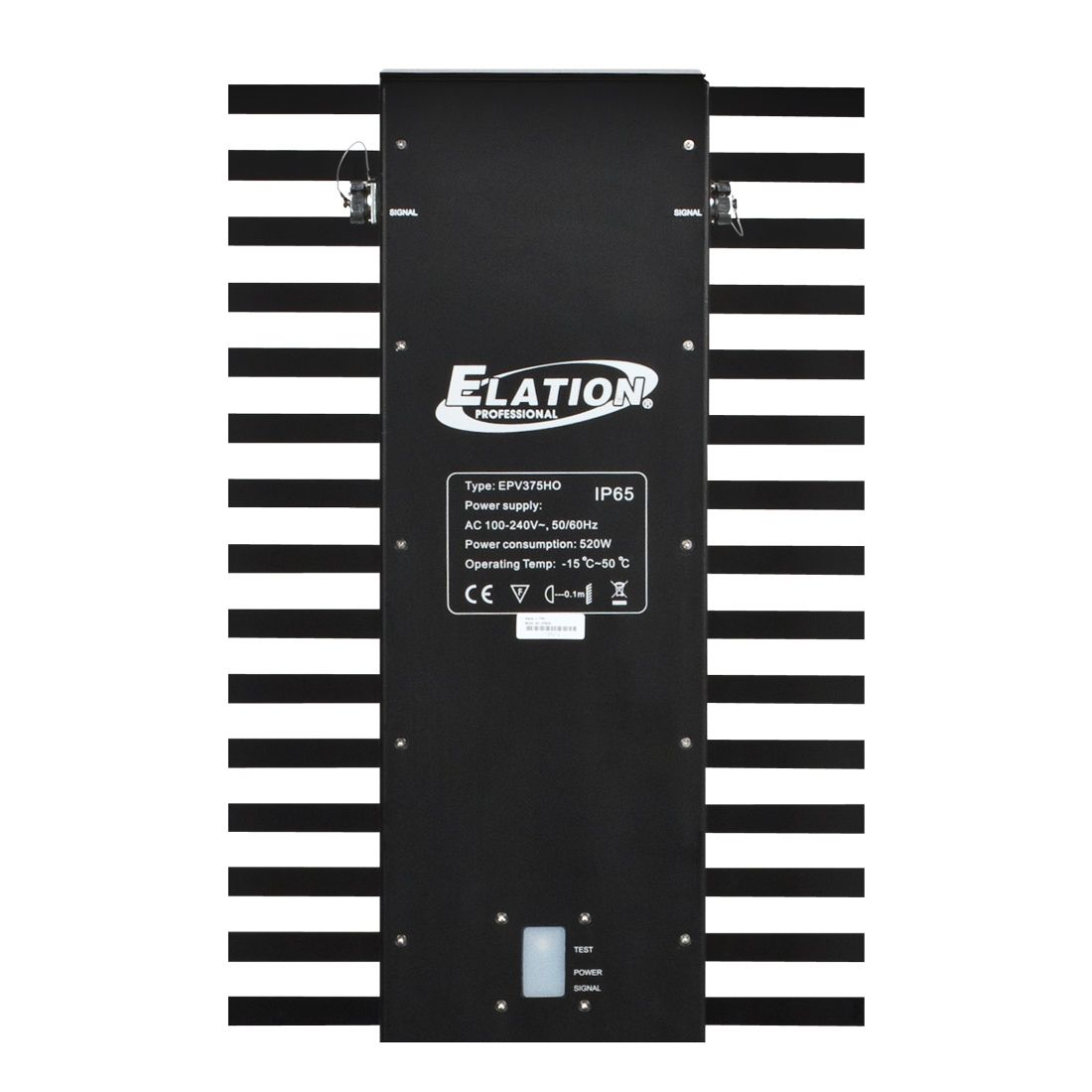

. 100-240V AC, 50/60Hz (Multi-voltage)

. Power consumption per panel max.: 520W

. Weight: 25 kg

Specifications and documentation subject to change without notice
