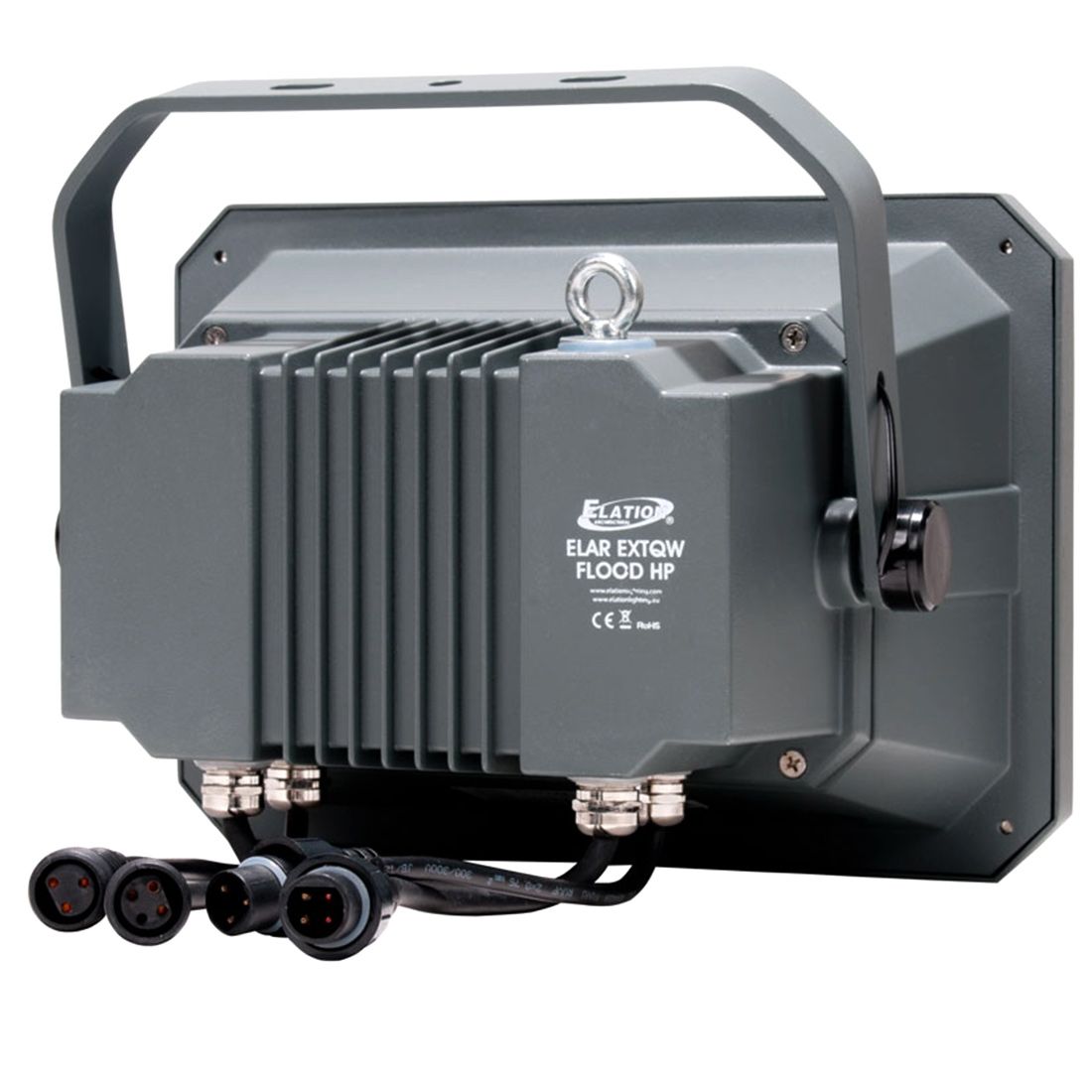

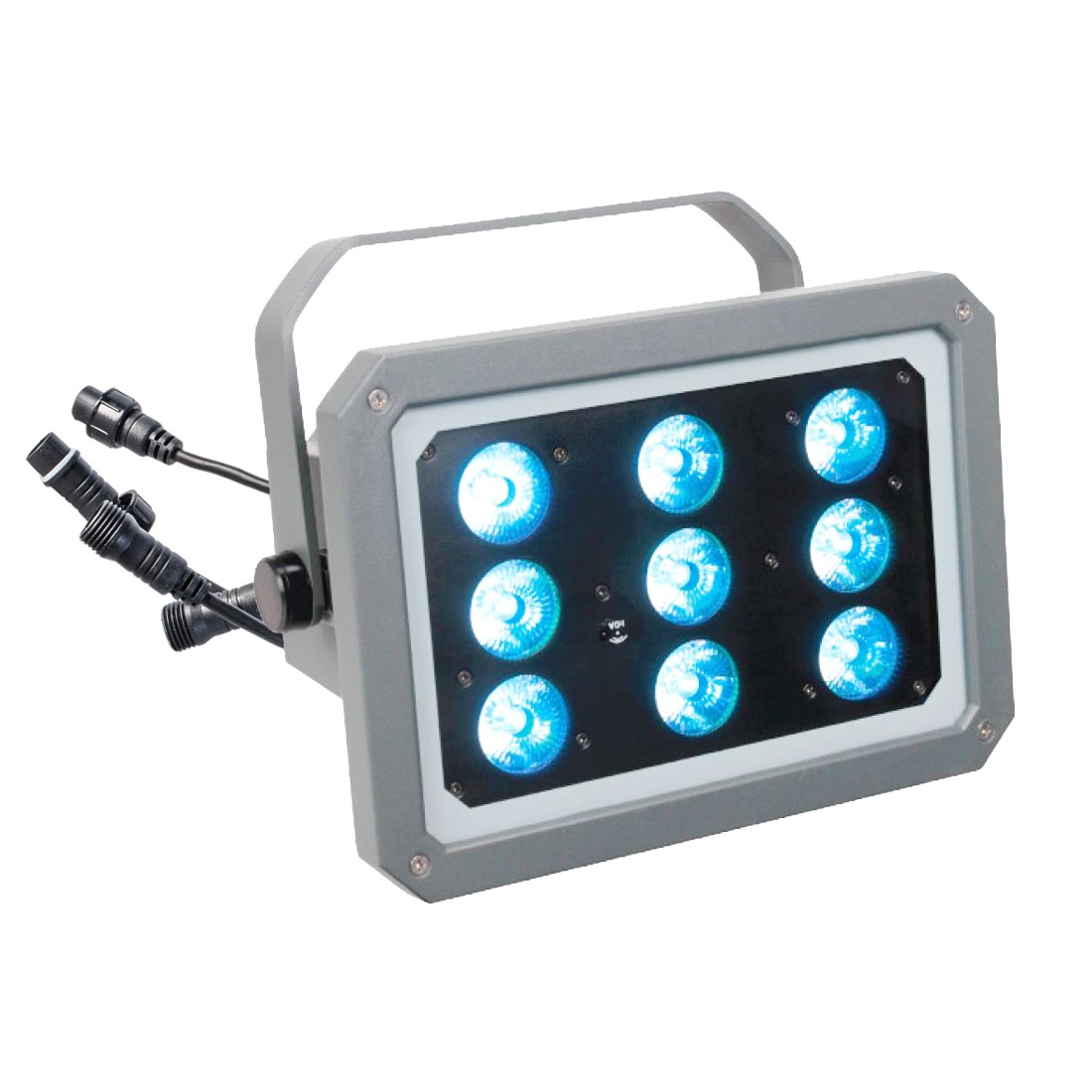

ELAR EXTQW FLOOD HPArchive
Code 1236300057
Code
1236300057
FEATURES
IP65-Rated
25° Beam Angles
Full RGBW Color Mixing
Die-Cast Aluminum Housing / Tempered Glass
IR Remote Programmable
Flicker Free Operation for TV and Film
RDM - Remote Device Management
SOURCE
(9) 5W QUAD Color (RGBW) LEDs
50,000 Hour Average LED Life
PHOTOMETRIC DATA
1,736 LUX @ 3m (25°)
EFFECTS
Color + Variable Strobe Macros
Electronic Dimming: 0% - 100%
COLOR
Full RGBW Color Mixing and Color Macros
CONTROL / CONNECTIONS
(8) DMX Channel Modes (1 / 2 / 3 / 4 / 5 / 6 / 7 / 8)
Power Link Multiple Units (10) at 120V (20) at 240V
3pin IP DMX In/Out
4pin IP Power In/Out
SIZE / WEIGHT
Length: 11.8” (298mm)
Width: 8.3” (210mm)
Vertical Height: 9.8” (249mm)
Weight: 9.9 lbs. (4.5 kg)
ELECTRICAL
AC 100-240V - 50/60Hz
56W Max Power Consumption
INCLUDED ITEMS
(1) 4pin Female to CEE 7/7 Power Cable 8 ft. (2.4m)
(1) 3pin IP Male to 3pin XLR Female DMX Cable 6.6 ft. (2m)
(1) 3pin IP Female to 3pin XLR Male DMX Cable 6.6 ft. (2m)
(1) Bag of DMX End Caps

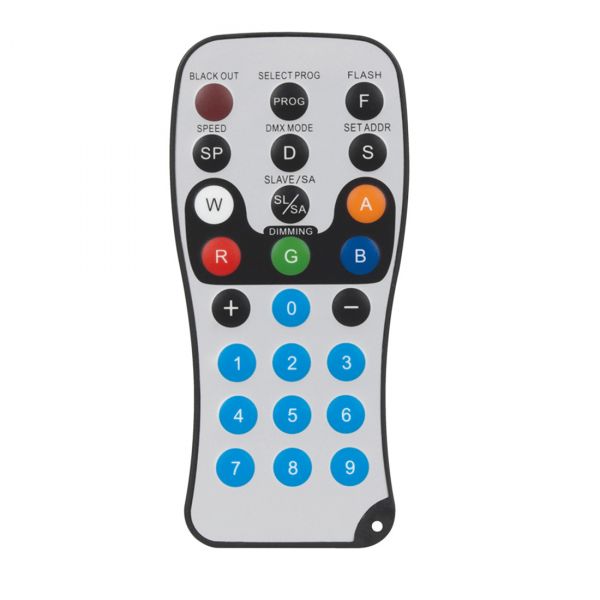

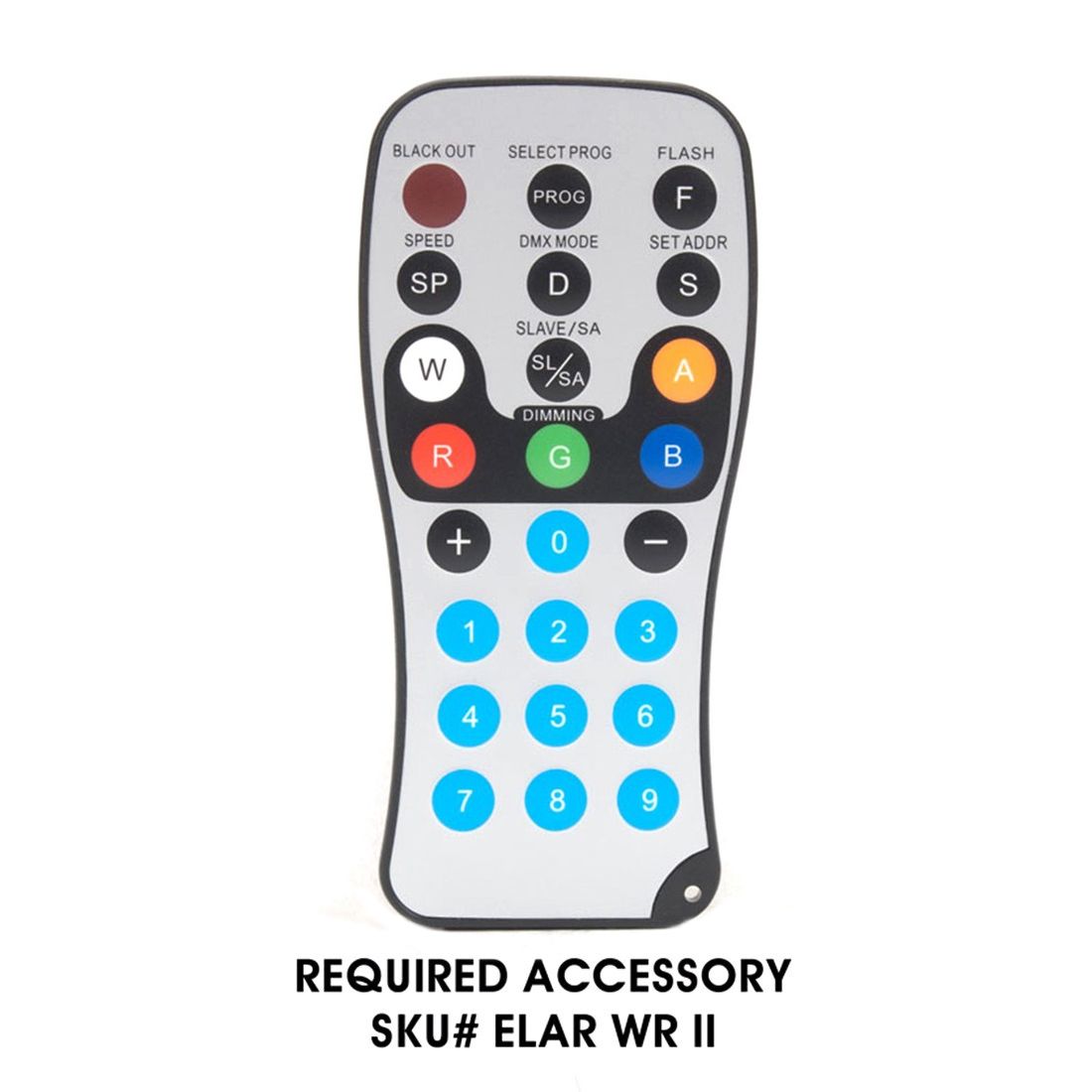

Elar WR II Remote required!
Specifications and documentation subject to change without notice
