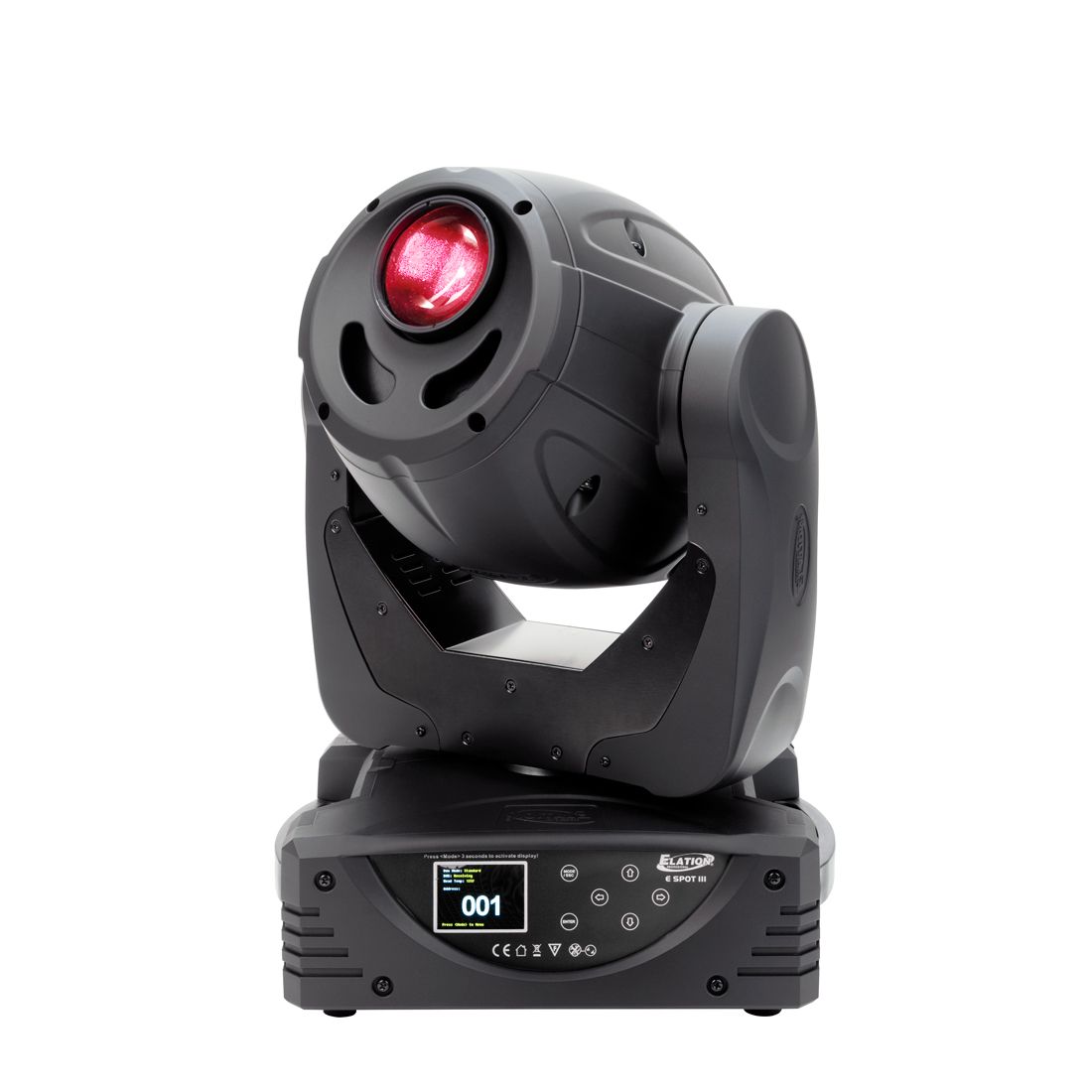

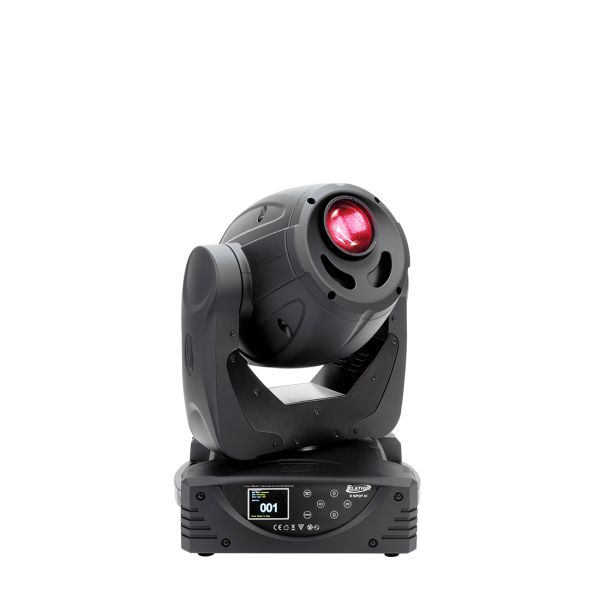

E Spot III

The E Spot III™ features a 90W Cool White (6,500K) LED engine, a 19° beam, 8 dichroic colors including white (open), 7 rotating, interchangeable glass & metal gobos, 3-facet and infinity rotating prisms, wash frost filter, motorized iris and focus, variable dimming curves, DMX, RDM (Remote Device Management), locking 3/5pin DMX in/out and locking power in connections, flicker free operation for TV and Film, 6 button control full color 180° reversible menu display, 180W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

90W Cool White LED Spot Luminaire
19° Fixed Beam Angle
Wash Frost Effect
Motorized Iris and Focus
3-Facet and Infinity Rotating Prisms
Low Heat, Quiet Operation, Hibernation Mode
Variable Dimming Curves
Flicker Free Operation for TV and Film
RDM – Remote Device Management


SOURCE

90W Solid State Cool White (6,500K) LED Engine
20,000 Hour Average LED Life*


PHOTOMETRIC DATA

1,960 LUX 182 FC @ 16.4’ (5m)


EFFECTS

3-Facet and Infinity Rotating Prisms
Wash Frost Effect
Motorized Iris and Focus
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves


COLOR

8 Dichroic Colors + White (Open)


GOBOS

7 Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD 26.8mm / ID 21.4mm**


CONTROL / CONNECTIONS

(3) DMX Channel Modes (14 / 16 / 20)
RDM (Remote Device Management)
6 Button Touch Control Panel
180° Reversible Full Color LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement

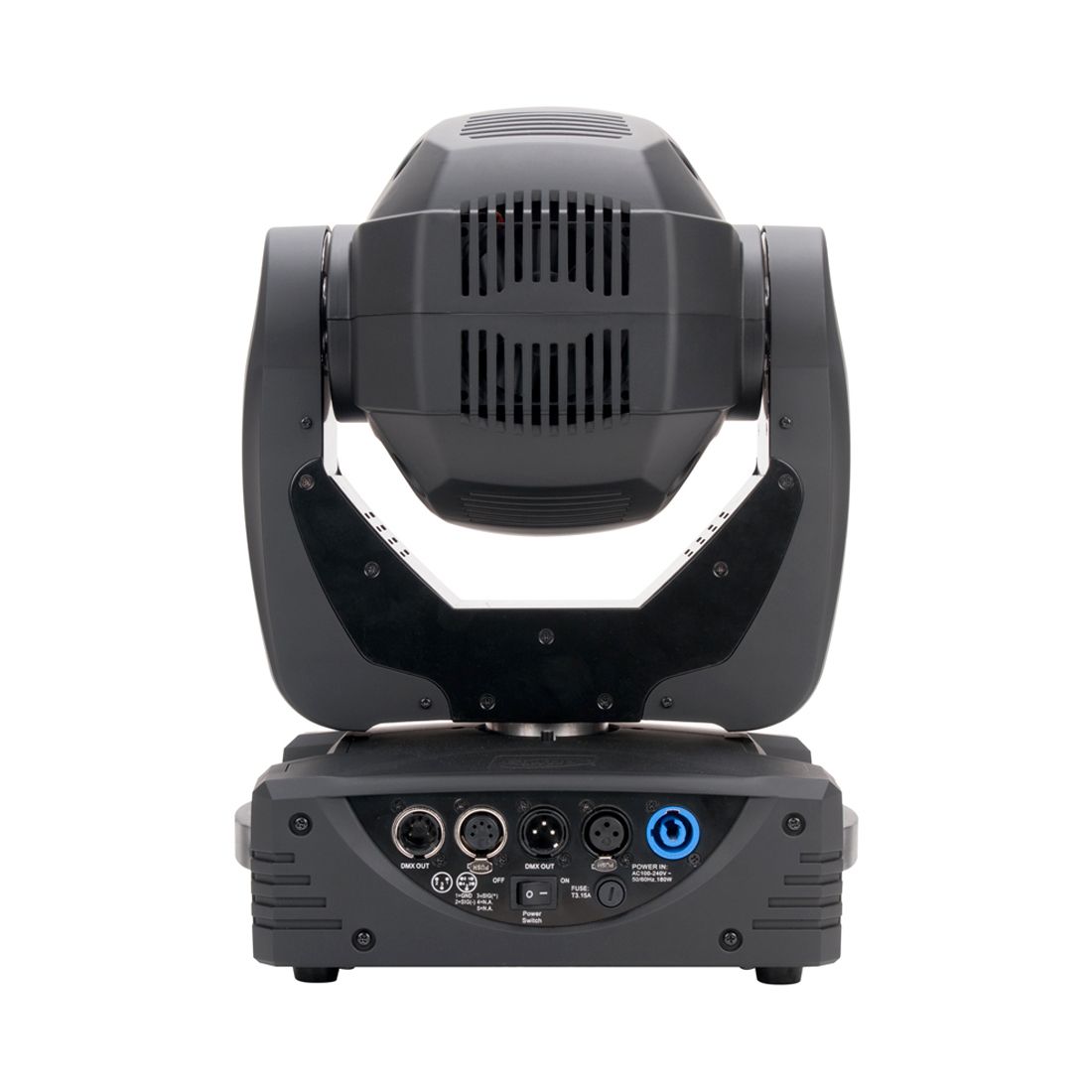

Locking 3/5pin DMX In/Out
Locking power connector In


SIZE / WEIGHT

Length: 11.8” (300mm)
Width: 8.1” (205.5mm)
Vertical Height: 17.2” (437mm)
Weight: 23.0 lbs. (10.4 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
180W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


OPTIONAL ACCESSORIES

1227000013 WP-02 Outdoor Dome
1521000113 Touring Case 4x E Spot
1521000219 PRO Case 4x E Spot
1322000054 E Loader III


FIRMWARE UPDATES

Current firmware can be found here (login required)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.


Specifications and documentation subject to change without notice
