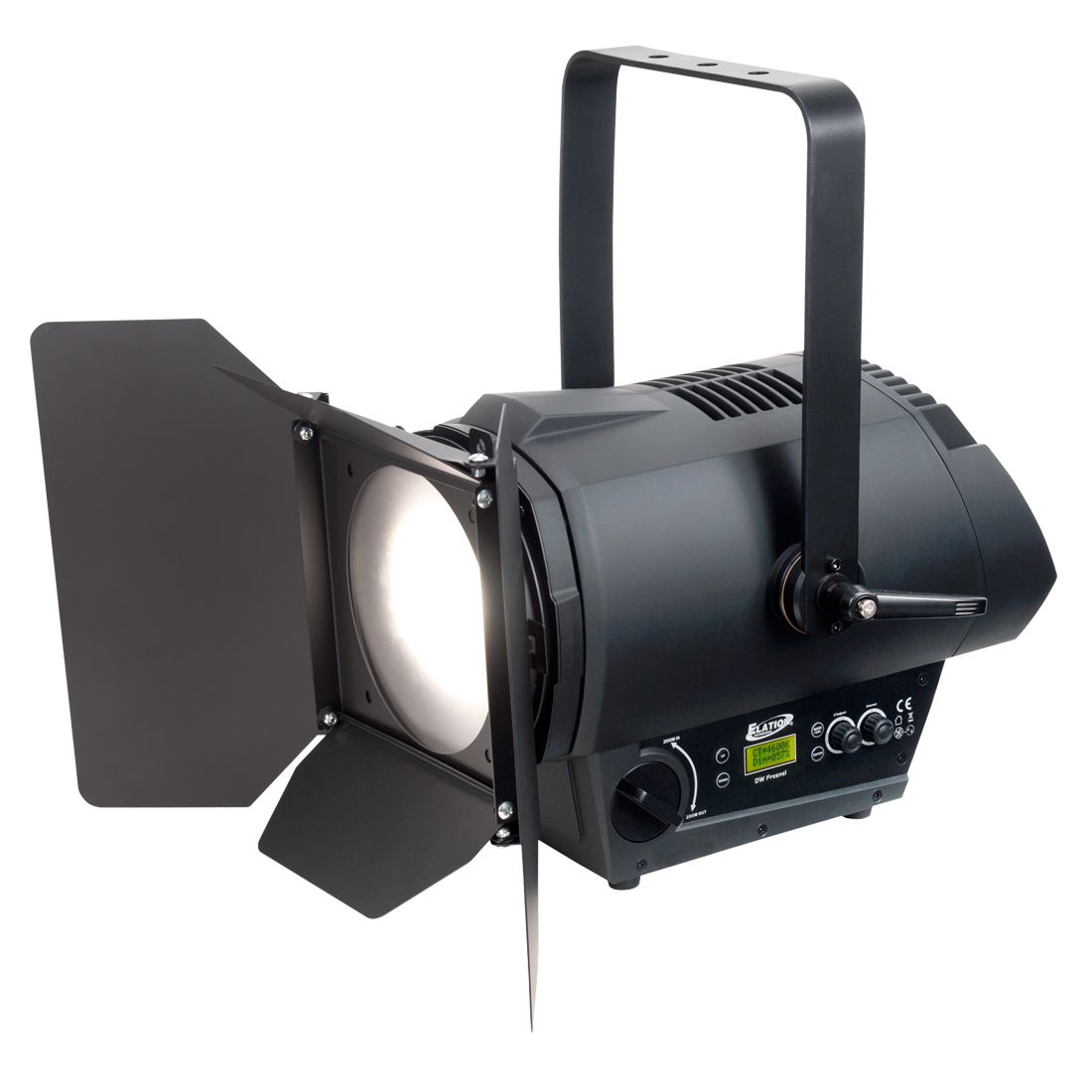

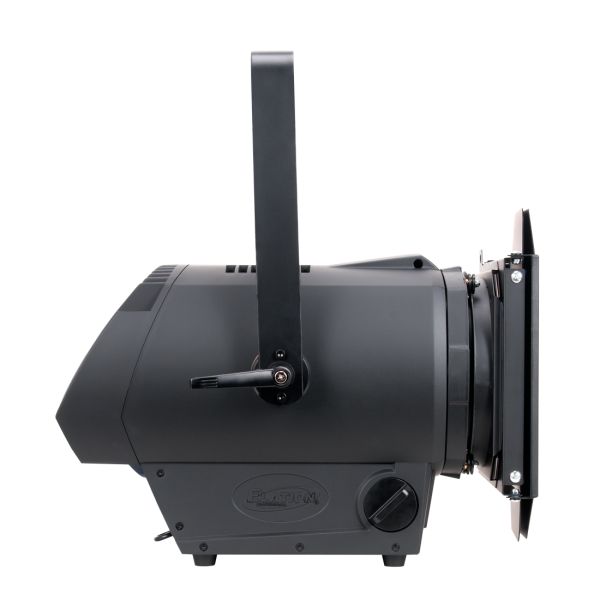

DW Fresnel

The DW Fresnel™ features a 250W dynamic LED engine, 13° to 41° manual zoom, variable color temperature settings (3,200K - 6,000K), no noise thermo-optical cooling, manual and DMX-controlled color temperature and dimming, rotating barn doors and gel frame with frost filter included, variable dimming curves, DMX, RDM (Remote Device Management), locking 3/5pin DMX in/out and locking power in connections, flicker free operation for TV and Film, 4 button 2 dial control panel, 320W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

High Powered Dynamic LED Fresnel

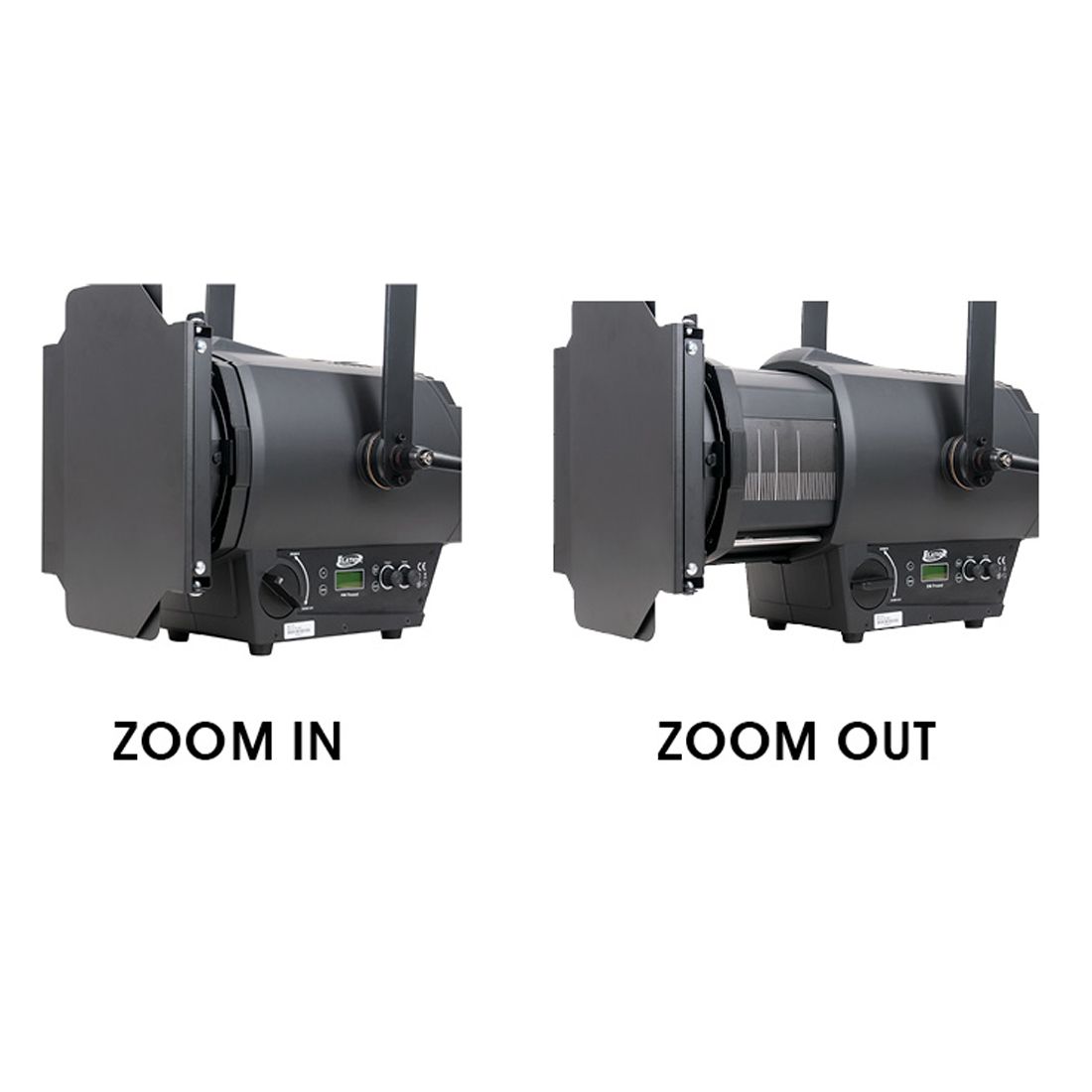

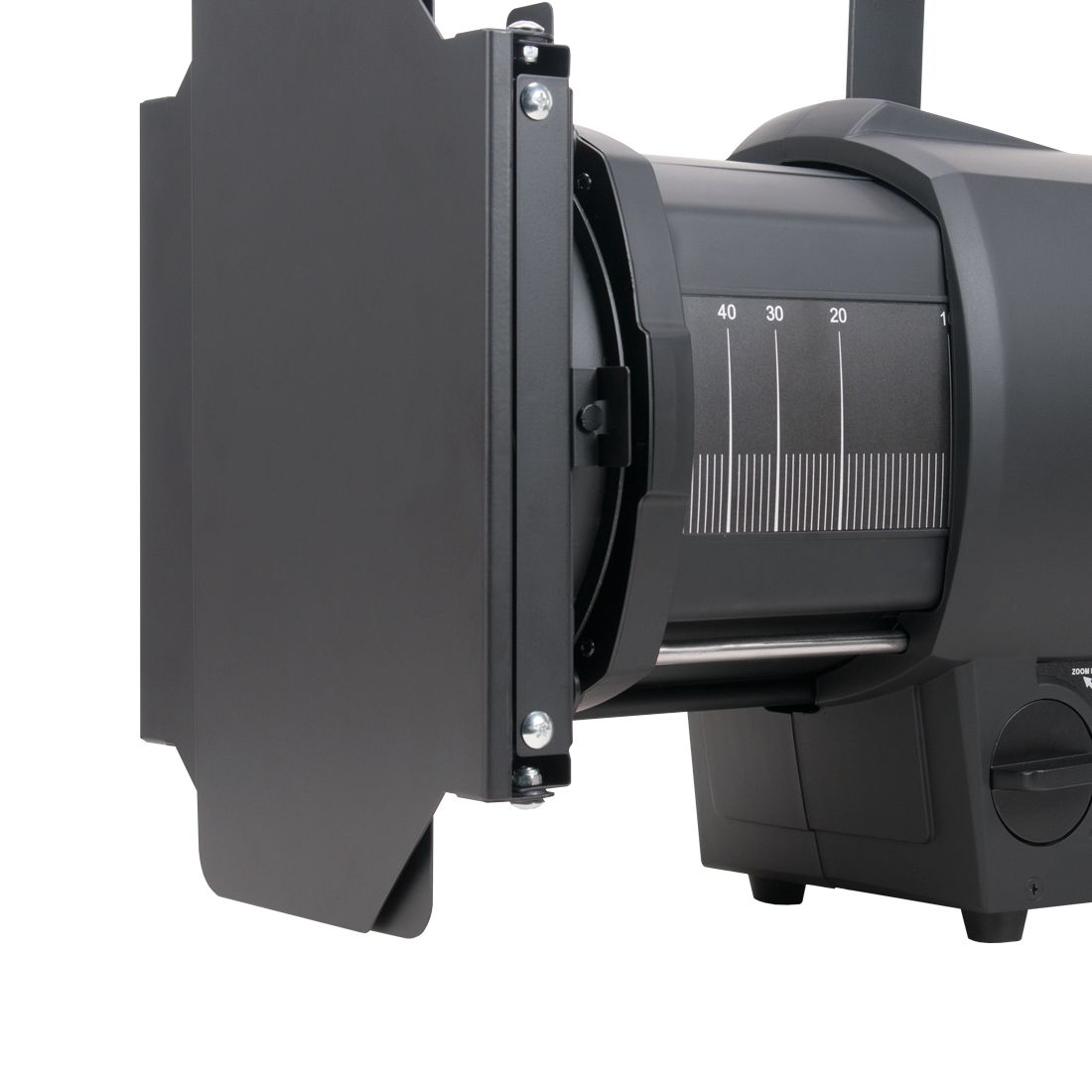

13° - 41° Manual Zoom
Variable Color Temperature (3,200K - 6,000K)
Manual and DMX Controlled Color Temperature and Dimming
Thermo-Optical Cooling Technology
No Noise – Silent Operation
Variable Dimming Curves
Flicker Free Operation for TV and Film
RDM – Remote Device Management


SOURCE

250W Dynamic White LED Engine
>93 CRI, 3,200K – 6,000K
100,000 Hour Average LED Life*


PHOTOMETRIC DATA

Lens Diameter: 7” (175mm)
13,422 LUX 1,247 FC @ 9.8’ (3m) (4,800K Min. Zoom)
1,690 LUX 157 FC @ 9.8’ (3m) (4,800K Max. Zoom)


EFFECTS

Strobe: 1-18fps
Electronic Dimming: 0% - 100%
Variable Dimming Curves


COLOR

Cool White + Warm White
Variable Color Temperatures (3,200K – 6,000K)


CONTROL / CONNECTIONS

3 DMX Channels Modes (2 / 3 / 8)
RDM (Remote Device Management)

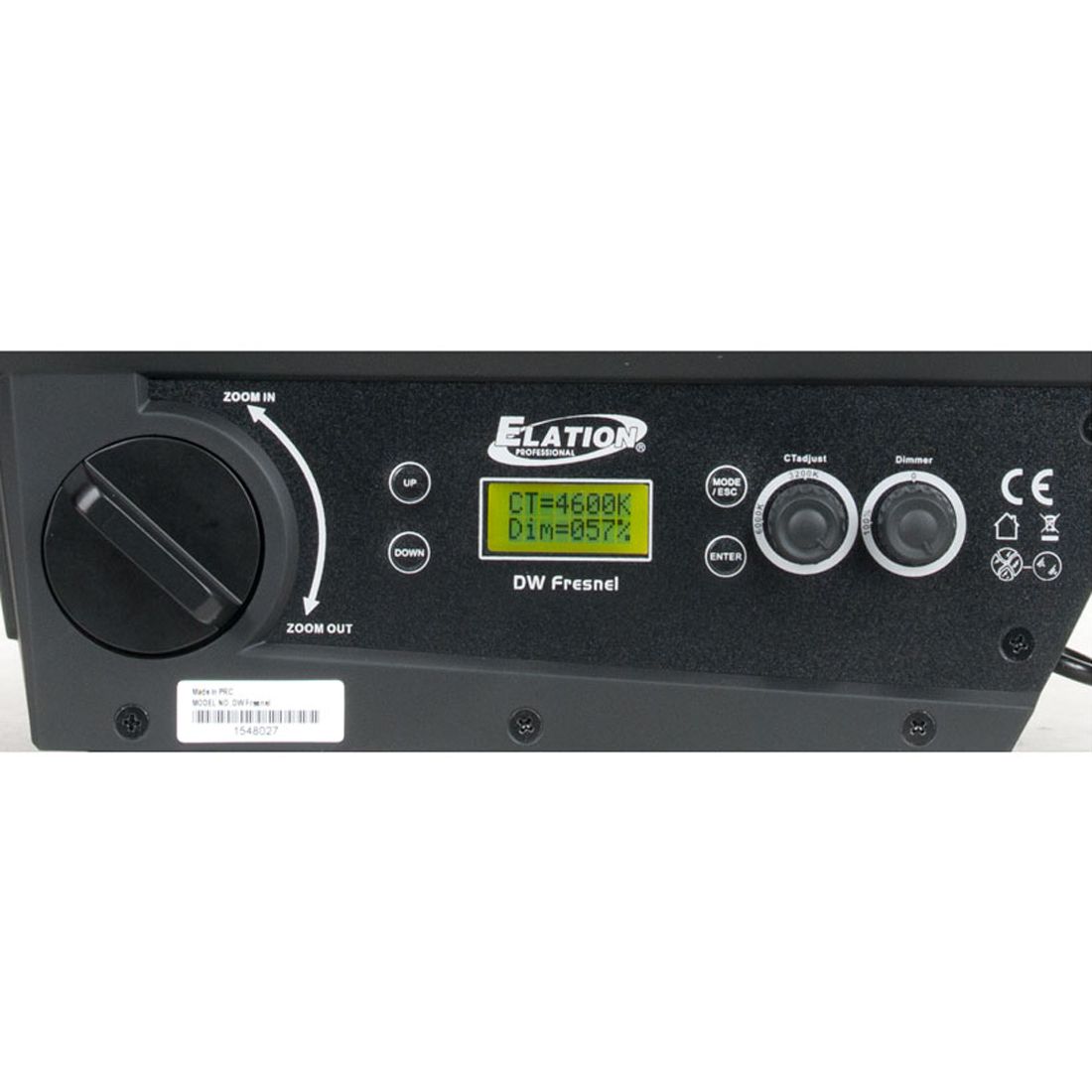

4 Button and (2) Dial Control Panel
LCD Menu Display
Manual and DMX Controlled Color Temperature and Dimming

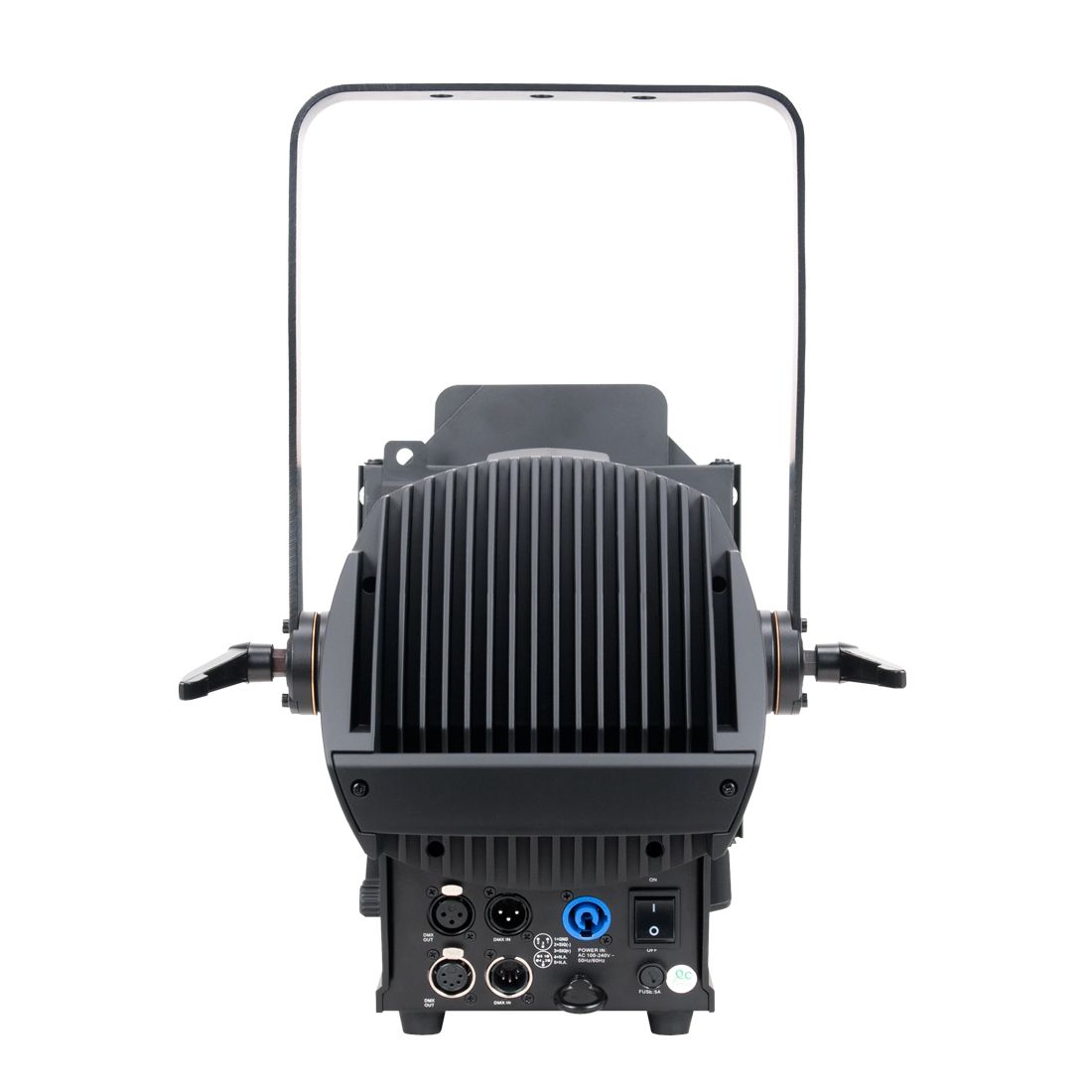

Locking 3/5pin DMX In/Out
Locking power connector In


SIZE / WEIGHT

Length: 15.4” (391mm)
Width: 10.4” (264mm)
Vertical Height: 11.6” (295mm)
Weight: 24.0 lbs. (10.9 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
320W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


INCLUDED ITEMS

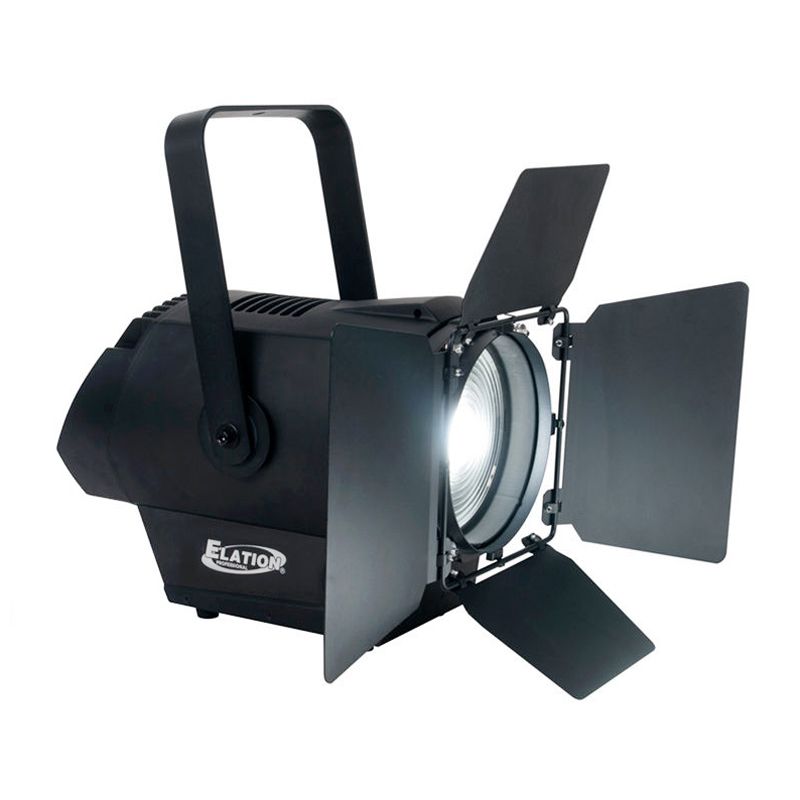

Rotating Barn doors
Gel Frame Holder
Frost Filter


OPTIONAL ACCESSORIES

1322000054 E Loader III


FIRMWARE UPDATES

Current firmware can be found here (login required)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


Specifications and documentation subject to change without notice
