DTW Par 300

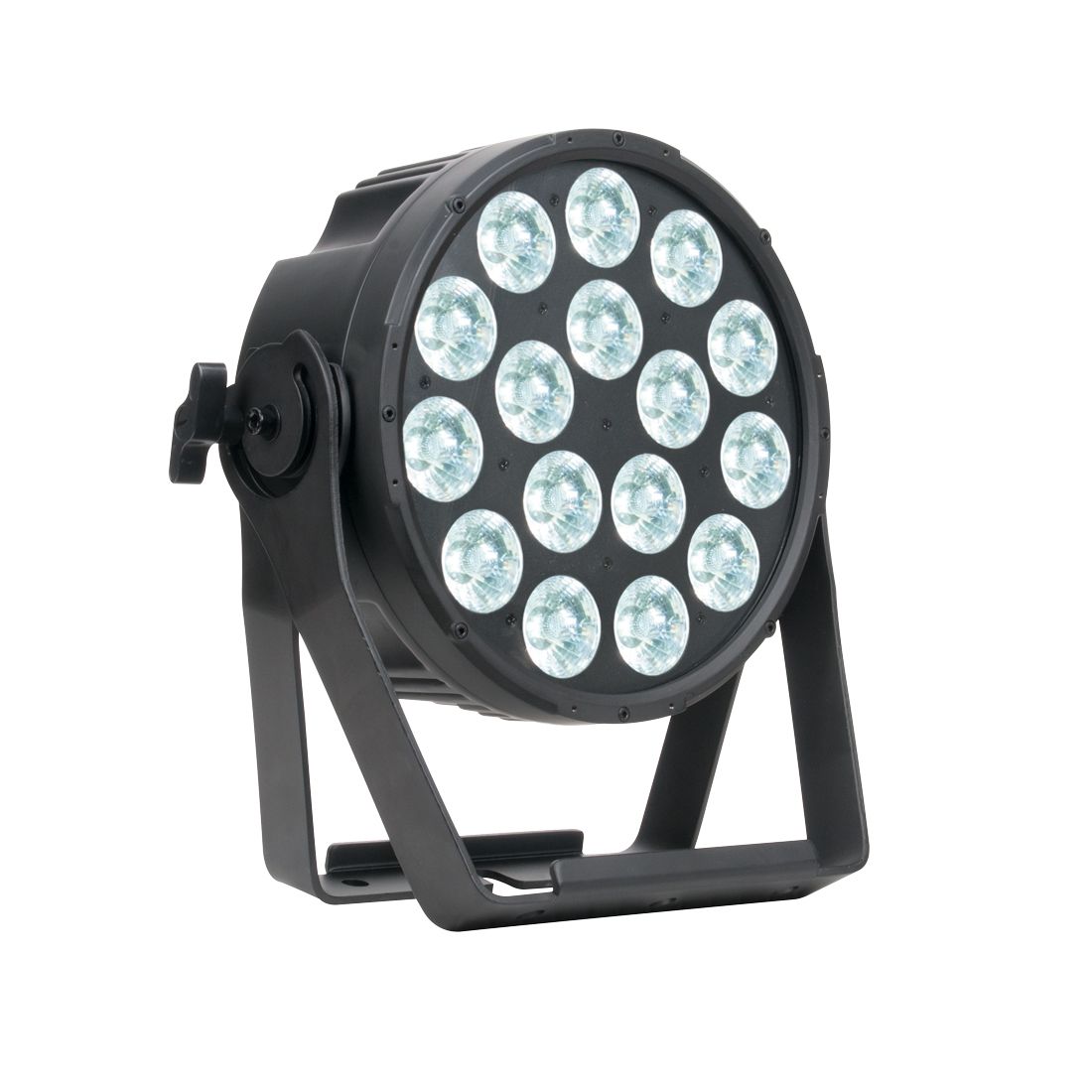

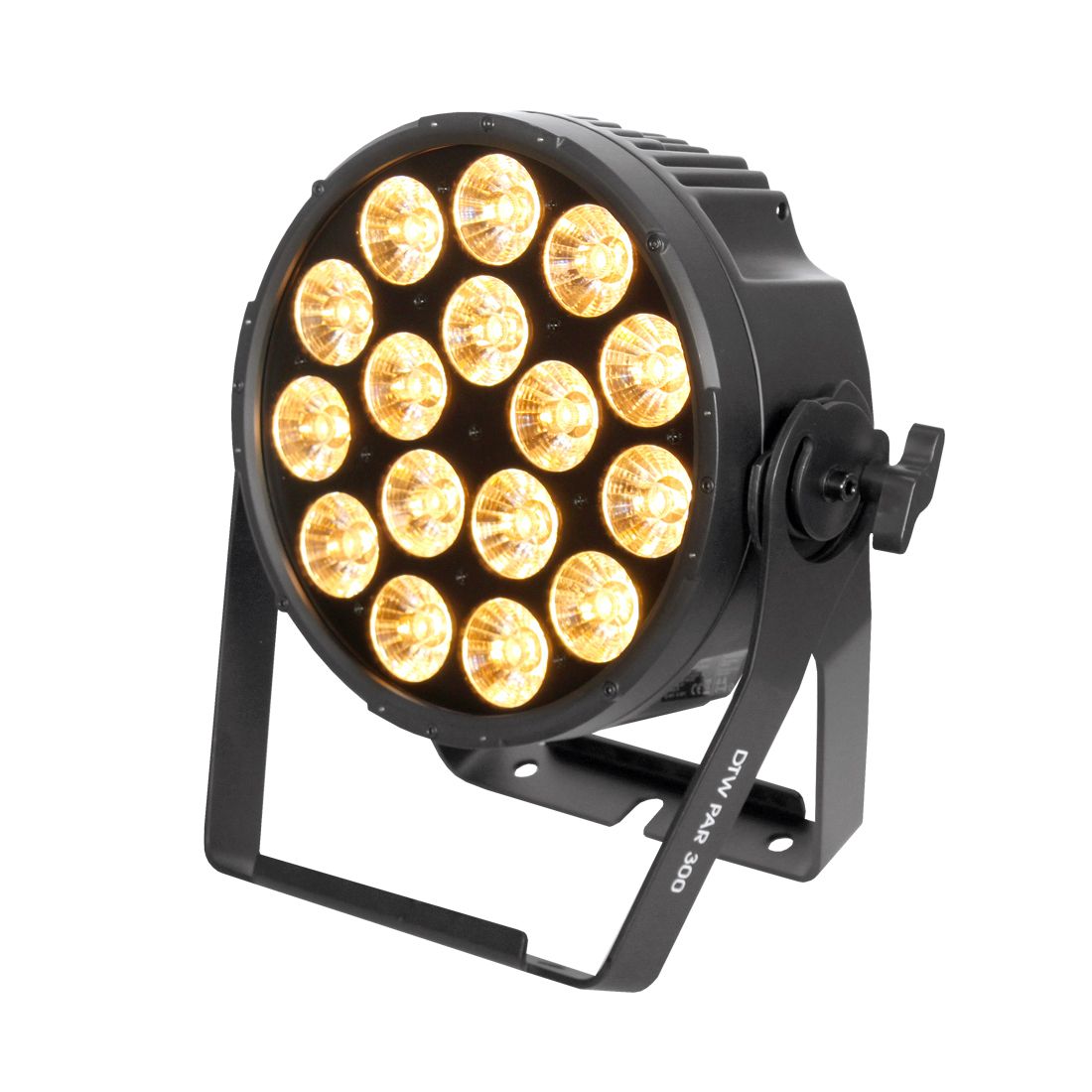

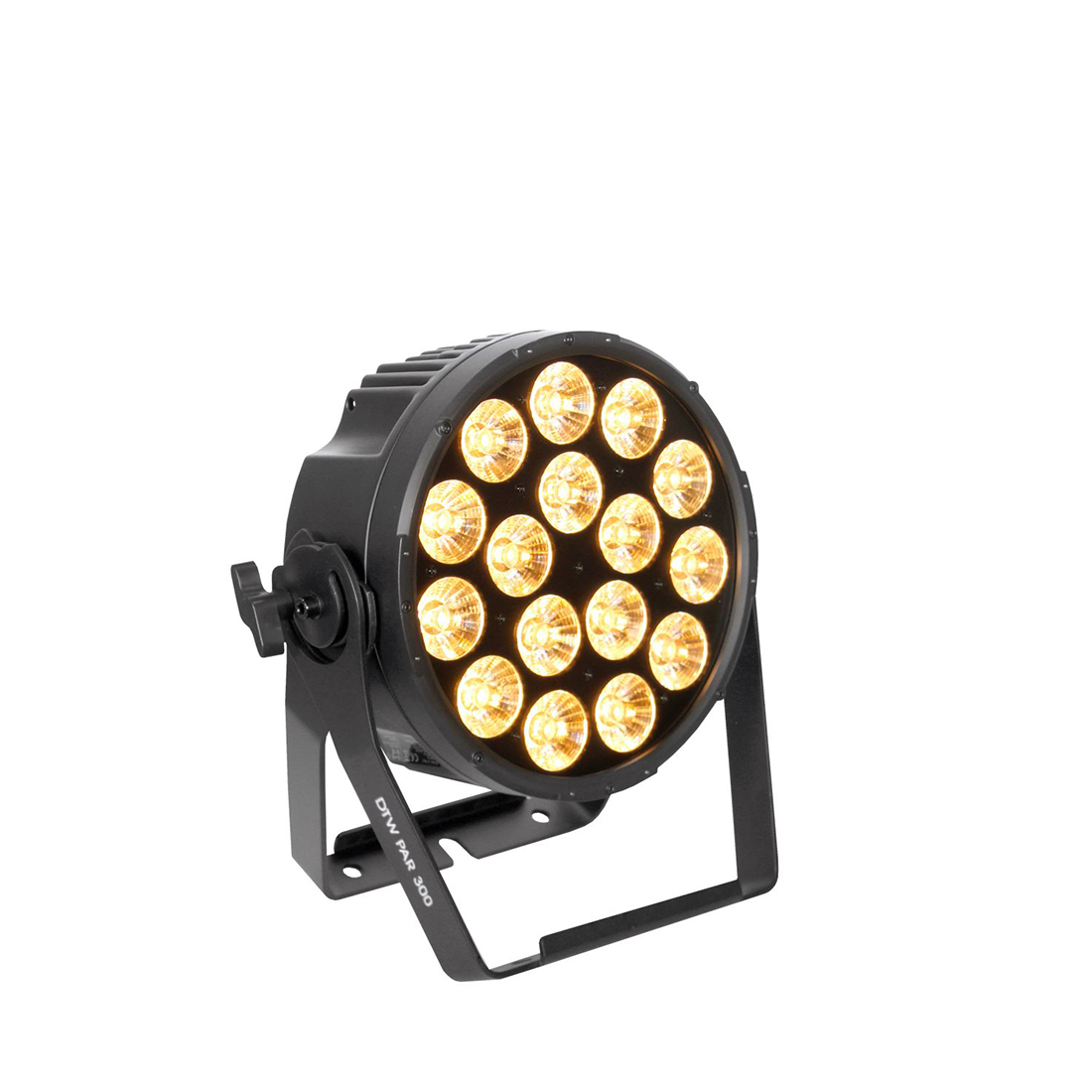

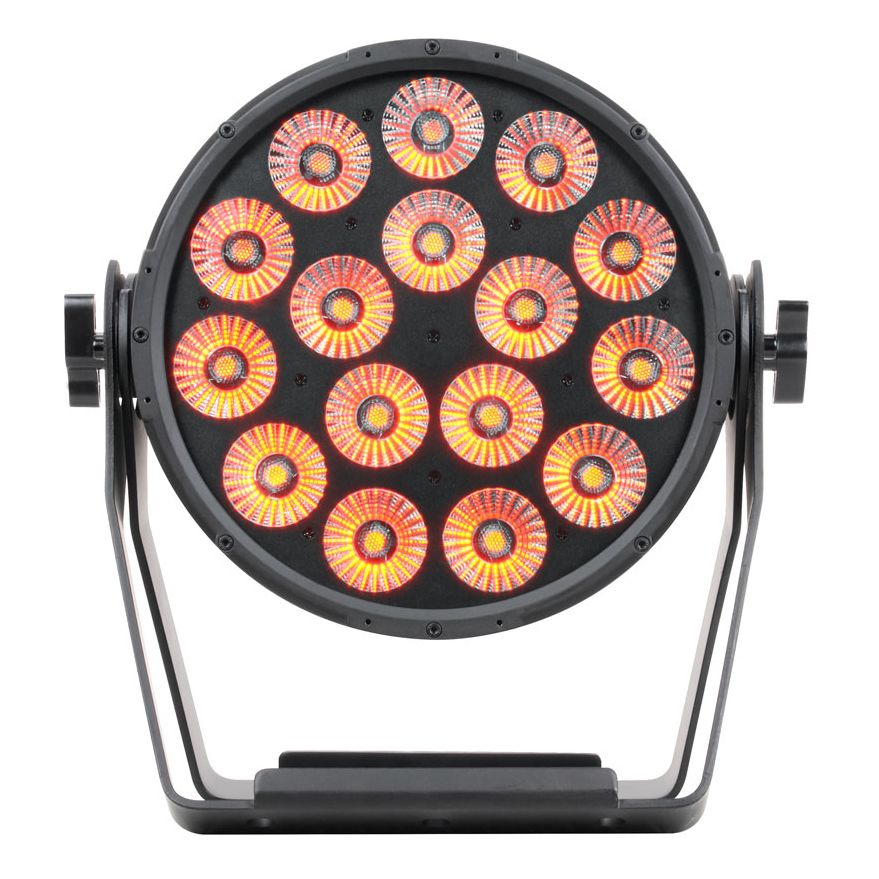

The DTW PAR 300™ features (16) 10W multi-chip CW / WW / Amber LEDs, 23° beam angle, full color temperature range control from Tungsten to Daylight (2,700K - 6,500K) and a unique “Dim-to-Warm” function that allows dimming from Tungsten to Amber at zero to emulate the halogen lamp decay when dimming, variable dimming curve modes, strobe effects, RDM (remote device management) protocol support, locking 3pin and 5pin XLR DMX and power in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).

Technical Data

FEATURES

23° Beam Angle
Tungsten to Daylight (2,700K - 6,500K)
Unique Dim-to-Warm Channel Control (1,800K - 3,200K)
RDM - Remote Device Management
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM

SOURCE

(16) 10W Multi-Chip CW / WW / Amber LEDs
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

2,635 LUX 245 FC @9.8’ (3m) (23° Full ON)

COLOR

Tungsten to Daylight (2,700K - 6,500K)

EFFECTS

Electronic Strobe and Variable Dim Curves
Unique Dim-to-Warm Channel Control (1.800K - 3.200K)

CONTROL / CONNECTIONS

(7) DMX Channel Modes (8 Total Channels)
4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)

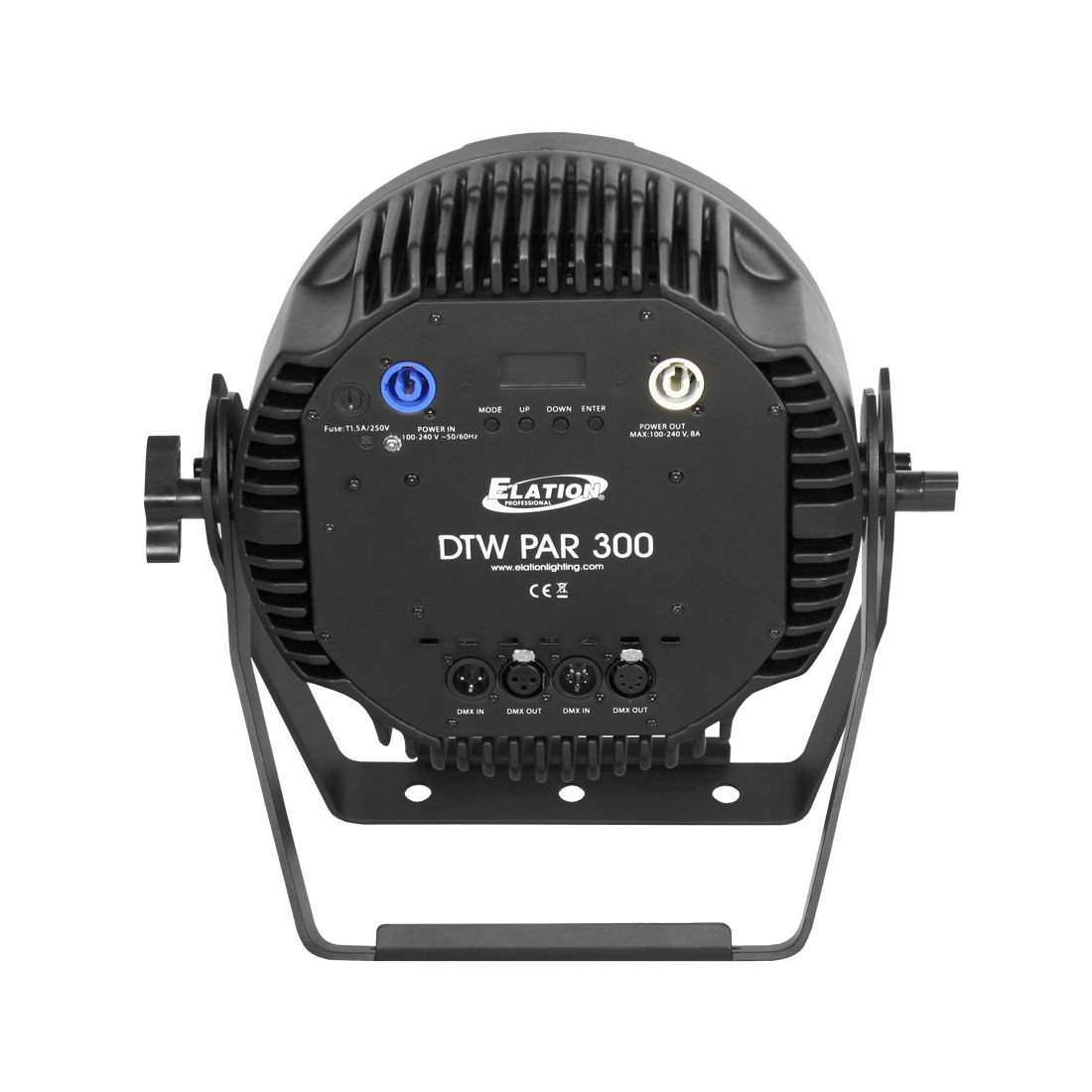

Locking 3pin and 5pin XLR DMX and power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 14.4” (365mm)
Width: 5.1” (129mm)
Vertical Height: 14.7” (373mm)
Weight: 19.0 lbs. (8.6 kg)

ELECTRICAL / THERMAL

AC 110-250V 50/60Hz
170W Max Power Consumption
-5°F to 113°F (-15°C to 45°C)

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
