Design Wash 575EArchive

Code 1237000016

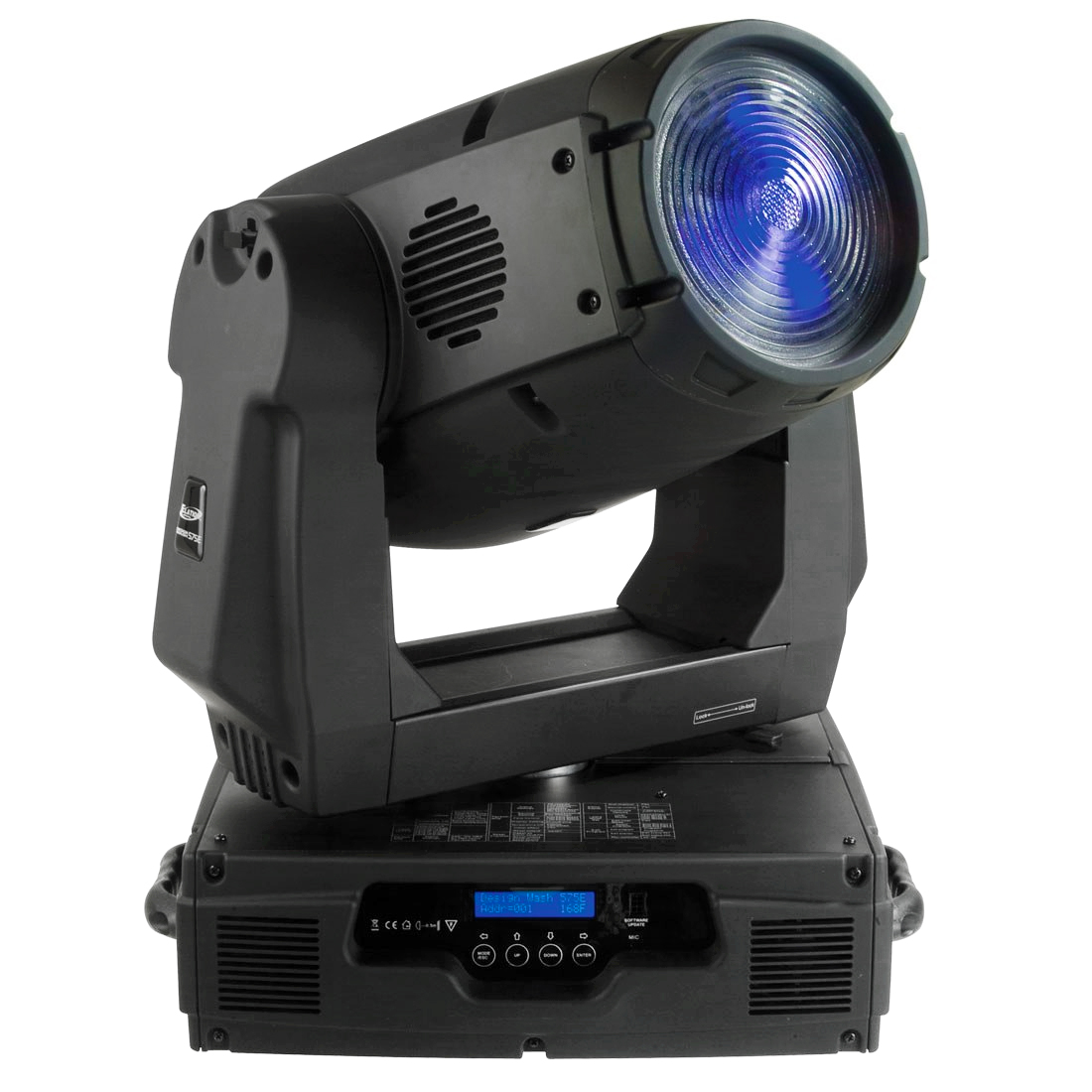

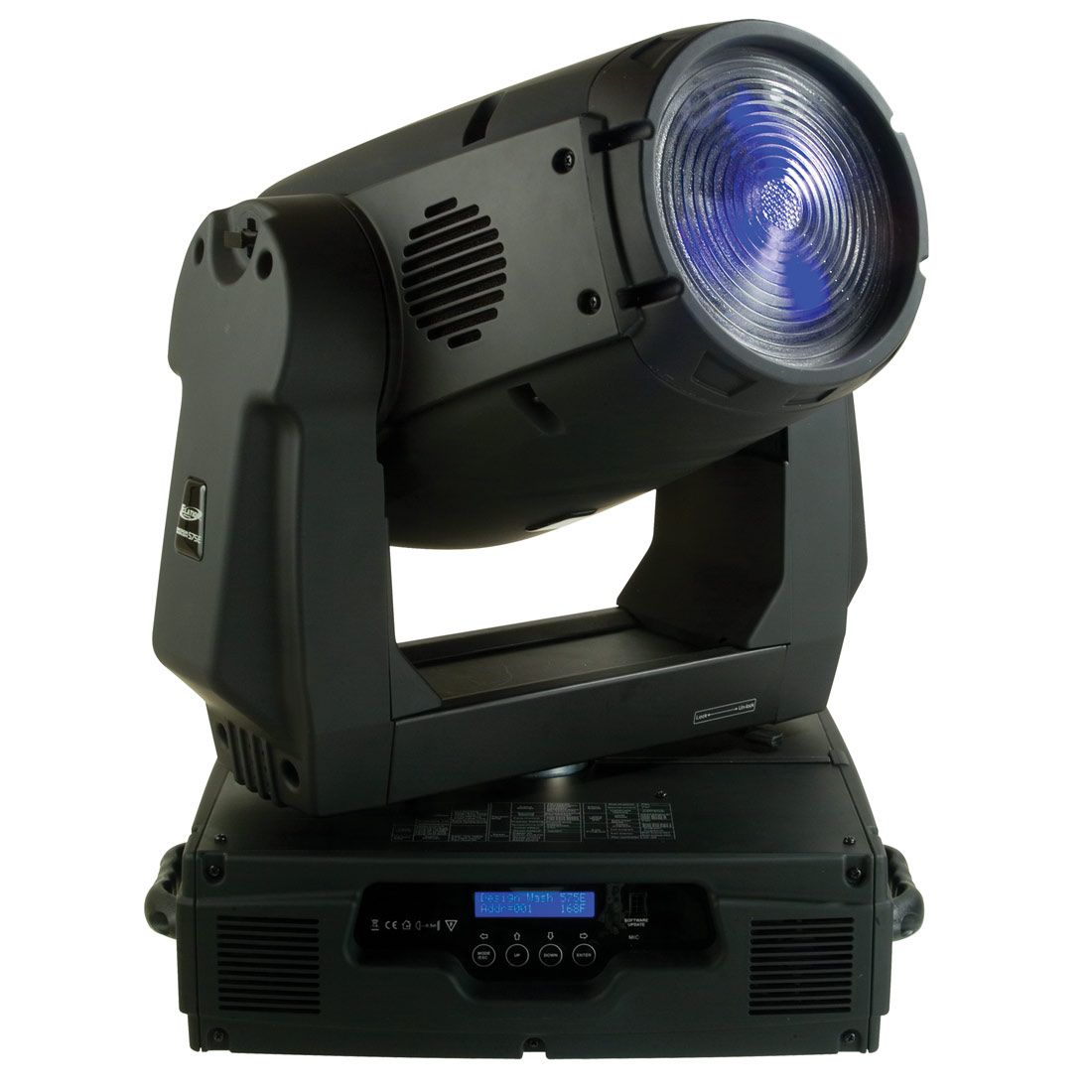

Design Wash 575E

Technical Data

- CMY / 8 Colors
- 3200°K, 5600°K and UV filter
- 13° - 50° Zoom, Rotating Beamshaper
- 630° PAN (2s), 265° TILT (1,5s)
- RDMX + Fan & Lamp Control
- Modular Construction, Pan/Tilt Lock
- Ultrabright Discharge, Premium Lenses

Specifications:
- Phillips MSR 575/2 SA/DE Gold (575W, 7200°K, 1000h) included
- 98.600 Lux @ 2,5m @ 13°
- 13°-50° beam angle
- High output luminous-parabolic dichroic reflector
- All lenses are anti-reflection coated
- CMY gradual color mixing
- 8 interchangable (quickout) dichroic color filters:
- 5 colors + UV + CTO + CTB + White
- Variable speed color scrolling both directions (rainbow)
- New 360° beam shaper with continous rotation
- Dual flag mechanical dimming system
- Variable speed strobe effect, 1-13 flashes per second
- Preset variable/random strobe, dimming pulse effects
- Motor driven zoom 13°-50°
- Automatic Pan / Tilt position correction
- Pan / Tilt Lock
- Maximum Pan-movement 630° in 2.0 secs or 540°/ 16 bit
- Maximum Tilt-movement 265° in 1.5 secs / 16 bit
- 3 Phase motors for fast, accurate Pan / Tilt positioning
- Vector Mode with blackout MIB function
- Battery powered blue LCD Matrix Display
- 24 DMX channels USITT DMX-512 (standard mode)
- other DMX modes: full 16-bit / basic / custom 1/2/3
- Customizable DMX channel assignment
- DMX, stand-alone, master/slave, sound activated mode
- DMX recorder and edit function integrated
- Software update via DMX, using optional E-Loader
- 3-pin and 5-Pin XLR serial input/output
- Fan cooled - fans regulated by automatic, silent or DMX
- Constant temperature readout / management function
- DB rating @ 1M = 59.6db
- 2x 1/4 turn fastening Omega Clamps
- Electronic ballast and power supply
- Power consumption: 700W
- Voltage: AC 100V ~ 240V 50/60Hz
- Dimensions (LxWxH): 470x367x620mm (Head up)
- Weight: 29 kg

Specifications and documentation subject to change without notice
