DESIGN LED 108 IP blackArchive

Code 1236100005

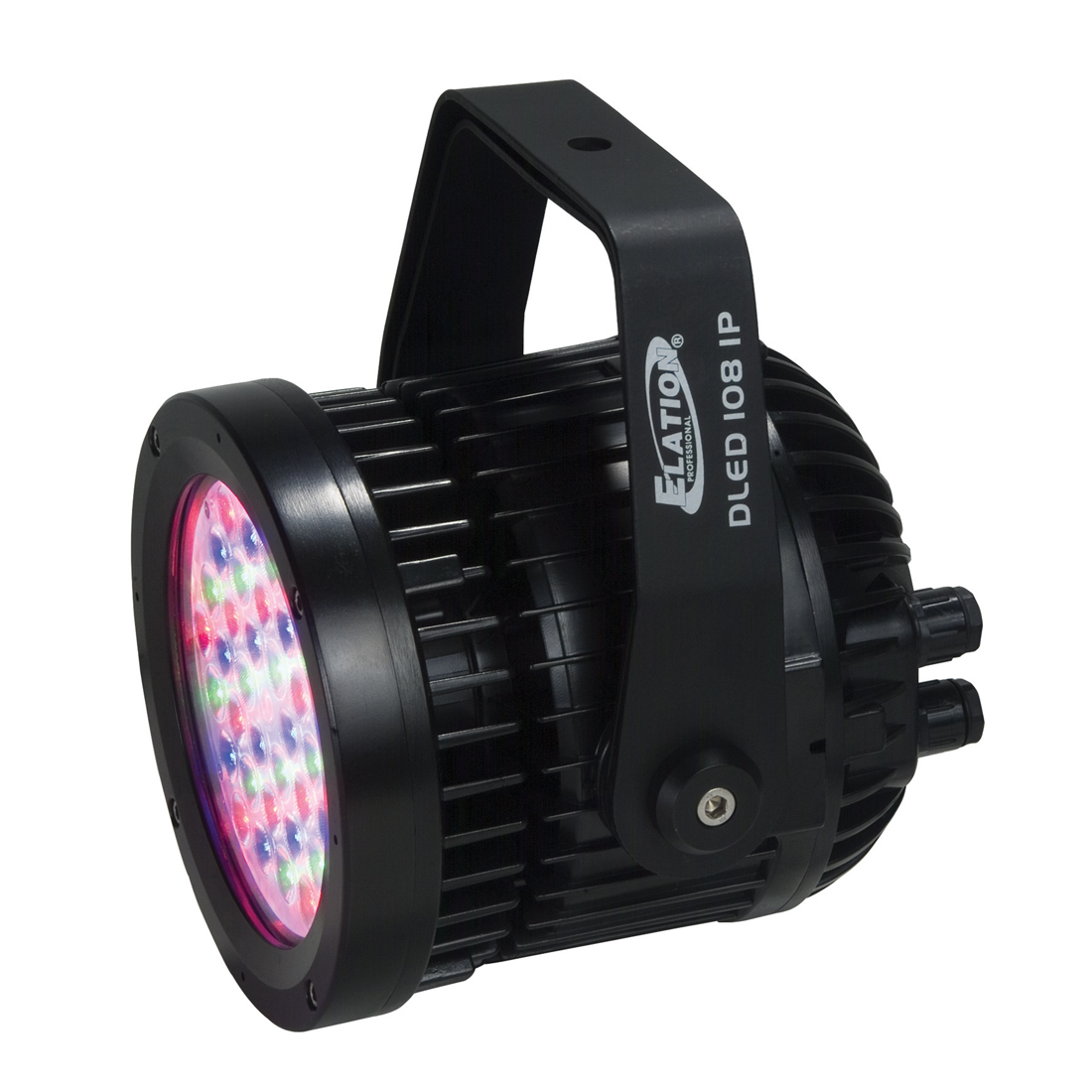

DESIGN LED 108 IP black

Technical Data

- 36x 3W Luxeon K2 High-Output LEDs
- 15 degree beam angle
- IP 65 outdoor rated
- High-Impact aluminum construction
- Stand-alone programs
- No-service convection cooled
- Loop through for power and signal

Specifications

- 36 x 3W K2 LED's - (12 each R, G, B)
- Long Life L.E.D. (rated at 100,000 Hours)
- Linear RGB color mixing allows for infinite color possibilities
- IP65 outdoor rated, compact design, die cast case
- Silent operation, convection cooled (No fans)

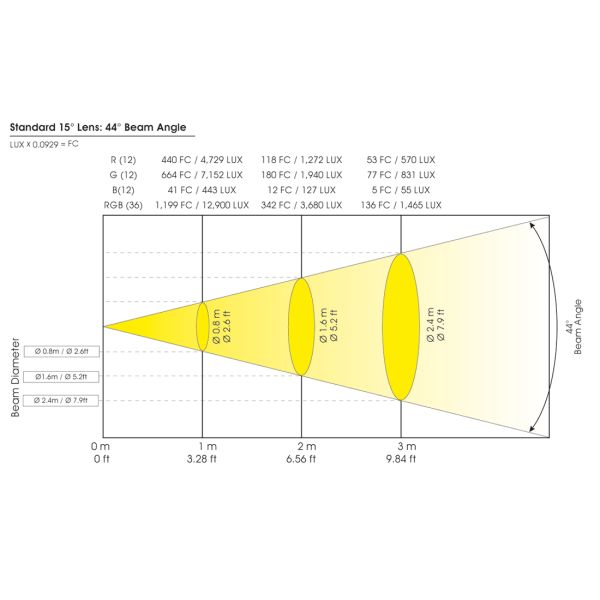

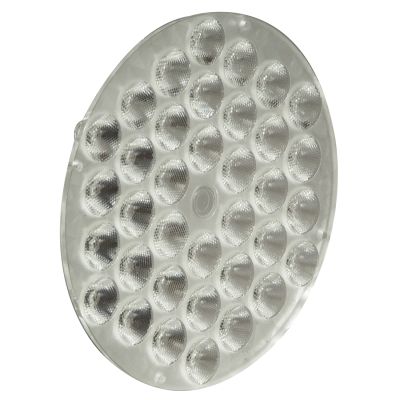

- 15 degree standard beam angle, optional 25° and 45° lens kit available
- Built-in, auto switching power supply
- DMX controllable
- USITT DMX 512
- 3, 4 & 6 CH DMX control modes

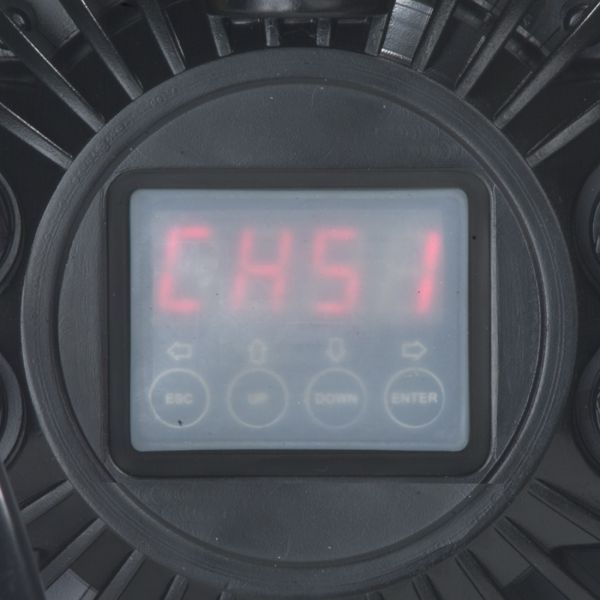

- LED display with easy to use function keys

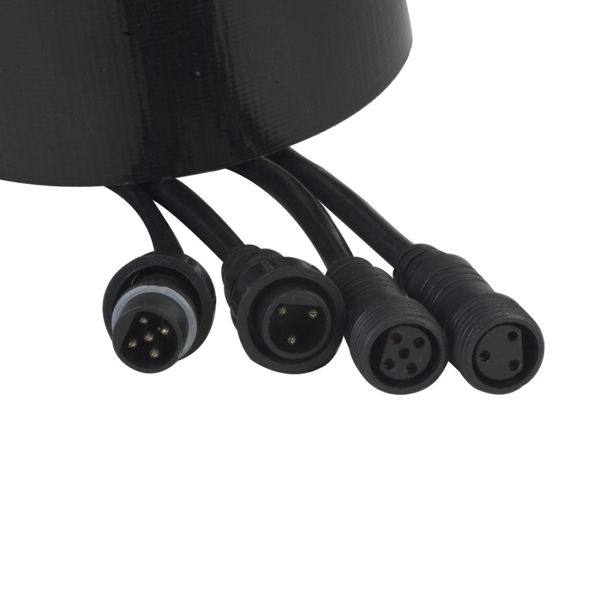

- 3 pin XLR data input & output
- AC Power input & output
- 6 built-in programs with Speed control
- Strobe effect (1-18 flashes per second)
- Selectable dim options (Standard & Linear)
- 0-100% dimming
- Primary/Secondary auto program and sound trigger
- Multi-voltage: 100-240VAC, 50/60Hz
- Power Consumption: 150W
- Mounting bracket designed for floor, wall or truss mount
- Molded eye hole for safety cable

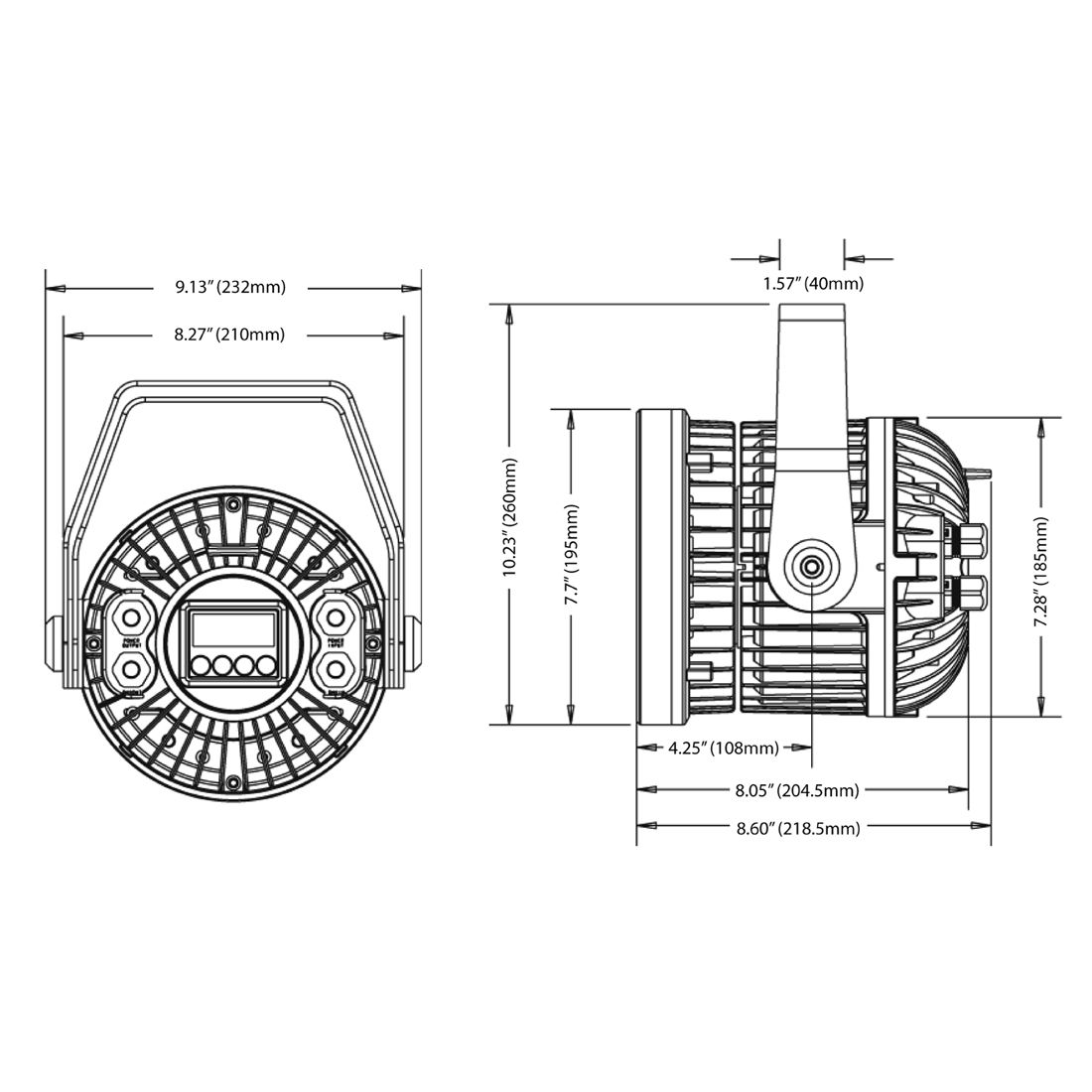

- Dimensions(LxWxH): 218x232x260mm
- Weight: 6 kg

Specifications and documentation subject to change without notice
