CUEPIX PANEL

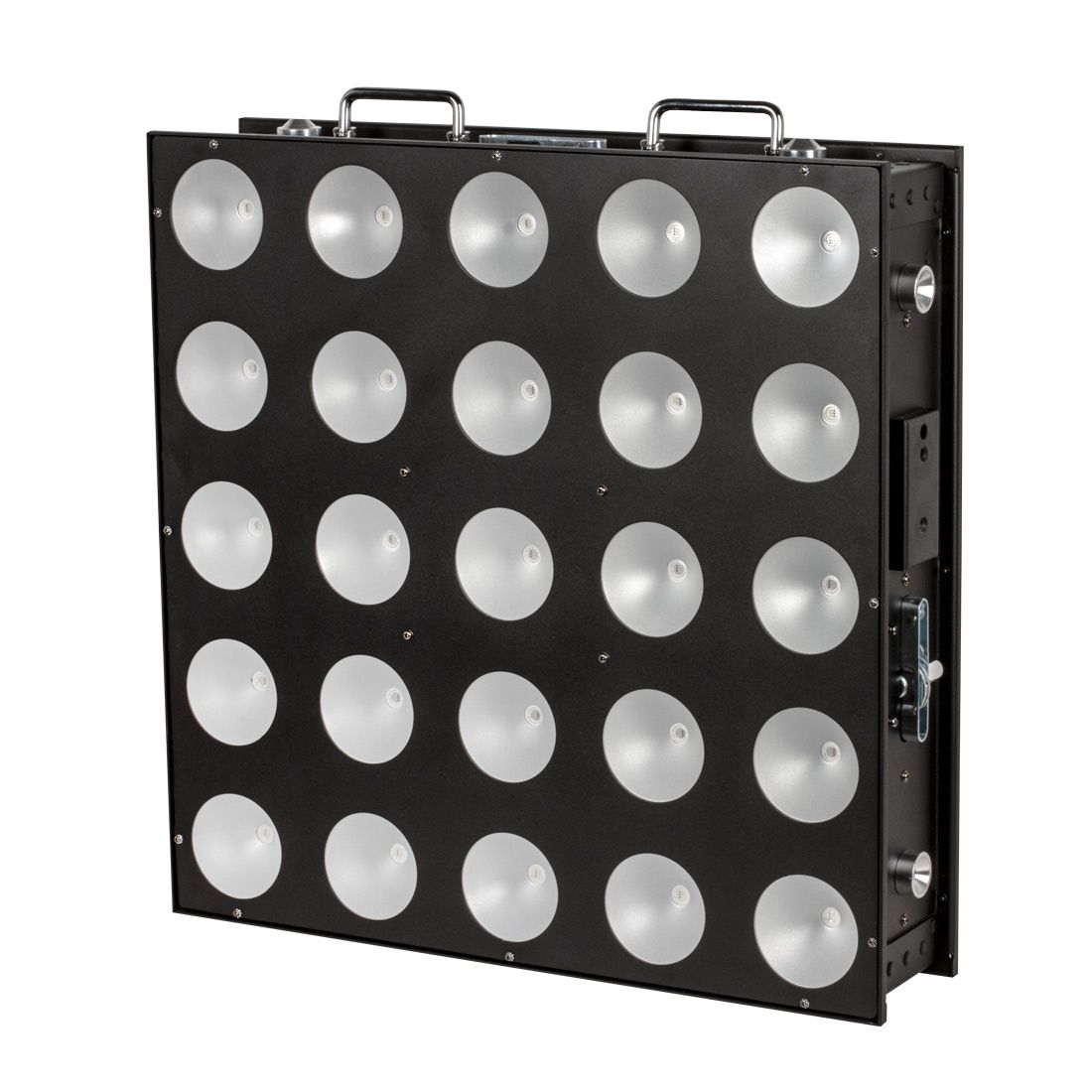

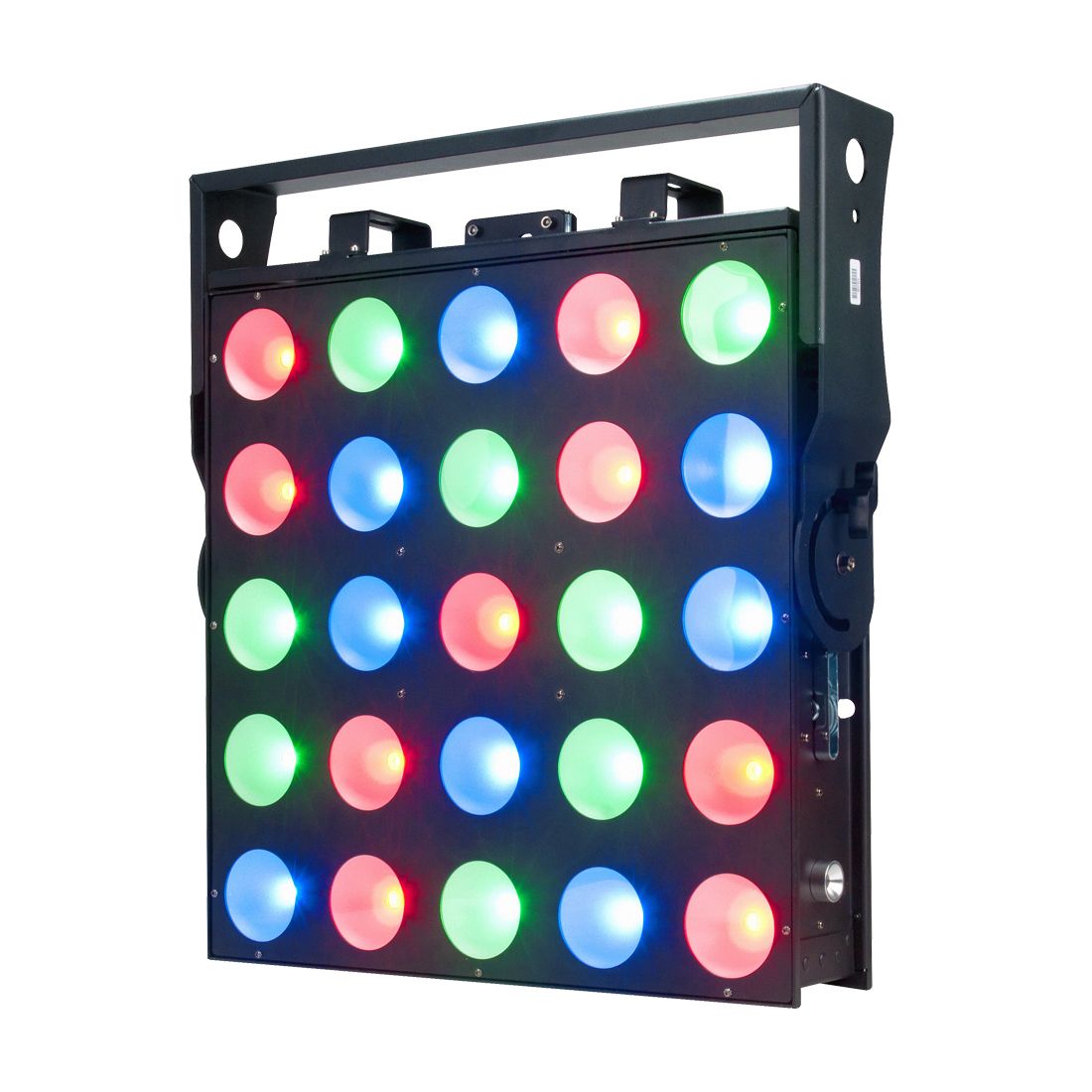

The CUEPIX Panel is a versatile effect panel and features (25) long life 30W 3-in-1 RGB COB LEDs, a 60° beam angle, full individual pixel control, integrated quick locks for multiple panel setup, variable dimming curves, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET (DMX over Ethernet) support, locking 3/5pin DMX in/out, locking RJ45 ethernet in/out, and locking power in/out connections, flicker free operation for TV and Film, LCD menu display with 4 button control panel, integrated rigging points and optional rigging bracket available 750W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

High Power Long Life 3-in-1 RGB COB Panel
60° Beam 80° Field Angle
Individual Control of Each COB Module
Integrated Quick Locks for Multiple Panel Setup
Variable Dimming Curves
Flicker Free Operation for TV and Film
KlingNET™ and Art-NET (DMX over Ethernet)
RDM – Remote Device Management


SOURCE

(25) 30W 3-in-1 RGB COB LEDs
100,000 Hour Average LED Life*


PHOTOMETRIC DATA

15,490 LUX 1,439 FC @ 6.6’ (2m)


EFFECTS

Individual COB Module Control
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves


COLOR

Full RGB Color Mixing

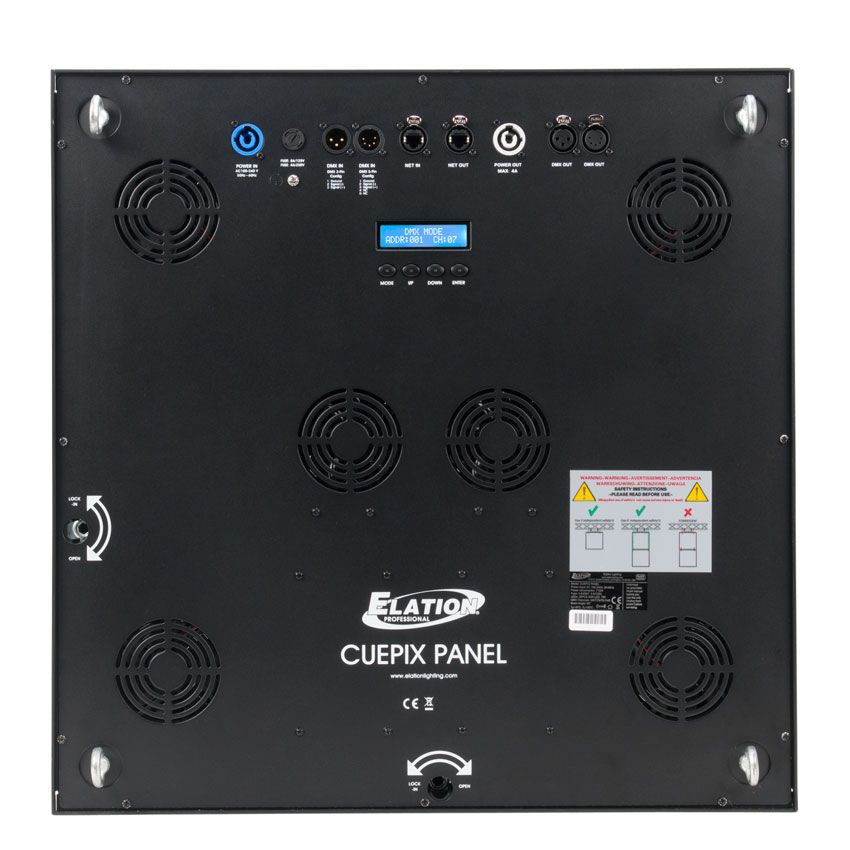

CONTROL / CONNECTIONS

(8) DMX Channel Modes (3 / 4 / 6 / 7 / 8 / 75 / 79 / 80)
RDM (Remote Device Management)
4 Button Control Panel
LCD Menu Display
Locking 3/5pin DMX In/Out
Locking RJ45 ethernet In/Out (KlingNET™ / Art-NET)
Locking power connector In/Out


SIZE / WEIGHT

Length: 24.5” (618mm)
Width: 5.6” (143mm)
Vertical Height: 25.8” (654mm)
Weight: 36.4 lbs. (16.5 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
750W Max Power Consumption
5°F to 113°F (-15°C to 45°C)


OPTIONAL ACCESSORIES

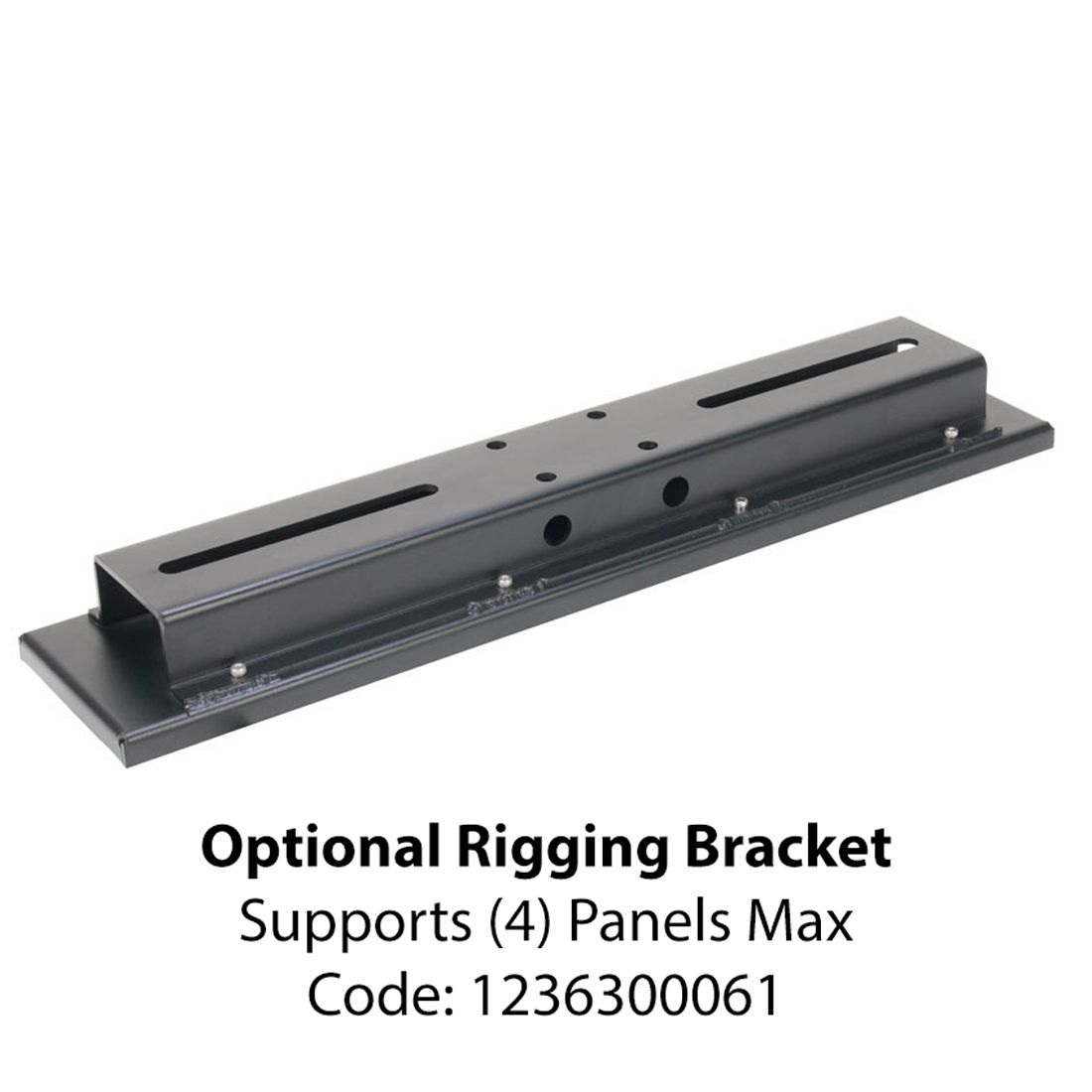

1236300061 Cuepix Panel Rigging Bracket
1236300066 Cuepix 15 DEG Lens Kit
1521000232 Touring Case 6x Cuepix Panel
1521000233 PRO Case 6 x Cuepix Panel


FIRMWARE UPDATES

Current firmware can be found here (login required)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


Specifications and documentation subject to change without notice
