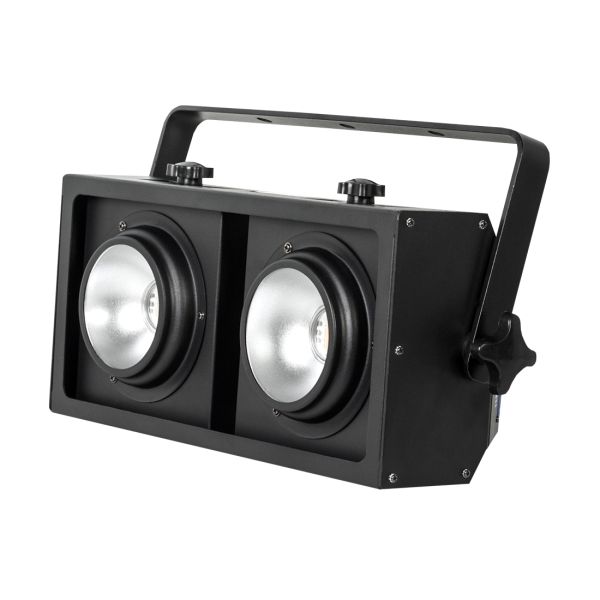

CUEPIX BLINDER WW2

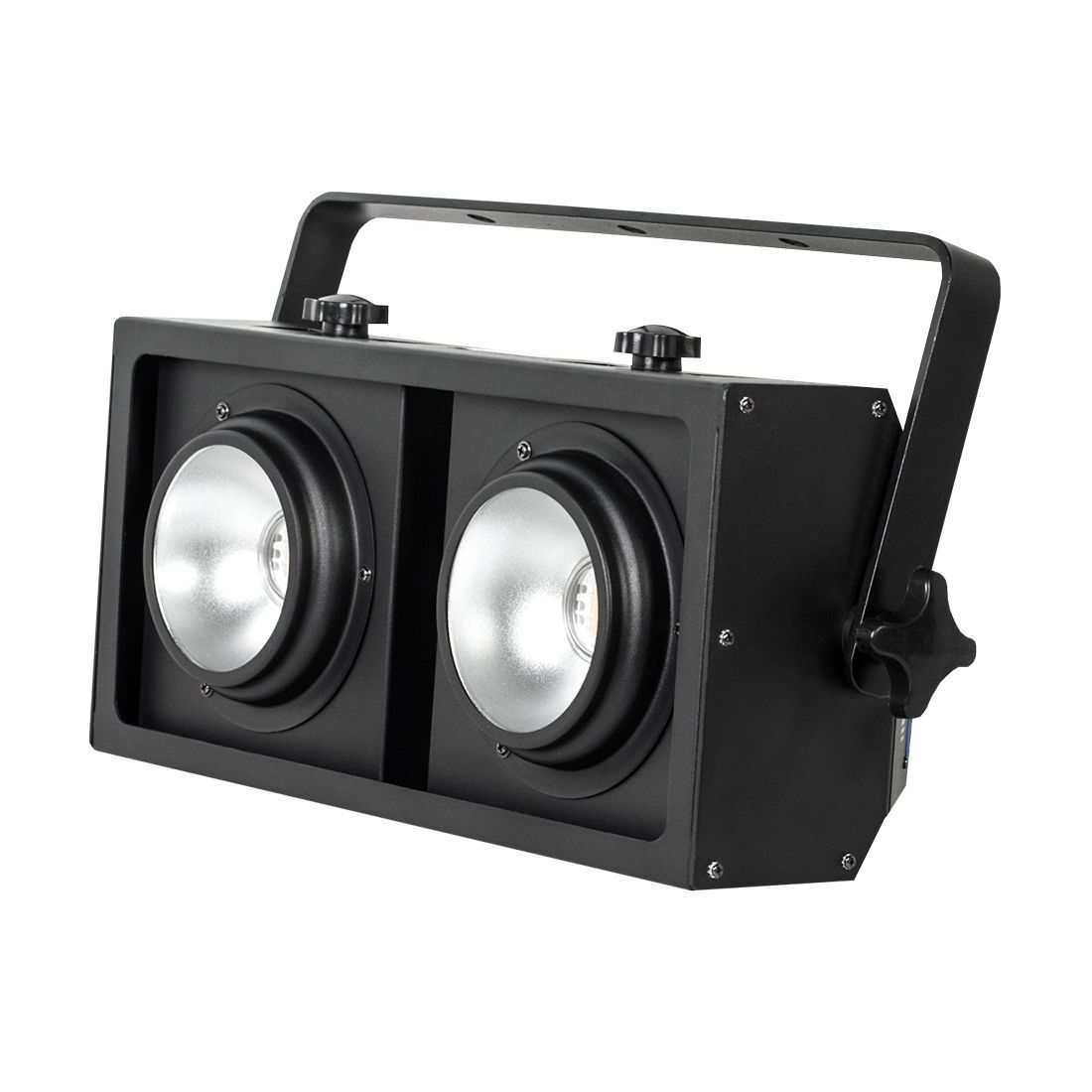

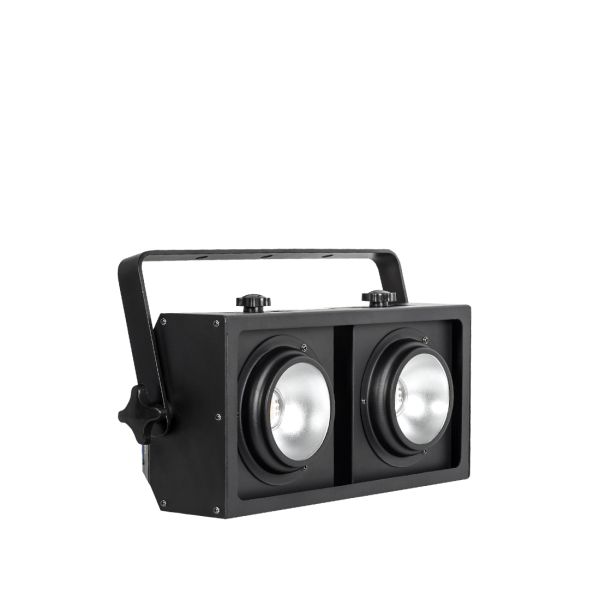

The CUEPIX Blinder WW2™ features (2) long life 100W Warm White 3,200K COB LEDs, a 60° beam angle, RDM (Remote Device Management), individual control of each COB module including manual pan focus, variable and selectable dimming curves, strobe effects, flicker free operation for TV and Film, 3pin and 5pin DMX and Locking Power Cable in/out connections, LCD menu display with 4 button control panel, integrated rigging bracket, and a multi-voltage universal auto switching power supply (100-250v).

Technical Data

FEATURES

High Power Long Life Warm White COB LEDs
60° Beam Angle / 80° Field Angle
Individual Control of Each COB Module
Dimming: 0% - 100% of Each COB Module
RDM (Remote Device Management)
Flicker FREE Operation for TV and FILM
Stand Alone Operation with Master/Slave Function
Integrated Rigging Bracket

SOURCE

(2) 100W Warm White 3,200K COB LEDs
100,000 Hour Average Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

5900 Max LUX (548 fc) @1M (Full On)

EFFECTS

Strobe
Variable / Selectable Dimming Curves

CONTROL / CONNECTIONS

4 DMX Channel Modes (1 / 2 / 3 / 4)

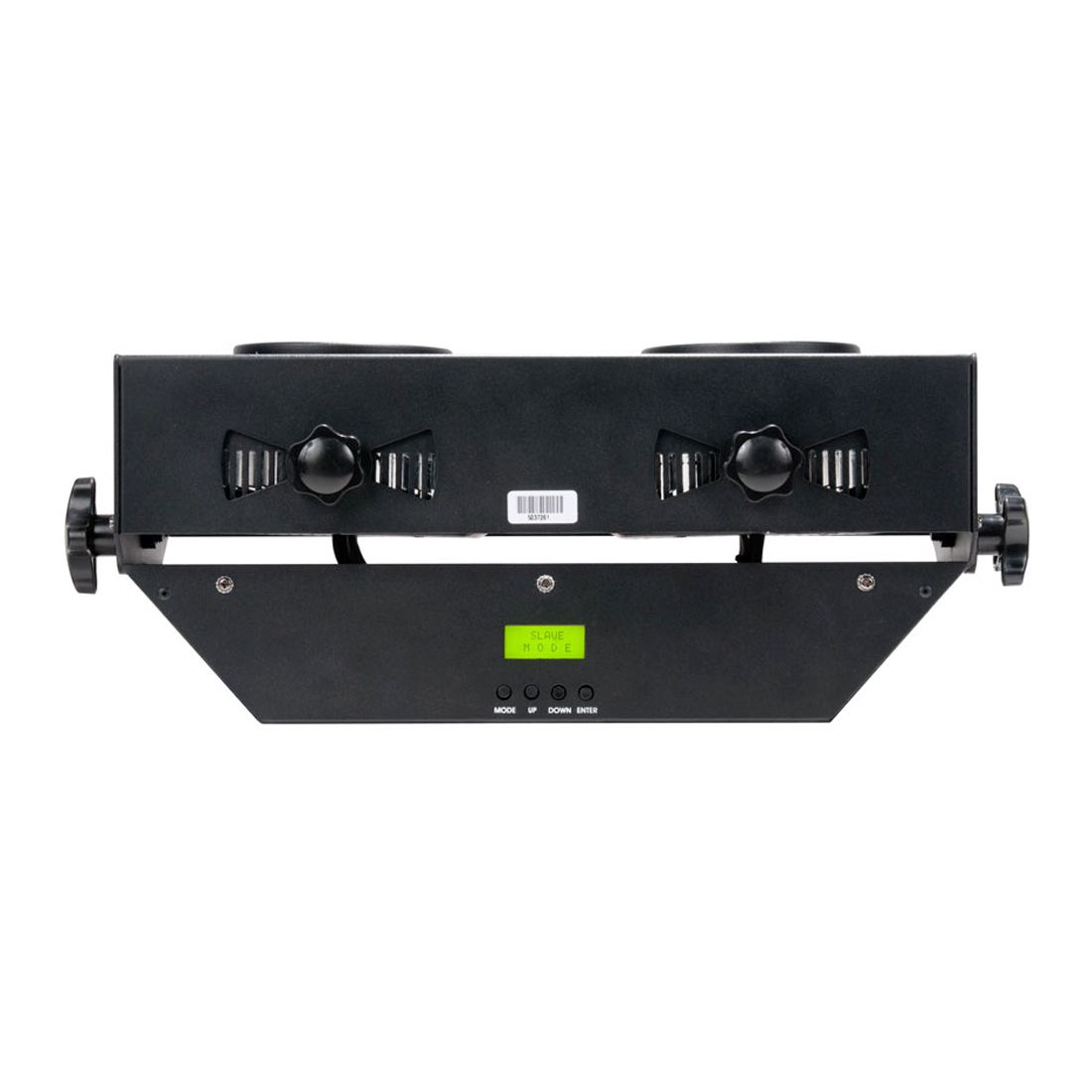

4 Button Control Panel and LCD Menu Display

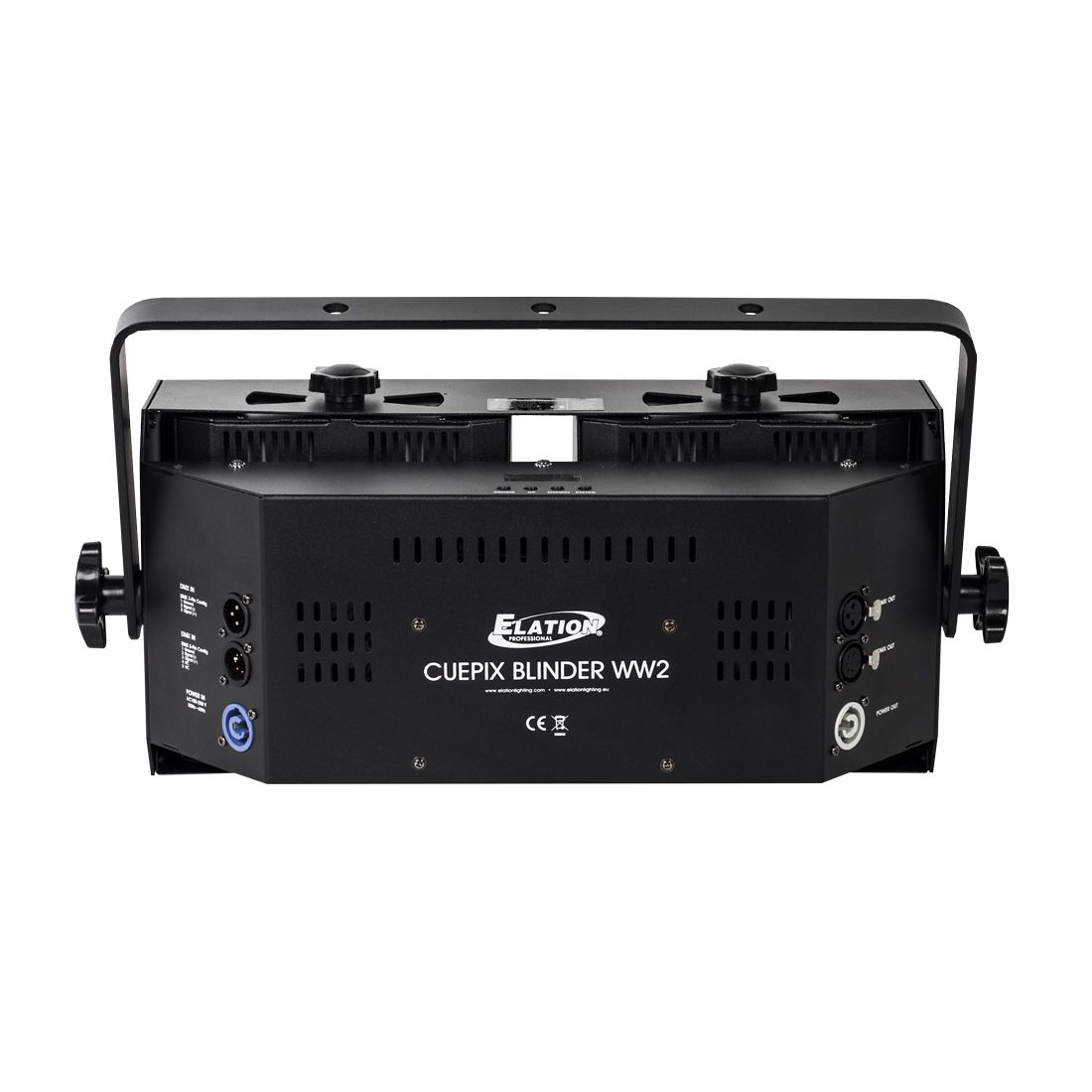

3pin and 5pin DMX In/Out
RDM* (Remote Device Management) *Software Version 1.13 or Higher
Locking Power Cable In/Out
With Wired Digital Communication

SIZE / WEIGHT

Length: 18.8” (478mm)
Width: 7.1” (181.2mm)
Horizontal Height: 10.2” (259.4mm)
Weight: 11.2 lbs. (5.1 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
229W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
