CUEPIX Batten

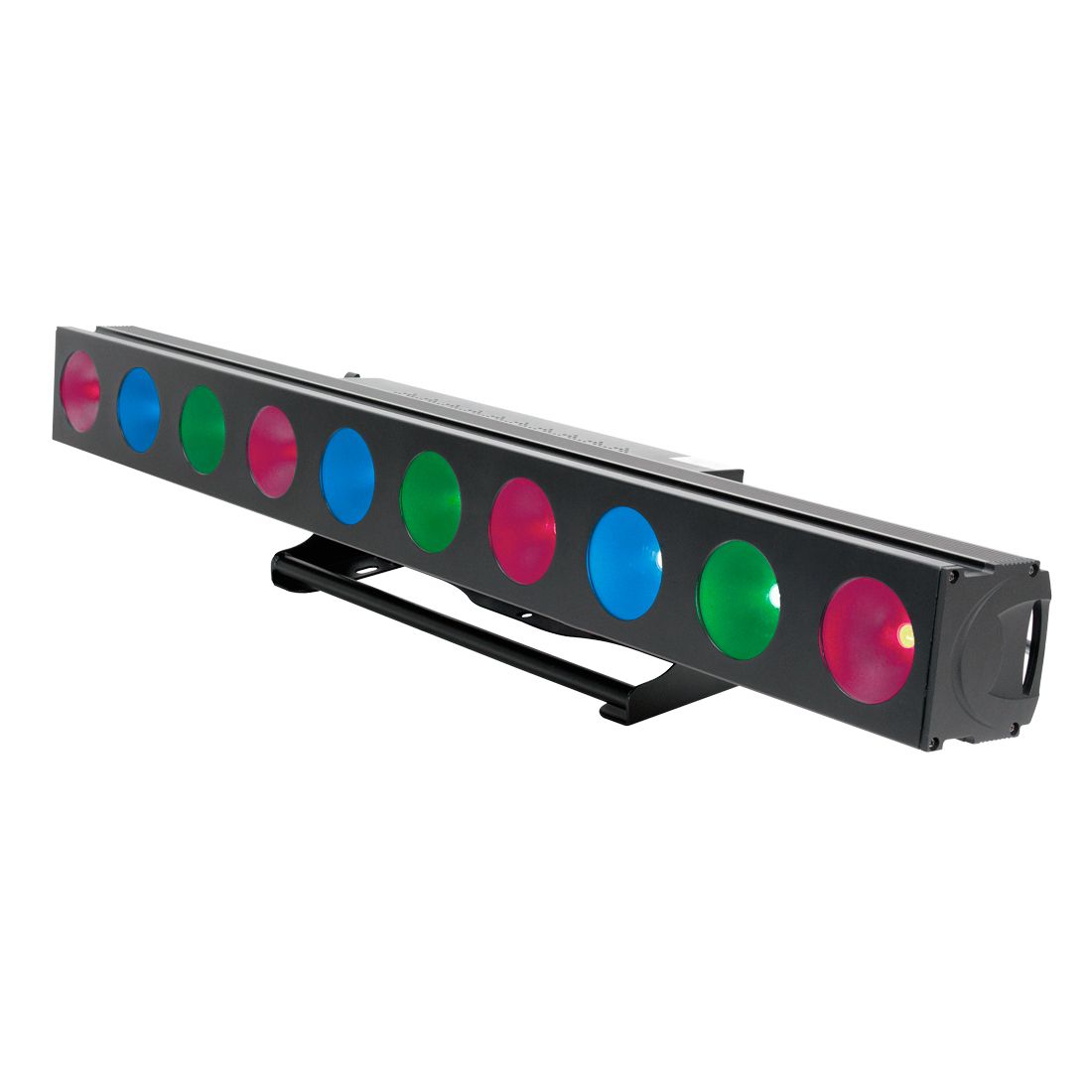

The CUEPIX Batten™ features (10) long life 30W 3-in-1 RGB COB LEDs, 100,000 average hour LED life, 82° beam and 106° field angles, individual control of each COB module, variable dimming curve modes, strobe and chase effects, ArtNet™, KlingNet™ and RDM (remote device management) protocol support, 3pin and 5pin DMX, power In/Out, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated rigging bracket, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 312W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

Technical Data

FEATURES

High Power Long Life 3-in-1 RGB COB Strip
82° Beam Angle and 106° Field Angle
Individual Control of Each COB Module
Variable Dimming Curves
Flicker Free Operation for TV and Film
KlingNET™ and Art-NET (DMX over Ethernet)
RDM – Remote Device Management


SOURCE

(10) 30W 3-in-1 COB LEDs
100,000 Hour Average LED Life*


PHOTOMETRIC DATA

3,890 LUX 361 FC @1m (3.3’) (82° Full ON)
1,237 LUX 115 FC @2m (6.6’) (82° Full ON)
613 LUX 57 FC @3m (9.8’) (82° Full ON)
345 LUX 32 FC @4m (13.1’) (82° Full ON)
227 LUX 21 FC @5m (16.4’) (82° Full ON)


EFFECTS

Strobe and Chase
Individual COB Module Control
Variable and Selectable Dimming Curves


COLOR

Full RGB Color Mixing

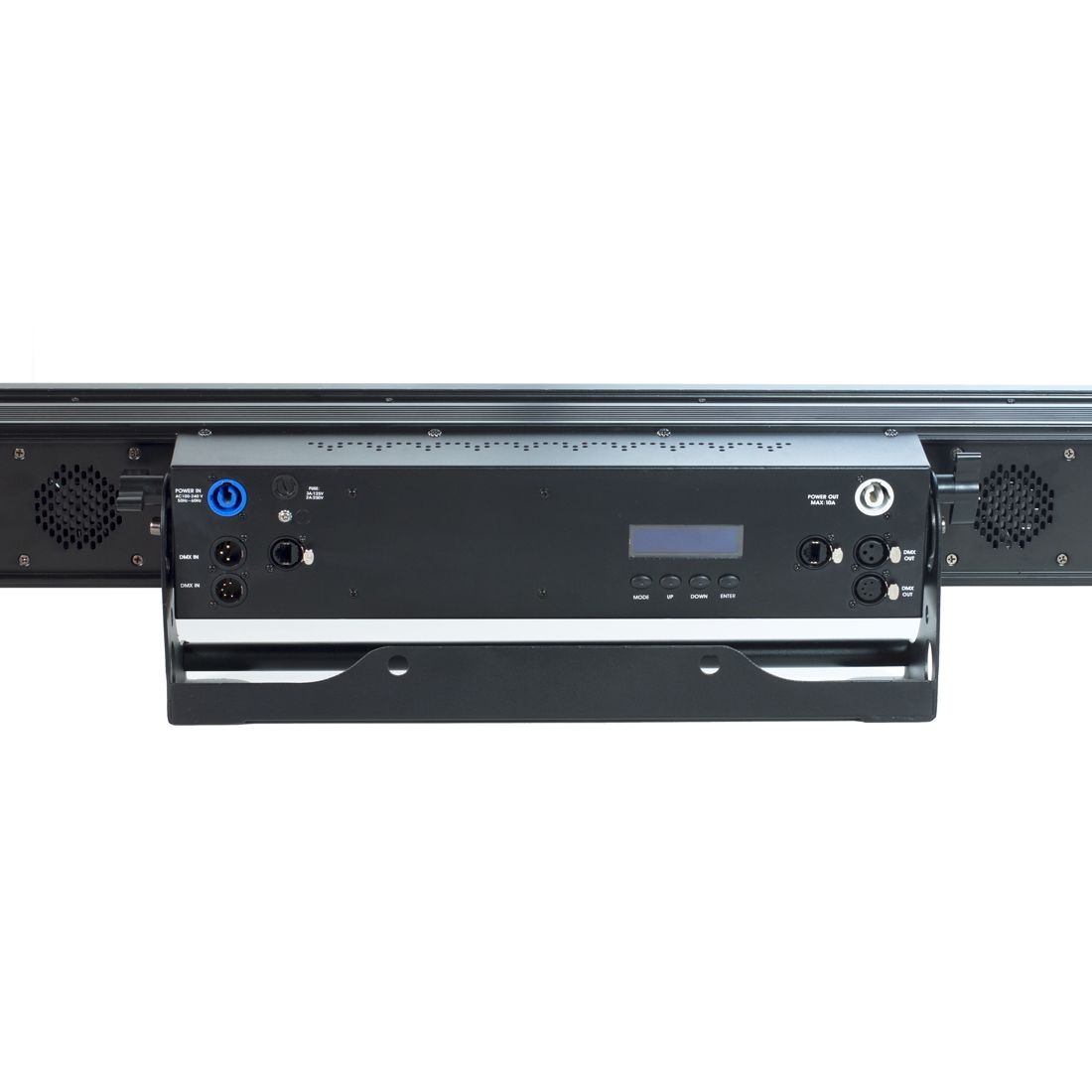

CONTROL / CONNECTIONS

8 DMX Channel Modes (3 / 4 / 6 / 9 / 30 / 33 / 36 / 60)
4 Button Control Panel and LCD Menu Display
ArtNet™ + KlingNet™ Protocol Support
RDM (Remote Device Management)
(2) RJ45 Ports
3pin and 5pin DMX In/Out
Power In/Out
With Wired Digital Communication Network


SIZE / WEIGHT

Length: 1100mm (43.3”)
Width: 121mm (6.4”)
Vertical Height: 172mm (6.8”)
Weight: 9.5 kg (21.0 lbs.)


ELECTRICAL / THERMAL

AC 110-250V - 50/60Hz
312W Max Power Consumption
Link Up To 10 Units at 240V
-15°C to 45°C (5°F to 113°F)


OPTIONAL ACCESSORIES

1322000060 C-Loader II


FIRMWARE UPDATES

Current firmware can be found here (login required)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


Specifications and documentation subject to change without notice
