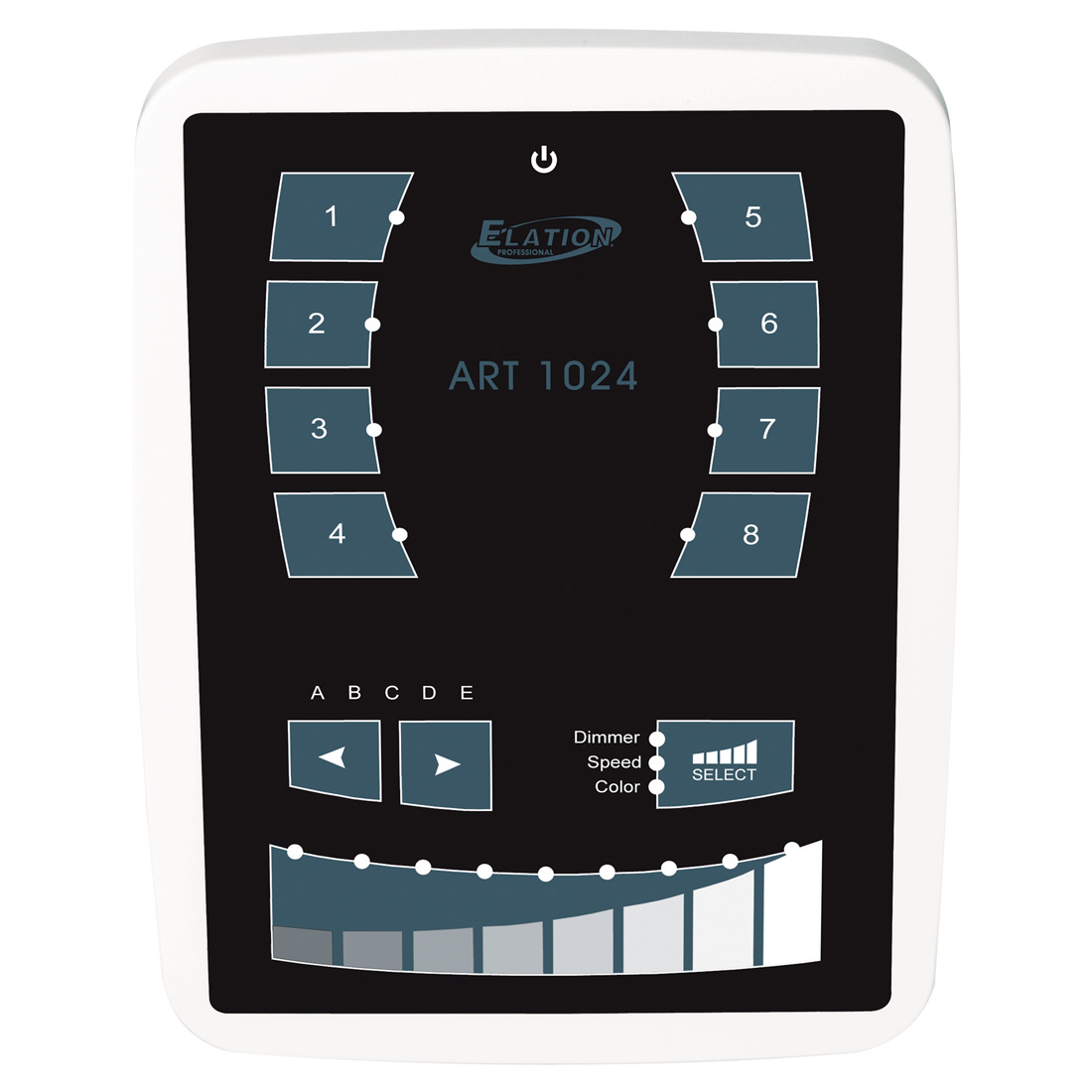

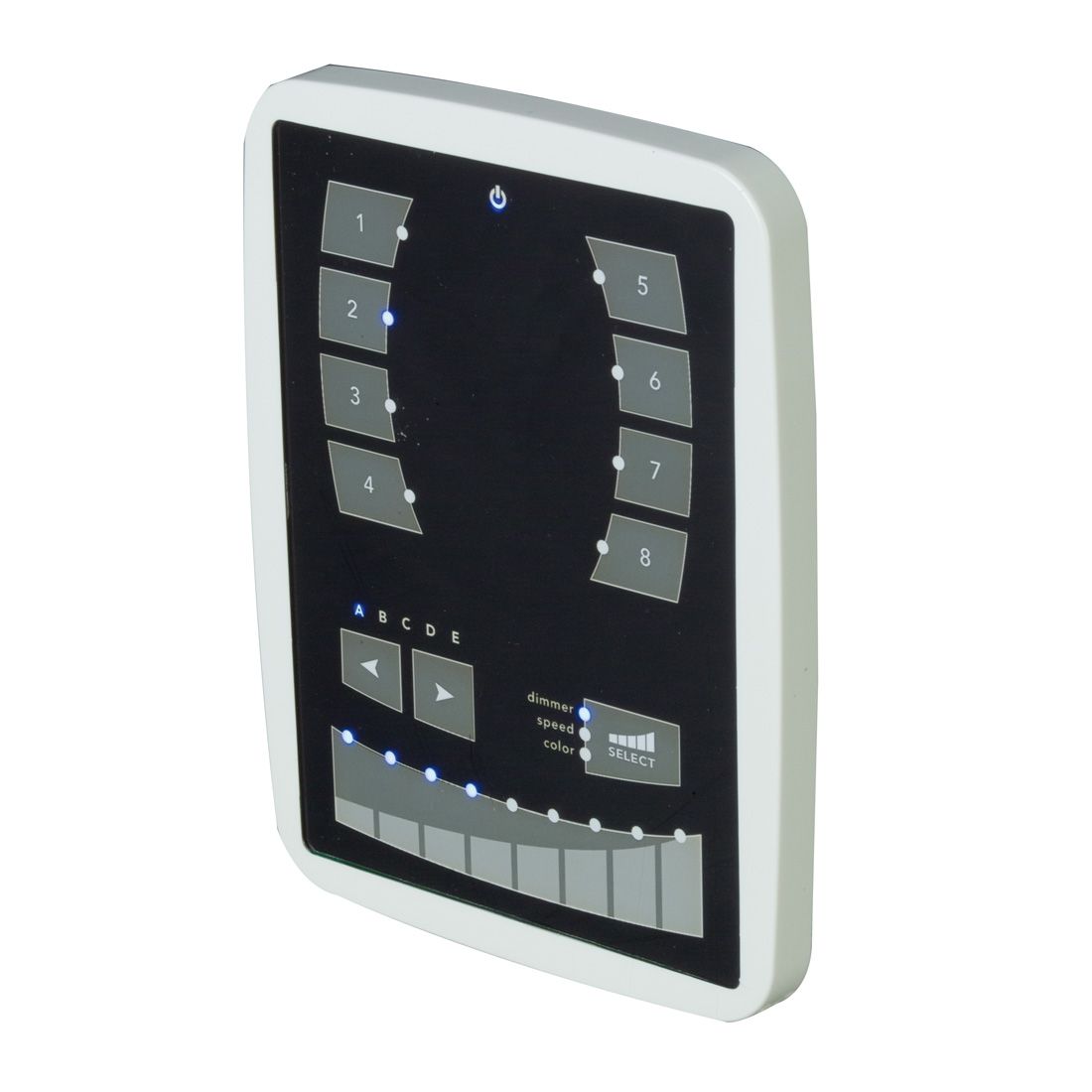

The ART-1024 is the most advanced touch-controlled Stand-Alone Architectural DMX Controller with Ethernet, Internet, IR and Event-Port Control.Programmed comfortable using the included Software, running stand-alone without any computer attached, using optional network-control-interface for intelligent synchronizing zone-control and remote access.


Technical Data

- Touch sensitive surface

- Up to 2 full DMX universes

- Analog event ports

- Software based programming

- Mini SD card included

- Real time clock and calendar

- Customizable look


- User interface 14 buttons, 1 fader, 28 led’s

- Touch Sensitive Keypad

- IR Control / Digital Port Triggering / Network Triggering and Communication

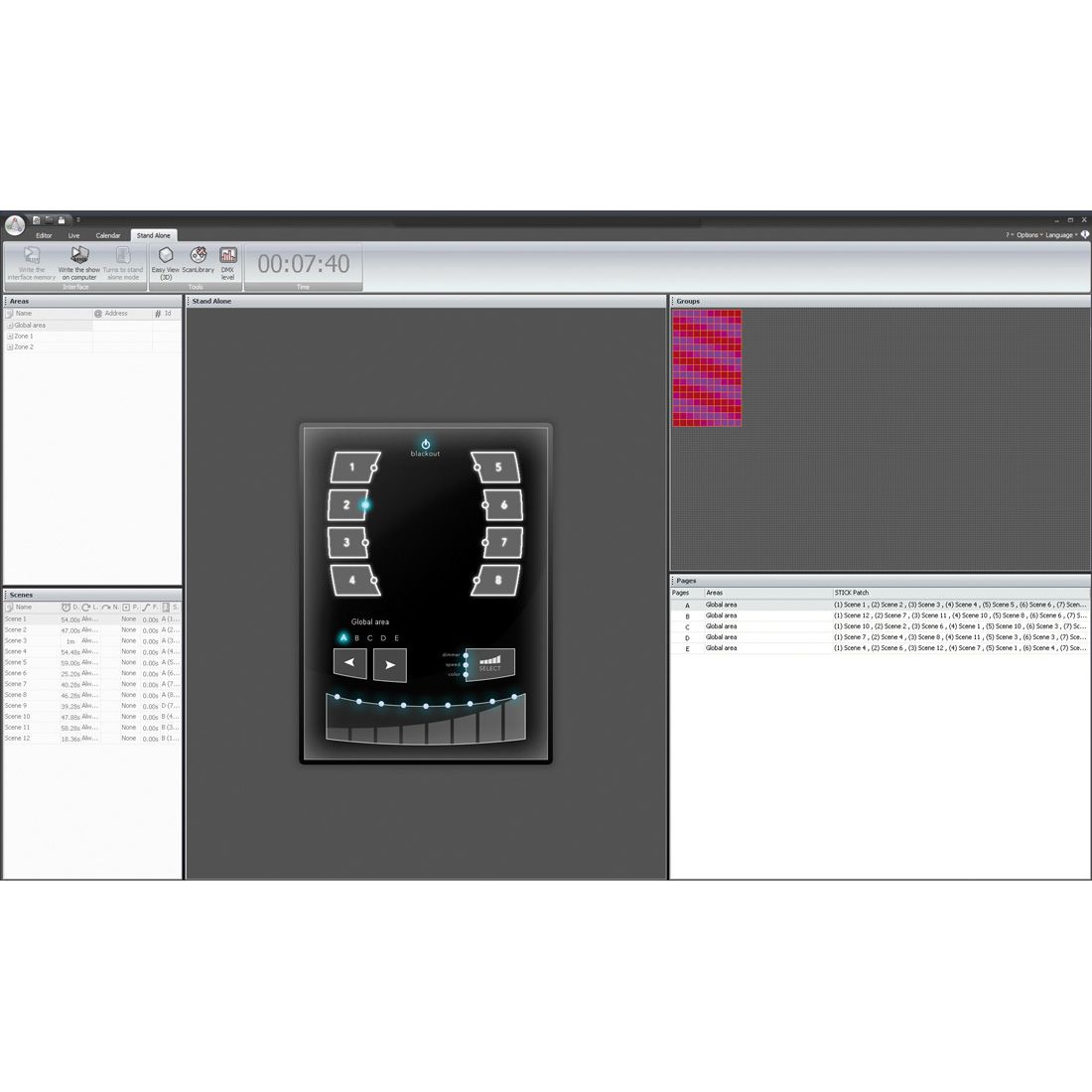

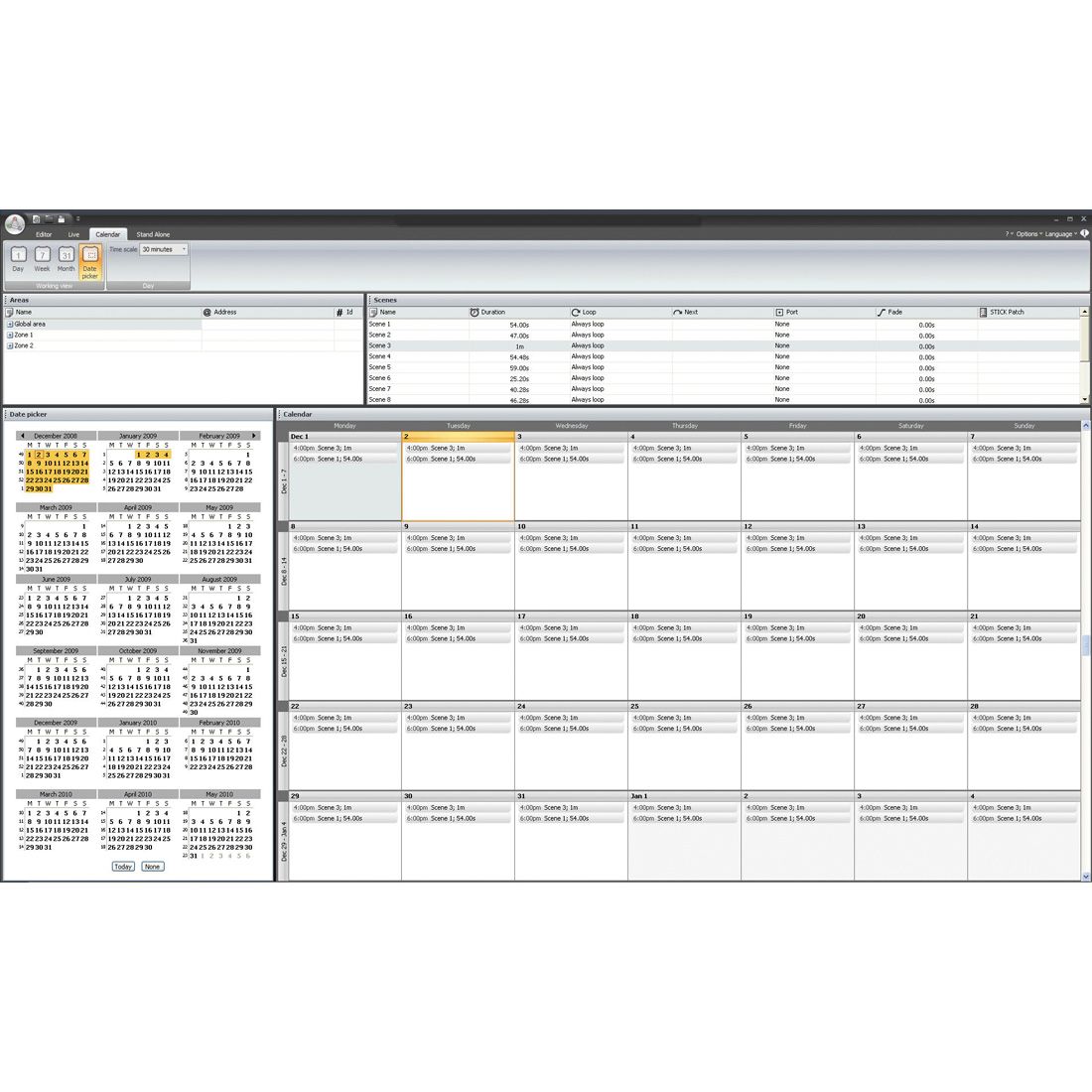

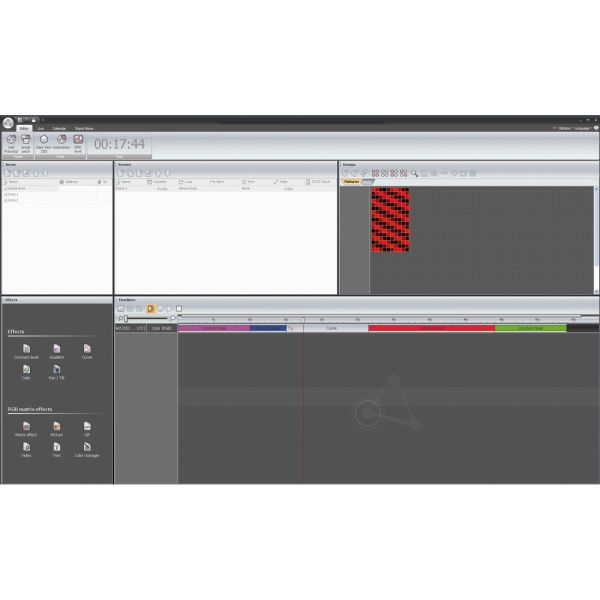

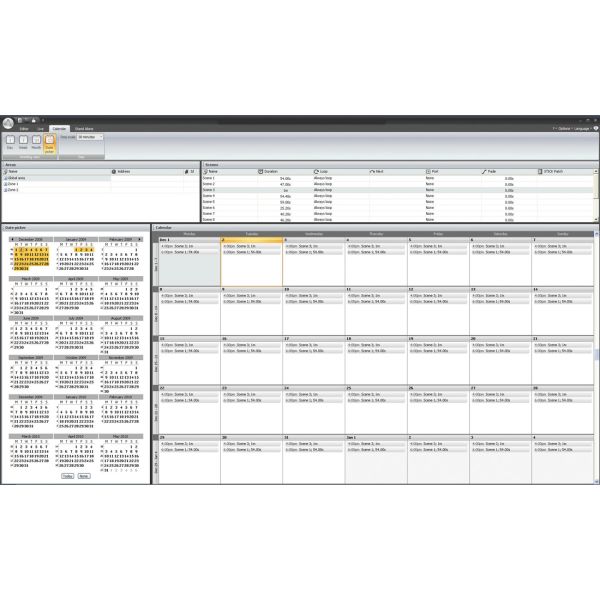

- Programming software included to run on PC

- Built-In Fixture Library / LED Matrix / FX-Wizards / Timelines

- Mini SD (included) card for stand-alone memory use

- Records any DMX signal to memory

- RS232 serial communication

- Output relay

- Binary Input Trigger Ports

- Automatic stand by 5V signal

- Real time clock and calendar

- 10 minutes saving without power

- IR Receiver Easy learning triggering from any 36Khz remote control

- DMX Output #1 Universe 1, 512 channels DMX512 Output

- DMX Output #2 Universe 2, 512 channels DMX512 Output

- USB 2.0 communication for PC/software

- Optional Network Board available for synchronizing multiple units and remote access

- Ethernet: Advanced networking features (front access connections)

- Package Content: Interface, mini SD card, user manual, CD, USB cable, power supply

- PC Requirement: Windows XP/VISTA/Win7 32 or 64 bits and USB 2.0

- Dedicated remote control , Ethernet extension

- Built-in microphone for sound to light triggering

- Audio input for sound to light effect

- Safety Standards EC, EMC, ROHS

- Temperature -10°C to 50°C

- Power Supply 9VDC 0.65A (included)

- Dimensions Complete package 168 x 128 x 11,5mm

- Weight 0,2kg


Specifications and documentation subject to change without notice
