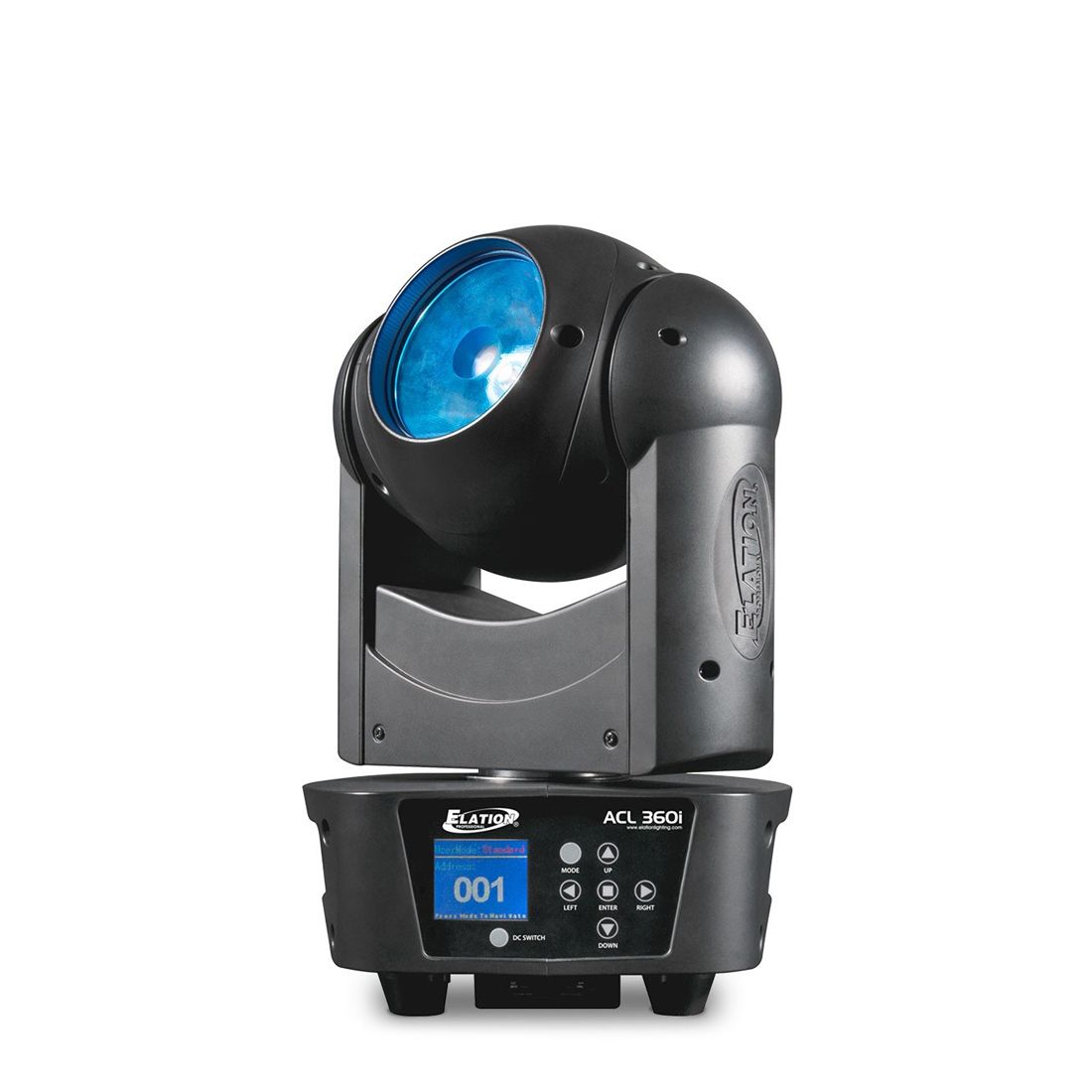

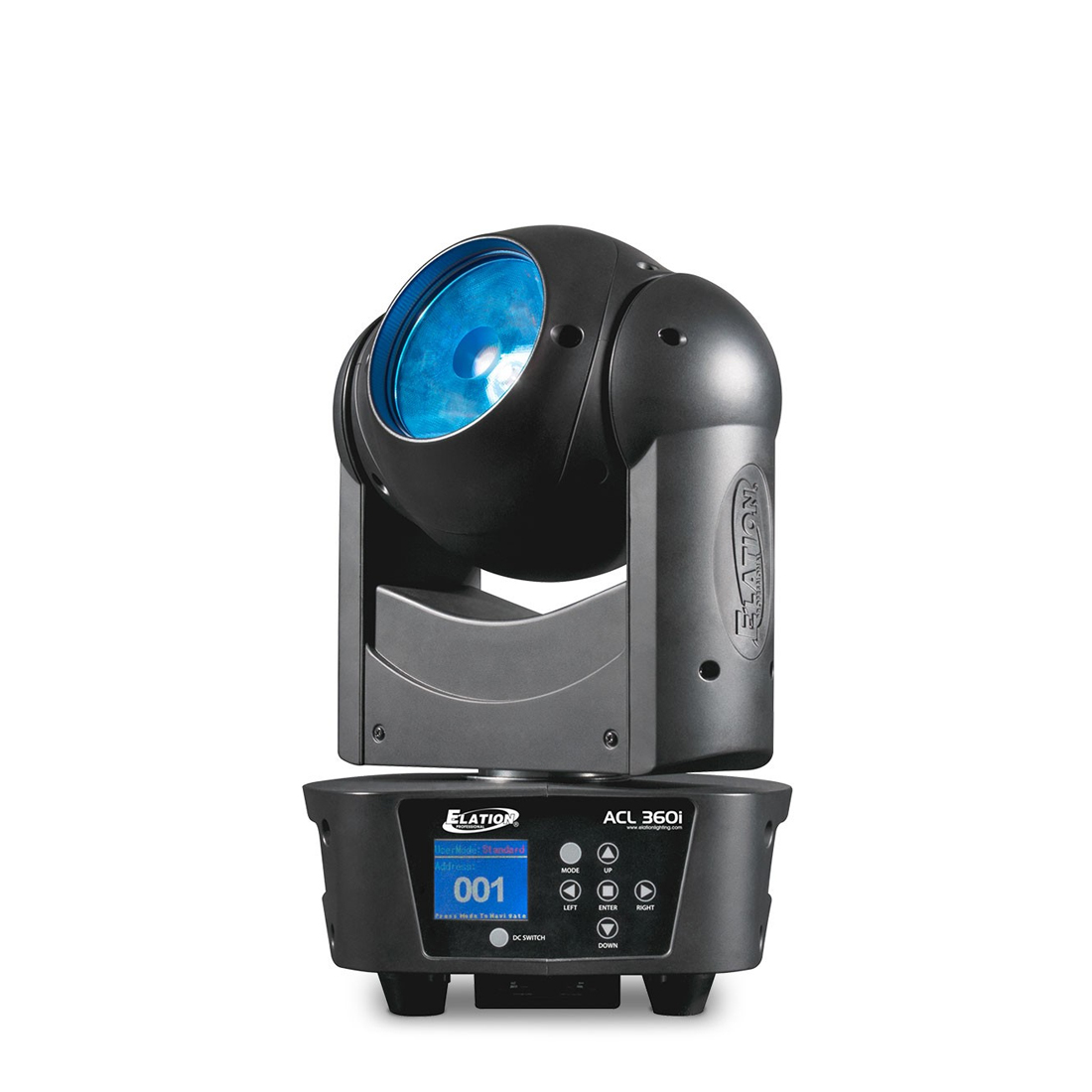

ACL 360i

The ACL 360i™ is an amazing single beam moving effect luminaire featuring a single 60W RGBW 4-in-1 LED and the new advanced collimator optic lens, which produces a laser-like homogenized 4° color-changing beam. Features 10 and 45 degree frost lens options (included), fast and precise16-bit continuous full 360° pan and tilt rotation, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 5pin XLR, Locking Power Cable, and RJ45 ethernet in/out connections, (6) button control full color 180° reversible menu display, 110W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

Versatile Single Beam Moving Effect Luminaire
Advanced Collimator Lens
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Laser-Like Homogenized 4° Color Changing Beam
60W RGBW 4-in1 LEDs
Variable Dimming Curves
Flicker Free Operation for TV and Film
KlingNET™ and Art-NET (DMX over Ethernet)
RDM – Remote Device Management


SOURCE

60W RGBW 4-in-1 LED
100,000 Hour Average LED Life*


PHOTOMETRIC DATA

12,955 LUX 1,204 FC @ 9.8’ (3m)


EFFECTS

Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves


COLOR

RGBW


CONTROL / CONNECTIONS

(3) DMX Channel Modes (16 / 18 / 20)
RDM (Remote Device Management)

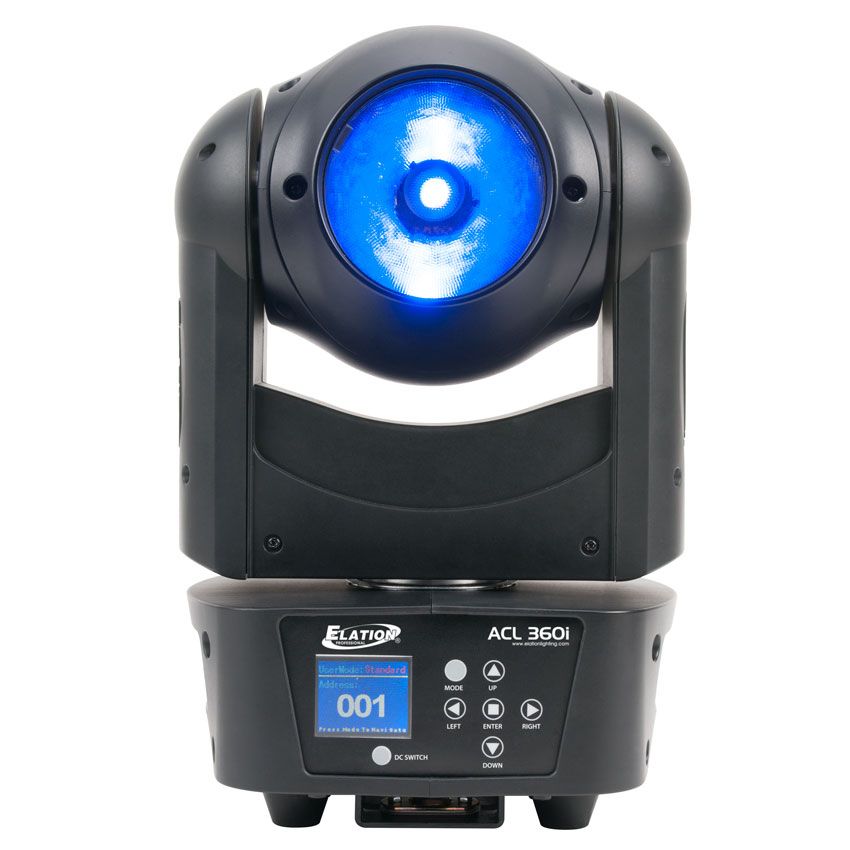

6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement

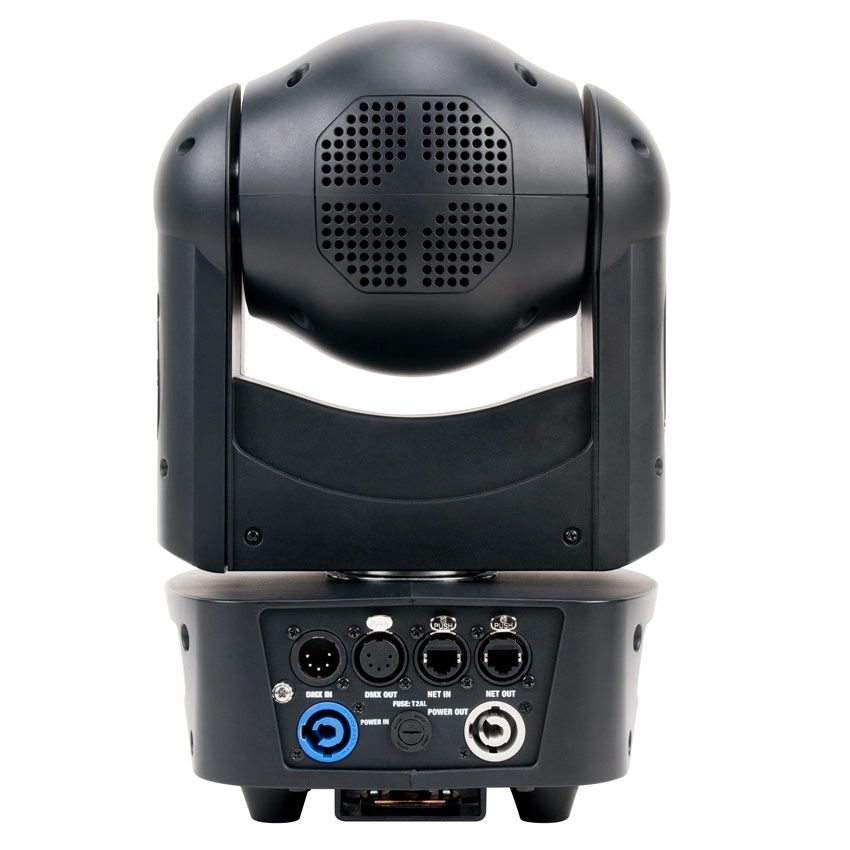

5pin DMX In/Out
RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
Locking Power Cable In/Out
With Wired Digital Communication


SIZE / WEIGHT

Length: 8.7” (222mm)
Width: 7.3” (186mm)
Vertical Height: 13.0” (330mm)
Weight: 11.5 lbs. (5.2 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
110W Max Power Consumption
5F to 113°F (-15°C to 45°C)


INCLUDED ITEMS

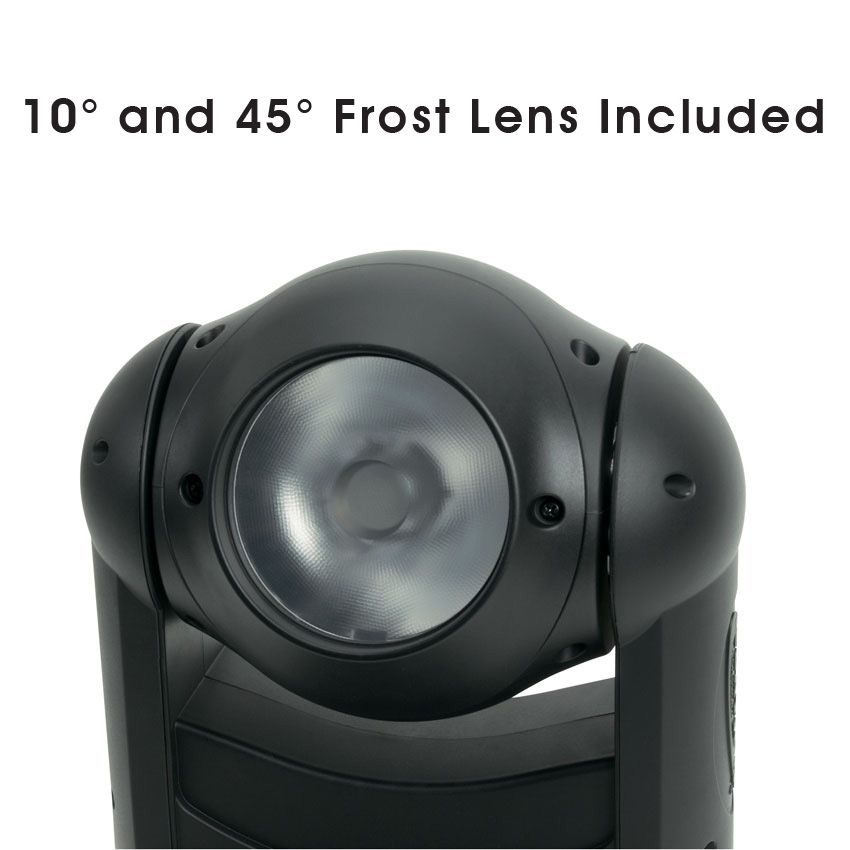

10° Frost Lens
45° Frost Lens


OPTIONAL ACCESSORIES

1521000279 Touring Case 4x ACL 360i
1521000280 PRO Case 4x ACL 360i
1521000281 Touring Case 6x ACL 360i
1521000282 PRO Case 6x ACL 360i


FIRMWARE UPDATES

Current firmware can be found here (login required)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


Specifications and documentation subject to change without notice
