ACL 360 Bar

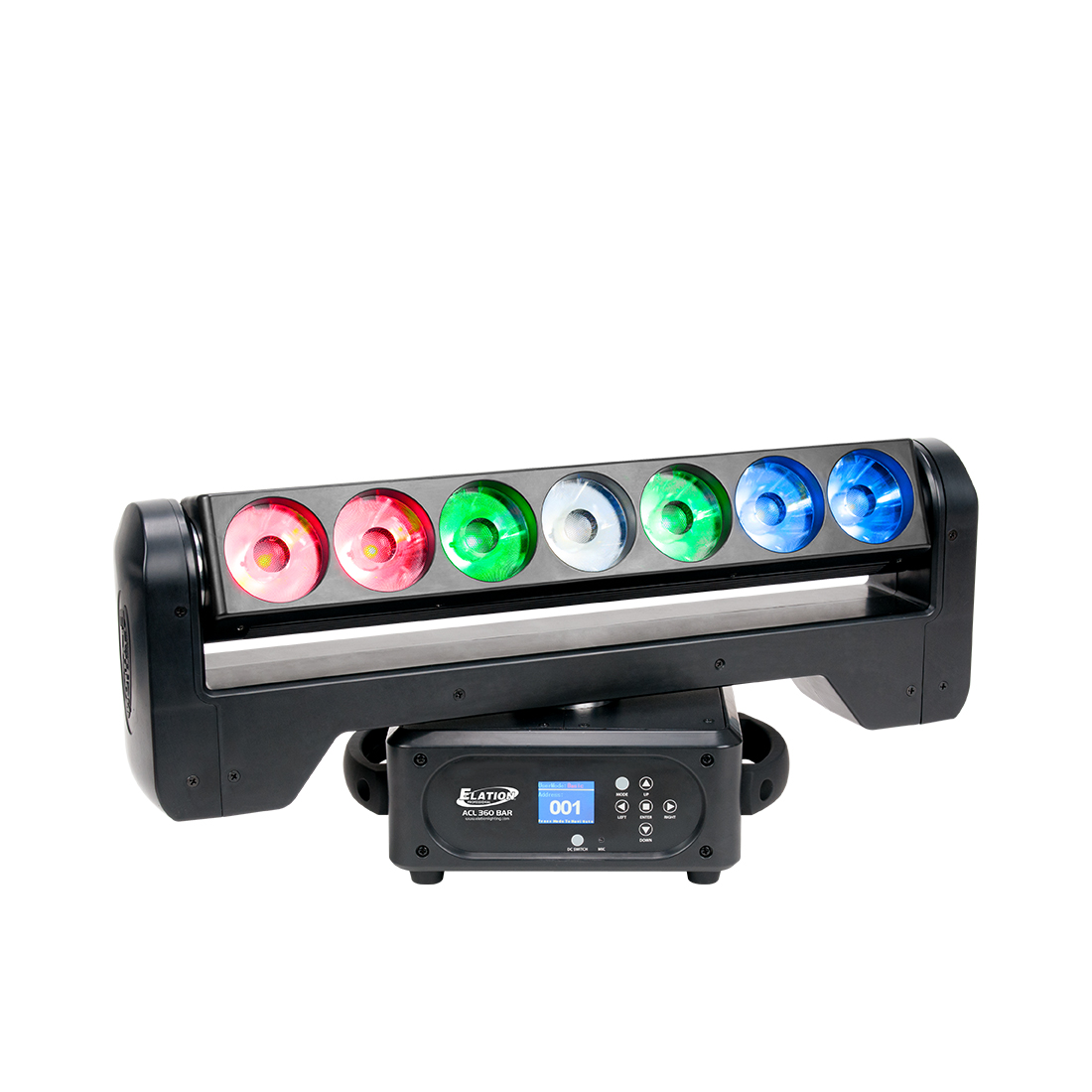

The ACL 360 BAR™ is a versatile moving bar effect luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, which combined produce a laser-like homogenized 4° color-changing beam from each lens which combined produce a 31° beam angle. Features include fast and precise16-bit continuous full 360° pan and tilt rotation, full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 3/5pin XLR, Locking Power Cable, and RJ45 ethernet in/out connections, (6) button control full color 180° reversible menu display, 135W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

Versatile Moving Bar Effect Luminaire
Advanced Collimator Lens
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Laser-Like Homogenized 4° Color Changing Beams
(7) Pixel Control RGBW 4-in1 LEDs
Variable Dimming Curves
Flicker Free Operation for TV and Film
KlingNET™ and Art-NET (DMX over Ethernet)
RDM – Remote Device Management


SOURCE

(7) 15W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*


PHOTOMETRIC DATA

15,430 LUX 1,433 FC @ 9.8’ (3m)


EFFECTS

Individual Pixel Control
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves


COLOR

RGBW


CONTROL / CONNECTIONS

(3) DMX Channel Modes (17 / 19 / 43)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement

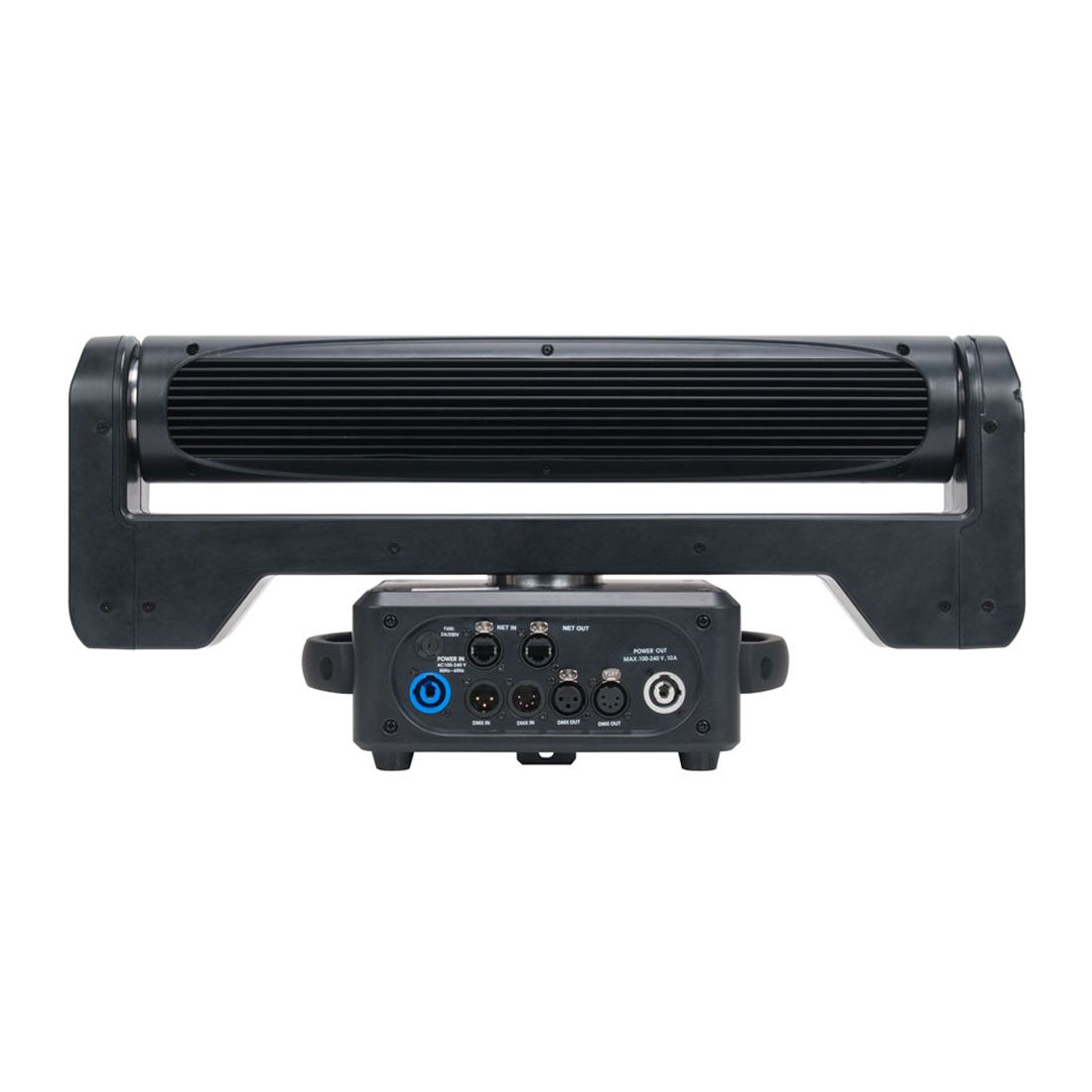

3pin/5pin DMX In/Out
RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
Locking Power Cable In/Out
With Wired Digital Communication Network


SIZE / WEIGHT

Length: 22.6” (575mm)
Width: 7.2” (184mm)
Vertical Height: 10.2” (258mm)
Weight: 22.0 lbs. (10 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
135W Max Power Consumption
5F to 113°F (-15°C to 45°C)


OPTIONAL ACCESSORIES

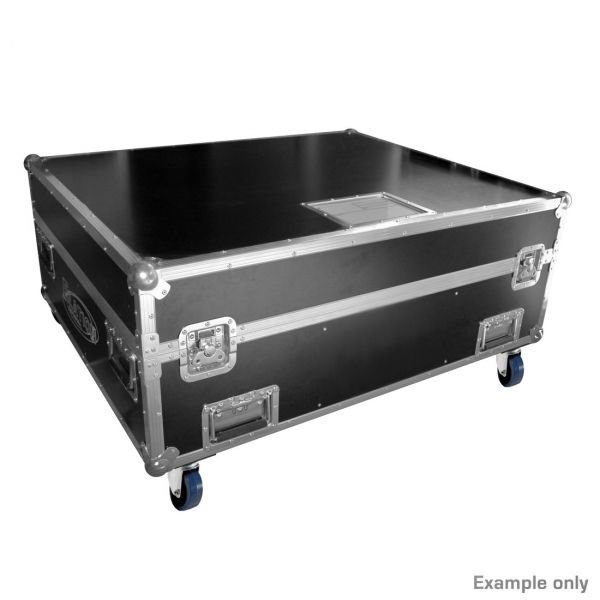

1521000267 Touring Case 4x ACL 360 Bar
1521000268 PRO Case 4x ACL 360 Bar
1521000269 Touring Case 5x ACL 360 Bar
1521000270 PRO Case 5x ACL 360 Bar


FIRMWARE UPDATES

Current firmware can be found here (login required)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


Specifications and documentation subject to change without notice

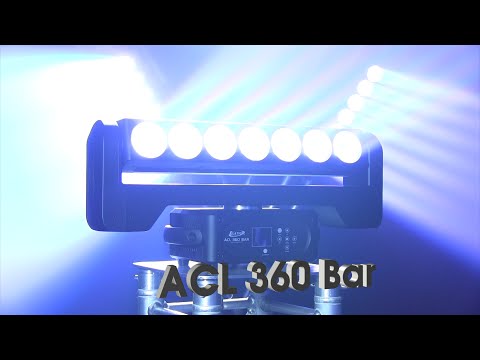

Videos
