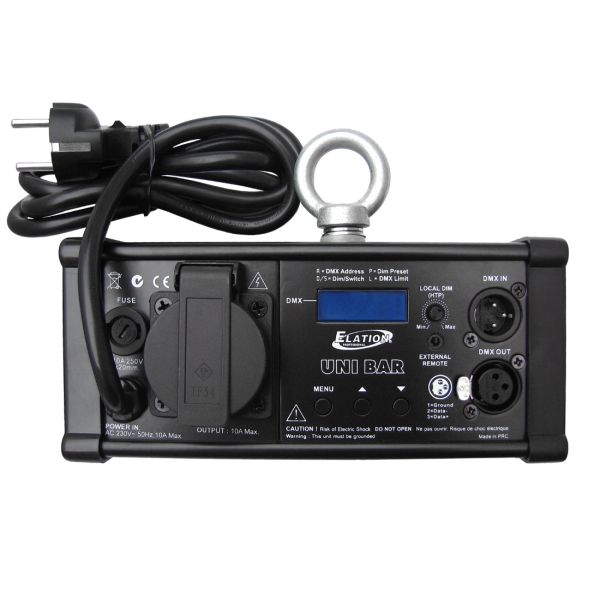

UNI BAR - (CEE 7/7 output)

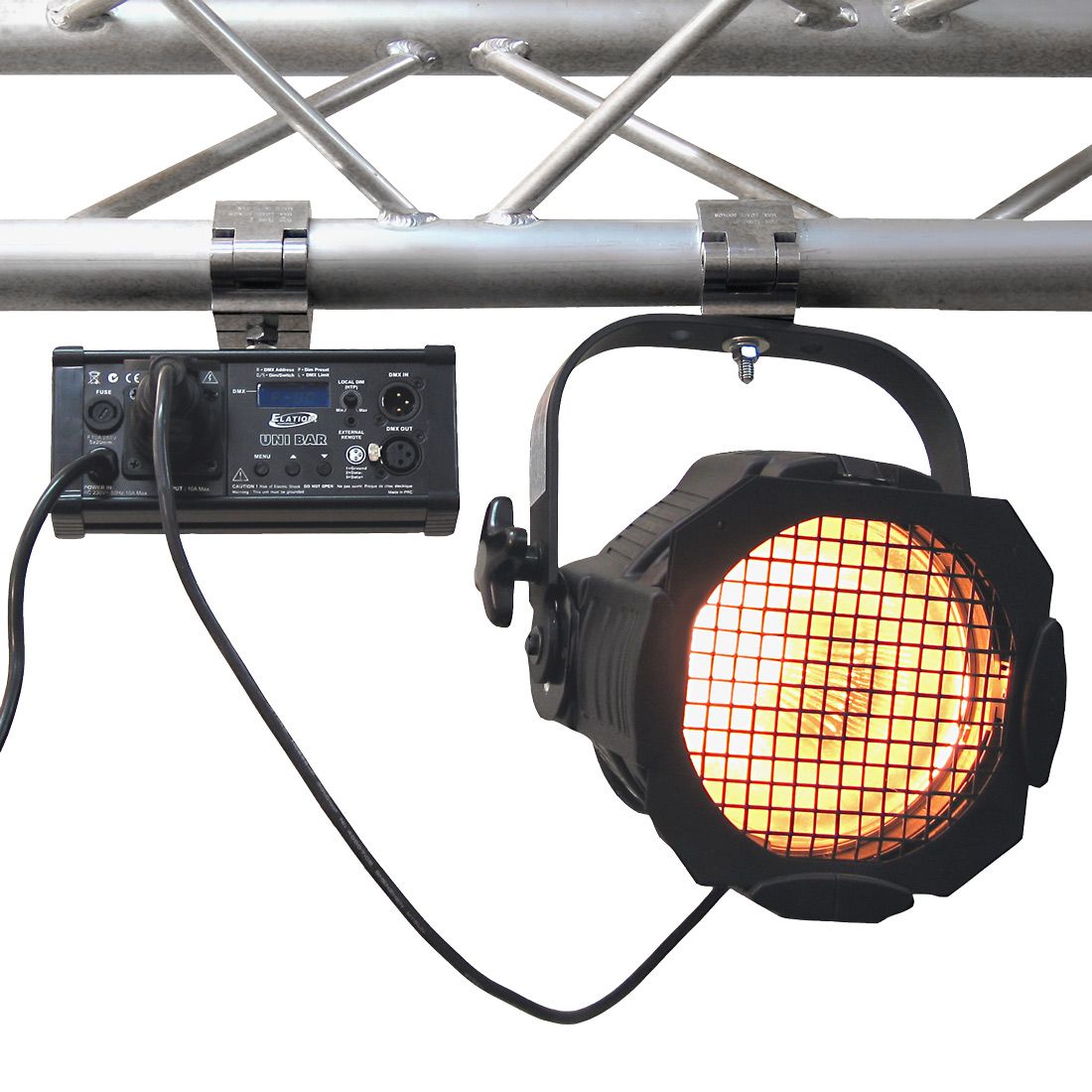

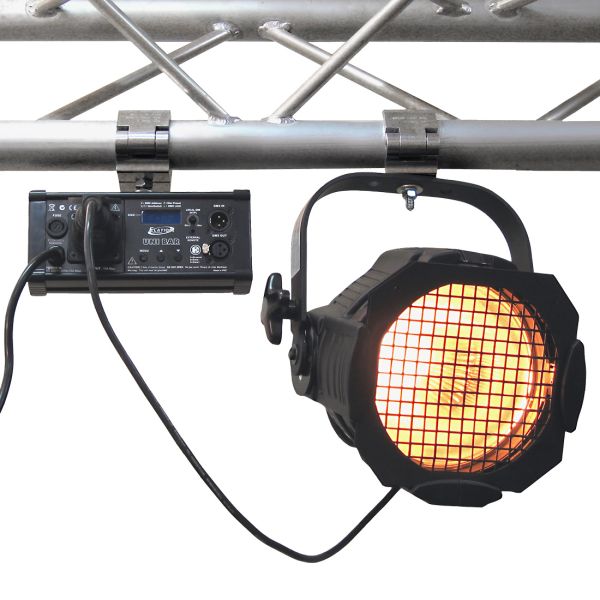

The UNI BAR is a new very compact single DMX dimmer for truss or stands. It's very lightweight and with 10A max powerful to run big flooters or PAR cans. The dimmer preset and limit functions are great for a long lifetime of your lamps. You may mount the UNI BAR with standard truss clamps or couplers.



Technical Data

FEATURES

Truss Mountable
10A Dimmer
Switch or Dimm Settings
Preheat Adjustable
Dimmer Preset and Dimmer Limit Settings
Power Failure Memory


CONTROL / CONNECTIONS

1 DMX Channel
3 Button Control Panel
LCD Menu Display
On-board HTP Dimming Control
Including External UP-2F HTP Intensity Control Fader
3pin DMX In/Out
Fixed Power In


SIZE / WEIGHT

Length: 7.9” (200mm)
Width: 3.3” (83mm)
Vertical Height: 2.7” (68mm)
Weight: 2.5 lbs. (1.14 kg)


ELECTRICAL / THERMAL

AC 230V - 50Hz
10 Amp Maximum Channel Output
10 Amp 250V 5x20mm Fuse
14°F to 113°F (-10°C to 45°C)

Specifications and documentation subject to change without notice
