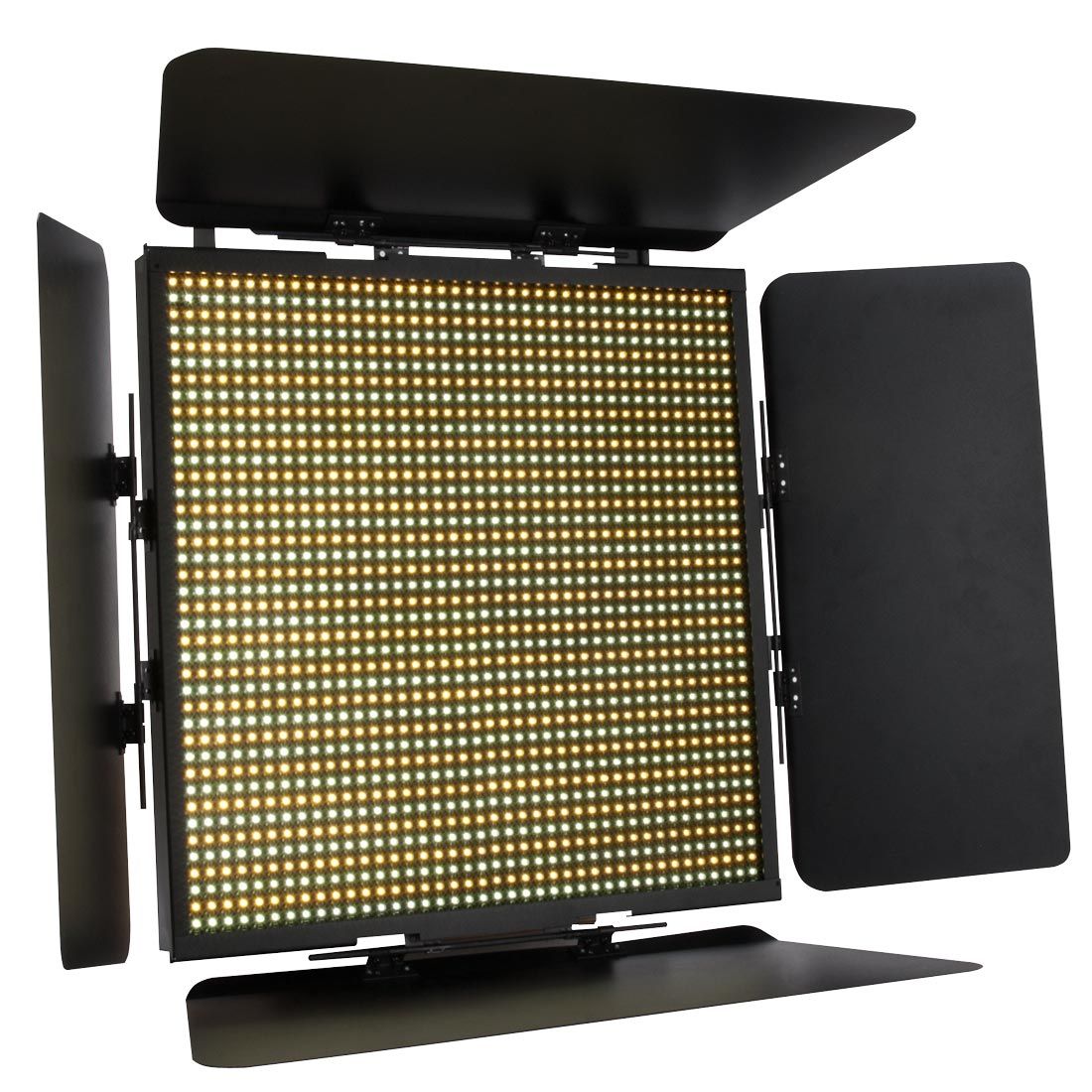

TVL4000

TVL 4000 LED Panel by Elation Professional is the ultimate broadcast LED TV light. Featuring adjustable color temperature via DMX-512 protocol with 800 cool white LEDs and 800 warm white LEDs, total control is at your fingertips. Adjust color from cool white daylight to warm white tungsten with ease. This superior LED TV light allows you to customize to different skin tones without delay. The design of this fixture is optimized to express virtually limitless control producing soft, directional output from cool white daylight to soft warm tungsten, or any temperature in between. With 0-100% dimming capabilities the possibilities are limitless and the operator can produce an even and soft light output. With such low heat emissions the TVL 4000 remains cool to the touch. Color temperature and dimming can all be controlled by either using the onboard controls or via a DMX lighting controller. With the TVL 4000 LED Panel you’re in complete control.

Technical Data

- 1600 LEDs total: 800 x Cold White, 800 x Warm White- Perfect coldwhite, warmwhite mixing
- Long Life LEDs
- 30° beam angle
- Incl. Barndoors
- Easy access dimming & colormixing knob
- Flicker free operation for television and film
- LED Menu Display
- USITT DMX 512
- Manual & DMX control
- Holds last state when power off
- 0-100% Dimming
- Strobe: Strobe effect (1-18 flashes per second)
- 3 pin XLR in/out
- Optimized cooling system
- Mounting bracket and safety I-hook installed
- Power in/out linkable
- Electronic Switching Power Supply
- Weight: 10,8kg
- Power Consumption: 160W
- 100-240V AC, 50/60Hz (Multi-voltage)

Specifications and documentation subject to change without notice
