Code 1236300063

TVL2000II

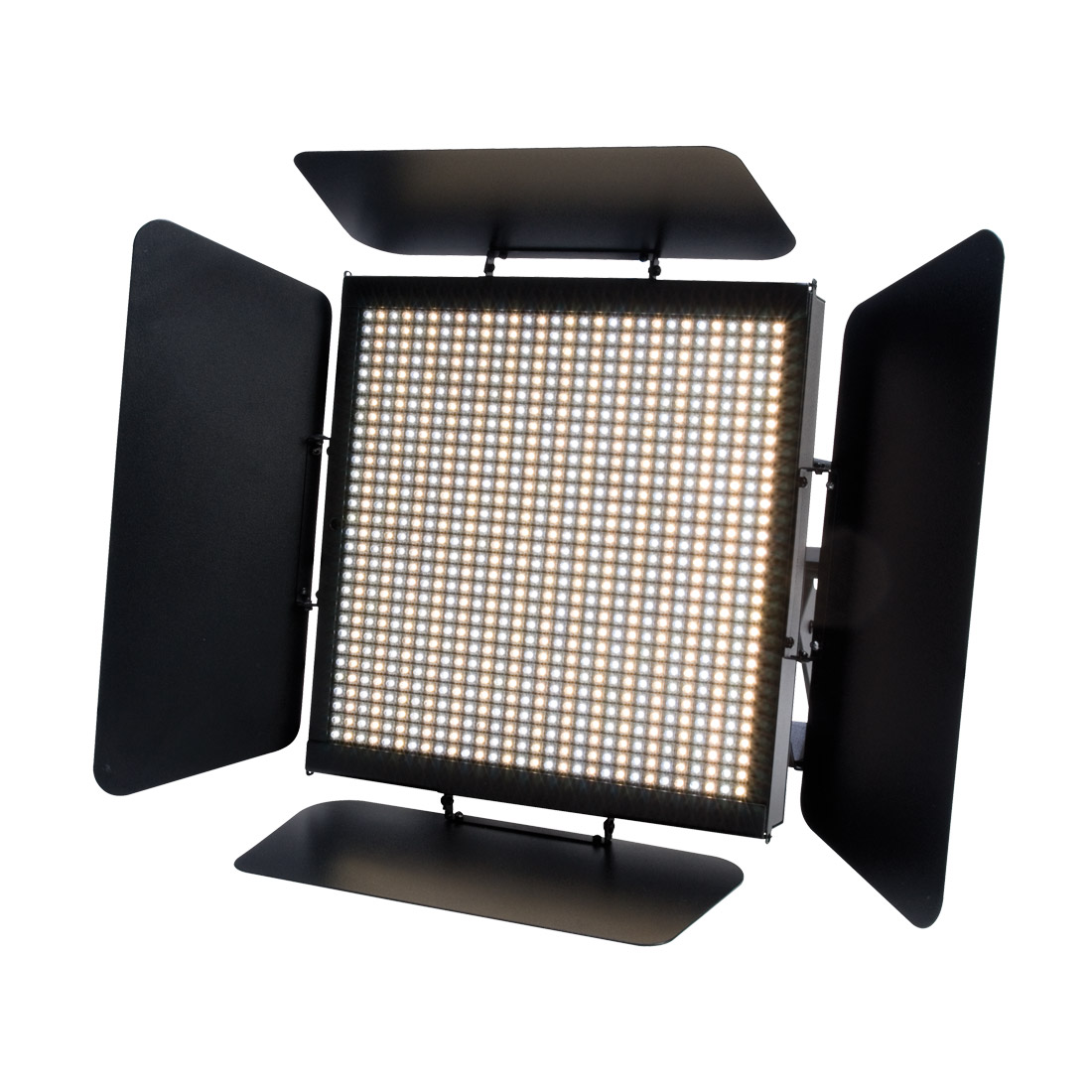

The improved TVL2000 II™ features a low heat high CRI dynamic LED array panel consisting of 450 warm white and 450 cool white LEDs, variable manual and DMX controlled color temperature (3,200K - 6,500K) and dimming, adjustable barn doors, built-in magnetic gel/diffuser holder, flicker free operation for broadcast TV and Film, 3 and 5 pin DMX in/out and linkable power in/out connections, (4) button (2) dial LCD display control panel, 90W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

Low Heat High CRI Dynamic LED Array Panel
Variable Color Temperature Settings (3,200K - 6,500K)
Adjustable Barn Doors

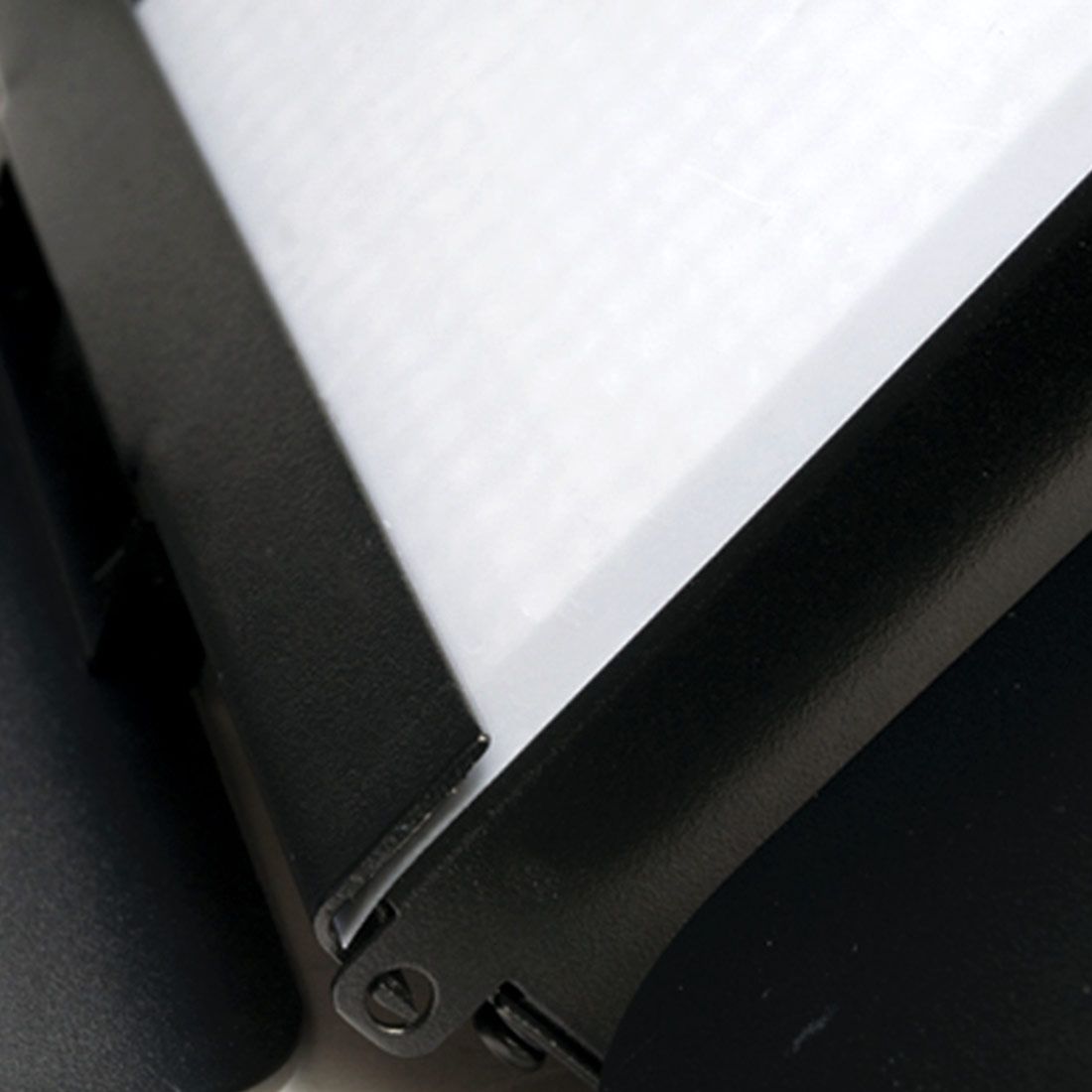

Built-In Magnetic Gel/Diffuser Holder
Manual and DMX Controlled Color Temp and Dimming
Flicker Free Operation for Broadcast TV and Film
Multiple Unit Power Linking


SOURCE

(450) Warm White + (450) Cool White LEDs


PHOTOMETRIC DATA

750 LUX 70 FC @6.6’ (2M) (30° Warm White 3,200K)
1300 LUX 121 FC @6.6’ (2M) (30° Cool White 6,500K)
2000 LUX 186 FC @6.6’ (2M) (30° Full On 4,500-5,000K)


EFFECTS

Variable Color Temperature (3,200K - 6,500K)
Electronic Dimming (0% - 100%)


CONTROL / CONNECTIONS

(3) DMX Channel Modes (2/2/3)
Manual and DMX Color Temperature and Dimming

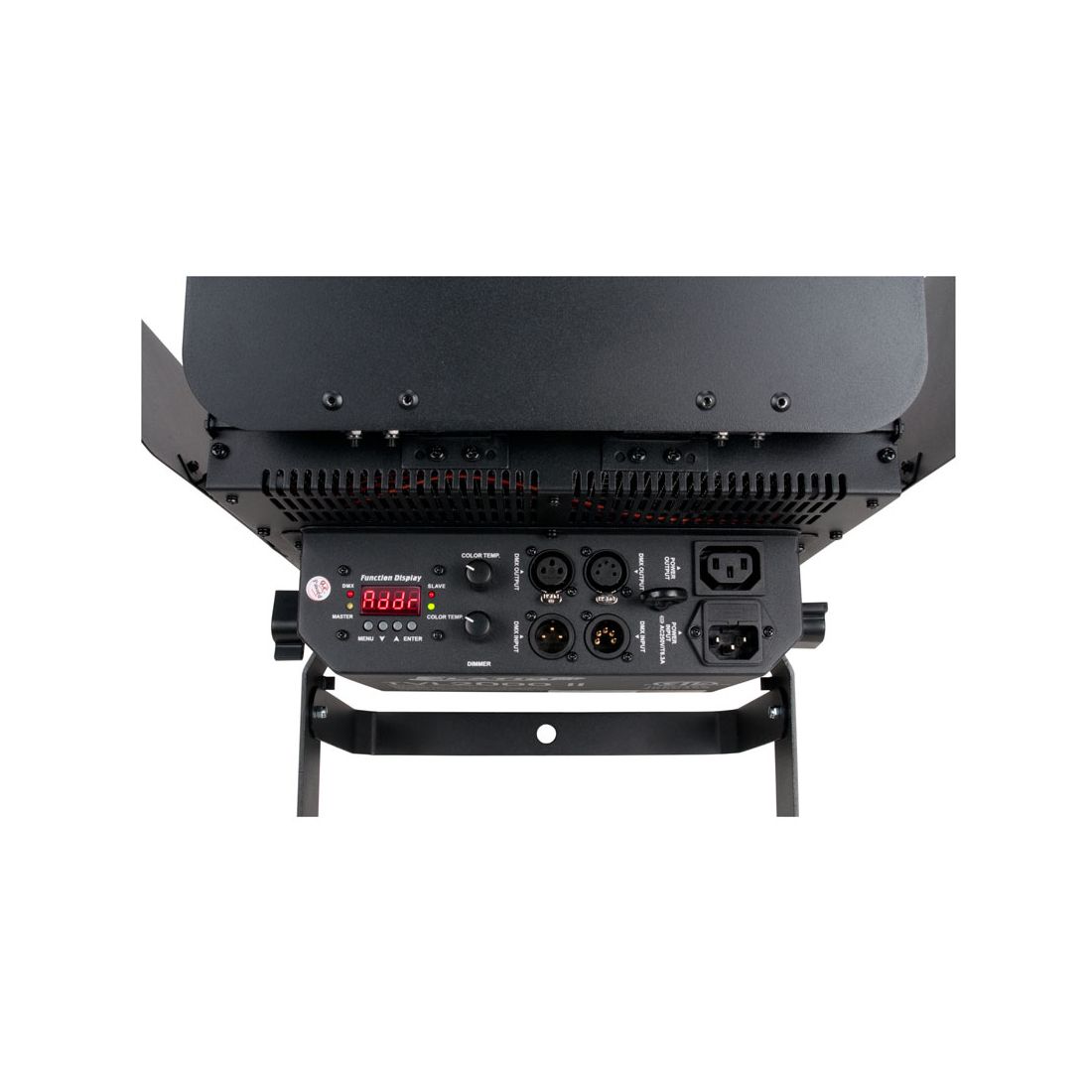

(4) Button and (2) Dial Control Panel
LCD Menu Display

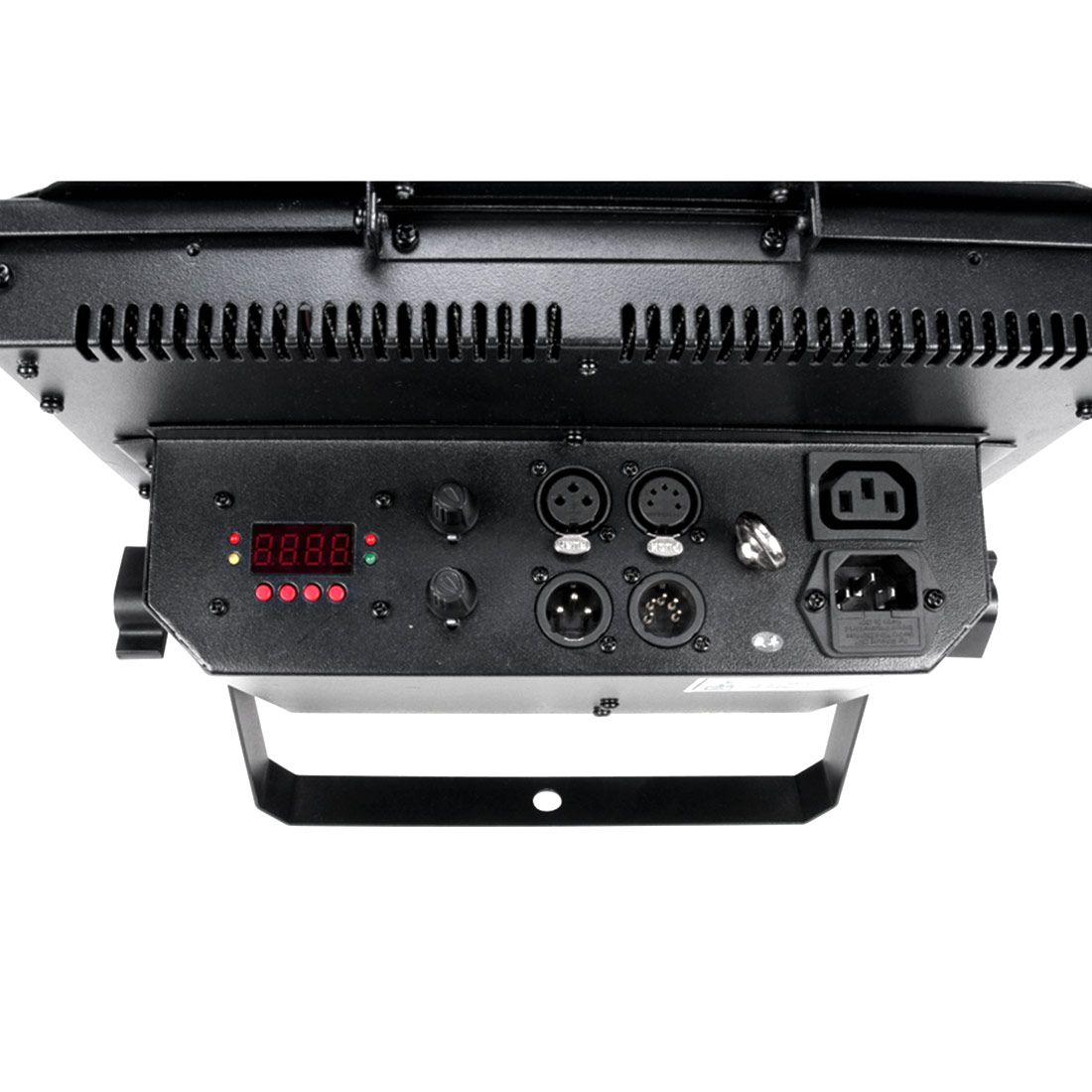

3pin and 5pin DMX In/Out
Linkable Power In/Out


SIZE / WEIGHT

Length: 14.8” (376mm)
Width: 13.3” (337mm)
Vertical Height: 4.4” (113mm)
Weight: 15.0 lbs. (6.8 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
90W Max Power Consumption

Specifications and documentation subject to change without notice
