TVL1000Archive

Code 1236300044

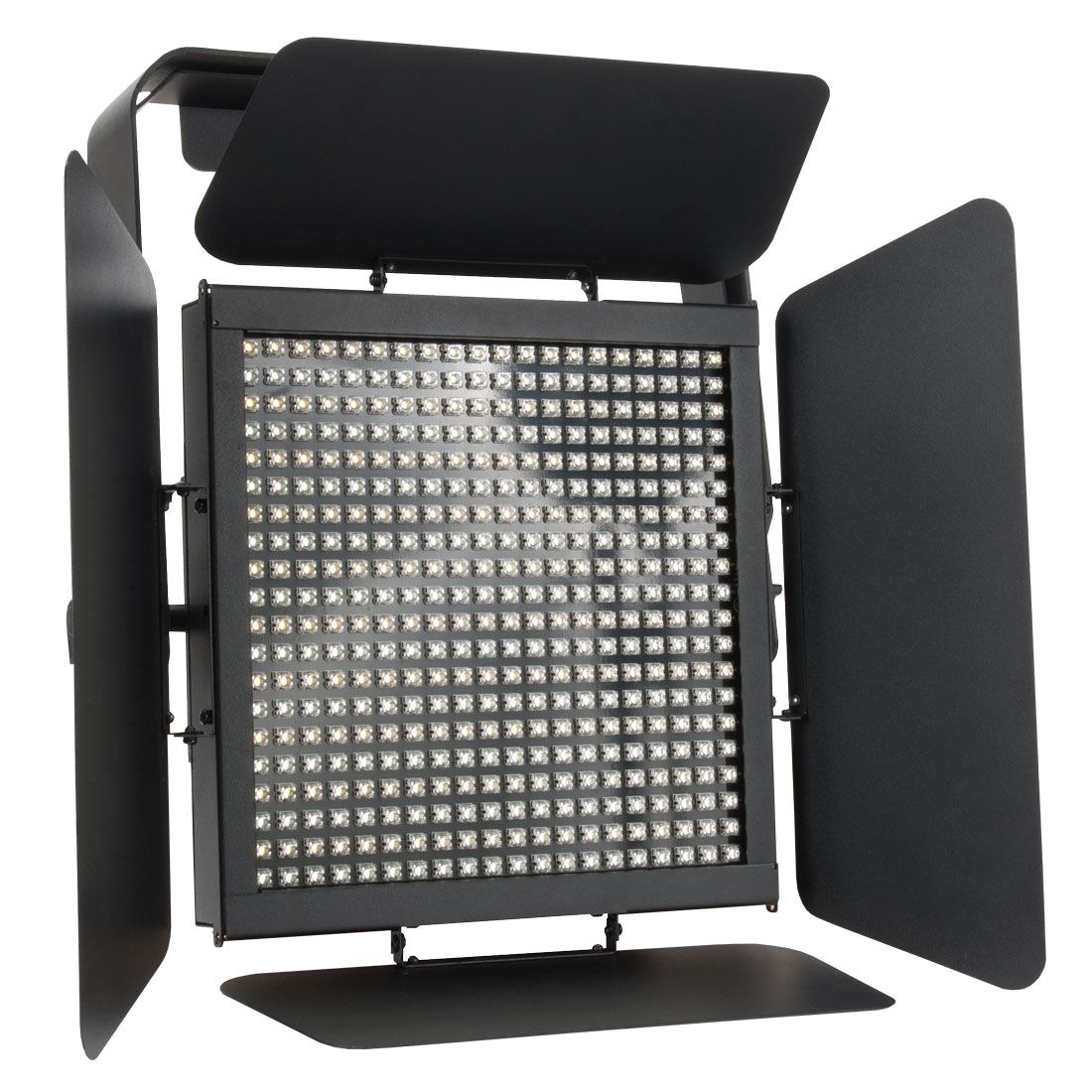

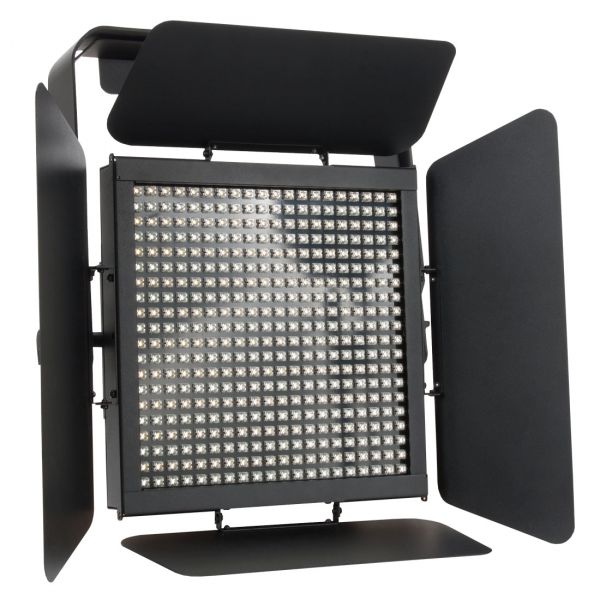

TVL1000

Technical Data

Features:
. Cool white and warm white LEDs to mix color temperature
. Internal rechargeable battery powered option available
. Color temperature range from 3200°K to 6500°K
. 3 DMX Channel Modes
. Built-in magnetic gel/diffuser holder
. Low heat output
. Low power consumption
. Flicker Free / Silent Operation
. Knob for easy manual temperature control of LED's
. Easy to use knob of Master dimming 0-100%.
. 30 degree beam angle standard

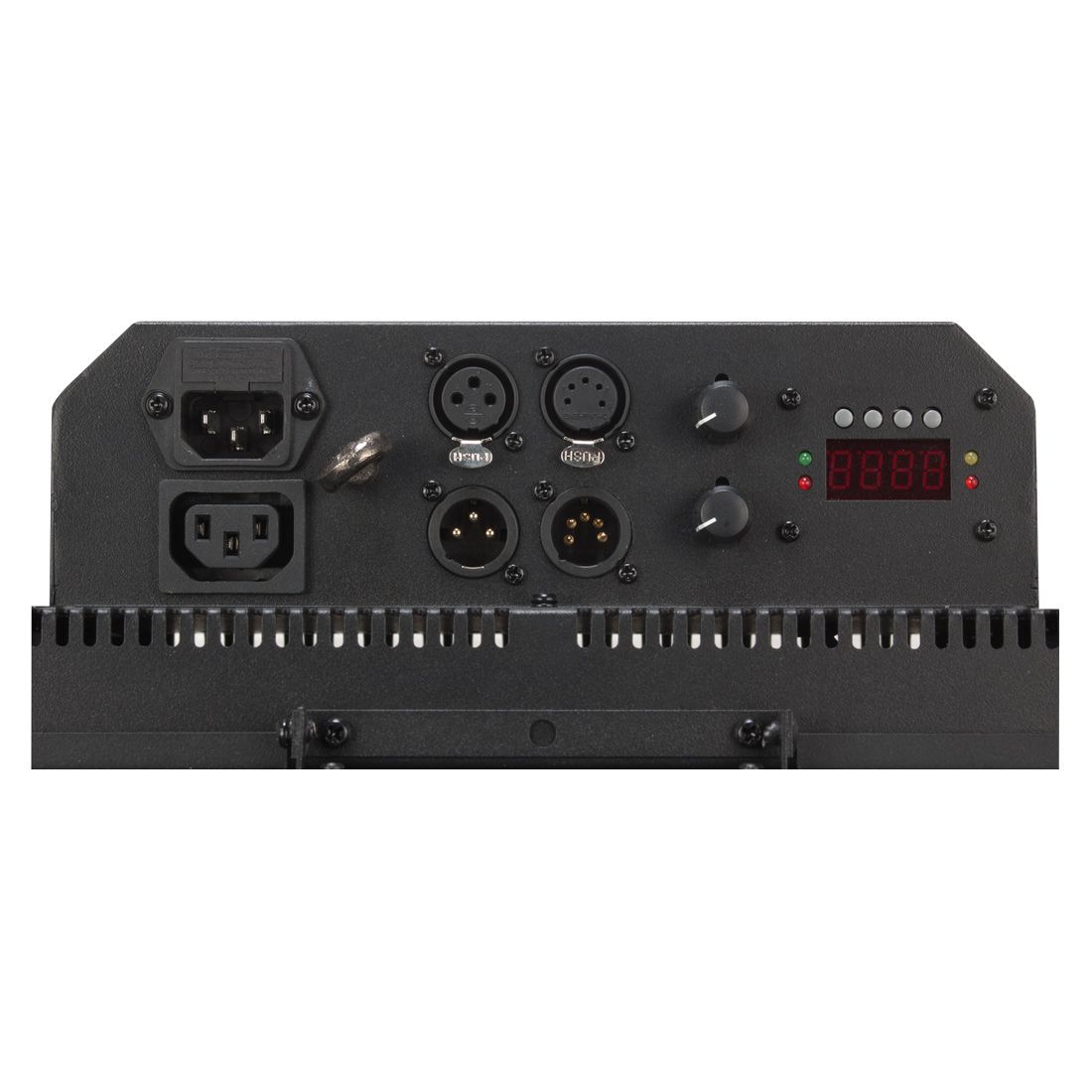

. 3 & 5 pin XLR connectors for DMX
. Universal input voltage 100-240v 50/60Hz
. Includes Barn Doors
. Easy to use Display Menu for DMX addressing
. IEC AC in/out for linking power. (Up to 12 TVL1000’s)

Technical Specifications:
. Power Supply: 100V-240V 50/60Hz
. LED: 400 pcs. total (Cool White = 200 pcs. / Warm White = 200 pcs.)
. Power Consumption: 66W
. Fuse: 7A
. Dimensions: (LxWxH) 15.9” x 13.7” x 4.4” / 406 x 350 x 113mm
. Weight: 13.6 lbs. / 6.2 kgs.

Optional Accessories:
. TVL-1000BAT - Optional Battery Powered

Specifications and documentation subject to change without notice
