TVL Panel DW

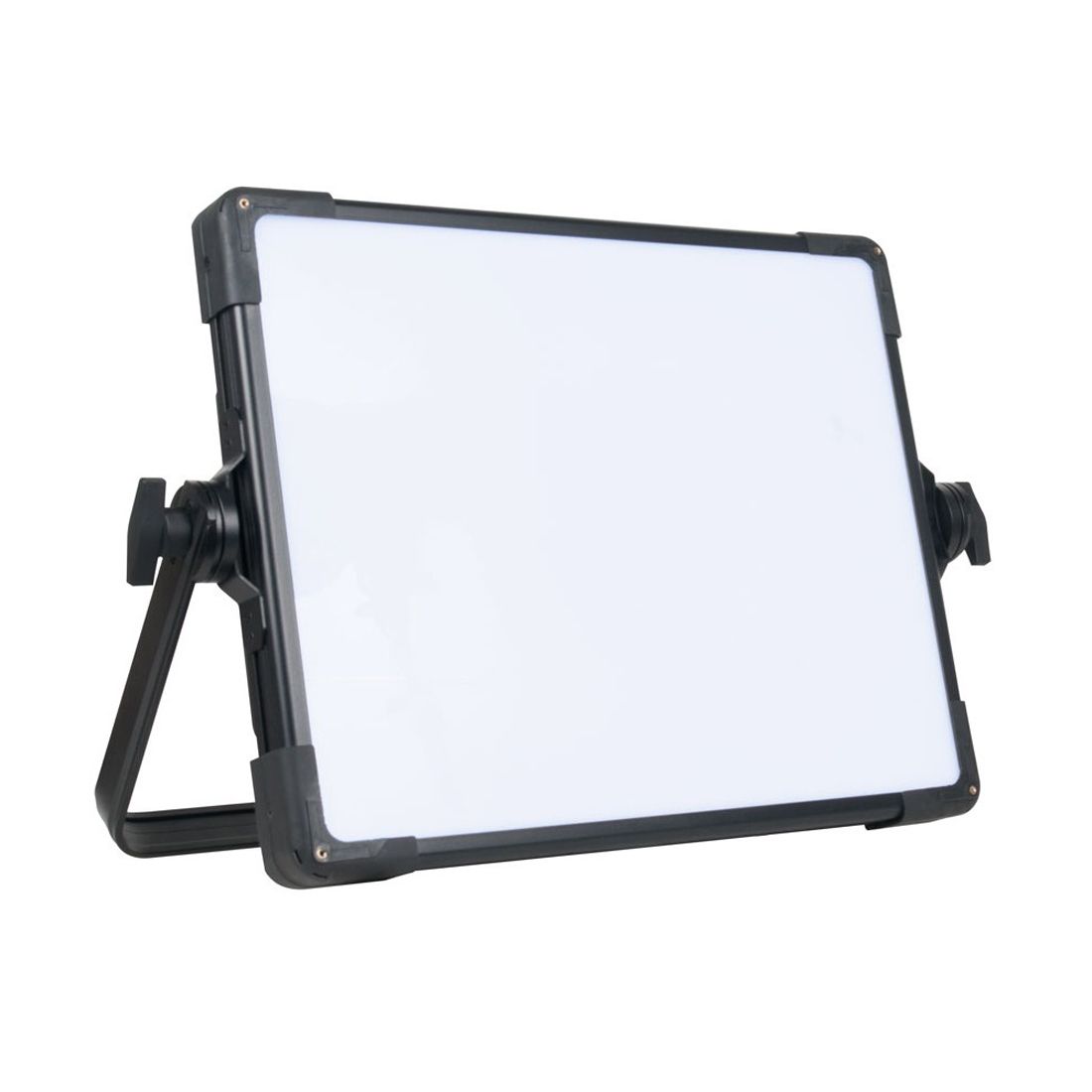

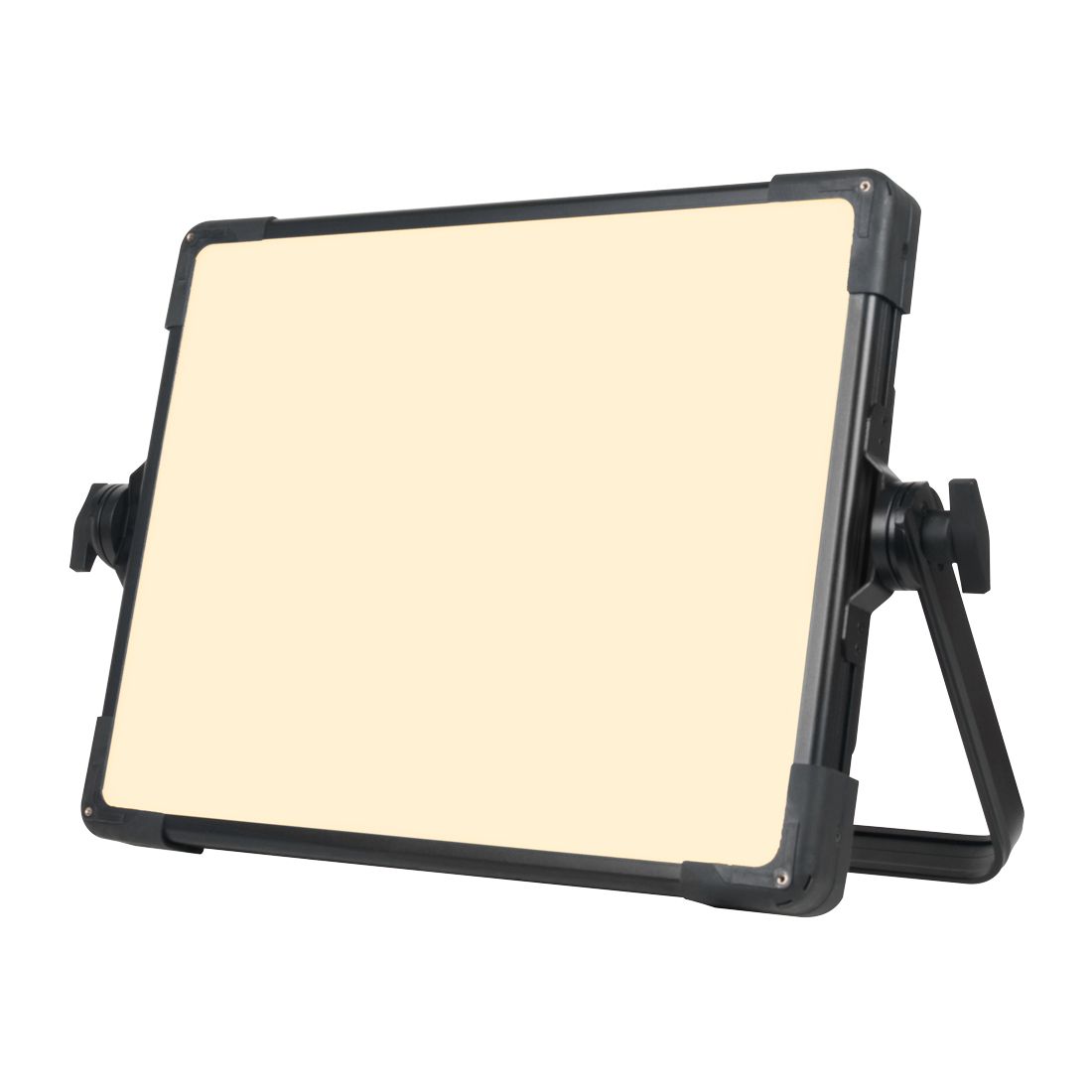

The TVL PANEL DW™ is a softlight luminaire featuring (480) Cool White and (480) Warm White LEDs, 115° beam angle, 8-leaf adjustable / removable barn doors, linear white color temperature range (3,200K - 5,800K), smooth 16bit dimming curve mode effects, adjustable LED refresh frequency and gamma brightness for flicker free operation for TV and FILM, 5pin DMX, RJ45 ethernet (Art-NET) and IP65 locking power connections, (4) button menu control panel, dimmer and color temperature rotary control dials, 180° reversible LCD menu display, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v). Optional SNAPGRID 40° light control grid available.

Technical Data

FEATURES

Dynamic White 115° Beam TVL Panel SoftLight
Linear White Color Temp Range (3,200K - 5,800K)
Smooth 16bit Dimming Curve Mode Effects
Dimmer and Color Temperature Rotary Control Dials

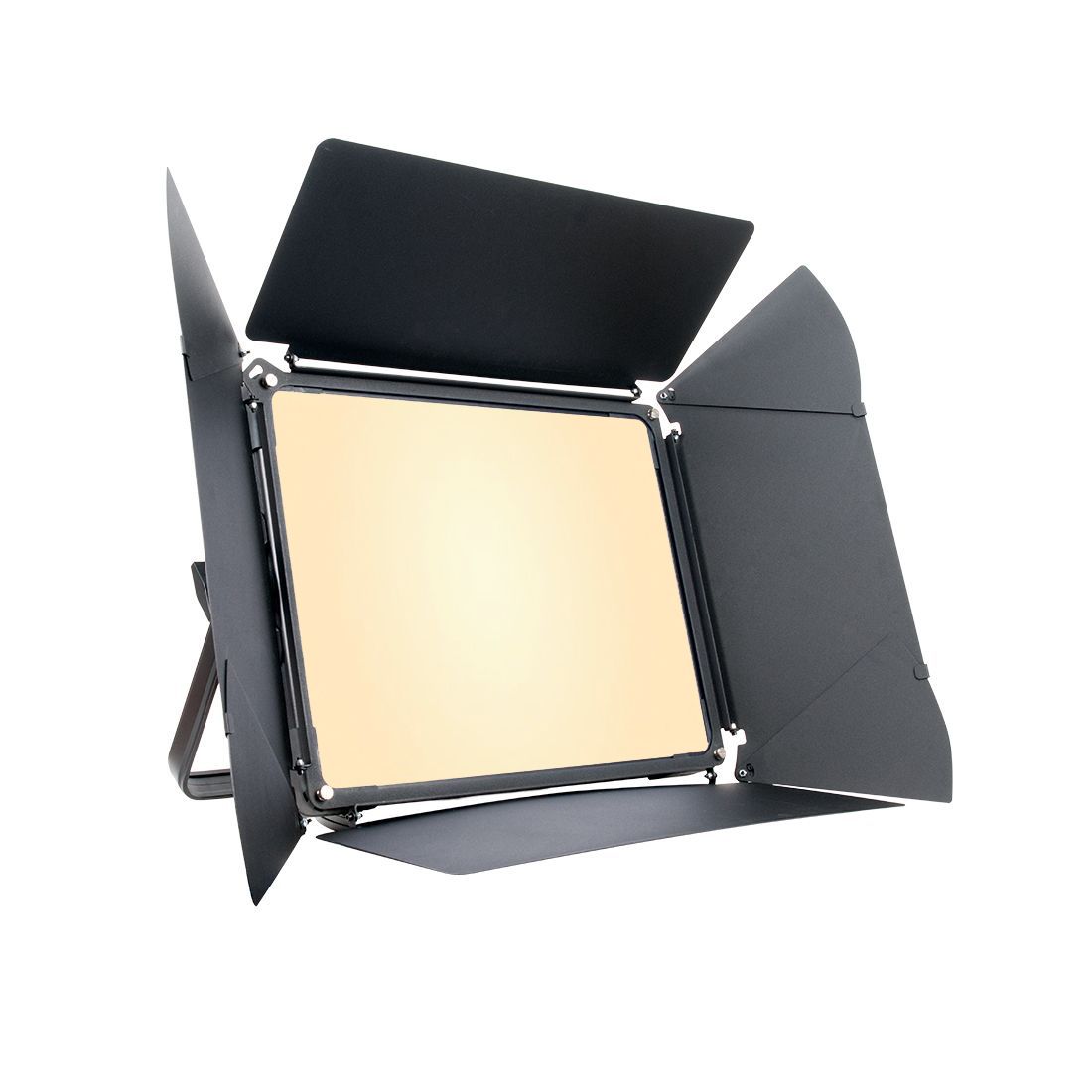

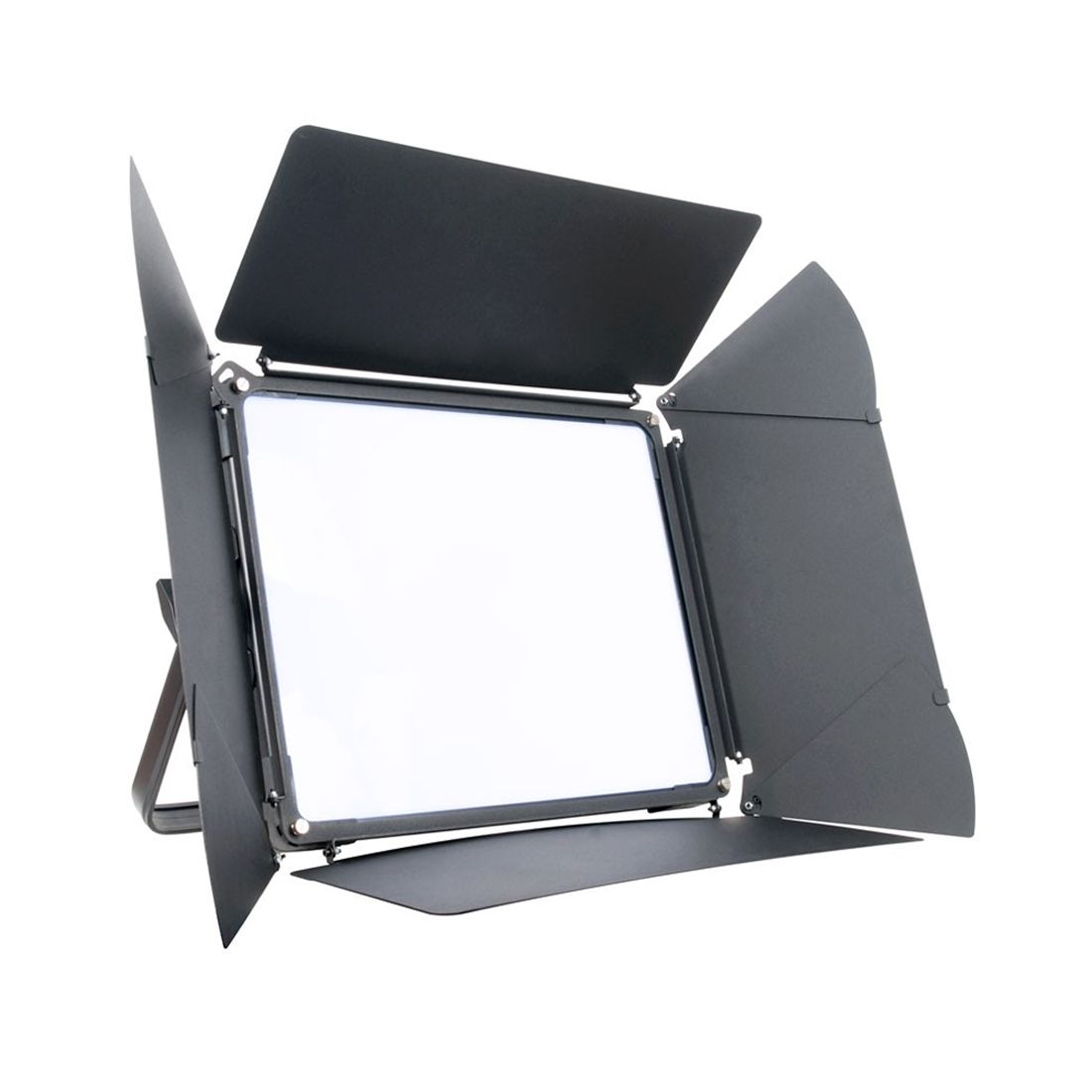

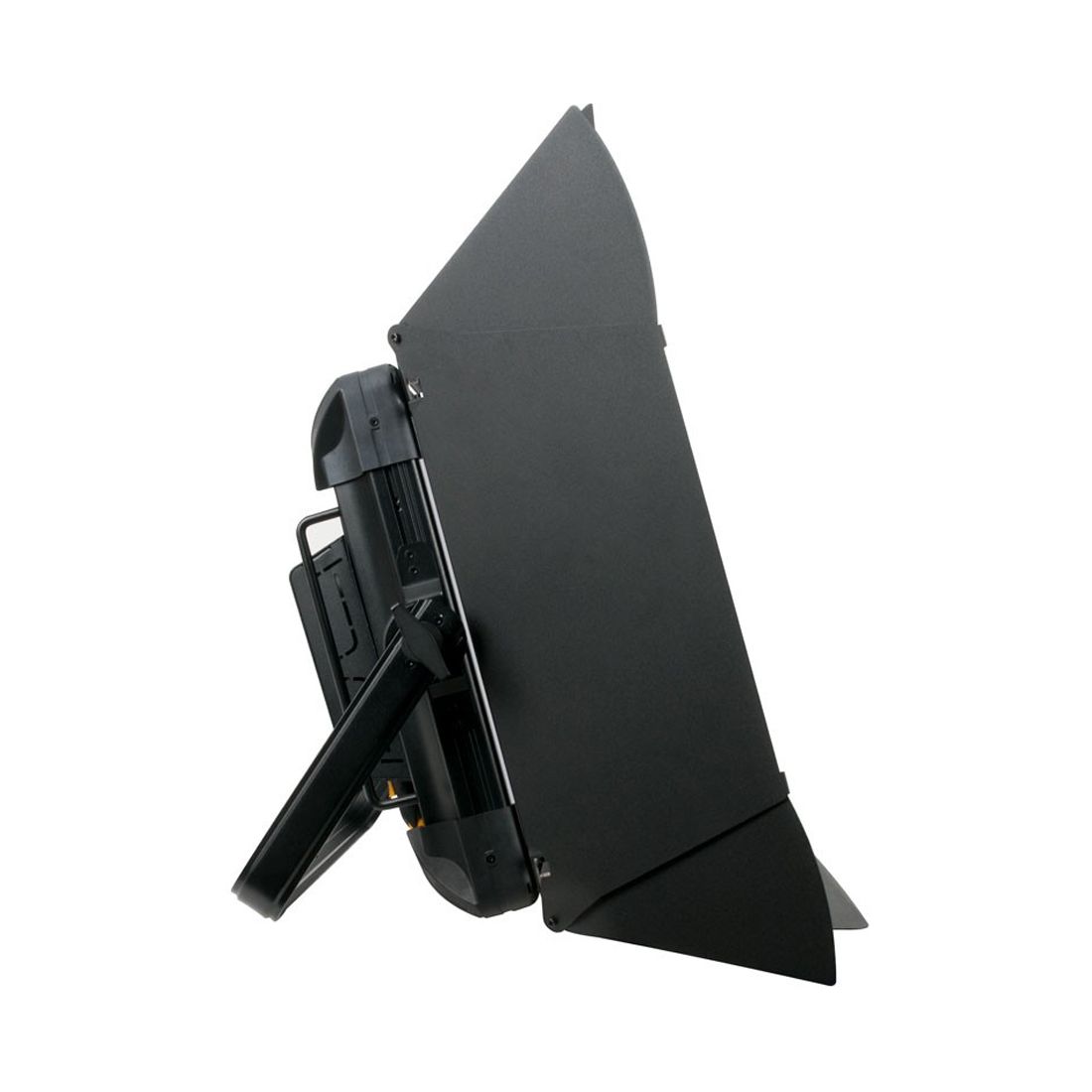

8-Leaf Adjustable / Removable Barn Doors Included
Adjustable LED Refresh Rate and Gamma Brightness
Flicker Free Operation for TV and FILM

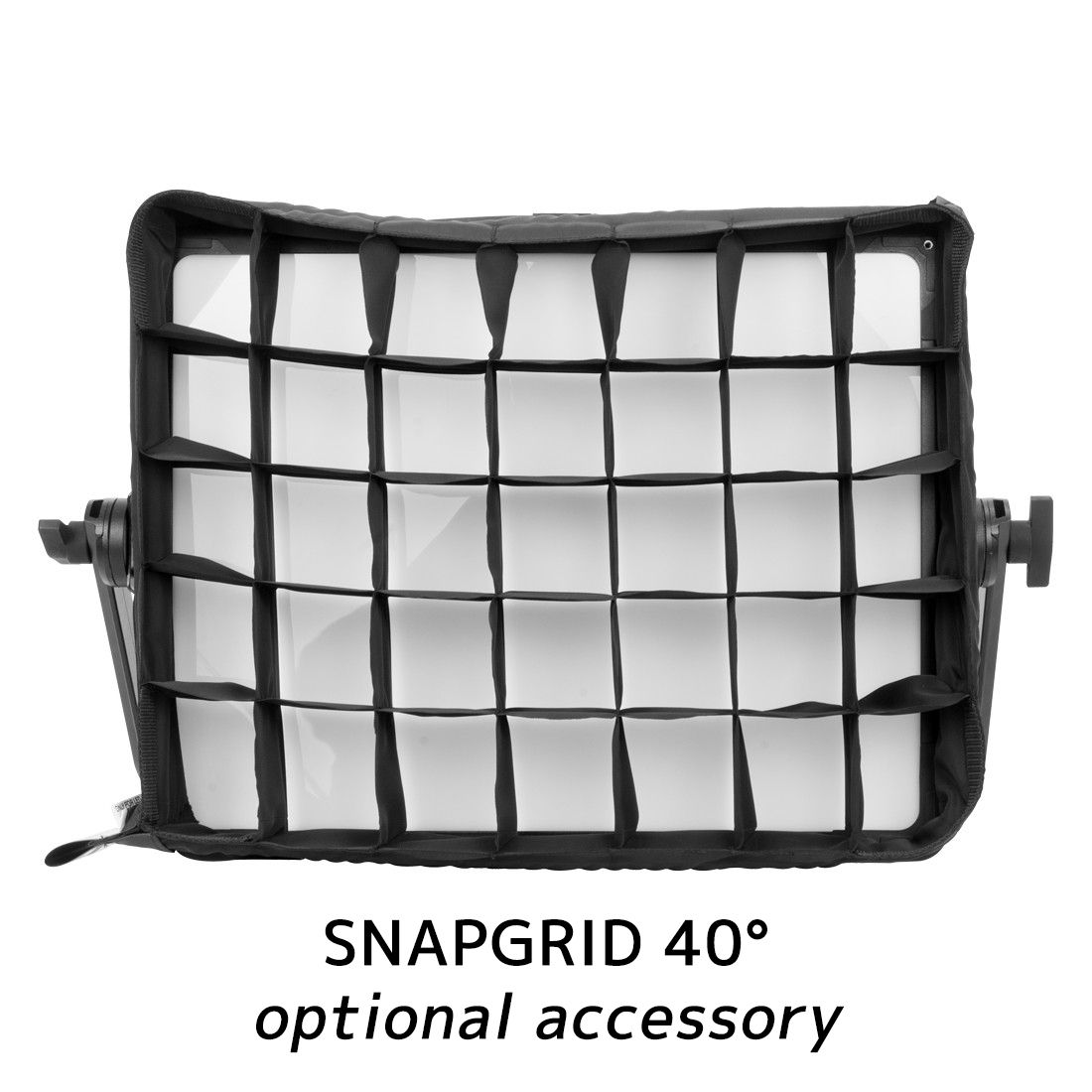

Optional SNAPGRID 40° Light Control Grid Available

SOURCE

(480) Cool White and (480) Warm White LEDs
20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming

PHOTOMETRIC DATA

>95CRI | 13,000 Total Lumens
1,117 LUX 104 FC @6.6 ft (2m) Full ON 4,200K >95CRI
1,105 LUX 103 FC @6.6 ft (2m) CW 5800K >95CRI
1,076 LUX 100 FC @6.6 ft (2m) WW 3200K >97CRI

COLOR

Cool White / Warm White LEDs

EFFECTS

3,200K - 5,800K Linear Variable White Color Temp Control
Electronic Strobe and Variable Dimming Curve Modes

CONTROL / CONNECTIONS

6 DMX Channel Modes (7 total channels)
4 Button Control Panel

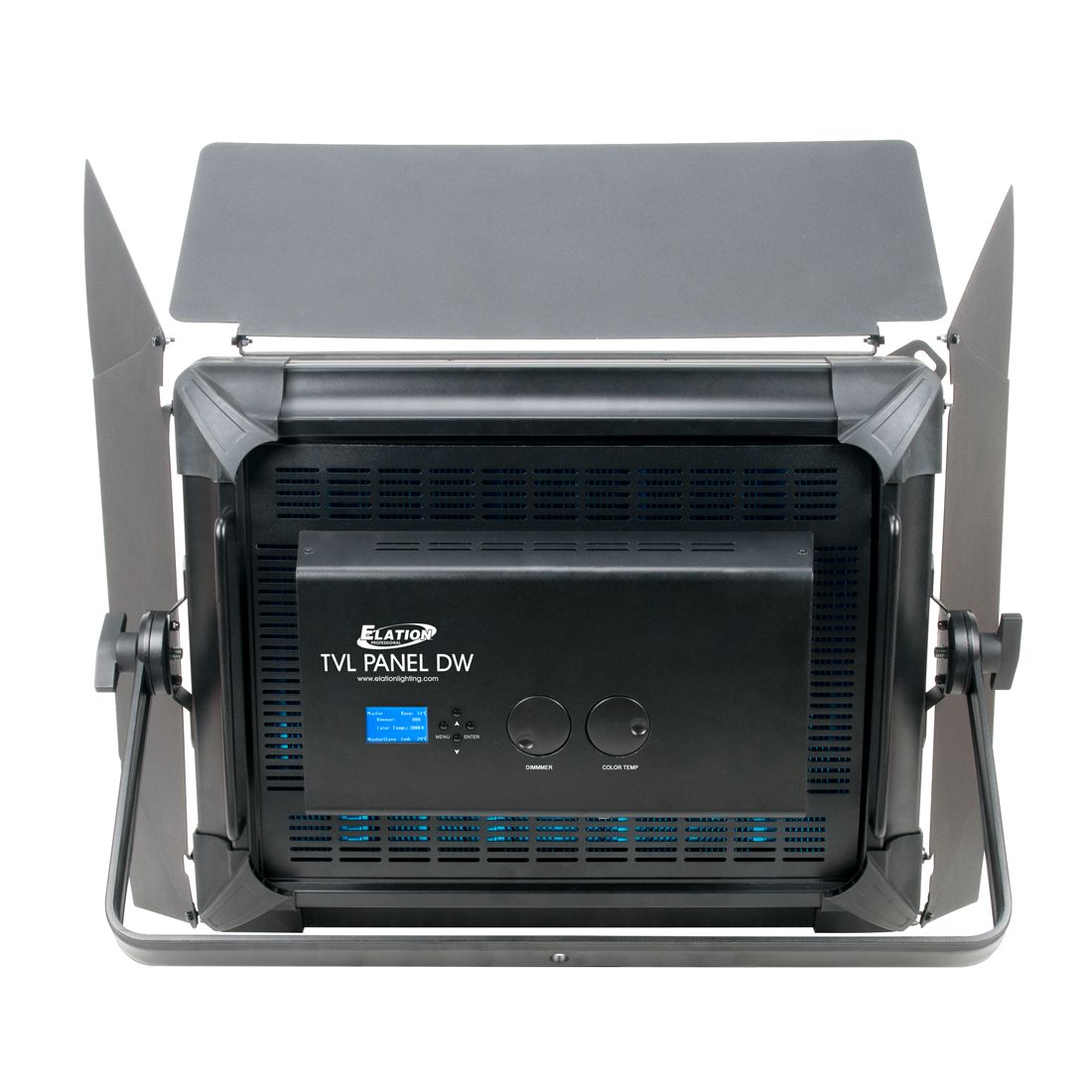

2 Rotary Control Dials (Dimmer and Color Temperature)
Adjustable Refresh Rate (900-25,000 Hz)
Adjustable Gamma Brightness (2.0-2.8)
180° Reversible LCD Menu Display

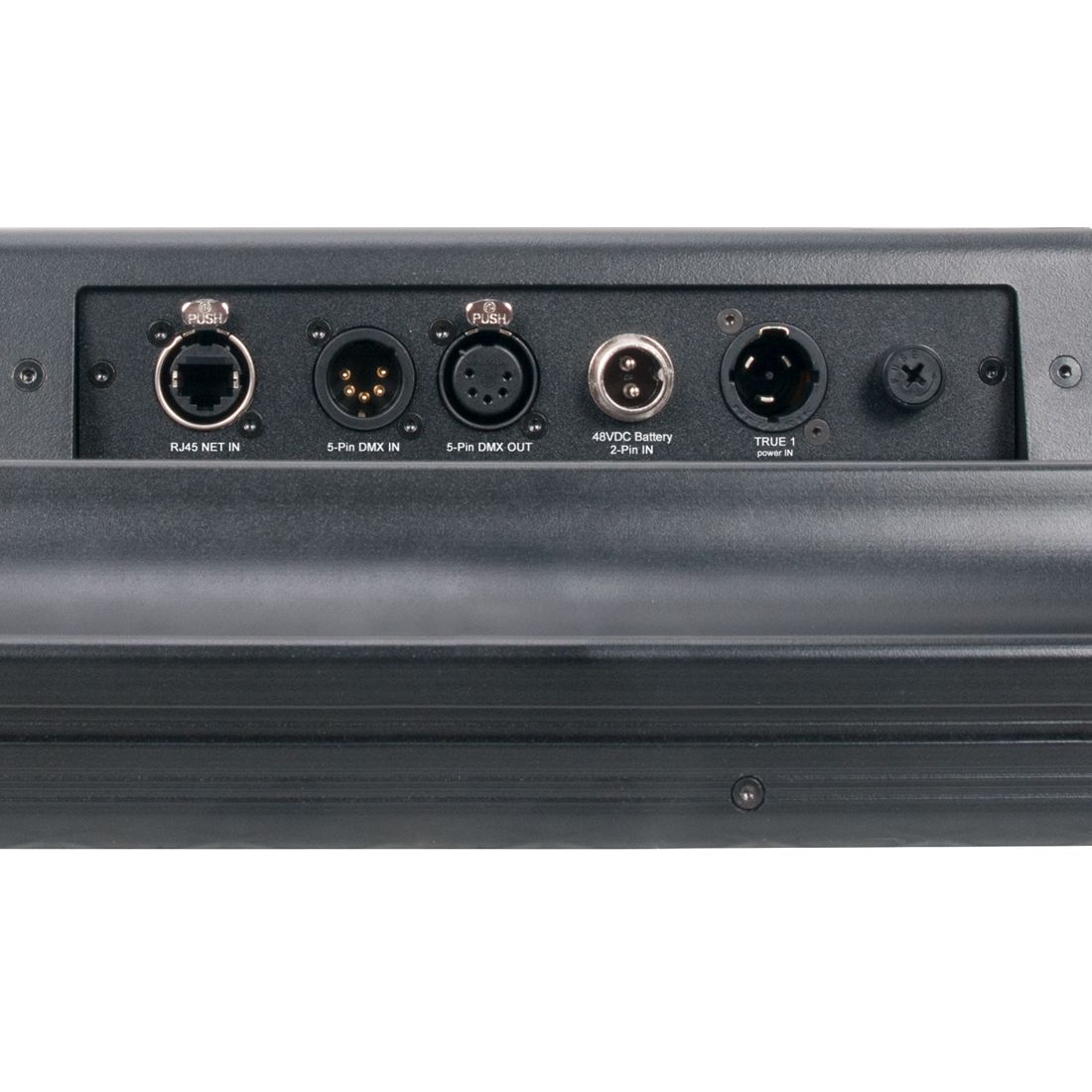

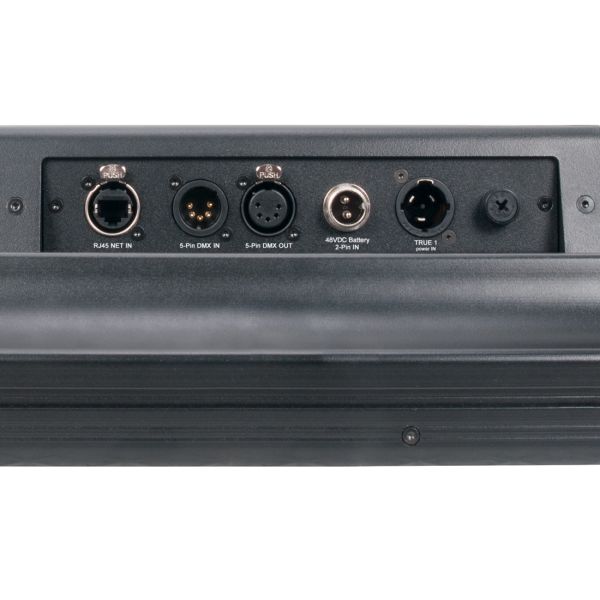

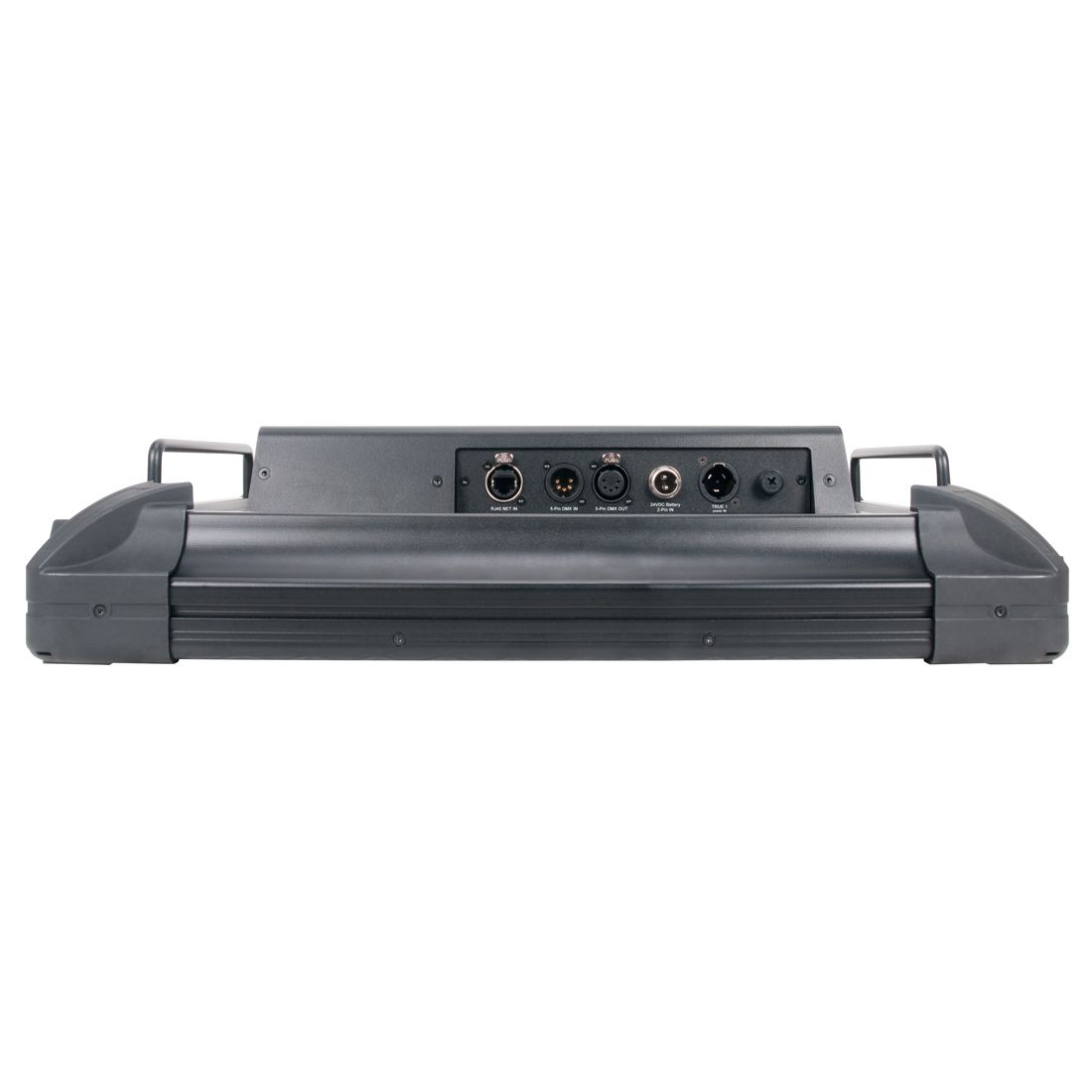

5pin DMX In/Out, RJ45 ethernet (Art-NET) In and locking IP65 power cable In
With Wired Digital Communication Network

SIZE / WEIGHT (w/Barn Doors attached)

Length: 34.3” (871.8mm)
Width: 12.7” (321.4mm)
Vertical Height: 27.2” (691.2mm)
Weight: 28.0 lbs. (12.7 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
199W Max Power Consumption
5F to 113°F (-15°C to 45°C)

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice
