TVL CYC RGBW

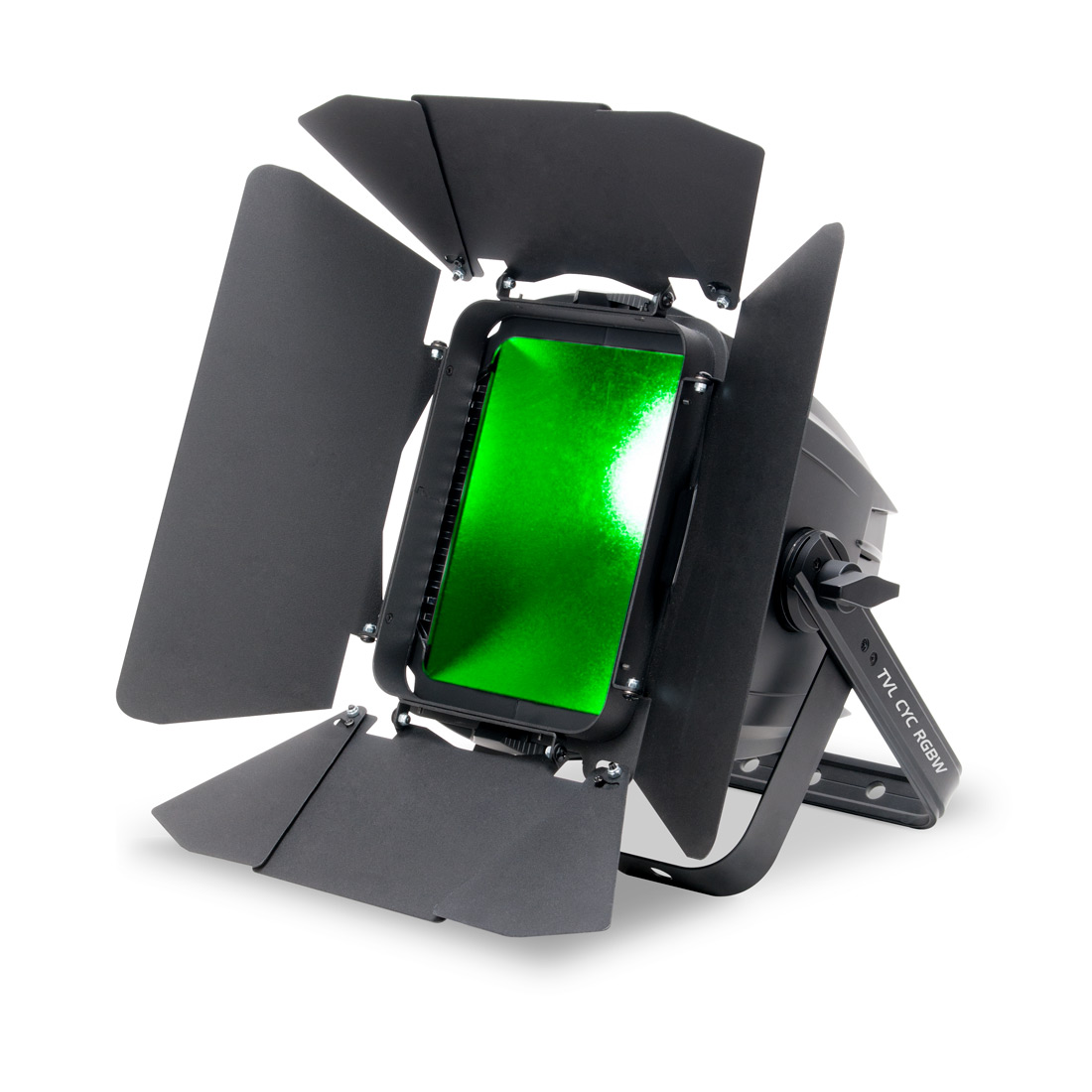

The TVL CYC RGBW™ theatre style luminaire delivers a smooth and even field of seamlessly blended colors onto cycloramas, backcloths, scenery or any surface. It features a 150W COB RGBW LED engine, a 90° x 113° elliptical beam angle, 8-leaf adjustable/removable barn doors, smooth color mixing and dimming, adjustable refresh frequency and gamma brightness, linear variable white color temperature presets (2,700K – 3,200K), strobe effects, variable dimming curves, DMX, RDM (Remote Device Management), 5pin DMX and locking power cable in/out connections, flicker free operation for TV and Film, an LCD menu display with 4 button control panel, 180° reversible LCD menu display, 170W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

150W COB RGBW LED Engine
90° x 113° Elliptical Beam Angle
Adjustable Refresh Frequency and Gamma Brightness
8-Leaf Adjustable Barn Doors Included
Multiple Unit Power Linking
Variable Dimming Curves
Flicker Free Operation for TV and Film
RDM – Remote Device Management


SOURCE

150W COB RGBW LED
20,000 Hour Average LED Life*


PHOTOMETRIC DATA

3,536 LUX 328 FC @ 3.3’ (1m)


EFFECTS

Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves


COLOR

RGBW Color Mixing


CONTROL / CONNECTIONS

(6) DMX Channel Modes (4 / 6 / 7 / 8 / 10 / 14)
Adjustable Refresh Rate
Adjustable Gamma Brightness

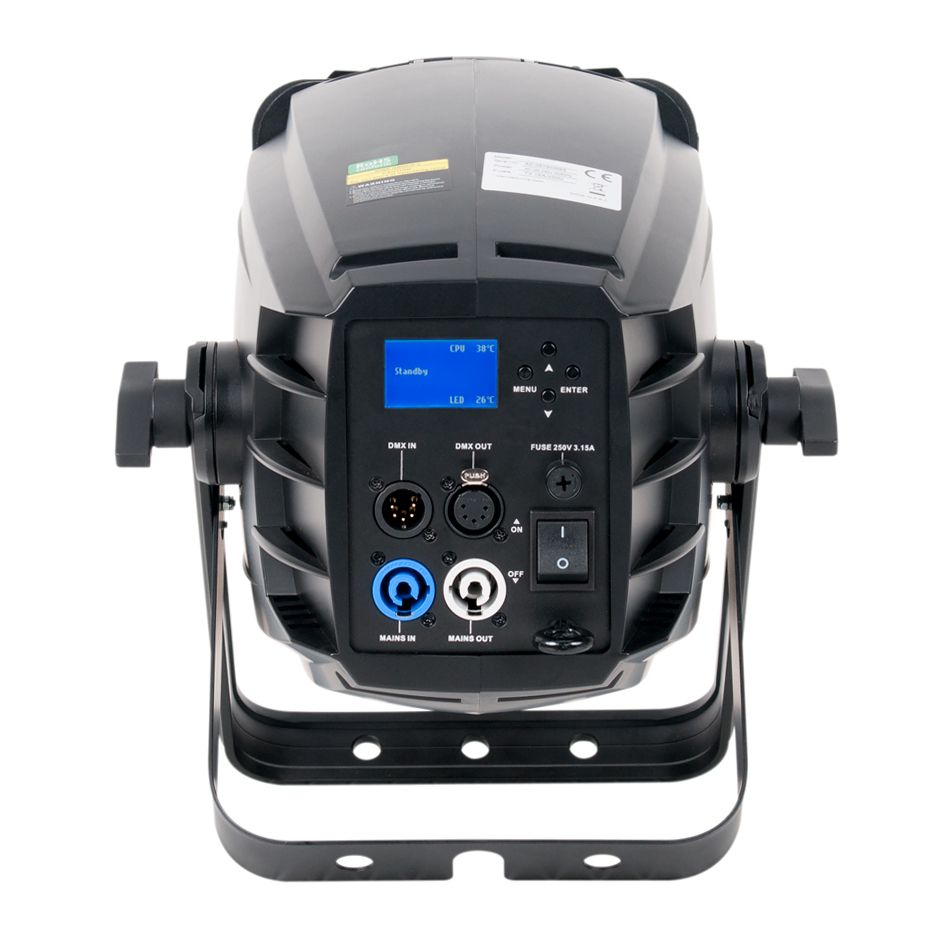

4 Button Touch Control Panel
180° Reversible LCD Menu Display
5pin DMX In/Out
Locking Power cable In/Out


SIZE / WEIGHT

Length: 16.7” (425mm)
Width: 14.3” (364mm)
Vertical Height: 16.5” (419mm)
Weight: 13.0 lbs. (5,9 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
170W Max Power Consumption
Multiple Units Power Linkable
5F to 113°F (-15°C to 45°C)


INCLUDED ITEMS

Barn Doors


FIRMWARE UPDATES

Current firmware can be found here (login required)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


Specifications and documentation subject to change without notice
